3M DBI-SALA EZ-Line 7605060 Udtrækkeligt Horisontalt Livlinesystem: Brugsanvisning

1. Introduction and System Overview

The 3M DBI-SALA EZ-Line 7605060 is a retractable horizontal lifeline system designed for fall protection in industrial and occupational environments. This system provides mobility and safety for workers operating in horizontal planes where continuous access to suitable anchorage points may not be available. Its retractable design facilitates quick setup, removal, and storage.

This manual provides essential information for the proper installation, operation, and maintenance of the EZ-Line system. Adherence to these instructions, along with all applicable health and safety regulations (e.g., U.S. OSHA, ANSI), is critical for user safety.

Figure 1: The 3M DBI-SALA EZ-Line 7605060 Retractable Horizontal Lifeline System.

2. Nøglefunktioner

• 60 ft. (18.3 m) Retractable System: Can be set at any desired length.
• Rugged Galvanized Cable: Features a 1/4" (6.3mm) 7x19 galvanized cable lifeline for durability.
• Ergonomisk design: Includes an easy-to-carry case for portability.
• Let og bærbar: Designed for ease of transport and handling.
• Integrated Indicators: Built-in winch, pre-tension indicator, and impact indicators for enhanced safety and monitoring.
• OSHA-overholdelse: Meets OSHA 1910.140 and 1926.502 requirements.
• Internal Energy Absorber: Limits fall arrest forces.

Figure 2: System specifications highlighting the 60 ft. length and 1/4" galvanized cable lifeline.

Figur 3: Nærbillede view of the EZ-Line system, indicating the built-in winch, pre-tension, and impact indicators.

3. Opsætningsvejledning

The EZ-Line system is designed for rapid deployment. Proper setup is crucial for ensuring effective fall protection. Always consult the detailed instructions provided with the product packaging for specific installation steps and safety warnings.

3.1 General Setup Guidelines

1. Ankerpunkter: Identify and verify suitable anchor points capable of withstanding the forces generated during a fall. Anchor points must meet regulatory requirements and manufacturer specifications.
2. Systemplacering: Position the EZ-Line system between the chosen anchor points. The retractable design allows for quick extension of the lifeline.
3. Spænding: Utilize the built-in winch to apply the correct tension to the lifeline. The pre-tension indicator will assist in achieving the appropriate tension level. Refer to the product labeling for specific tensioning requirements.
4. Forbindelse: Connect the system securely to both anchor points using appropriate connectors. Ensure all connections are properly engaged and locked.
5. Inspektion: Before each use, thoroughly inspect the entire system, including the cable, housing, connectors, and indicators, for any signs of damage, wear, or malfunction.

Figure 4: A worker connected to a horizontal lifeline system, demonstrating proper usage in a work environment.

Figure 5: The EZ-Line system deployed on a job site, illustrating its durable construction suitable for demanding environments.

4. Betjeningsvejledning

Once the EZ-Line system is correctly installed and inspected, users can connect their personal fall arrest system (PFAS) to the lifeline. Always ensure that the PFAS components (harness, lanyard, connector) are compatible with the horizontal lifeline system and meet all applicable safety standards.

4.1 Connecting to the Lifeline

1. Seletøj: Wear a properly fitted full-body harness.
2. Lanyard/SRL: Connect a suitable energy-absorbing lanyard or self-retracting lifeline (SRL) to the dorsal D-ring of the harness.
3. Lifeline Connection: Attach the other end of the lanyard or SRL to the EZ-Line horizontal lifeline. Ensure the connection is secure and the gate is fully closed and locked.
4. Oprethold frihøjde: Always be aware of the required fall clearance below the work area to prevent striking a lower level or obstruction in the event of a fall.

The system's internal energy absorber is designed to limit fall arrest forces, reducing the impact on the worker and the anchor points.

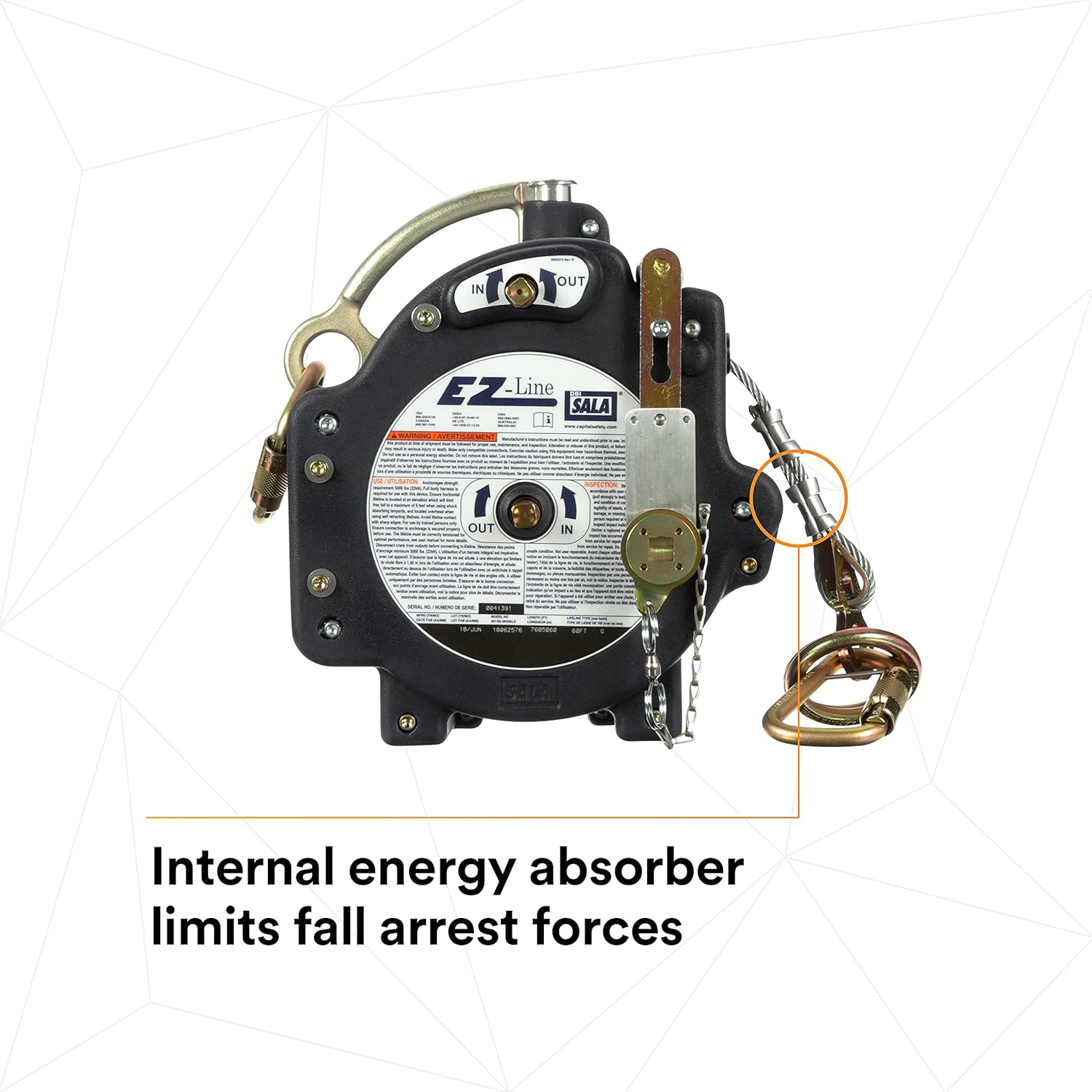

Figure 6: The EZ-Line system featuring its internal energy absorber, which helps to limit fall arrest forces.

5. Vedligeholdelse og opbevaring

Regular maintenance and proper storage are essential to ensure the longevity and reliability of the EZ-Line system.

5.1 Eftersyn

Before each use, a competent person must inspect the entire system. This includes:

• Checking the galvanized cable for frays, kinks, corrosion, or broken strands.
• Examining the housing for cracks, deformation, or damage.
• Verifying the proper function of the winch and tensioning mechanism.
• Inspecting all connectors for proper operation, corrosion, or damage.
• Checking the impact indicators for activation, which would signify a fall event. If an impact indicator is activated, the system must be immediately removed from service.

5.2 Rengøring og opbevaring

Clean the system with mild soap and water, then rinse thoroughly and allow it to air dry completely. Store the EZ-Line system in its easy-to-carry case in a cool, dry place, away from direct sunlight, chemicals, and corrosive environments. Protect it from mechanical damage.

6. Fejlfinding

If any issues arise with the EZ-Line system, follow these general guidelines:

• System Not Tensioning Properly: Ensure the cable is free of obstructions and correctly routed. Verify the winch mechanism is functioning.
• Synlig skade: If any component shows signs of damage, wear, or corrosion during inspection, immediately remove the system from service.
• Impact Indicator Activated: If the impact indicator has been activated, the system has experienced a fall and must be removed from service and inspected by a qualified person or the manufacturer.

For any concerns or malfunctions that cannot be resolved through basic inspection, contact a qualified safety professional or the manufacturer for assistance. Do not attempt to repair the system yourself.

7. Specifikationer

8. Vigtige sikkerhedsoplysninger

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. These products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature).

All products must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and limitations. Misuse of 3M industrial and occupational products may result in injury, sickness, or death. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

9. Produktvideo

Følgende video giver et overblikview of self-retracting lifelines (SRLs) from Protecta, a brand under Capital Safety (part of 3M). While the video title matches the EZ-Line system, the visual content primarily features SRLs. It demonstrates general features such as capacity, swivel hooks, and impact indicators, which are common to various fall protection systems.

10. Garanti og support

For warranty information, technical assistance, or customer service, please refer to the official 3M or Capital Safety documentation provided with your product. You may also contact Capital Safety directly:

• USA: 1-800-328-6146
• Canada: 1-800-387-7484
• Webwebsted: www.capitalsafety.com
