1. Vigtige sikkerhedsoplysninger
Please read this entire manual carefully before assembling and using the Zipro Burn Gold Elliptical Trainer. Keep this manual for future reference.
- Kontakt din læge, før du starter et træningsprogram.
- Dette udstyr er kun designet til hjemmebrug.
- The maximum user weight for this elliptical trainer is 120 kg (264 lbs).
- Place the elliptical trainer on a flat, stable surface. Ensure adequate clearance around the equipment.
- Hold børn og kæledyr væk fra udstyret under brug.
- Undersøg udstyret for løse eller slidte dele før hver brug. Må ikke anvendes, hvis det er beskadiget.
- Brug passende træningstøj og fodtøj.
- Stop med at træne med det samme, hvis du føler dig svimmel, føler dig svag eller oplever smerter.
2. Produktet er slutview
The Zipro Burn Gold Elliptical Trainer is designed for effective home workouts, engaging multiple muscle groups including legs, glutes, abdomen, chest, back, arms, and forearms. It helps sculpt your physique and supports weight management by providing a comprehensive cardiovascular workout.
Figure 2.1: The Zipro Burn Gold Magnetic Elliptical Trainer, showcasing dens elegante sorte og guldfarvede design.
Nøglefunktioner:
- 8-Step Magnetic Resistance: Allows for varied workout intensity.
- Multi-function Console: Displays time, calories, speed, and pulse.
- Mobil enhedsholder: Conveniently holds your smartphone or tablet.
- Vandflaskeholder: Keeps hydration within reach.
- Transporthjul: For easy relocation of the equipment.
- Skridsikre pedaler: Ensures stability and safety during exercise.
- Adjustable Stabilizer Feet: For perfect leveling on uneven surfaces.
Figure 2.2: Overall dimensions of the elliptical trainer: 117 cm (length) x 65 cm (width) x 150 cm (height).
Figure 2.3: Key features highlighted: Pulse sensors, mobile device stand, 8-step magnetic resistance, and comfortable non-slip pedals.
Figure 2.4: Close-up of the convenient water bottle holder and the resistance adjustment knob.
Figure 2.5: Detail of the wide, non-slip pedal surface designed for secure footing during workouts.
Figure 2.6: The adjustable feet at the base of the elliptical trainer, allowing for perfect leveling on various floor types.
3. Opsætning og montering
The Zipro Burn Gold Elliptical Trainer requires assembly. Please follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all parts are present and undamaged before beginning assembly.
- Pak alle komponenter ud, og læg dem ud på et åbent område.
- Identify all parts using the parts list in the assembly guide.
- Følg trin-for-trin-diagrammerne og instruktionerne omhyggeligt.
- Ensure all bolts and nuts are securely tightened after assembly.
Figur 3.1: En samlet view of the elliptical trainer, demonstrating its full structure.
4. Betjeningsvejledning
4.1 Justering af modstand
The elliptical trainer features an 8-step magnetic resistance system. To adjust the intensity of your workout, turn the resistance knob located on the main column of the trainer. Turn clockwise to increase resistance (levels 7-8 for hard workouts) and counter-clockwise to decrease resistance (levels 1-3 for easy workouts).
Figure 4.1: The resistance knob with settings from 1 to 8, indicating easy, medium, and hard workout levels.
4.2 Using the Console
The integrated console provides real-time feedback on your workout. It displays Time, Calories burned, Speed, and Pulse (heart rate) when holding the pulse sensors on the handlebars.
Figure 4.2: The digital console displaying workout metrics such as time, calories, speed, and pulse.
- MODE knap: Press to cycle through different display modes (Time, Speed, Distance, Calories, Pulse).
- Genstarts knap: Press and hold to clear all current workout data.
- SET -knap: Used for setting target values (e.g., target time, distance, calories) if supported by the console model.
- Pulssensorer: Grip the metal plates on the stationary handlebars to measure your heart rate.
4.3 Mobile Device Stand
The elliptical trainer includes a convenient stand for your smartphone or tablet, allowing you to enjoy media or follow workout apps during your exercise session.
Figure 4.3: A smartphone securely placed in the integrated mobile device stand.

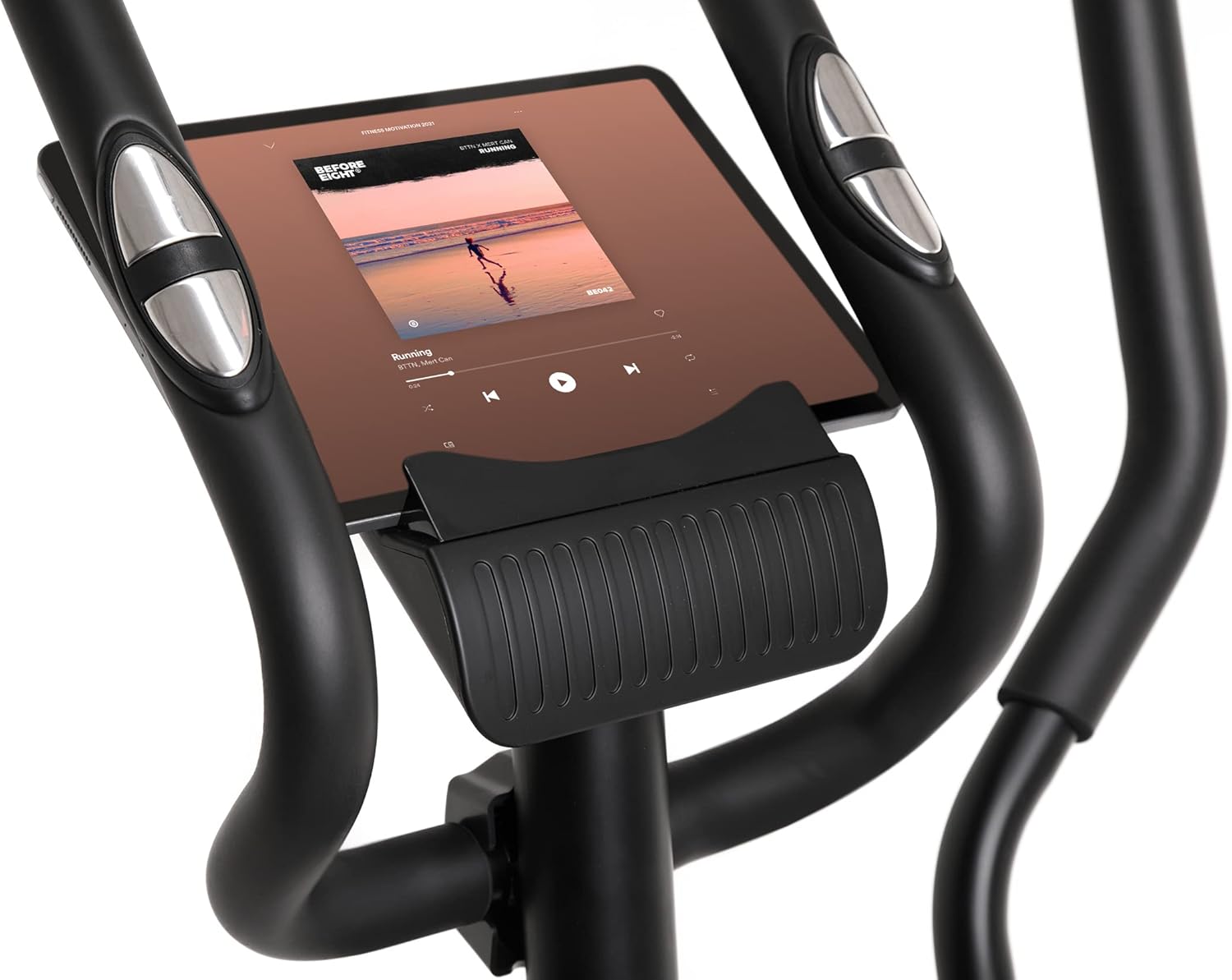

Figure 4.4: A tablet positioned on the mobile device stand, providing entertainment or workout guidance.
4.4 Product in Use
Se denne video for en generel oversigtview of Zipro fitness equipment in use, demonstrating various exercises and product features.
Video 4.1: En reklamevideoasing various Zipro fitness products, including elliptical trainers, in active use.
5. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din elliptiske træner's lange levetid og optimale ydeevne.
- Rensning: Tør udstyret af med reklameamp en klud efter hver brug for at fjerne sved og støv. Undgå slibende rengøringsmidler.
- Inspektion: Kontrollér regelmæssigt alle møtrikker, bolte og bevægelige dele for fastgørelse. Spænd eventuelle løse fastgørelseselementer.
- Smøring: Apply a silicone-based lubricant to any moving joints or pivot points if you notice squeaking or friction. Refer to the assembly guide for specific lubrication points.
- Opbevaring: Opbevar crosstraineren et tørt, køligt sted væk fra direkte sollys og ekstreme temperaturer.
6. Fejlfinding
If you encounter any issues with your Zipro Burn Gold Elliptical Trainer, refer to the table below for common problems and their solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Knirkende lyd under brug | Loose bolts or lack of lubrication. | Check and tighten all bolts. Apply silicone lubricant to moving joints. |
| Konsollen viser ikke data | Batteries are low or incorrectly installed. Loose sensor connection. | Replace batteries. Ensure batteries are installed correctly. Check all cable connections to the console. |
| Modstanden ændrer sig ikke | Resistance cable is loose or disconnected. | Inspect the resistance cable connection to the knob and the flywheel mechanism. Reconnect if loose. |
| Ustabil under brug | Equipment not leveled. | Adjust the stabilizer feet at the base of the trainer until it is stable. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | Burn Gold |
| Modelnummer | 5944585 |
| Mærke | ZIPRO |
| Dimensioner (L x B x H) | 117 cm x 65 cm x 150 cm (46.1 tommer x 25.6 tommer x 59.1 tommer) |
| Produktets vægt | 30.5 kg (67.2 lbs) |
| Maksimal brugervægt | 120 kg (264 lbs) |
| Modstandsmekanisme | Magnetisk |
| Antal modstandsniveauer | 8 |
| Hovedmateriale | Aluminium, polyethylen, metal |
| Farve | Sort/guld |
| Batterier medfølger | Ja |
8. Garanti og support
Your Zipro Burn Gold Elliptical Trainer comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For technical support, replacement parts, or any inquiries, please contact Zipro customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage.
Bemærk: Gem din købskvittering som købsbevis i tilfælde af garantikrav.
