Indledning
The ZIPRO Climber Magnetic Elliptical Bike (Model 5942608) is a versatile fitness machine designed to provide an effective full-body workout. It uniquely combines the motion of a stepper with that of an elliptical bike, engaging muscles in the lower body, including glutes, thighs, and calves, as well as the abdominal muscles. The magnetic resistance system allows for precise adjustment of workout intensity to match your fitness level and training goals.
This manual provides essential information for the safe and efficient use of your new fitness equipment, including assembly, operation, maintenance, and troubleshooting.
Billede: Forside view of the Zipro Climber Magnetic Elliptical Bike, showcasing its compact design and black and green color scheme.
Sikkerhedsoplysninger
Before using the ZIPRO Climber, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the equipment.
- Consult your physician before starting any new exercise program.
- Hold børn og kæledyr væk fra udstyret under brug.
- Place the equipment on a flat, stable surface. Ensure adequate space around the machine for safe operation.
- Undersøg udstyret for løse eller beskadigede dele før hver brug. Brug det ikke, hvis nogen af komponenterne er beskadiget.
- Brug passende sportsfodtøj og -sko.
- Overskrid ikke den maksimale brugervægtkapacitet på 120 kg (264 lbs).
- Stop med at træne med det samme, hvis du føler dig svimmel, føler dig svag eller oplever smerter.
Opsætning og montering
The ZIPRO Climber requires some assembly. Please refer to the included assembly manual for detailed, step-by-step instructions. Ensure all components listed in the packaging are present before beginning assembly.
Valg af placering
Select a suitable location for your elliptical bike. Consider the dimensions of the unit to ensure proper clearance for movement and safety. The elliptical bike measures approximately 93 cm (Length) x 64 cm (Width) x 158 cm (Height).
Image: The Zipro Climber Elliptical Bike shown in a room setting with its approximate dimensions (158 cm height, 93 cm length, 64 cm width) clearly marked, aiding in space planning.
Stabilisering
Once assembled, ensure the elliptical bike is stable. The base features adjustable feet to compensate for uneven floor surfaces. Adjust these feet until the machine is level and does not rock during use.
Billede: En detaljeret view of the base of the Zipro Climber, highlighting the stabilizing feet and transport wheels for easy relocation.
Betjeningsvejledning
Modstandsjustering
The ZIPRO Climber features an 8-step magnetic resistance system. To adjust the workout intensity, turn the tension control knob located below the console. Turning the knob clockwise increases resistance, making the workout more challenging, while turning it counter-clockwise decreases resistance.
Image: A close-up of the resistance adjustment dial on the Zipro Climber, showing the 8 levels of magnetic resistance from low to high.
Konsol funktioner
The integrated computer console displays key workout metrics to help you monitor your progress. These metrics typically include:
- TID: Varigheden af din træning.
- KALORIER: Estimated calories burned during the session.
- HASTIGHED: Aktuel træningshastighed.
- PULS: Your heart rate, measured by the pulse sensors on the handlebars.
To activate the console, simply begin pedaling. The display will automatically turn on. Use the button on the console to cycle through different display modes or reset values.
Billede: En detaljeret view of the Zipro Climber's digital console, showing the display screen and the pulse sensors integrated into the handlebars, along with icons for time, calories, speed, and pulse.
Yderligere funktioner
- Holder til mobilenhed: A dedicated stand is provided on the console to securely hold your smartphone or tablet, allowing you to enjoy media or use fitness apps during your workout.
- Flaskeholder: A convenient bottle holder is integrated into the front column of the elliptical bike, ensuring you can stay hydrated throughout your exercise session.

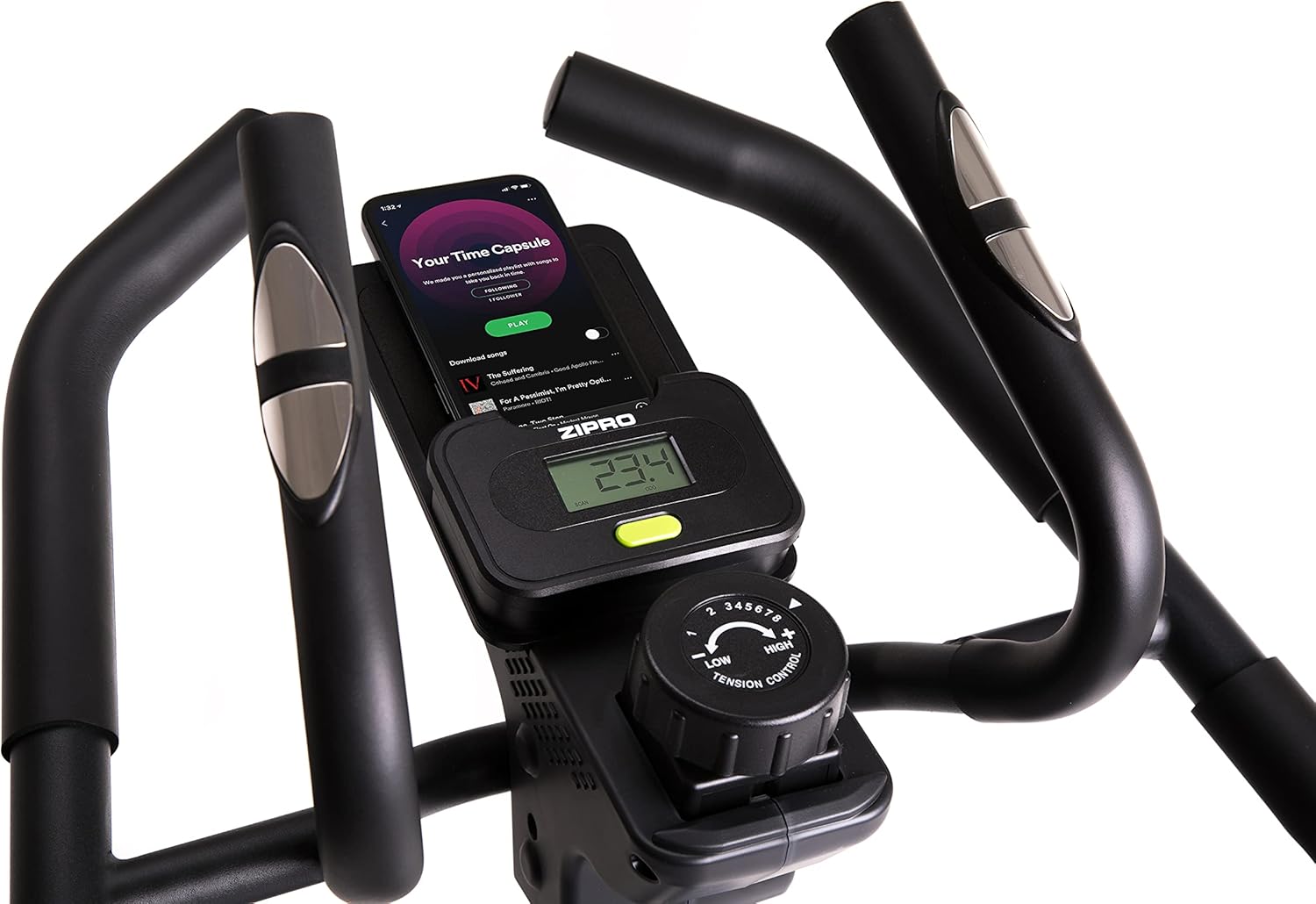

Image: A close-up of the mobile device holder positioned above the console of the Zipro Climber, with a smartphone placed in it, demonstrating its utility during exercise.

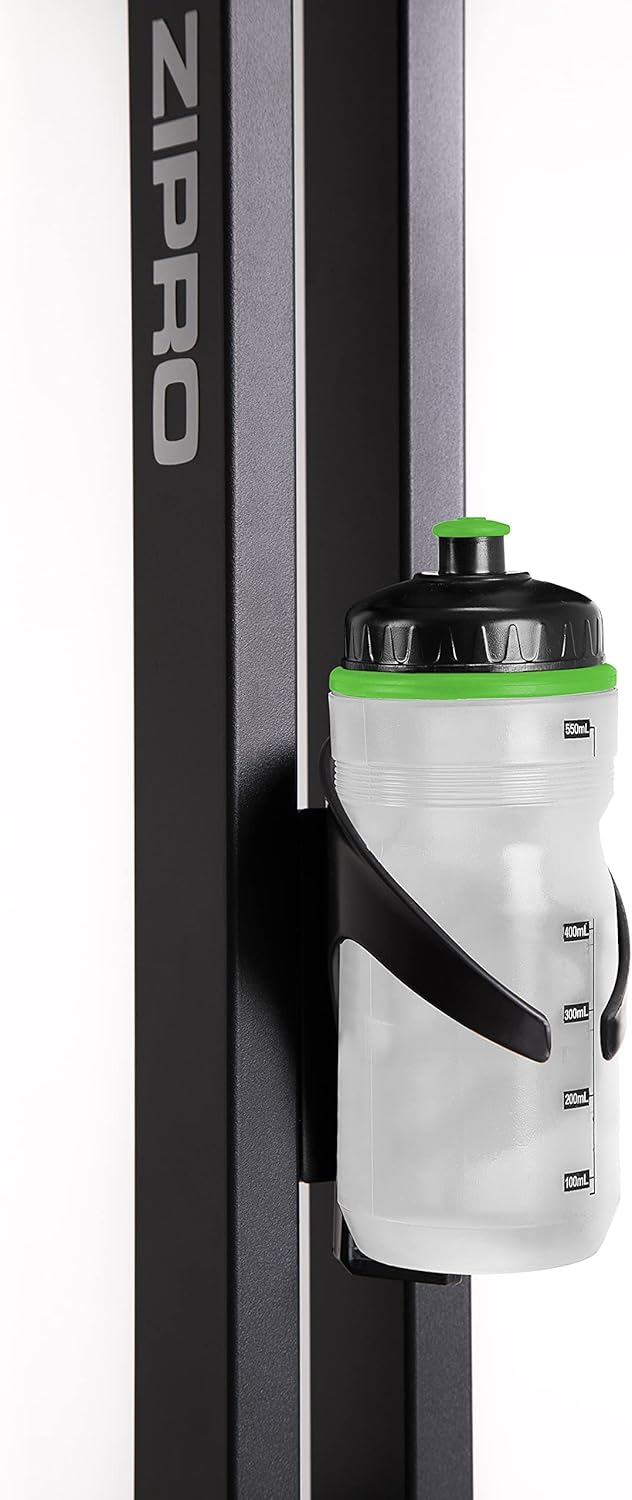

Billede: En detaljeret view of the water bottle holder attached to the main upright post of the Zipro Climber, showing a water bottle in place.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your ZIPRO Climber.
- Rensning: Tør udstyret af med reklameamp en klud efter hver brug for at fjerne sved og støv. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Kontrollér regelmæssigt alle bolte, møtrikker og bevægelige dele for fastgørelse. Spænd eventuelle løse fastgørelseselementer.
- Smøring: The magnetic resistance system is generally maintenance-free. Refer to the assembly manual for any specific lubrication requirements for moving joints.
- Opbevaring: Store the elliptical bike in a dry, cool place away from direct sunlight and extreme temperatures.
Fejlfinding
This section addresses common issues you might encounter with your ZIPRO Climber.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Konsollen viser ikke data | Batterierne er lave eller forkert installeret. | Replace batteries (if applicable) or ensure they are correctly inserted. |
| Modstanden ændrer sig ikke | Resistance cable or mechanism is loose or damaged. | Check the connection of the resistance cable to the tension knob and the magnetic mechanism. Consult the assembly manual for adjustment. |
| Knirkende eller skurrende lyd | Loose bolts or parts, lack of lubrication on moving joints. | Tighten all visible bolts and nuts. Apply lubricant to moving joints as specified in the assembly manual. |
| Unstable or wobbly during use | Uneven floor surface or loose stabilizer caps. | Adjust the leveling feet on the base until the machine is stable. Ensure all stabilizer caps are securely in place. |
Specifikationer
Below are the technical specifications for the ZIPRO Climber Magnetic Elliptical Bike (Model 5942608):
- Modelnavn: Klatrer
- Modelnummer: 5942608
- Farve: Sort og Grøn
- Materiale: Aluminum, Polyethylene, Metal
- Modstandsmekanisme: Magnetisk
- Antal modstandsniveauer: 8
- Maksimal vægtkapacitet: 120 kilo (264 lbs)
- Recommended Maximum User Height: 190 Centimeters (6 feet 3 inches)
- Produktmål (L x B x H): 93 x 64 x 158 cm (36.6 x 25.2 x 62.2 tommer)
- Varens vægt: 35 kilo (77 lbs)
- Strømtype: Battery Powered (Batteries included)
- Komponenter inkluderet: 1 x Zipro Elliptical Bike, 1 x User Manual
- Fabrikant: Morele.net Sp. Zoo
- ASIN: B005QOO0GU
- Languages for Manual: German, English, Spanish, French, Italian
Garanti og support
For information regarding warranty coverage and customer support, please refer to the documentation included with your product or contact ZIPRO customer service directly. Keep your proof of purchase for any warranty claims.
