Craftsman 139.53753 Garageport fjernbetjening brugsanvisning

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your Craftsman 139.53753 Garage Door Remote Control. This remote is designed for use with specific garage door openers.

1.1 Kompatibilitet

The Craftsman 139.53753 remote control is compatible with Craftsman, Liftmaster, Do-It, Master-Mechanic, Raynor, and Chamberlain garage door openers that utilize Security+ ERT technology, manufactured in 2005 or later. Key indicators for compatibility include:

• Your garage door opener has a LILLA program/learn button on the back or side of the powerhead.
• Your garage door opener has a LILLA antenna wire.
• Your original remote control has SORT knapper.
• Your original remote control or opener indicates "315 MHz" frequency.

Vigtig: This remote is not compatible with systems using other types of coding or different learn button colors (e.g., red, orange, green, yellow).

2. Sikkerhedsoplysninger

Please read and understand all safety warnings before operating your garage door opener and remote control. Improper use can result in serious injury or property damage.

• Hold fjernbetjeninger uden for børns rækkevidde.
• Betjen kun garageporten, når den er fuldt aktiveret view, free of obstructions, and the opener is properly adjusted.
• Do not allow children to play with the garage door opener or remote control.
• Test the safety reversal system of your garage door opener monthly.
• Bortskaf batterier korrekt i henhold til lokale regler.

3. Pakkens indhold

Din pakke skal indeholde følgende varer:

• Craftsman 139.53753 Garage Door Remote Control
• Visor Clip
• CR2 litiumbatteri (forinstalleret eller separat)

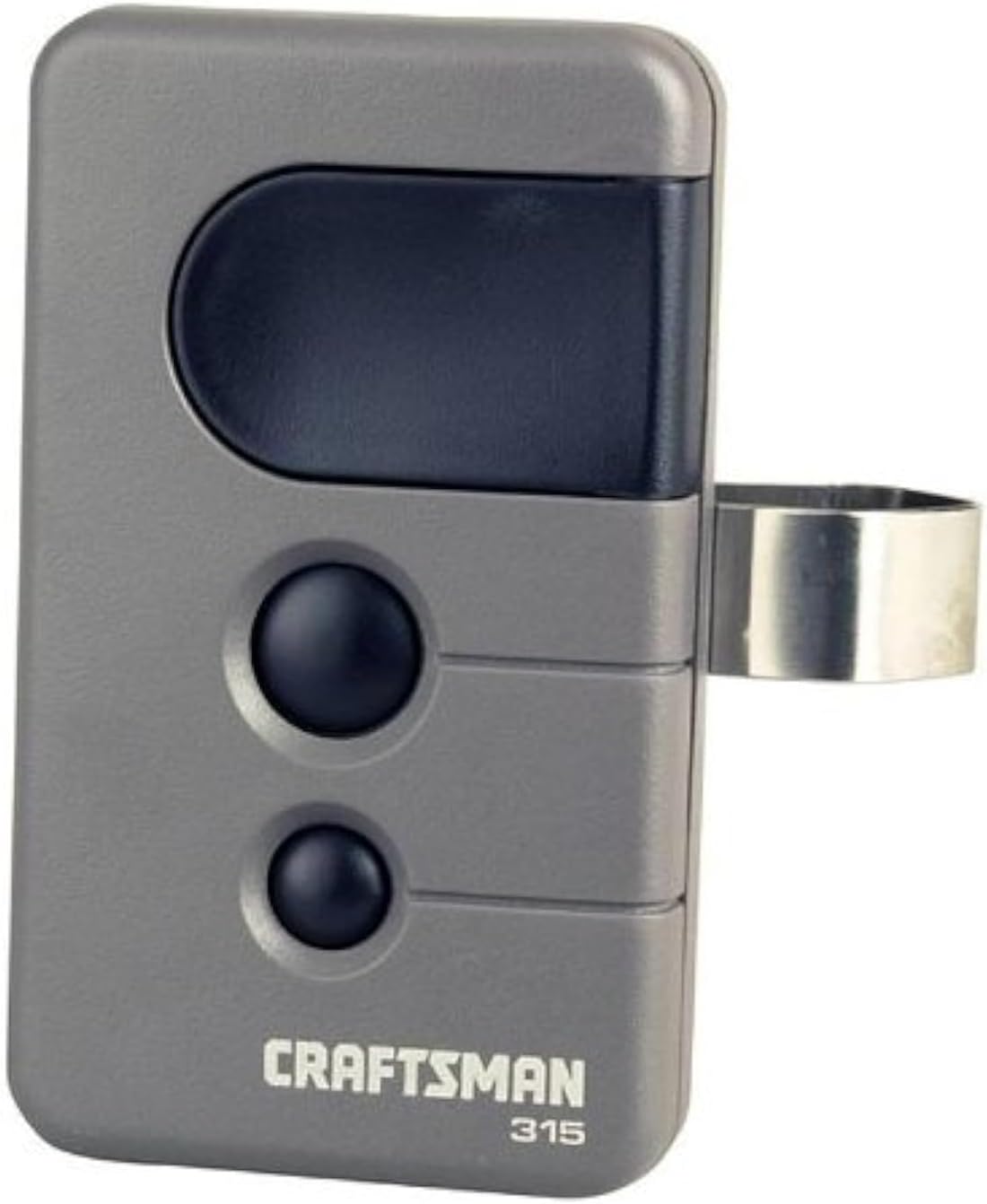

Image of the Craftsman 139.53753 garage door remote control. It is grey with a large black button at the top and two smaller black buttons below it. A metal clip is attached to the side for visor mounting. The brand 'CRAFTSMAN' and '315' are printed on the bottom front.

4. Opsætning og programmering

Follow these steps to program your Craftsman 139.53753 remote control to your compatible garage door opener. Ensure you have access to your garage door opener's motor unit.

1. Find Lær-knappen: On your garage door opener's motor unit, locate the LILLA learn button. This button is typically found on the back or side panel of the motor unit.
2. Aktivér læringstilstand: Tryk på og slip straks LILLA learn button. The learn indicator light on the opener will illuminate steadily for 30 seconds, indicating it is in programming mode.
3. Program the Remote: Within 30 seconds of activating the learn mode, press and hold the desired button on your new Craftsman remote control.
4. Bekræft programmering: Continue holding the remote button until the garage door opener's light flashes or you hear two clicks. This indicates that the remote has been successfully programmed.
5. Udløser knap: Release the button on the remote control.
6. Test drift: Press the programmed button on your remote control to test its operation. The garage door should activate.

If you are programming multiple garage doors, repeat these steps for each door, using a different button on the remote for each opener.

5. Betjening af fjernbetjeningen

Your Craftsman 139.53753 remote control is designed for simple operation.

• Åbning/lukning af garageporten: Press the programmed button on the remote control once to activate your garage door opener. The door will begin to open or close. Pressing the button again during operation will stop the door. Pressing it a third time will reverse its direction.
• Flere døre: If you have programmed multiple garage doors to different buttons on your remote, simply press the corresponding button for the desired door.
• Security+ 3-Function: This remote transmits a new security code each time a button is pressed, enhancing security.

6. Vedligeholdelse

6.1 Udskiftning af batteri

The remote control uses one CR2 Lithium battery. When the remote's range decreases or the indicator light on the remote dims, it is time to replace the battery.

1. Open the Remote Casing: Åbn forsigtigt fjernbetjeningen casing. This usually involves prying it open with a small flat-head screwdriver at a designated notch.
2. Fjern det gamle batteri: Remove the old CR2 Lithium battery.
3. Isæt nyt batteri: Insert a new CR2 Lithium battery, ensuring the positive (+) terminal is facing the correct direction as indicated inside the battery compartment.
4. Luk Casing: Snap the remote control casing forsvarligt sammen igen.
5. Test fjernbetjening: Test the remote control to ensure it is functioning correctly.

Note: Bortskaf gamle batterier ansvarligt i henhold til lokale regler.

7. Fejlfinding

If your remote control is not functioning as expected, refer to the following common issues and solutions:

8. Specifikationer

• Modelnummer: 139.53753
• Mærke: HÅNDVÆRKER
• Frekvens: 315 MHz
• Kompatibilitet: Garage door openers with PURPLE learn button (Security+ ERT technology, 2005+)
• Antal knapper: 3 (for up to three garage doors)
• Sikkerhedsfunktioner: Security+ 3-Function (transmits a new security code every time)
• Batteritype: 1 x CR2 Lithium (not included, but often pre-installed)
• Varens vægt: Cirka 2.4 ounce
• Dimensioner: Cirka 5.5 x 2.8 x 1 cm (pakkemål)
• Farve: Sort, Grå

9. Garanti og support

For warranty information or technical support regarding your Craftsman 139.53753 Garage Door Remote Control, please refer to the documentation provided with your purchase or contact Craftsman customer service directly. Contact details can typically be found on the official Craftsman webwebstedet eller på din produktemballage.

For yderligere ressourcer kan du besøge CRAFTSMAN Butik på Amazon.
