1. Introduktion

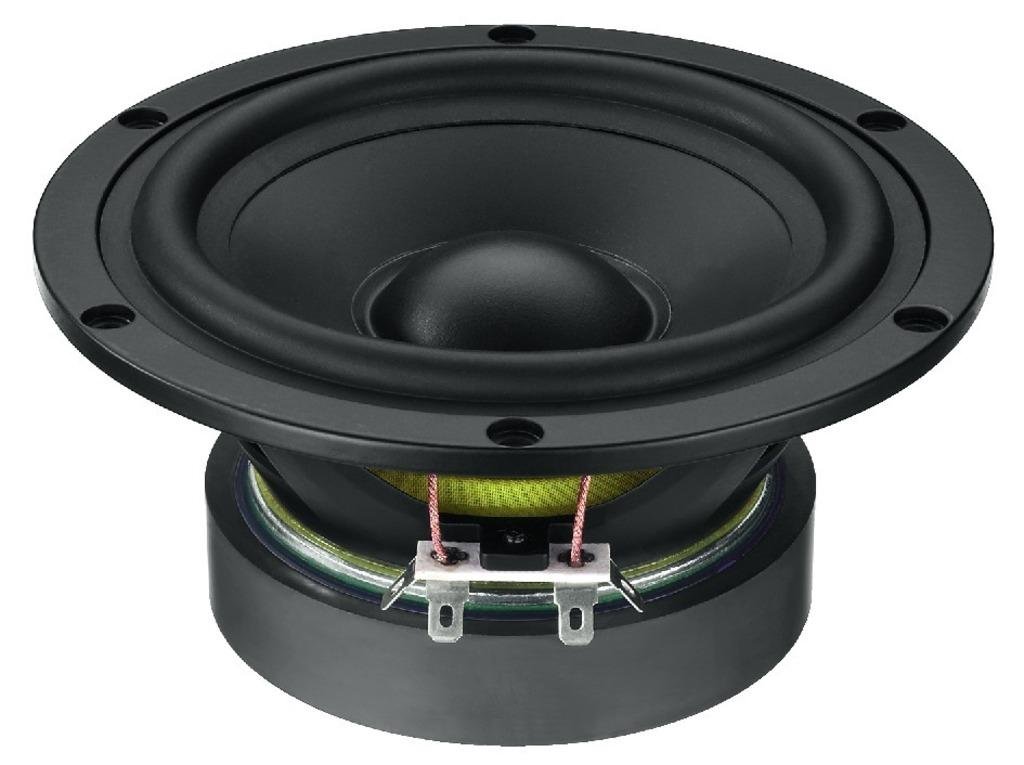

The Monacor SPH-5M is a high-quality Hi-Fi bass-midrange speaker designed for exceptional audio reproduction. It features a robust construction and advanced acoustic properties, making it suitable for various speaker system designs.
Nøglefunktioner:
- High-quality bass-midrange speaker designed for long excursion.
- Damped, low-resonance polypropylene cone for clear sound.
- Robust die-cast aluminum basket with an attractive design and 6-hole screw connection.
- Magnetic system with a drilled pole core and extended rear plate for optimized performance.
- Versatile for compact bass-reflex, TML, and closed speaker systems.
- Also suitable as a midrange speaker in 3-way speaker systems.
2. Opsætning og installation
Proper installation is crucial for optimal performance and longevity of your SPH-5M speaker. Follow these guidelines:
- Indkapslingsdesign: The SPH-5M is designed for compact bass-reflex, TML (Transmission Line), and closed speaker enclosures. Ensure your enclosure design is appropriate for the speaker's parameters to achieve desired acoustic results.
- Montering: Secure the speaker firmly into the enclosure using the 6-hole screw connection points on the robust die-cast aluminum basket. Use appropriate screws that do not overtighten or damage the basket.
- Ledningsføring: Connect the speaker terminals to your amplifier or crossover network. Ensure correct polarity (+ to + and - to -) to avoid phase issues that can degrade sound quality. The speaker has an impedance of 8 Ohms.
- AmpLifier-matchning: Brug en amplifier capable of delivering sufficient power (up to 40 WRMS continuous, 80 WMAX peak) into an 8 Ohm load. Avoid underpowering or overpowering the speaker, as both can lead to damage.
3. Betjening
To ensure the best performance and extend the life of your Monacor SPH-5M speaker, observe the following operational guidelines:
- Første indbrud: Allow a break-in period of several hours of moderate listening before operating the speaker at high volumes. This allows the cone and surround materials to loosen and perform optimally.
- Lydstyrkeniveauer: Operate the speaker within its specified power handling limits (40 WRMS / 80 WMAX). Avoid prolonged listening at excessively high volumes that cause audible distortion, as this can damage the voice coil.
- Crossover-indstillinger: If using a crossover, ensure it is correctly configured for the SPH-5M's frequency response characteristics to prevent sending inappropriate frequencies to the driver.
4. Vedligeholdelse
The Monacor SPH-5M speaker requires minimal maintenance to ensure long-term performance:
- Rensning: Gently wipe the cone and frame with a soft, dry cloth to remove dust. Avoid using harsh chemicals or excessive moisture.
- Miljøforhold: Keep the speaker in a stable environment, away from direct sunlight, extreme temperatures, and high humidity.
- Inspektion: Periodically inspect the cone, surround, and dust cap for any signs of damage or wear.
5. Fejlfinding
If you encounter issues with your SPH-5M speaker, consider the following common troubleshooting steps:
- Ingen lyd:
- Kontroller alle ledningsforbindelser fra amplifier to the speaker for secure contact and correct polarity.
- Bekræft, at ampkøleren er tændt og fungerer korrekt.
- Sørg for, at lydkilden er aktiv og sender et signal.
- Forvrænget lyd:
- Reduce the volume level; distortion often occurs when the amphøjttaleren eller overstyret.
- Check for loose connections or damaged speaker wires.
- Undersøg højttalerkeglen og surrounden for fysiske skader.
- Sørg for amplifier is not clipping (producing a distorted waveform).
- Weak Bass or Midrange:
- Confirm correct speaker polarity; reversed polarity can cause bass cancellation.
- Check crossover settings to ensure appropriate frequencies are being sent to the speaker.
- Verify the enclosure is sealed properly (for closed designs) or that ports are unobstructed (for bass-reflex designs).
If problems persist after performing these checks, contact a qualified audio technician or Monacor customer support for further assistance.
6. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Monacor |
| Modelnummer | 10.5530 |
| Power Handling (RMS) | 40 watt |
| Power Handling (Max) | 80 watt |
| Impedans | 8 Ohm |
| Forbindelsesteknologi | Hjælpeenhed (kablet) |
| Monteringstype | Table Mount (typically within an enclosure) |
| Højttaler type | Woofer / Bass-Midrange |
| Anbefalede anvendelser | For television (as part of a home audio system) |
| Produktmål (L x B x H) | 13 x 16 x 28 cm |
| Produktets vægt | 190.51 gram |
| Vandtæt | True (referring to cone material resistance) |
| Strømkilde | Electric Cable (via amplivligere) |
7. Garanti og support
For warranty information, technical support, or service inquiries regarding your Monacor SPH-5M speaker, please refer to the documentation provided at the time of purchase or contact your retailer. You may also visit the official Monacor webhjemmeside for kontaktoplysninger og yderligere ressourcer.
