1. Sikkerhedsoplysninger
Please read all instructions carefully before using your Bosch dishwasher. Keep this manual for future reference.
- Elektrisk sikkerhed: Sørg for, at opvaskemaskinen er korrekt jordforbundet. Brug ikke forlængerledninger. Afbryd strømmen før service.
- Vandsikkerhed: Connect to a potable water supply. Check for leaks after installation.
- Børnesikkerhed: Keep children away from the dishwasher, especially when it is operating or when the door is open. Use the Child Lock feature if available.
- Opvaskemiddel og afspændingsmiddel: Brug kun opvaskemidler og skyllemidler, der er specielt beregnet til automatiske opvaskemaskiner. Opbevar disse produkter utilgængeligt for børn.
- Indlæser: Placer skarpe genstande (knive, gafler) med håndtagene oppe for at forhindre skader. Overfyld ikke opvaskemaskinen.
- Varme overflader: The interior of the dishwasher can be hot after a wash cycle. Allow time for cooling before unloading.
2. Hvad er der i æsken
Ved udpakning skal du sikre dig, at alle komponenter er til stede:
- Bosch SHE3AR75UC Dishwasher Unit
- Brugermanual
- Installationsvejledning
- Bestikkurv
- Hoses and connectors (may be pre-attached or included separately)
3. Installation
Installation of the Bosch SHE3AR75UC dishwasher requires electrical, plumbing, and carpentry skills. It is highly recommended to have the appliance installed by a qualified professional to ensure proper function and safety.
3.1 Kontrol før installation
- Verify that the installation area meets the required dimensions (23.56"W x 22.56"D x 33.86"H).
- Ensure access to a dedicated 120V, 15A electrical circuit.
- Confirm hot water supply line and drain connection are accessible.
3.2 Generelle installationstrin (resumé)
- Forbered skabsåbningen.
- Tilslut vandforsyningsledningen.
- Connect the drain hose to the sink drain or garbage disposal.
- Tilslut strømforsyningen.
- Slide the dishwasher into the cabinet opening and secure it.
- Niveller apparatet.
- Test for lækager og korrekt funktion.
Refer to the detailed Installation Guide provided with your appliance for complete instructions.
4. Produktet er slutview
The Bosch SHE3AR75UC Ascenta Series Dishwasher is designed for efficient and quiet dishwashing. It features a stainless steel interior and a user-friendly control panel.
4.1 Eksteriør View
Figur 4.1: Forside view of the Bosch SHE3AR75UC Ascenta Series Dishwasher in stainless steel.
4.2 Kontrolpanel
The control panel is located on the top edge of the dishwasher door, providing easy access to all wash cycles and options.
Figur 4.2: Detaljeret view of the control panel, showing cycle selection and options.
- On/Off knap: Powers the dishwasher on or off.
- Cycle Select Buttons: Heavy Wash, Auto Wash, Normal Wash, Delicate Wash, Express Wash, Half Load.
- Valgknapper: Sanitize, Extra Shine, Delay Start.
- Vise: Shows remaining time, refill indicators (Rinse Aid, Salt).
- Start/Resume Button: Initiates or resumes a wash cycle.
4.3 Indvendig indretning
The dishwasher features two racks and a cutlery basket for flexible loading.

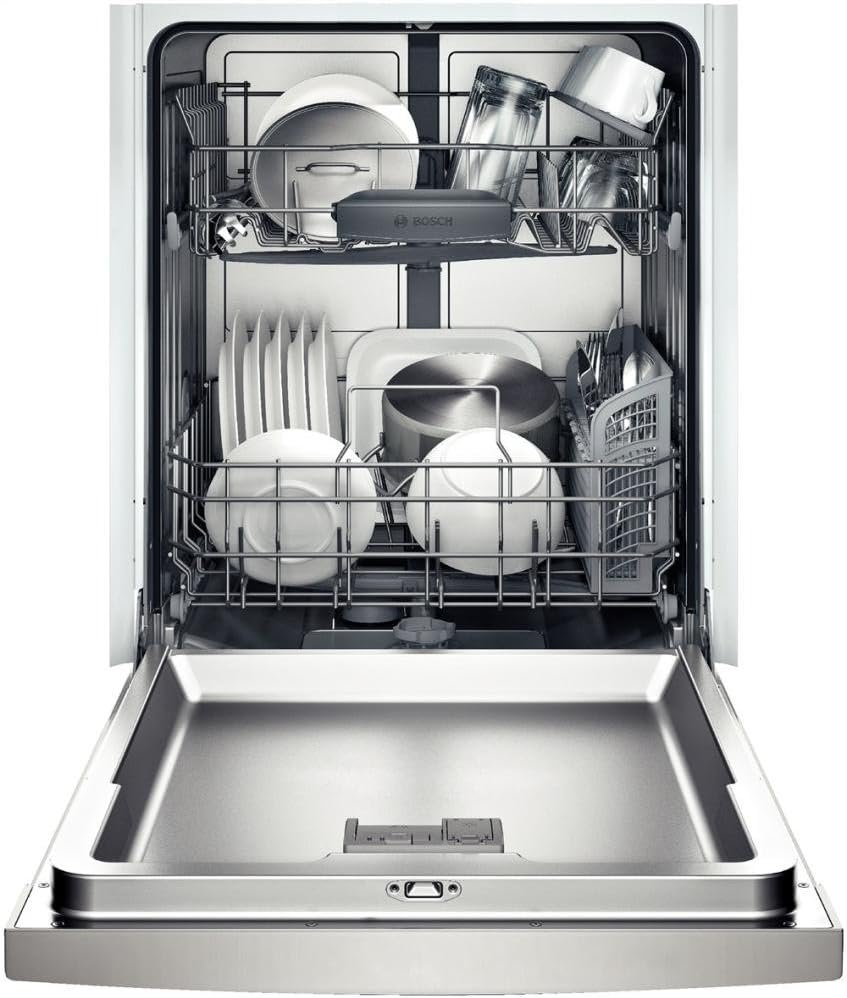

Figur 4.3: Interiør view showing the upper and lower racks, and the cutlery basket.
- Øvre stativ: Ideal for glasses, cups, and smaller bowls.
- Nederste stativ: Designed for plates, larger bowls, pots, and pans.
- Bestikkurv: For forks, spoons, and knives.
- Vaskemiddel dispenser: Located on the inner door panel.
- Dispenser til afspændingsmiddel: Located next to the detergent dispenser.
5. Initial Setup and Loading
5.1 Første brug
- Ensure the dishwasher is properly installed and connected to power and water.
- Fill the rinse aid dispenser (see section 6.2).
- Run an empty wash cycle (e.g., Normal Wash) without detergent to flush the system.
5.2 Indlæsning af tallerkener
Proper loading ensures optimal cleaning and drying performance.
Figur 5.1: Eksample of a properly loaded dishwasher with various items.
- Scrape off large food particles. Rinsing is generally not necessary.
- Place glasses, cups, and small bowls upside down in the upper rack.
- Load plates, larger bowls, pots, and pans in the lower rack, facing the center.
- Place cutlery in the cutlery basket with handles up for forks and spoons, and handles down for knives.
- Sørg for, at spulearmene kan rotere frit og ikke er blokeret af service.

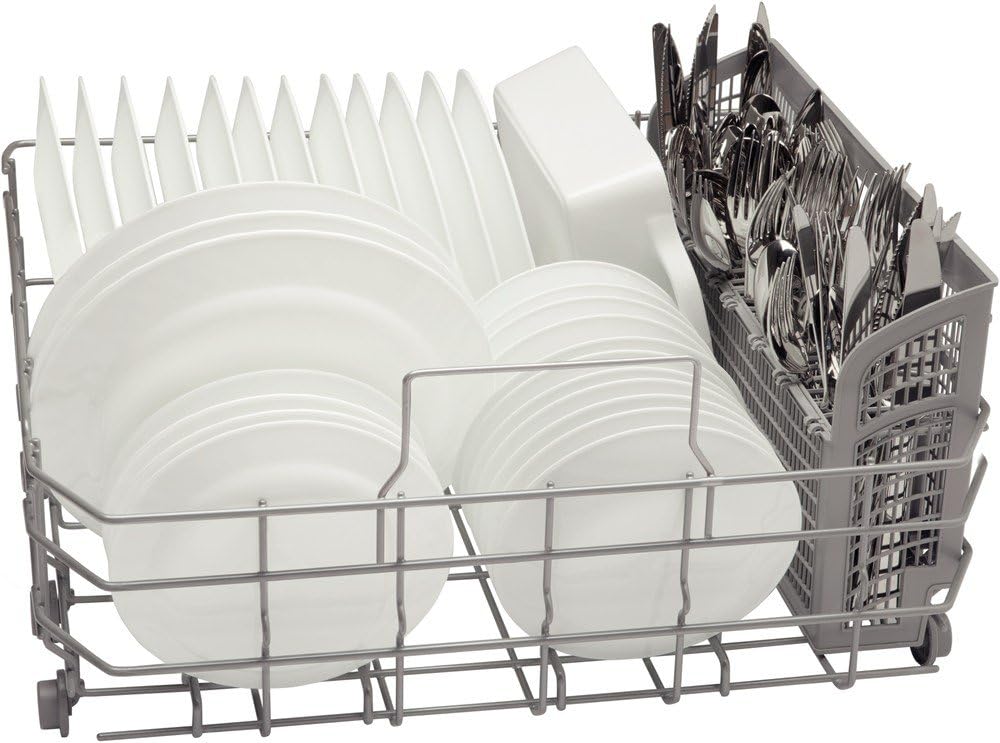

Figure 5.2: Close-up of the lower rack, demonstrating loading of plates and cutlery.
5.3 Tilsætning af vaskemiddel og skyllemiddel
- Vaskepulver: Open the detergent dispenser and add the recommended amount of dishwasher detergent (powder, gel, or tablet). Close the dispenser lid securely.
- Afspændingsmiddel: Open the rinse aid dispenser cap and fill with liquid rinse aid until the indicator shows full. Close the cap tightly. This aids in drying and prevents water spots.
6. Betjeningsvejledning
6.1 Start af en vaskecyklus
- Load the dishwasher and add detergent/rinse aid.
- Tryk på Til/Fra knappen for at tænde apparatet.
- Select the desired wash cycle (e.g., Normal vask, Kraftig vask) by pressing the corresponding button.
- Select any desired options (e.g., Desinficer, Extra Shine, Forsinket start).
- Tryk på Start/Resume button to begin the cycle. Close the dishwasher door firmly.
6.2 Wash Cycles and Options
| Cyklus | Beskrivelse |
|---|---|
| Kraftig vask | Til meget snavsede gryder, pander og tallerkener. |
| Auto vask | Automatically adjusts wash time and temperature based on soil level. |
| Normal vask | Til regelmæssigt snavset service. |
| Delikat vask | Gentle wash for delicate items. |
| Express vask | Hurtigvask til let snavset service. |
| Halvbelastning | Sparer vand og energi ved mindre vaske. |
Valgmuligheder:
- Sanitér: Increases water temperature during the final rinse to sanitize dishes.
- Ekstra glans: Enhances drying performance and reduces water spots.
- Forsinket start: Allows you to delay the start of a wash cycle by several hours.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din opvaskemaskines levetid og optimale ydeevne.
7.1 Rengøring af filtrene
The filter system should be checked and cleaned regularly to prevent food particles from recirculating and affecting wash performance.
- Turn off the dishwasher and disconnect power.
- Fjern det nederste stativ.
- Twist and lift out the coarse filter and fine filter assembly.
- Rinse the filters under running water to remove any trapped food particles. Use a soft brush if necessary.
- Saml filtrene igen, og sæt dem tilbage i opvaskemaskinen. Sørg for, at de er sikkert fastlåst.
7.2 Rengøring af spulearmene
Periodically check the spray arm nozzles for blockages and clean as needed.
- Remove the spray arms by unscrewing or unclipping them.
- Clear any blocked nozzles with a thin wire or toothpick.
- Rinse thoroughly and reattach.
7.3 Udvendig rengøring
Wipe the exterior surfaces, including the control panel, with a soft, damp Brug et specialrengøringsmiddel til rustfrit stål på overflader af rustfrit stål.
8. Fejlfinding
Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Opvaskemaskinen starter ikke | Netledningen er taget ud, døren er ikke lukket ordentligt, afbryderen er udløst. | Kontroller strømforbindelsen, sørg for, at døren er låst, nulstil afbryderen. |
| Opvasken er ikke ren | Forkert påfyldning, tilstoppede spulearme/filtre, utilstrækkeligt vaskemiddel. | Fyld opvasken korrekt, rengør spulearme og filtre, og brug passende opvaskemiddel. |
| Vandpletter på tallerkener | Low rinse aid level, hard water. | Refill rinse aid dispenser, consider a water softener if water is very hard. |
| Opvaskemaskinen er støjende | Genstande forstyrrer spulearmene, fremmedlegemer i pumpen. | Ensure dishes do not block spray arms, inspect pump area for obstructions. |
| Fejlkode E24 | Drainage issue, clogged filter or drain hose. | Rengør filtre, kontroller afløbsslangen for knæk eller blokeringer. |
9. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | SHE3AR75UC |
| Mærke | Bosch |
| Finish Type | Rustfrit stål |
| Formfaktor | Indbygget |
| Mål (D x B x H) | 22.56 cm x 23.56 cm x 33.86 cm |
| Varens vægt | 69 lbs (ca.) |
| Voltage | 120 volt |
| Kapacitet | 14 Stedindstillinger |
| Antal cyklusser | 6 (Heavy, Auto, Normal, Delicate, Express, Half Load) |
| Særlige funktioner | Delay Start, Sanitize Option |
| Støjniveau | 50 decibel |
| Certificering | ENERGY STAR |
10. Garanti og support
This Bosch dishwasher comes with a limited warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your appliance or visit the official Bosch Home Appliances webwebsted.
For technical assistance, service requests, or to order replacement parts, please contact Bosch Customer Service. Contact information can be found in your warranty documentation or on the Bosch Home Appliances webwebsted.
When contacting support, please have your model number (SHE3AR75UC) and serial number ready.
