Mount-It! Dual Monitor Mount MI-752 Instruction Manual

Indledning

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Mount-It! Dual Monitor Mount, model MI-752. Please read these instructions carefully before assembly and use to ensure proper functionality and safety. This product is designed to securely hold two computer monitors, enhancing your workspace ergonomics.

Image: The Mount-It! Dual Monitor Mount MI-752, featuring its black finish, central pole, adjustable arms, and desk clamp mekanisme.

Sikkerhedsoplysninger

• Sørg for, at alle komponenter er til stede og ubeskadigede før montering. Må ikke anvendes, hvis nogen af ​​delene mangler eller er defekte.
• Verify that your desk surface is strong enough to support the combined weight of the mount and two monitors.
• Do not exceed the maximum weight capacity of 22 pounds (10 kg) per monitor arm.
• Ensure monitors are VESA compatible (75x75mm or 100x100mm) before attempting to attach them.
• Hold børn og kæledyr væk under installationen.
• Tighten all screws firmly, but do not overtighten to avoid stripping threads.

Pakkens indhold

Kontroller venligst, at alle følgende komponenter er inkluderet i din pakke:

• Central Pole with Desk Clamp/Grommet-base
• Two Monitor Arms
• VESA Mounting Plates (pre-attached to arms)
• Hardware Kit (screws, washers, spacers for monitor attachment)
• Tools (Allen wrenches)
• Kabelhåndteringsklip

Opsætning og installation

Follow these steps to correctly install your dual monitor mount.

Step 1: Choose Mounting Method

The MI-752 supports two installation methods: C-Clamp or Grommet Base. Select the method suitable for your desk.

C-Clamp Installation

1. Fastgør C-clamp assembly to the bottom of the central pole.
2. Position the mount on the edge of your desk. Ensure the desk thickness is between 0.4 inches (1 cm) and 4 inches (10 cm).
3. Spænd C-clamp screws until the mount is securely fastened to the desk. Do not overtighten.

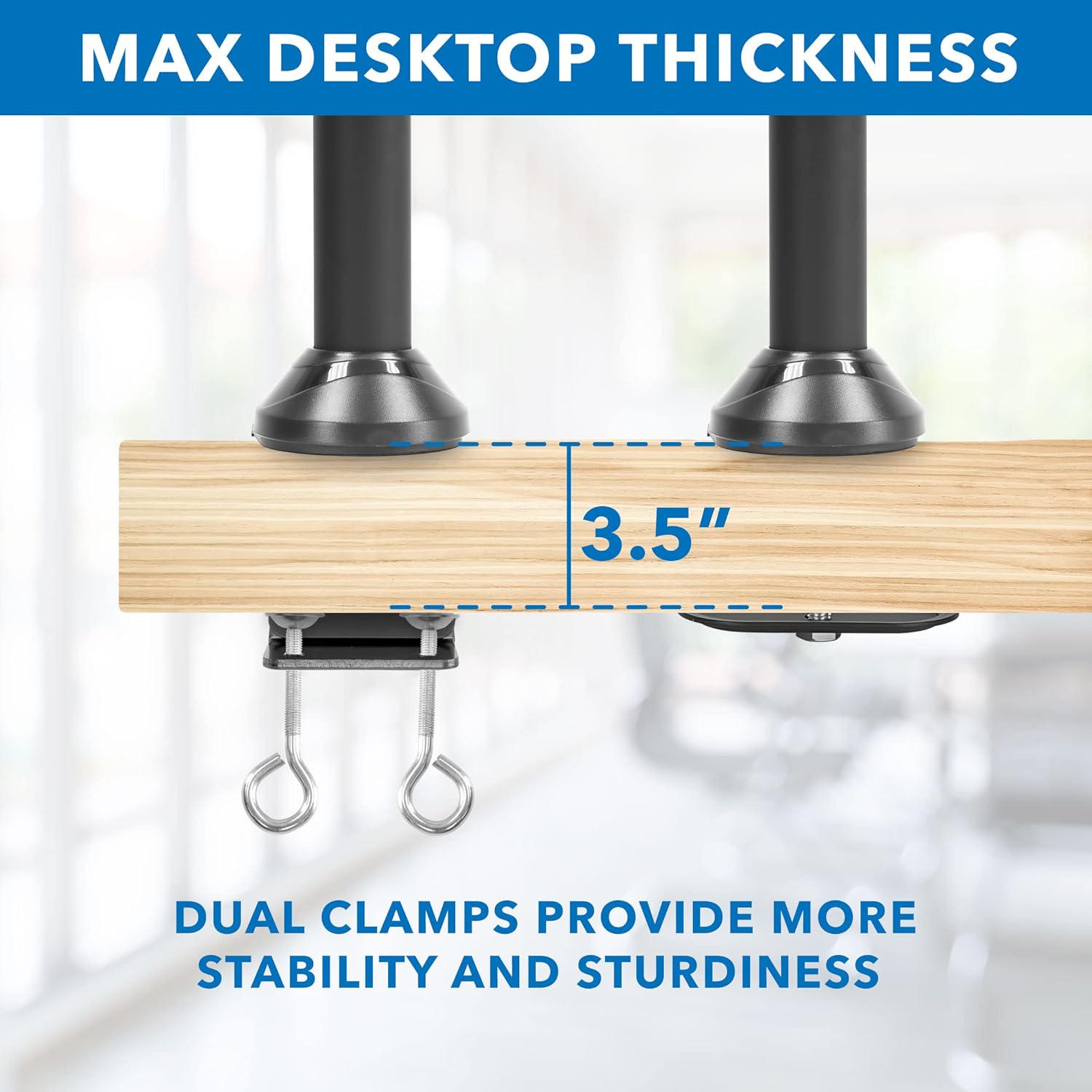

Image: Detail of the C-clamp mechanism securing the mount to a desktop, illustrating maximum compatible desk thickness.

Tømning af basen

1. If your desk has a grommet hole, disassemble the C-clamp and attach the grommet base plate to the central pole.
2. Insert the central pole through the grommet hole.
3. Secure the grommet base from underneath the desk using the provided hardware.

Step 2: Attach Monitor Arms

Slide the monitor arms onto the central pole at your desired height. Use the included Allen wrench to tighten the set screw on each arm to secure its position.

Trin 3: Fastgør skærme

1. Carefully attach the VESA mounting plates (pre-attached to the arms) to the back of your monitors using the appropriate screws from the hardware kit. Ensure the VESA pattern (75x75mm or 100x100mm) matches your monitor.
2. Once the VESA plates are secured to the monitors, slide the monitors onto the arms.
3. Tighten any remaining screws to ensure the monitors are firmly attached to the arms.

Image: Visual guide for VESA mounting patterns and weight capacity per arm.

Betjeningsvejledning og justeringer

The Mount-It! MI-752 offers various adjustment options for optimal viewkomfort.

Højdejustering

To adjust the height of the monitors, loosen the set screw on the monitor arms where they attach to the central pole. Slide the arms up or down to the desired height, then re-tighten the set screw firmly.

Vipning, drejning og rotation

The monitor arms allow for flexible positioning:

• Vip: Monitors can tilt up or down by 15 degrees. Adjust the tilt mechanism on the VESA plate.
• Drejelig: The arms can swivel 360 degrees left and right.
• Rotation: Monitors can rotate 180 degrees for landscape or portrait orientation without removal.

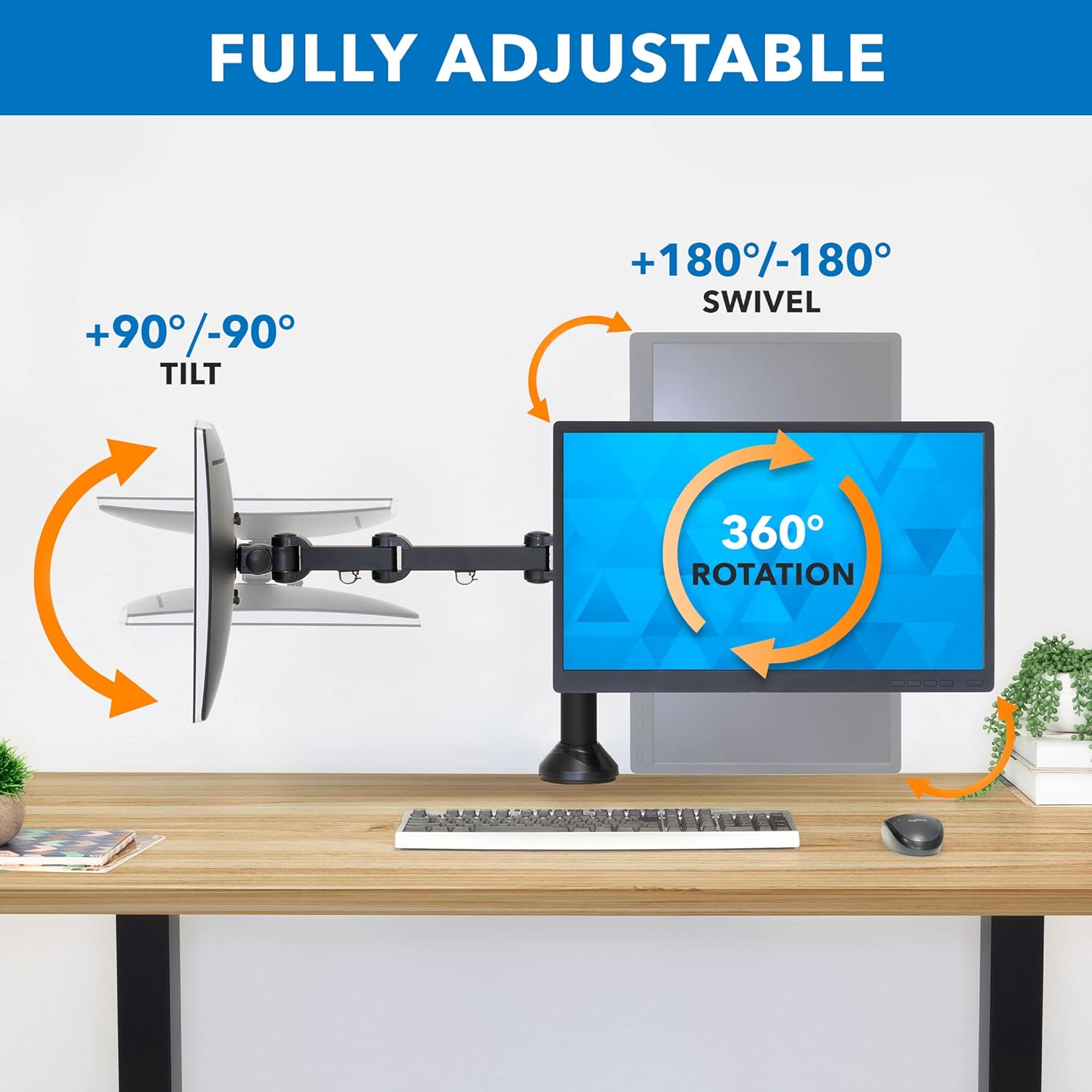

Image: Visual representation of the tilt, swivel, and rotation capabilities of the monitor arms.

Kabelstyring

Integrated cable management clips are located on each arm and along the central pole. Route your monitor and power cables through these clips to maintain a tidy and organized workspace.

Billede: Eksample of cable routing using the integrated cable management system.

Opretholdelse

To ensure the longevity and safe operation of your monitor mount:

• Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Spænd efter om nødvendigt.
• Rengør holderen med en blød kludamp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Do not apply excessive force when adjusting the arms or monitors.

Fejlfinding

Skærme er ikke i vater eller hænger

• Ensure all VESA plate screws are securely tightened to the monitor and the arm.
• Check the tightness of the pivot points on the monitor arms. Adjust with the provided Allen wrench if needed.
• Verify that the desk surface itself is level. Minor desk imperfections can be amplified by the mount.

Mount føles ustabil

• Re-check the C-clamp or grommet base installation. Ensure it is firmly secured to the desk and the desk thickness is within the specified range.
• Confirm that the combined weight of your monitors does not exceed the mount's capacity.

Vanskeligheder med at justere skærmens position

• Ensure no cables are snagged or obstructing movement.
• Check the tension of the joints. Some joints may have adjustable tension screws that can be loosened slightly with an Allen wrench if movement is too stiff.

Specifikationer

Image: Detailed dimensions of the monitor mount components.

Garantioplysninger

The Mount-It! Dual Monitor Mount MI-752 comes with a 5 ÅRS GARANTIDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

Kundesupport

For any questions, assistance with installation, or troubleshooting, please contact our US-based customer support team. Our friendly and responsive team is available during normal business hours to provide support.

Please refer to the Mount-It! webwebstedet eller din købsdokumentation for specifikke kontaktoplysninger.
