Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Globe Electric 9248601 4-inch Recessed Spot Light Kit. Please read all instructions carefully before beginning installation and retain this manual for future reference. This kit is designed for indoor use in basements, kitchens, stairways, and entryways.
Sikkerhedsoplysninger
ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringsboksen eller afbryderen før installation eller service.
- Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser samt den nationale elektriske kode (NEC).
- Hvis du ikke er bekendt med elektriske ledninger, bør du kontakte en kvalificeret elektriker.
- Do not install this fixture in wet locations. It is rated for indoor use only.
- Brug kun den specificerede pæretype og wattage: one PAR20 50W max halogen bulb (sold separately).
- Overskrid ikke det maksimale wattage.
- Ensure the fixture is securely mounted before connecting power.
- Hold brandfarlige materialer væk fra lysarmaturet.
Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.
- Recessed Housing/Can
- Brushed Nickel Trim
- Patented Clip System
- El-boks
- Instruktionsmanual
Figur 1: Overview of the Globe Electric 9248601 Recessed Spot Light Kit, showing the housing, electrical box, and brushed nickel trim with the light source.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 9248601 |
| Mærke | GLOBE Elektrisk |
| Størrelse | 4 tommer |
| Farve/finish | Børstet nikkel |
| Materiale | Nickel, Alloy Steel |
| Lysarmatur Form | Forsænket |
| Installationstype | Flush Mount |
| Strømkilde | Elektrisk med ledning |
| Wattage | 50 watt (maks.) |
| Krav til pære | 1x PAR20 50W max halogen bulb (sold separately) |
| Dæmpbar | Yes (with compatible dimmer switch and bulb) |
| Indendørs/Udendørs brug | Indendørs |
| Produktdimensioner | 5 x 10.55 x 5.31 tommer |
| Varens vægt | 1.68 pund |
| UPC | 842235924863 |
Opsætning og installation
Nødvendige værktøjer: Screwdriver, Wire Strippers, Pliers, Drywall Saw (or appropriate cutting tool for ceiling material), Measuring Tape, Safety Glasses.
- Sluk for strømmen: Before starting, ensure the power to the installation area is completely disconnected at the circuit breaker or fuse box.
- Forbered åbning: Using a drywall saw or appropriate tool, cut a circular opening in the ceiling. The recommended hole size for this 4-inch fixture is approximately 4.25 to 4.5 inches in diameter. Ensure there are no obstructions (joists, pipes, wires) in the ceiling space.
- Tilslut ledninger: Open the electrical box cover on the recessed housing. Connect the household electrical wires to the fixture's wires:
- Tilslut sort (varm) ledning fra loftet til sort armaturets ledning.
- Tilslut hvid (neutral) ledning fra loftet til hvid armaturets ledning.
- Tilslut bart kobber or grøn (ground) wire from the ceiling to the grøn ground screw or wire of the fixture.
- Indsæt hus: Carefully push the recessed housing into the prepared ceiling opening. The patented clips will automatically engage and secure the housing firmly in place against the ceiling surface.
- Installer pære: Insert one PAR20 50W max halogen bulb (sold separately) into the socket within the housing. Do not overtighten.
- Fastgør beklædning: Align the brushed nickel trim with the housing. The trim typically attaches with spring clips or torsion springs. Gently push the trim upwards until it sits flush with the ceiling.
- Gendan strøm: Once installation is complete and all connections are secure, restore power at the circuit breaker or fuse box. Test the light fixture.

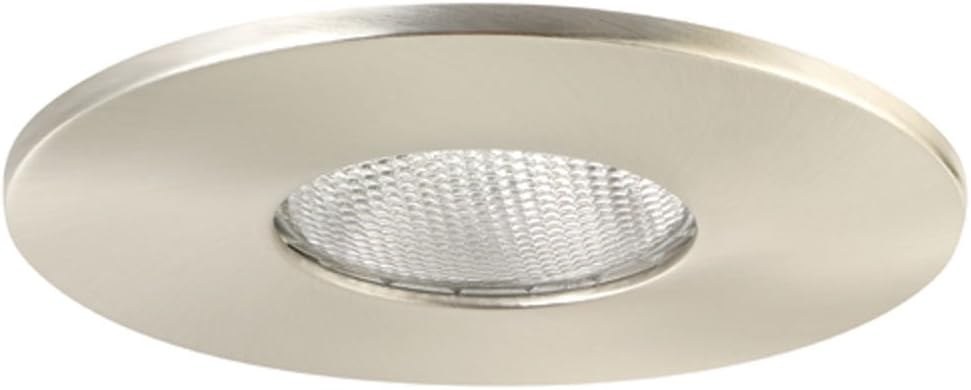

Figur 2: Nærbillede view of the brushed nickel trim and light source, illustrating the finished appearance after installation.
Betjeningsvejledning
The Globe Electric 9248601 Recessed Spot Light Kit operates via a standard wall switch. If a compatible dimmer switch and dimmable PAR20 bulb are installed, the light can be dimmed to adjust brightness levels. Ensure the bulb used is rated for dimming if this feature is desired.
Opretholdelse
- Rensning: Afbryd altid strømmen før rengøring. Tør armaturet af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen.
- Udskiftning af pære: Disconnect power before replacing the bulb. Allow the bulb to cool completely before touching. Unscrew the old bulb and replace it with a new PAR20 50W max halogen bulb.
- Inspektion: Undersøg regelmæssigt armaturet for tegn på skader eller løse forbindelser. Hvis der findes problemer, skal strømmen afbrydes og en kvalificeret elektriker kontaktes.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet, løse ledninger, defekt pære, udløst afbryder. | Check power supply, ensure circuit breaker is on. Verify all wire connections are secure. Replace bulb. |
| Lyse flimrer. | Loose bulb, incorrect bulb type, unstable power supply, faulty dimmer switch. | Spænd pæren. Sørg for korrekt pæretype og watt.tage. Consult electrician for power supply issues. Replace dimmer switch if applicable. |
| Lyset er for svagt eller for klart. | Forkert pære wattage, dimmer setting (if applicable). | Sørg for pære, hvadtage matches requirements. Adjust dimmer switch. |
Hvis fejlfindingstrinene ikke løser problemet, skal du kontakte en kvalificeret elektriker eller kundesupport.
Garanti og support
This Globe Electric 9248601 Recessed Spot Light Kit comes with a 5 års begrænset produktgaranti. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact Globe Electric customer service. Keep your proof of purchase for warranty validation.
For further assistance, visit the official Globe Electric webwebstedet eller se de kontaktoplysninger, der følger med din købsdokumentation.
