Sanus Heavy Duty AV Equipment Stand - Model EFAV40-B1 Instruction Manual

1. Introduktion

This manual provides detailed instructions for the assembly, operation, and maintenance of your Sanus Heavy Duty AV Equipment Stand, Model EFAV40-B1. This stand is designed to securely hold various audio-visual components, offering a sturdy and organized solution for your home theater setup.

The stand features hand-sanded, black lacquered shelves and heavy-gauge steel pillars, ensuring both durability and a stylish appearance. Its open architecture promotes optimal airflow to keep your equipment cool, and an integrated cable management system helps maintain a tidy setup.

2. Sikkerhedsoplysninger

• Sørg for, at stativet er placeret på en stabil, plan overflade for at forhindre, at det vælter.
• Do not exceed the maximum weight capacity of 400 lbs (181 kg) for the entire unit. Distribute weight evenly across shelves.
• Exercise caution during assembly to avoid injury from sharp edges or heavy components.
• Properly secure and manage all cables to prevent tripping hazards and ensure equipment stability.
• Hold små dele og emballagematerialer væk fra børn og kæledyr.

3. Produktfunktioner

• Holdbar konstruktion: Features hand-sanded, black lacquered shelves and heavy-gauge steel pillars for a sturdy and stylish setup.
• Høj vægtkapacitet: Designed to hold up to 400 lbs (181 kg) of AV components, including stereo equipment, center channel speakers, gaming consoles, DVD, and Blu-ray players.
• Optimal luftstrøm: Open architecture design ensures unrestricted airflow, helping to keep AV equipment at proper operating temperatures.
• Integreret kabelhåndtering: Includes attachable cable management clips to route and organize cables for a clean and tidy appearance.
• Justerbar stabilitet: Comes with both rubber feet and adjustable carpet spikes to ensure stability on various floor surfaces.
• Hurtig montering: All necessary hardware is included for a fast and straightforward assembly process, typically completed in about 15 minutes.

4. Monteringsvejledning

Assembly of the Sanus Heavy Duty AV Equipment Stand is designed to be quick and easy. All required hardware is included in the package. Please follow the steps below carefully.

4.1 Udpakning og klargøring

1. Carefully unpack all components and verify against the parts list (not provided in this document, refer to your product packaging).
2. Ensure you have a clear, flat, and clean workspace for assembly.

4.2 Trin-for-trin montering

1. Begin by attaching the feet or carpet spikes to the bottom frame. The stand includes both options for stability on any surface.

   Figure 1: Attaching adjustable feet or carpet spikes.

2. Assemble the main frame by connecting the steel pillars and shelves. The design allows for straightforward stacking.

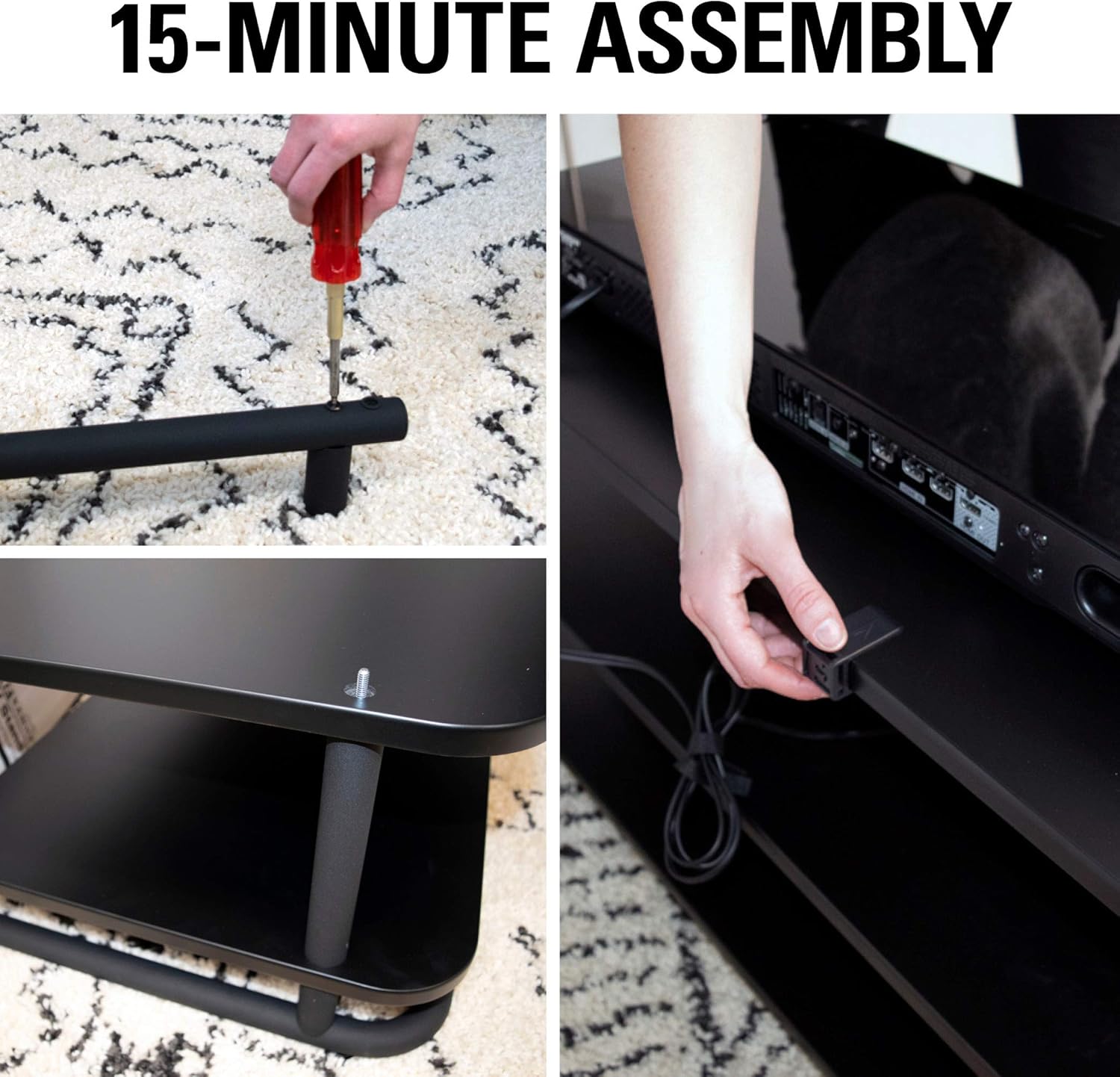

   Figure 2: Step-by-step assembly of the stand's shelves and pillars.

3. Secure all connections using the provided hardware. An Allen wrench is typically included for this purpose.

   Figure 3: Securing connections with included hardware.
4. Once assembled, ensure the stand is stable and all connections are tight before placing any equipment on it.

4.3 Assembly Demonstration (Related Products)

The following videos demonstrate the assembly process for similar AV stands from various sellers. While not specific to Model EFAV40-B1, they provide a general visual guide to the assembly steps.

5. Driftsvejledninger

The Sanus AV Equipment Stand is designed for passive operation, primarily focusing on optimal placement and organization of your audio-visual components.

• Udstyrsplacering: Place your AV components on the shelves, ensuring even weight distribution and leaving adequate space for ventilation.
• Airflow Management: The open architecture design is crucial for preventing equipment overheating. Avoid blocking the sides or rear of components to maintain proper airflow.

  Figure 4: Open design promotes airflow for optimal performance.

• Kabelorganisation: Utilize the attachable cable management clips to route and bundle cables neatly. This improves aesthetics and prevents tangles.

  Figure 5: Using cable management clips to organize wires.

6. Vedligeholdelse

To maintain the appearance and longevity of your Sanus AV Equipment Stand, follow these simple care instructions:

• Rensning: Wipe the stand surfaces with a dry, soft cloth. Avoid using abrasive cleaners or harsh chemicals, which can damage the finish.
• Inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Spænd efter om nødvendigt.

7. Fejlfinding

This section addresses common concerns you might encounter with your AV equipment stand.

• Ustabilitet: If the stand feels wobbly, ensure it is on a level surface. Adjust the rubber feet or carpet spikes as needed. Verify all assembly screws are securely tightened.
• Scratches on Shelves: The lacquered shelves can be susceptible to scratches. Use soft pads or mats under equipment to prevent damage.
• Overophedningsudstyr: Ensure adequate space around each component for proper ventilation. Avoid stacking equipment directly on top of each other without sufficient clearance.

8. Specifikationer

Note: All specifications are approximate and subject to change.

9. Garanti og support

Specific warranty information for the Sanus Heavy Duty AV Equipment Stand, Model EFAV40-B1, is not provided in this document. Please refer to the product packaging or the official Sanus webhjemmeside for detaljerede garantivilkår.

For customer support, technical assistance, or to inquire about replacement parts, please visit the official Sanus website or contact their customer service department. Sanus aims to provide the best experience through design, support, and ease of installation.
