1. Produktet er slutview
The COMMAX WI-3SN is a wireless indoor intercom system designed for easy communication between different rooms or locations without the need for complex wiring. This system offers a convenient and reliable way to communicate within your home, office, or warehouse.

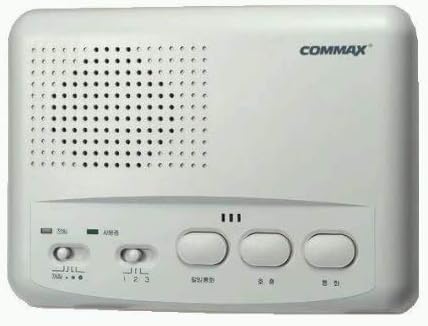

Figur 1: Forside view of the COMMAX WI-3SN Wireless Indoor Intercom unit, showing the speaker grille, control buttons, and brand logo.
Key features include plug-and-play setup, enhanced frequency output for clear communication, and the ability to monitor sounds from other rooms. It is an ideal solution for communicating with family members in distant rooms, monitoring infants, or coordinating tasks in a business environment.
2. Opsætning og installation
Setting up your COMMAX WI-3SN intercom system is straightforward and requires no special wiring or installation tools.
- Pak enhederne ud: Carefully remove all components from the packaging. Each set typically includes two intercom units.
- Select Locations: Choose the rooms or areas where you wish to establish communication. Ensure there is a standard electrical outlet available at each chosen location.
- Tilslut: Insert the power plug of each intercom unit directly into a standard electrical wall outlet. The units will power on automatically.
- Første parring (hvis nødvendigt): The units are typically pre-paired. If communication is not established immediately, refer to the operating instructions for channel selection.
Important Note on Power Supply:
In homes equipped with a high-capacity single-phase 3-wire power system (typically 40 amps or more), the intercom units may not function correctly between certain rooms. A single-phase 3-wire system involves bringing AC200V into the distribution board and converting it to AC100V. If your home uses such a system (common for 40 amps or more), it may be necessary to consult a qualified electrician to perform a simple wiring adjustment at your distribution board to ensure proper operation of the intercoms. You can verify your power system type by checking your electricity meter box or monthly utility bill, or by contacting your local power company.
3. Betjeningsvejledning
The COMMAX WI-3SN offers various modes for effective communication.
3.1. Grundlæggende kommunikation
- To Speak: Press and hold the "Talk" button (usually labeled with a microphone icon or "通話"). Speak clearly into the unit.
- At lytte: Release the "Talk" button. The unit will automatically switch to listen mode.
- Kanalvalg: The system features 3 channels. Use the channel selector switch (labeled "1 2 3") to choose the desired channel for communication. Ensure both communicating units are set to the same channel.
3.2. Overvågningsfunktion
The WI-3SN can also function as a monitor, allowing you to hear sounds from another room.
- Activate Monitoring: Locate the monitor switch (often labeled with a speaker icon or "モニター"). Toggle it to the "ON" position on the unit you wish to use for monitoring.
- Lytte: The unit will continuously transmit audio from its location to the receiving unit. This is useful for monitoring children or elderly individuals.
- Deactivate Monitoring: Toggle the monitor switch back to the "OFF" position when monitoring is no longer required.
3.3. Udvidelse af dit system
The COMMAX WI-3SN system is expandable up to a maximum of four units. With its 3-channel capability, you can establish communication between multiple rooms.
- To expand, purchase additional COMMAX WI-3SN units.
- By utilizing two sets (four units in total), you can communicate between three distinct rooms (or four rooms including your own, by rotating channels).
- Ensure each unit is set to the appropriate channel for the desired communication group.
4. Vedligeholdelse
To ensure the longevity and optimal performance of your COMMAX WI-3SN intercom system, follow these simple maintenance guidelines:
- Rensning: Wipe the exterior of the units with a soft, dry cloth. Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the surface.
- Magt: Always unplug the unit from the power outlet before cleaning or if it will not be used for an extended period.
- Miljø: Keep the units away from direct sunlight, excessive heat, moisture, and dust. Do not expose them to water or other liquids.
- Ventilation: Sørg for, at ventilationsåbningerne ikke er blokeret for at forhindre overophedning.
5. Fejlfinding
If you encounter issues with your COMMAX WI-3SN intercom, try the following troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm/Enheden tænder ikke | Unit not properly plugged in; Power outlet not active. | Ensure the unit is securely plugged into a working electrical outlet. Test the outlet with another device. |
| No communication between units | Units on different channels; Out of range; Power supply issue (single-phase 3-wire). | Verify both units are set to the same channel. Ensure units are within effective range. Refer to the "Important Note on Power Supply" in Section 2. |
| Dårlig lydkvalitet/Statisk | Interference from other electronic devices; Units too far apart; Environmental noise. | Move units away from other electronic devices (e.g., microwaves, large appliances). Try a different channel. Ensure units are within optimal range. |
| Monitoring function not working | Monitor switch not activated; Unit not powered. | Ensure the monitor switch is in the "ON" position on the transmitting unit. Verify both units are powered on. |
6. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | KOMMAKS |
| Modelnummer | WI-3SN |
| Produktdimensioner | 20.3 x 17.6 x 11.4 cm |
| Varens vægt | 1.17 kg |
| Strømkilde | AC (tilslutning) |
| Kanaler | 3 kanaler |
| Udvidelsesmuligheder | Op til 4 enheder |
7. Garanti og support
For information regarding product warranty, technical support, or service, please refer to the documentation included with your purchase or visit the official COMMAX webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
