Yamaha Pacifica Series PAC212VFM Elguitar Instruktionsmanual

Indledning

This manual provides essential information for the proper setup, operation, maintenance, and care of your Yamaha Pacifica Series PAC212VFM Electric Guitar. Please read this manual thoroughly to ensure optimal performance and longevity of your instrument. The Yamaha Pacifica Series PAC212VFM is a solid body electric guitar featuring a flamed maple top, alder body, maple bolt-on neck, and rosewood fingerboard.

Produkt overview

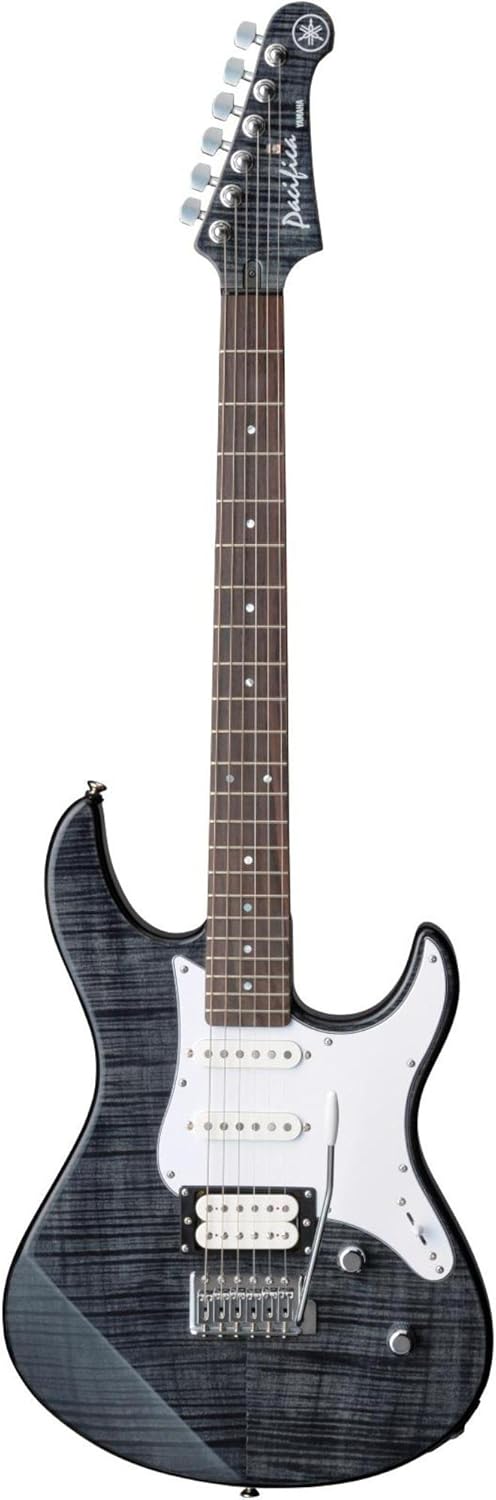

Figur 1: Fuld view of the Yamaha Pacifica PAC212VFM Electric Guitar. This image displays the translucent black finish, flamed maple top, and overall body shape.

Figur 2: Nærbillede view of the Yamaha Pacifica PAC212VFM Electric Guitar body, highlighting the pickups, bridge, and control knobs.

Nøglefunktioner:

• Solid Alder Body with flame maple top
• Maple Bolt-On Neck
• Rosewood Fingerboard
• Vintage Tremolo with block saddles
• 5 Position Switch with coil tap

Opsætning

1. Udpakning og inspektion

Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Retain all packaging materials in case the guitar needs to be returned or transported.

2. Stemning af guitaren

Before playing, ensure your guitar is properly tuned. Standard tuning for a 6-string electric guitar is E-A-D-G-B-e (from thickest to thinnest string). You can use a digital tuner or a tuning app for accuracy.

The Yamaha Player Port app (available for iOS & Android) includes a free tuner and other resources to assist with learning and playing. Refer to the video above for a demonstration.

3. Adjusting Action and Intonation

The "action" refers to the height of the strings above the fretboard. Proper action ensures comfortable playability and prevents buzzing. Intonation ensures that notes played at different positions on the fretboard are in tune. These adjustments are typically performed by a qualified guitar technician, especially for new instruments or significant changes in string gauge.

Operating the Guitar

1. Kontroller overview

The PAC212VFM features standard electric guitar controls:

• Lydstyrkeknap: Controls the overall output volume of the guitar.
• Toneknap: Adjusts the treble frequencies, making the sound brighter or darker.
• 5-Position Pickup Selector Switch: Selects different pickup configurations for varied tonal options.

2. Pickup Selector Positions

The 5-position switch allows you to select various pickup combinations:

1. Position 1 (Bro): Activates the bridge humbucker pickup for a powerful, bright tone, suitable for lead playing and rock.
2. Position 2 (Bridge Humbucker Coil-Tap + Middle Single-Coil): Combines a coil-tapped bridge humbucker with the middle single-coil for a brighter, more articulate sound.
3. Position 3 (Midterste single-coil): Activates the middle single-coil pickup for a balanced, clear tone.
4. Position 4 (Midterste Single-Coil + Hals Single-Coil): Combines the middle and neck single-coil pickups for a warm, bell-like tone.
5. Position 5 (hals single-coil): Activates the neck single-coil pickup for a warm, mellow tone, ideal for jazz and blues.

3. Using the Tremolo System

Vinentage tremolo system allows for pitch modulation effects. Gently push down on the tremolo arm to lower the pitch or pull up (if set up for it) to raise it. Excessive use or aggressive manipulation can affect tuning stability. Ensure the tremolo springs are properly tensioned for desired feel and tuning stability.

Opretholdelse

1. Rensning

• Body and Neck: Wipe down the body and neck with a soft, lint-free cloth after each use to remove sweat and fingerprints. For a deeper clean, use a guitar-specific polish sparingly.
• gribebræt: Periodically clean the rosewood fingerboard with a specialized fretboard cleaner and conditioner to prevent drying and cracking.
• Hardware: Use a dry cloth to clean metal parts. Avoid abrasive cleaners that can damage finishes.

2. Udskiftning af strenge

Strings should be replaced regularly, typically every 1-3 months depending on playing frequency, to maintain optimal tone and playability. Replace strings one at a time to maintain neck tension. Use a string gauge appropriate for your playing style and guitar setup.

3. Opbevaring

Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations. A guitar case provides the best protection. Avoid leaning the guitar against walls or furniture where it could fall.

Fejlfinding

• Tuning-ustabilitet:
  • Sørg for, at strengene er korrekt strakte efter udskiftning.
  • Kontroller, at skruerne på stemmemaskinen er fastspændte.
  • Lubricate the nut slots with graphite to prevent string binding.
  • If using the tremolo, moderate use can help maintain tuning.
• String Buzz:
  • Check string action; it might be too low.
  • Inspect frets for unevenness or wear.
  • Verify neck relief (truss rod adjustment). These adjustments are best handled by a professional.
• No Sound or Weak Output:
  • Ensure the guitar cable is securely connected to both the guitar and amplivligere.
  • Check amplifier settings and power.
  • Inspect the guitar's output jack for loose connections.
  • Test different pickup selector positions and control knob settings.
• Scratchy Pots/Switch:
  • Crackling sounds when turning knobs or using the switch often indicate dust or corrosion. A specialized contact cleaner can be applied by a technician.

For persistent issues, it is recommended to consult a qualified guitar technician or authorized Yamaha service center.

Specifikationer

Garanti og support

For information regarding the warranty coverage for your Yamaha Pacifica Series PAC212VFM Electric Guitar, please refer to the warranty card included with your purchase or visit the official Yamaha website. Yamaha provides comprehensive customer support and resources for their products.

For further assistance, product registration, or to locate an authorized service center, please visit the Yamaha-butik på Amazon or the official Yamaha musical instruments webwebsted.
