1. Introduktion
Thank you for choosing the Tepro 1037 "Detroit" Barrel Grill. This charcoal barbecue is designed for versatile outdoor grilling, offering a large cooking area suitable for various occasions. To ensure safe and optimal performance, please read this manual thoroughly before assembly and use. Keep this manual for future reference.
Image 1.1: The Tepro 1037 "Detroit" Barrel Grill, showcasing its robust design and dual grilling surfaces.
2. Sikkerhedsoplysninger
Følg altid disse sikkerhedsretningslinjer for at forhindre skader eller skader:
- Use the grill outdoors only, in a well-ventilated area.
- Hold børn og kæledyr væk fra den varme grill.
- Flyt ikke grillen, mens den er varm eller i brug.
- Brug varmebestandige handsker ved håndtering af varme komponenter.
- Sørg for, at grillen er placeret på en stabil, plan og ikke-brændbar overflade.
- Never use gasoline, kerosene, or alcohol to light charcoal. Use only charcoal starter fluid compliant with EN 1860-3.
- Allow charcoal to cool completely before disposing of ashes.
3. Reservedelsliste
Before assembly, verify that all parts are present and undamaged. Refer to the assembly diagram for identification.
- Barrel body (1)
- Ben (4)
- Hjul (2)
- Aksel (1)
- Lower grid shelf (1)
- Charcoal sheets (2)
- Chrome-plated grill grates (2) with removable handles
- Wind protection (1)
- Fire tray with handle (1)
- Hardware pack (screws, nuts, washers)
4. Opsætning og montering
Follow these steps for proper assembly. It is recommended to have two people for certain steps.
- Fastgør ben: Securely attach the four legs to the main barrel body using the provided hardware. Ensure they are firmly tightened for stability.
- Monter hjul: Insert the axle through the designated holes on two of the legs. Attach the wheels to the axle, securing them with the appropriate fasteners. This allows for easy mobility.
- Assemble Lower Shelf: Attach the lower grid shelf to the bottom of the legs. This shelf provides convenient storage for grilling tools and accessories.
- Insert Fire Tray and Charcoal Sheets: Place the fire tray into the bottom of the barrel. Position the two lacquered charcoal sheets on top of the fire tray. These sheets support the charcoal.
- Attach Wind Protection: Secure the lacquered wind protection to the top edge of the barrel. This helps to shield the embers from wind and aids in heat retention.
- Place Grill Grates: Position the two chrome-plated grill grates onto the designated supports within the barrel. These grates have removable handles for easy adjustment and cleaning.
Image 4.1: The grill's mobile design, featuring two wheels and a practical lower storage shelf for accessories.
5. Betjeningsvejledning
Learn how to effectively use your Tepro "Detroit" Barrel Grill for optimal grilling results.
5.1. Charcoal Preparation and Lighting
- Place charcoal (max. 3.0 kg) onto the charcoal sheets within the fire tray.
- Use a charcoal chimney starter or appropriate charcoal starter fluid to ignite the charcoal. Allow the charcoal to ash over completely (typically 15-20 minutes) before placing food on the grates.
Image 5.1: Illustration of the charcoal bed, showing the two charcoal sheets designed to hold up to 3.0 kg of charcoal for sustained heat.
5.2. Temperaturkontrol
The grill features a triple grill height adjustment for precise temperature control. Adjust the height of the grill grates relative to the embers:
- Higher position: For lower temperatures, ideal for slow cooking or keeping food warm.
- Nederste position: For higher temperatures, suitable for searing and quick cooking.

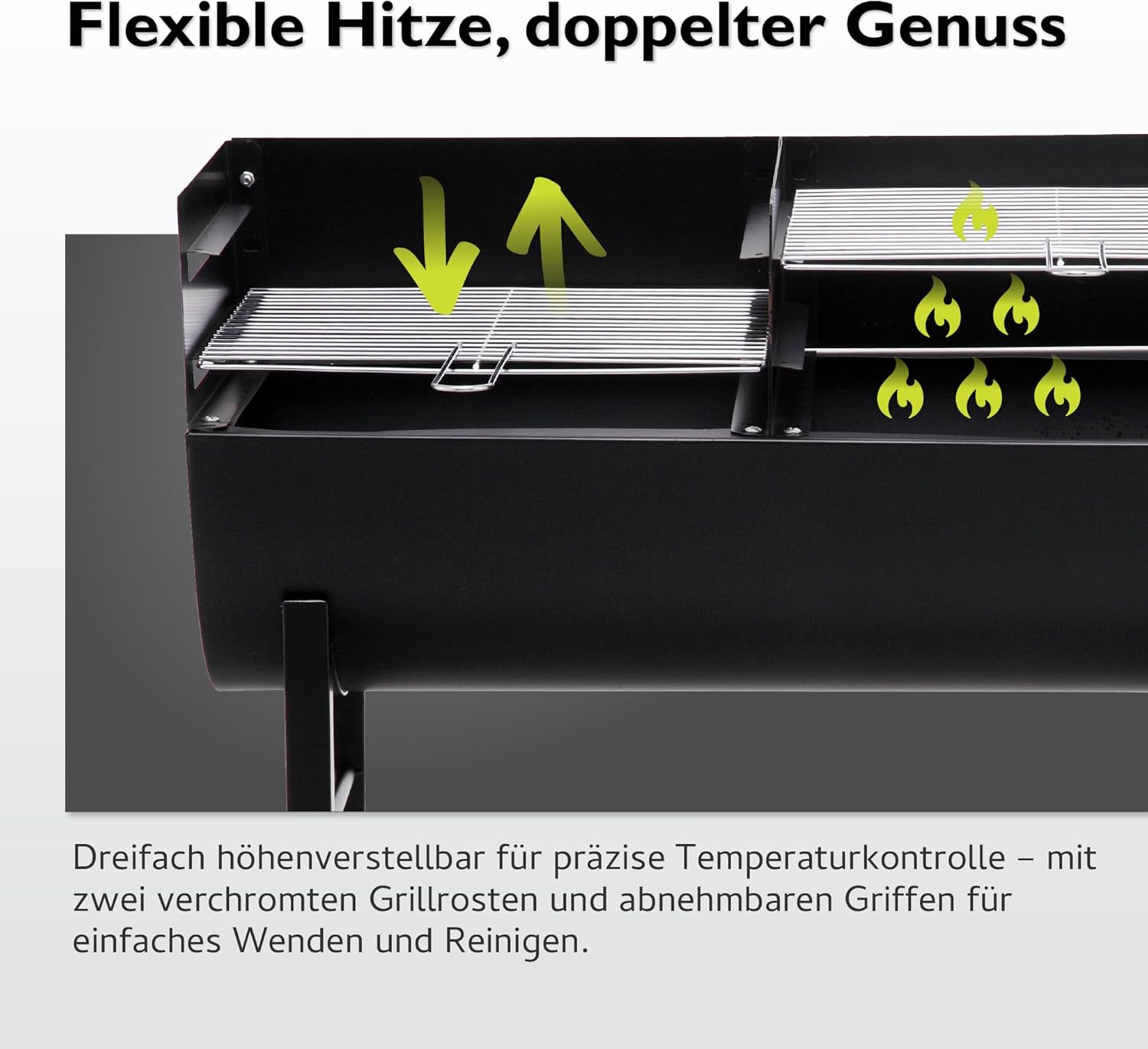

Image 5.2: Depiction of the triple height adjustment mechanism for the grill grates, allowing for flexible heat control.
5.3. Grillteknikker
The dual grill grates allow for separate preparation of different foods. Utilize the removable handles to safely adjust or remove grates during grilling.
Billede 5.3: Detaljeret view of the two grill grates, each approximately 35 x 37 cm, providing ample space for diverse grilling needs.
6. Vedligeholdelse
Regular cleaning and proper storage will extend the life of your grill.
6.1. Rensning
- Lad grillen køle helt af inden rengøring.
- Remove grill grates and clean with a grill brush and warm soapy water. Rinse thoroughly and dry.
- Empty the fire tray of ashes. Clean the interior and exterior surfaces of the barrel with a damp klæde.
- Do not use abrasive cleaners or harsh chemicals, as they can damage the finish.
6.2. Opbevaring
- Store the grill in a dry, covered area when not in use, especially during off-season.
- Consider using a grill cover to protect it from the elements.
7. Fejlfinding
Almindelige problemer og deres løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Grill unstable | Løse fastgørelseselementer; ujævn overflade | Tighten all screws and bolts; move to a level surface. |
| Charcoal not lighting | Insufficient starter fluid; damp trækul | Ensure proper amount of starter fluid; use dry charcoal. |
| Food burning too quickly | Grates too close to embers; too much charcoal | Raise grill grates; reduce charcoal quantity. |
| Food cooking too slowly | Grates too far from embers; insufficient charcoal | Lower grill grates; add more charcoal. |
8. Specifikationer
Key technical details for the Tepro 1037 "Detroit" Barrel Grill:
- Model: 1037 "Detroit"
- Produktdimensioner: Approximately 43 cm (D) x 94 cm (W) x 92 cm (H)
- Arbejdshøjde: Approximately 77/83/89 cm (adjustable)
- Vægt: 14.5 kg
- Materiale: Metal (lacquered)
- Grilling Surface: 2 x approx. 35 x 37 cm (chrome-plated grill grates)
- Trækulskapacitet: Maks. 3.0 kg
- Funktioner: Wind protection, fire tray with handle, 2 lacquered charcoal sheets, 4 lacquered legs, 2 plastic wheels, lacquered grid floor shelf.
Billede 8.1: Overview of the grill's key dimensions, including overall height, width, depth, and adjustable working height.
9. Garanti og support
Tepro products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Tepro webwebsted. Gem din købsbevis i tilfælde af garantikrav.
For further assistance, please contact Tepro customer service.
