1. Produktet er slutview
The SFA Sanicompact 43 is a compact, integrated macerating toilet system designed for installations where traditional gravity drainage is not feasible or where space is limited. This unit combines a ceramic toilet bowl with a powerful macerating pump, allowing for waste evacuation through small-diameter pipes. It features an economical dual-flush system, contributing to water conservation.
Figur 1: Forside view of the SFA Sanicompact 43 Integrated Macerating Toilet. This image shows the compact design of the toilet, suitable for small spaces.
2. Opsætning og installation
Proper installation is crucial for the optimal performance and longevity of your Sanicompact 43. It is highly recommended that installation be performed by a qualified professional to ensure compliance with local plumbing codes and to validate the product warranty.
2.1 Udpakning og inspektion
Carefully unpack all components and inspect for any damage. Ensure all included parts are present:
- Sanicompact 43 unit (integrated toilet and macerator)
- Kontraventil
- Removable soft-close seat
- Floor fixing kit
2.2 Forberedelse af stedet
The Sanicompact 43 is designed for floor mounting. Ensure the installation area has access to a 230 Volt electrical supply and a suitable discharge pipe (minimum 32 mm diameter). The unit's dimensions are approximately 34 cm (L) x 57 cm (W) x 49 cm (H), with a weight of 25 kg.
Figure 2: The Sanicompact 43 installed in a compact bathroom setting, demonstrating its space-saving design.
2.3 Elektrisk tilslutning
The unit requires a 230V electrical supply. The macerator motor operates at 800 Watts with an amperage of 2.5 A. All electrical connections must comply with local regulations and be performed by a qualified electrician.
2.4 VVS-tilslutninger
Connect the discharge pipe to the macerator outlet. The non-return valve must be installed to prevent backflow. Secure the unit to the floor using the provided fixing kit.

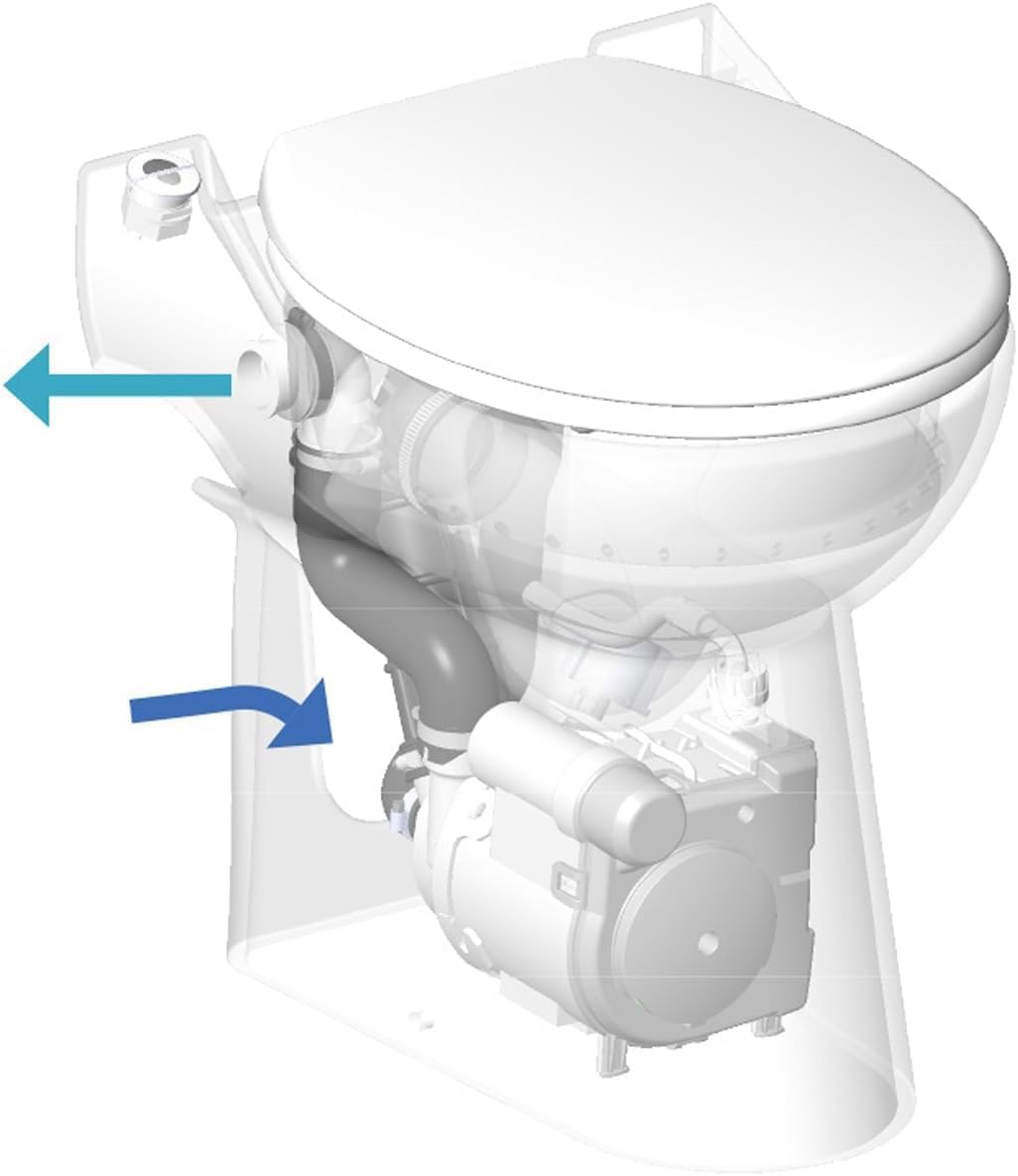

Figur 3: Intern view illustrating the plumbing connections and the macerating pump within the Sanicompact 43 unit. Arrows indicate water flow paths.
3. Betjeningsvejledning
The Sanicompact 43 is designed for simple and efficient operation.
3.1 Flushing the Toilet
The unit features an Eco+ dual-flush system. Press the appropriate button for either a 1.8-liter or 3-liter flush, depending on your needs. The macerator will activate automatically to process waste and pump it through the discharge pipe.
Figure 4: Close-up of the dual flush buttons located on the side of the Sanicompact 43, allowing for water-efficient operation.
3.2 Macerator Performance
The integrated macerator is capable of pumping waste up to 3 meters vertically or 30 meters horizontally, allowing for flexible installation locations.
Figure 5: Performance graph illustrating the pumping capabilities (height H vs. flow rate Q) of the Sanicompact 43 macerator.
4. Vedligeholdelse
Regular maintenance ensures the hygiene and longevity of your Sanicompact 43.
4.1 Cleaning the Ceramic Bowl
The ceramic bowl features an anti-limescale surface, making it easy to clean. Use standard non-abrasive toilet cleaners. Avoid harsh chemicals that could damage the macerator components.
4.2 Cleaning the Seat
The antibacterial soft-close seat is designed to be easily removable for thorough cleaning. Simply unclip the seat from its hinges, clean with mild soap and water, and reattach.
4.3 Afkalkning
In areas with hard water, periodic descaling of the macerator unit may be necessary. Use a descaling product specifically designed for macerating units, following the manufacturer's instructions. Do not use strong acids or chlorine-based products.
5. Fejlfinding
This section provides guidance on common issues you might encounter. For complex problems, contact a qualified technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Unit does not activate | No power supply; circuit breaker tripped; motor fault | Check power connection; reset circuit breaker; contact service if motor fault suspected. |
| Enheden kører kontinuerligt | Obstruction in the macerator; faulty pressure switch | Turn off power, inspect for foreign objects (e.g., sanitary products); contact service if pressure switch is faulty. |
| Usædvanlig støj under drift | Foreign object in macerator; worn motor bearings | Turn off power, inspect for foreign objects; contact service for internal component issues. |
| Vandlækage | Løse forbindelser; beskadigede pakninger | Check all plumbing connections for tightness; inspect seals for damage and replace if necessary. Contact service if issue persists. |
6. Specifikationer
| Feature | Detalje |
|---|---|
| Fabrikant | SFA |
| Modelnummer | SANICOMPACT 43 |
| Dimensioner (L x B x H) | 34 x 57 x 49 cm |
| Vægt | 25 kilo |
| Farve | Hvid |
| Materiale | Keramisk |
| Voltage | 230 volt |
| Magt | 800 watt |
| Ampslette | 2.5 A |
| Installationsmetode | Gulvmontering |
| Inkluderede komponenter | Non-return valve, removable soft-close seat, floor fixings |
| Pumping Capacity (Vertical) | Op til 3 meter |
| Pumping Capacity (Horizontal) | Op til 30 meter |
7. Garanti og support
The SFA Sanicompact 43 is covered by a 3 års garanti, provided it is installed by a qualified professional. This warranty covers manufacturing defects and ensures the product's reliability under normal use.
For technical support, spare parts, or warranty claims, please contact your installer or the official SFA customer service in your region. Ensure you have your proof of purchase and installation details readily available.
