Moen CA87060SRS Køkkenarmatur med høj bue og sidebruser Brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Moen CA87060SRS High-Arc Kitchen Faucet with Side Spray from the Caldwell Collection. This faucet features a Spot Resist Stainless finish, two-handle lever operation, and a Duralock quick connect system for simplified setup. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product.

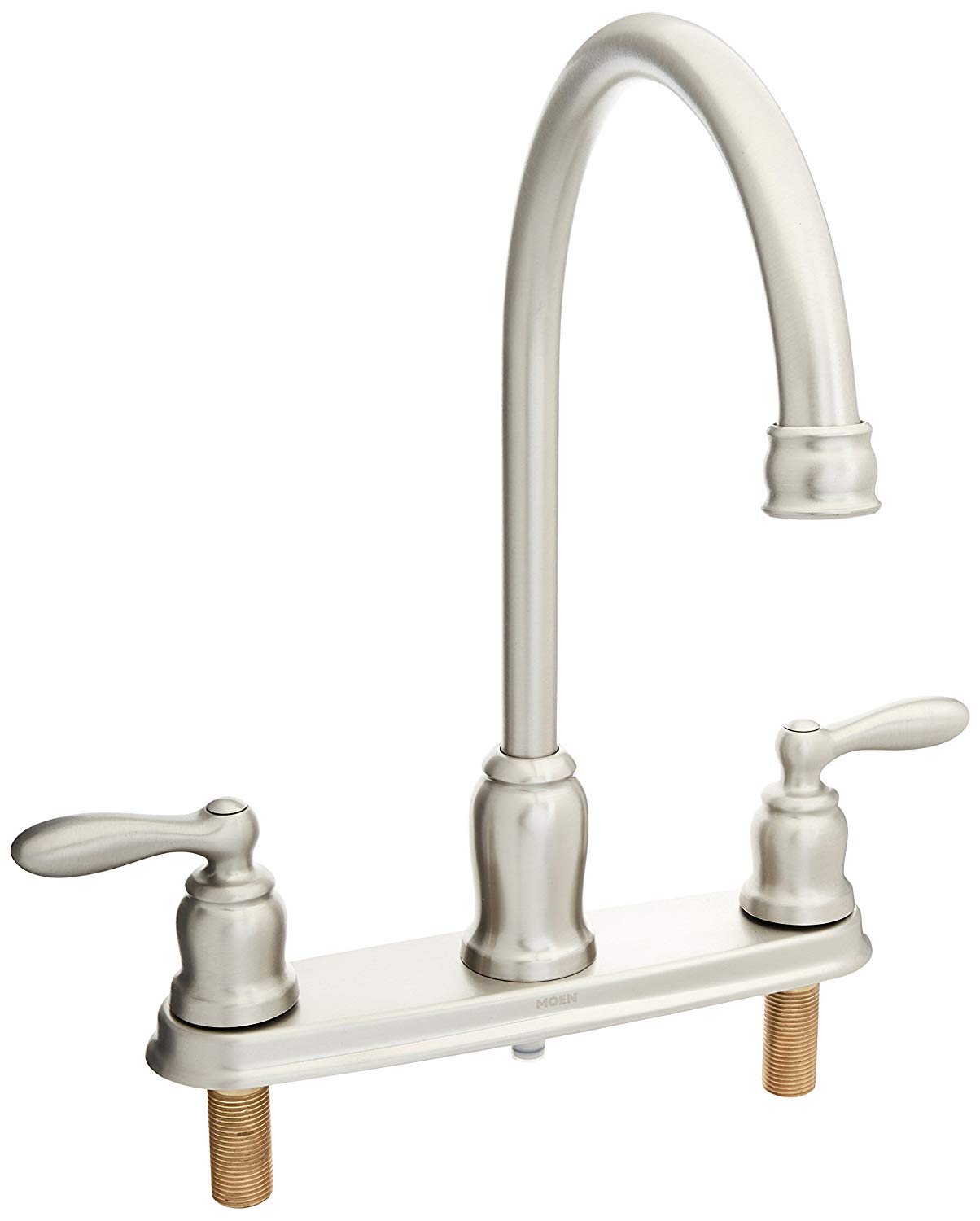

Figure 1: Moen CA87060SRS High-Arc Kitchen Faucet with Side Spray. This image displays the complete faucet assembly, including the high-arc spout, two lever handles, base plate, and the side spray connection points.

2. Sikkerhedsoplysninger

• Sluk altid for hovedvandforsyningen, inden du installerer eller vedligeholder vandhanen.
• Brug passende personlige værnemidler, såsom sikkerhedsbriller, under installationen.
• Sørg for, at alle forbindelser er sikre for at forhindre lækager.
• Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret VVS-installatør.
• Do not use harsh chemicals or abrasive cleaners on the faucet finish, as this may damage the Spot Resist Stainless surface.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• High-Arc Kitchen Faucet Assembly
• Side Spray Unit
• Monteringshardware
• Installationsvejledning (denne vejledning)

4. Nødvendigt værktøj (medfølger ikke)

• Justerbar skruenøgle
• Phillips hovedskruetrækker
• VVS-kit eller silikoneforsegling
• Flashlight (for under-sink work)
• Bucket and Towel (for water drainage)

5. Installationsvejledning

This faucet is designed for deck mount installation, typically requiring four holes in the sink or countertop.

5.1. Forbered installationsområdet

1. Sluk for ventilerne til varmt og koldt vand under vasken.
2. Remove any existing faucet and clean the mounting surface thoroughly.
3. Ensure the four mounting holes are clear and properly sized for the faucet and side spray.

5.2. Install the Faucet Body

1. Apply a thin bead of plumber's putty or silicone sealant around the base of the faucet body or the escutcheon plate, if applicable.
2. Insert the faucet body and handles into the designated holes on the sink or countertop.
3. From underneath the sink, secure the faucet using the provided mounting hardware. Hand-tighten first, then use an adjustable wrench to snug connections without overtightening.

5.3. Install the Side Spray

1. Insert the side spray hose through its designated hole in the sink or countertop.
2. From underneath, connect the side spray hose to the faucet's spray port using the Duralock quick connect system. Ensure a secure click indicates proper connection.
3. Secure the side spray base with its mounting hardware.

5.4. Tilslut vandforsyningsledninger

1. Connect the hot and cold water supply lines from the faucet to the corresponding hot and cold water supply valves. Use an adjustable wrench to tighten connections, being careful not to overtighten.
2. Sørg for, at alle forbindelser er lækagefri.

5.5. Test the Faucet

1. Åbn langsomt ventilerne for varmt og koldt vand.
2. Check for any leaks at all connection points.
3. Turn on the faucet handles to flush the lines and check water flow and temperature.
4. Test the side spray for proper function.

6. Betjening

The Moen CA87060SRS faucet features two lever handles for precise control of water temperature and flow.

• Vandflow: Lift the lever handles to increase water flow. Push down to decrease or turn off.
• Temperaturkontrol: Det venstre håndtag styrer varmt vand, og det højre håndtag styrer koldt vand. Juster begge håndtag for at opnå den ønskede vandtemperatur.
• Side Spray: Squeeze the trigger on the side spray unit to divert water from the main spout to the spray. Release the trigger to return water flow to the main spout.

7. Vedligeholdelse

7.1. Rengøring af overfladebehandlingen

The Spot Resist Stainless finish is designed to resist fingerprints and water spots. To maintain its appearance:

• Rengør med en blød, damp klud og mild sæbe.
• Skyl grundigt med rent vand og tør med en blød klud for at forhindre vandpletter.
• Undgå slibende rengøringsmidler, barske kemikalier eller poleringsvoks, da disse kan beskadige finishen.

7.2. Rengøring af perlator

If water flow decreases or becomes irregular, the aerator may be clogged with debris.

1. Skru perlatoren af ​​spidsen af ​​tuden.
2. Rinse any debris from the aerator screen. For stubborn mineral deposits, soak the aerator in a 50/50 solution of white vinegar and water.
3. Reattach the aerator to the spout, ensuring it is securely tightened.

8. Fejlfinding

9. Specifikationer

• Model: CA87060SRS
• Mærke: Møn
• Udfør type: Spot modstå rustfrit
• Materiale: Metal (håndtagsmateriale: rustfrit stål)
• Monteringstype: Dækmontering
• Antal håndtag: 2
• Antal huller: 4
• Tuddesign: Høj bue
• Tudhøjde: 13.66 tommer
• Udløbsrækkevidde: 8.88 tommer
• Produktdimensioner: 1" D x 1" B x 13.66" H
• Varens vægt: 4.39 pund
• Overholdelse: Complies with Americans with Disabilities Act (ADA) specifications. Meets current legislation, including AB1953 (California) and S152 (Vermont).

10. Garanti og support

Moen products are manufactured under the highest standards of quality and workmanship. Moen offers a comprehensive warranty on its products. For specific warranty details, please refer to the warranty card included with your product or visit the official Moen webwebsted.

If you require assistance with installation, parts, or troubleshooting, please contact Moen Customer Support:

• Webwebsted: www.moen.com
• Telefon: Henvis til Møen webwebsted for regionale kontaktnumre.

Please have your model number (CA87060SRS) and date of purchase available when contacting support.
