OttLite 13W Slimline Desk Lamp Brugermanual

1. Introduktion

The OttLite 13W Slimline Desk Lamp combines sleek, modern design with compact portability and powerful illumination. Engineered to provide high-contrast, low-glare lighting, this lamp is ideal for reducing eyestrain during various tasks such as crafting, studying, computing, and reading. Its versatile design makes it a perfect addition to any home, office, bedroom, or craft area.

Figure 1: OttLite 13W Slimline Desk Lamp, visasing its compact folded form and extended operational position.

2. Produktfunktioner

• Pladsbesparende design: Lamp features an articulating arm that folds into a compact position when not in use, allowing for easy storage and portability.
• Multiple Adjustable Points: The articulating arm adjusts from 14.75 to 19.75 inches, and the rotating shade provides optimal brightness and light direction for any task.
• Energy Efficient Illumination: Includes an easy-to-replace 13-watt Type E bulb designed to last up to 10,000 hours, providing long-lasting, cost-effective lighting.
• Justerbar skygge: Lamp's shade can be adjusted to minimize glare, significantly reducing eyestrain during prolonged use.
• Naturlig dagslysteknologi: Utilizes OttLite's unique daylight illumination, which accurately shows colors and details with exceptional clarity, further reducing glare and eyestrain.

3. Samling og opsætning

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle dele er til stede:amp base, articulating arm with shade, and 13W Type E bulb.
2. Vedhæft Lamp Head to Base: Lamp head and arm assembly typically comes pre-attached. If not, align the arm's connector with the base's receptacle and secure it according to the visual guide.
3. Indsæt pære: Gently insert the 13W Type E bulb into the lamp Sørg for, at den sidder godt fast.
4. Position Lamp: Placer lamp on a stable, flat surface. The base is designed to be sturdy and prevent tipping.
5. Tilslut til strøm: Sæt netledningen i en almindelig stikkontakt.

Figure 2: Key components and adjustable features of the OttLite Slimline Desk Lamp.

4. Betjeningsvejledning

1. Tænd/sluk: Locate the push-button switch on the lamp base. Press the button once to turn the lamp Tryk igen for at tænde lamp slukket.
2. Justering af lysposition: Lamp features multiple articulation points on its arm and a rotating shade. Gently move the arm and shade to direct the light precisely where needed. The lamp can be adjusted to various heights and angles to suit your task.

Figur 3: Den lamp's height can be adjusted to provide optimal illumination for different tasks.

5. Pleje & Vedligeholdelse

• Rensning: For at rense lamp, ensure it is unplugged and cool. Wipe surfaces with a soft, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Udskiftning af pære: Lamp uses a 13-watt Type E bulb. When replacing, ensure the lamp is unplugged and the bulb is cool. Gently twist the old bulb to remove it and insert the new bulb, aligning the pins with the socket.

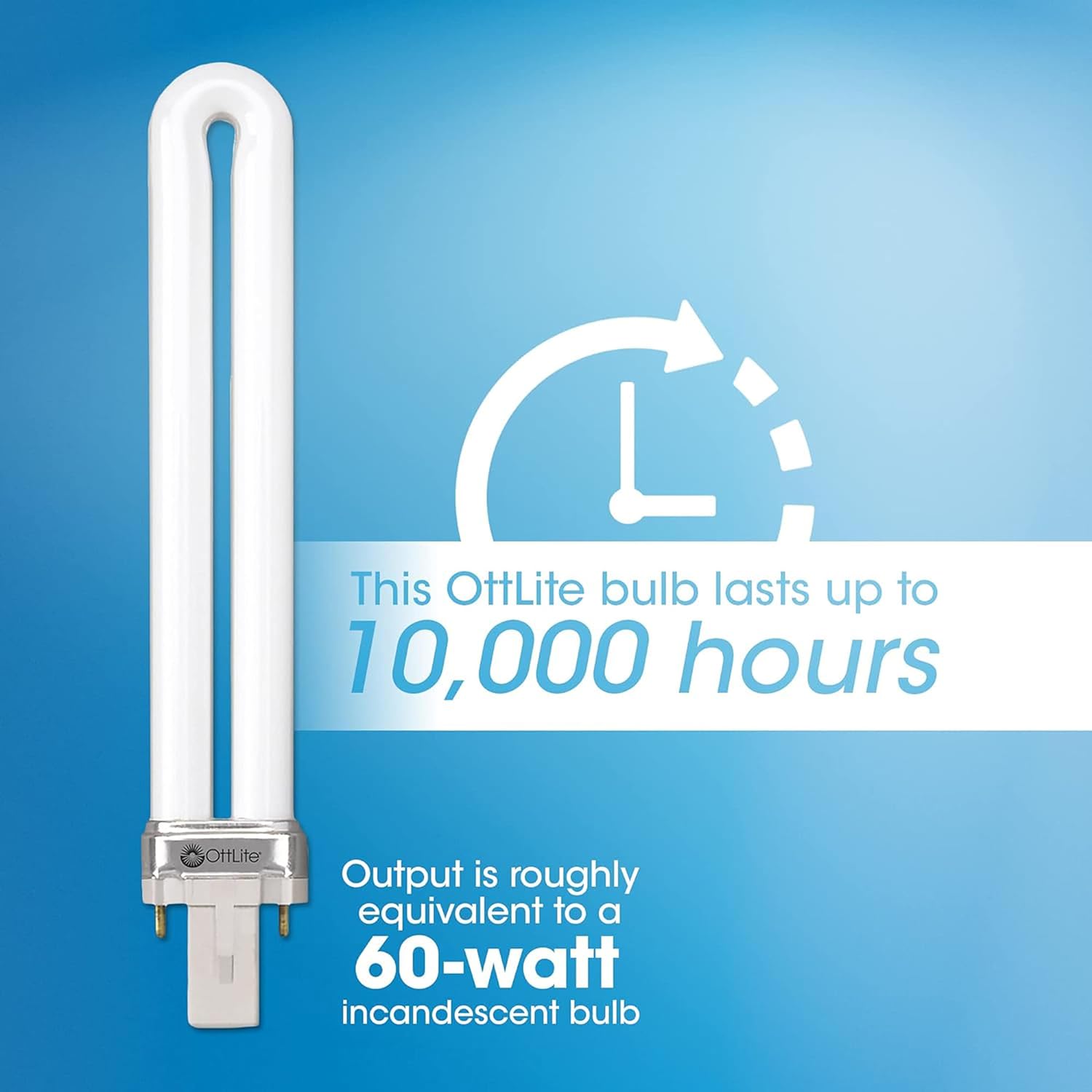

Figure 4: The 13W Type E replacement bulb, designed for easy installation.

6. Fejlfinding

• Lamp Tænder ikke:
  • Check if the power cord is securely plugged into both the lamp og stikkontakten.
  • Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.
  • Sørg for, at pæren er korrekt installeret og ikke er løs.
  • If the bulb is old, it may need replacement.
• Lys flimrende:
  • Ensure the bulb is fully and securely seated in the socket.
  • Prøv at udskifte pæren med en ny.

7. Tekniske specifikationer

8. Garanti og support

OttLite products are manufactured to high-quality standards. For specific warranty details, product support, or to purchase replacement parts, please refer to the documentation included with your product or visit the official OttLite webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
