1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Hansgrohe 28442801 Showerhead. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
2. Produktfunktioner
The Hansgrohe 28442801 Showerhead is designed for an enhanced showering experience, incorporating several key features:
- Flere sprøjtetilstande: Offers four distinct spray modes: full, mono, massage, and aerated, allowing for personalized shower experiences.
- Quick-Clean and Rub-It! Cleaning Systems: Equipped with innovative cleaning systems for easy removal of limescale and mineral deposits from the spray channels.
- Holdbar konstruktion: Features a solid brass shell for long-lasting durability and reliability.
- 64 No-Clog Spray Channels: Designed with numerous spray channels to ensure consistent water flow and prevent clogging.
- Includes Rubber Boot: A rubber boot is included for specific installation or maintenance needs.
3. Opsætning og installation
Before beginning installation, ensure you have the necessary tools (e.g., adjustable wrench, plumber's tape) and that the water supply to the shower arm is turned off. It is recommended to consult a qualified plumber if you are unsure about any steps.
- Klargør brusearmen: Ensure the existing shower arm is clean and free of debris. If replacing an old showerhead, remove it carefully.
- Påfør VVS-tape: Wrap plumber's tape (PTFE tape) clockwise around the threads of the shower arm. This helps create a watertight seal.
- Attach the Showerhead: Carefully thread the Hansgrohe 28442801 Showerhead onto the shower arm. Hand-tighten first, then use an adjustable wrench to tighten an additional quarter to half turn. Do not overtighten, as this can damage the threads or the showerhead.
- Tjek for lækager: Tænd for vandforsyningen, og kontroller for eventuelle lækager omkring tilslutningspunktet. Hvis der opstår lækager, skal du stramme dem en smule mere, eller påføre VVS-tape igen.

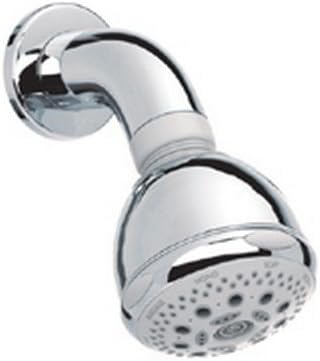

Image 1: The Hansgrohe 28442801 Showerhead, shown in its steel finish, attached to a standard shower arm. This image illustrates the product's design and how it appears when installed.
4. Betjeningsvejledning
The Hansgrohe 28442801 Showerhead features multiple spray modes that can be easily adjusted to suit your preference.
- Valg af sprøjtetilstande: The showerhead typically has a rotating dial or lever on its face or side. Rotate this mechanism to cycle through the available spray patterns:
- Fuld sprøjtning: Provides a wide, encompassing water flow for a traditional shower experience.
- Mono Spray: A concentrated, powerful stream, often used for rinsing.
- Massagespray: Pulsating water streams designed to provide a relaxing or invigorating massage effect.
- Aerated Spray: A soft, air-infused spray for a gentle and luxurious feel.
- Vandstrømsjustering: Water flow and temperature are controlled by your shower's main faucet handles, not directly by the showerhead.
5. Vedligeholdelse
Regular cleaning and maintenance will ensure optimal performance and extend the life of your Hansgrohe showerhead.
- Quick-Clean and Rub-It! Systems: The spray nozzles are designed with flexible silicone nubs. To remove limescale and mineral deposits, simply rub these nubs with your finger or a soft cloth. This action dislodges buildup, restoring full spray performance.
- Generel rengøring: Clean the exterior of the showerhead regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive pads, or cleaners containing alcohol, ammonia, or bleach, as these can damage the finish.
- Deep Cleaning (if necessary): For stubborn mineral buildup, you may carefully unscrew the showerhead from the arm and soak it in a solution of white vinegar and water (50/50 ratio) for a few hours. Rinse thoroughly before reattaching.
6. Fejlfinding
If you encounter issues with your Hansgrohe 28442801 Showerhead, refer to the following common problems and solutions:
- Lavt vandtryk:
- Tjek for træsko: Use the Quick-Clean/Rub-It! feature to clear any mineral buildup from the nozzles.
- Inspect Water Restrictor: Some showerheads include a flow restrictor. Consult a professional if you suspect this is the cause and wish to investigate.
- Verify Home Water Pressure: Ensure your home's overall water pressure is adequate.
- Leaking from Connection:
- Stram forbindelsen: Gently tighten the showerhead onto the shower arm.
- Reapply Plumber's Tape: Unscrew the showerhead, remove old plumber's tape, and reapply fresh tape before reattaching.
- Uregelmæssigt sprøjtemønster:
- Rengøring af dyser: Rub the silicone nozzles to clear any blockages.
- Tjek for affald: Occasionally, debris can get trapped inside the showerhead. If cleaning the nozzles doesn't help, carefully remove the showerhead and inspect the internal filter screen (if present) for debris.
If problems persist, contact Hansgrohe customer support or a qualified plumber.
7. Specifikationer
Key technical specifications for the Hansgrohe 28442801 Showerhead:
| Specifikation | Detalje |
|---|---|
| Mærke | Hansgrohe |
| Modelnummer | 28442801 |
| Stil | Moderne |
| Form | Rund |
| Materiale | Messing |
| Finish Type | Børstet |
| Farve | Stål |
| Antal indstillinger | 4 |
| Antal dyser | 1 (referring to the main jet area, not individual nozzles) |
8. Garanti og support
Hansgrohe products are manufactured to high-quality standards. For specific warranty information, including terms and conditions, please refer to the warranty documentation provided with your purchase or visit the official Hansgrohe webwebsted. Gem din købsbevis til garantikrav.
For technical support, replacement parts, or further assistance, please contact Hansgrohe customer service directly. Contact information can typically be found on the manufacturer's webstedet eller i emballagematerialerne.
