Nikon Coolpix S8100 digitalkamera brugsanvisning

1. Introduktion

This manual provides essential instructions for the safe and effective operation of your Nikon Coolpix S8100 digital camera. Please read this manual thoroughly before using your camera and keep it in a safe place for future reference.

2. Kamerakomponenter

Familiarize yourself with the main components of your Nikon Coolpix S8100 camera.

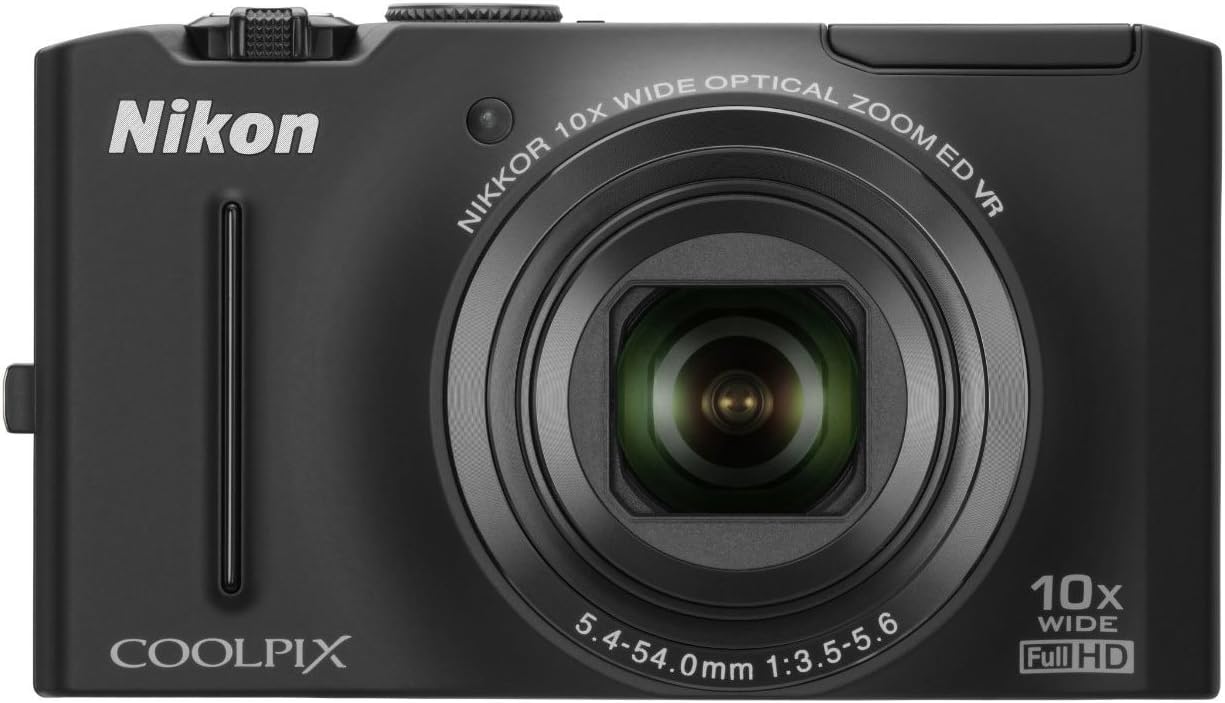

Figur 2.1: Forside view of the Nikon Coolpix S8100 camera, showing the lens, flash, and brand logo.

Figur 2.2: Vinklet view of the Nikon Coolpix S8100 camera, highlighting the top controls and LCD screen.

2.1. Frontpanel

• Linse: 10x Optical Zoom-Nikkor ED Glass Lens.
• Blitz: Indbygget blitz til forhold med svagt lys.
• Self-Timer Lamp: Indicates self-timer operation.

2.2. Bagpanel

• LCD-skærm: 3-inch Ultra-High Resolution (921,000-dot) Clear Color Display.
• Kontrolknapper: Navigation, menu, playback, and delete functions.

2.3. Toppanel

• Power knap: Tænder/slukker kameraet.
• Udløserknap: Optager stillbilleder.
• Zoom kontrol: Adjusts optical zoom.

3. Indledende opsætning

3.1. Isætning af batteriet

The camera uses an EN-EL12 Li-ion rechargeable battery. Ensure the battery is fully charged before first use.

1. Open the battery chamber cover located on the bottom of the camera.
2. Insert the EN-EL12 battery with the correct orientation, matching the polarity indicators.
3. Luk batterikammerdækslet ordentligt.

3.2. Indsættelse af et hukommelseskort

The Nikon Coolpix S8100 supports SD/SDHC memory cards (not included).

1. Open the memory card slot cover, usually located next to the battery chamber.
2. Insert the SD/SDHC card into the slot until it clicks into place. Ensure the card is oriented correctly.
3. Luk dækslet til hukommelseskortet.

3.3. Opladning af batteriet

Use the supplied EH-68P Charging AC Adapter and UC-E6 USB Cable to charge the battery while it is in the camera.

1. Connect the UC-E6 USB Cable to the camera's USB port.
2. Connect the other end of the USB cable to the EH-68P Charging AC Adapter.
3. Plug the AC adapter into a power outlet. The charging indicator will light up.
4. Charging is complete when the indicator turns off.

4. Grundlæggende betjening

4.1. Tænd/sluk for kameraet

Tryk på Power-knap on the top panel to turn the camera on or off.

4.2. Optagelse af stillbilleder

1. Tænd kameraet.
2. Komponer dit billede ved hjælp af LCD-skærmen.
3. Tryk på Udløserknap halfway down to focus. The focus indicator will light up.
4. Tryk på Udløserknap helt ned for at tage billedet.

4.3. Recording Full HD Movies

The Coolpix S8100 supports Full HD (1080p) movie recording with stereo sound.

1. Tænd kameraet.
2. Tryk på den dedikerede Movie Record button (usually marked with a red dot) to start recording.
3. Tryk på Movie Record button igen for at stoppe optagelsen.
4. During recording, you can use the zoom control to adjust the optical zoom.

4.4. Afspilning

Til view captured images and videos:

1. Tryk på Afspilningsknap (usually marked with a play icon).
2. Use the navigation buttons to scroll through your photos and videos.
3. Tryk på OK/SET button for at afspille en video.

5. Avancerede funktioner

5.1. Scenetilstande

The camera offers 17 scene modes, including Scene Auto Selector, which automatically recognizes the scene and selects the most appropriate mode.

• Access scene modes via the Funktionsvælger or MODE knap.
• Select a scene mode that matches your shooting environment for optimized results.

5.2. Image Stabilization (VR)

The 4-way VR Image Stabilization System minimizes camera shake for sharper images and smoother videos.

• Optical VR: Lens shift technology.
• Bevægelsesdetektion: Adjusts shutter speed and ISO for moving subjects.

5.3. Smart Portrait System

Enhance your portraits with features like:

• Smile Timer: Automatically releases the shutter when a smile is detected.
• In-Camera Red-Eye Fix: Corrects red-eye automatically.
• Face-Priority AF: Detects up to 12 faces for optimal focus.
• Skin Softening: Smoothes skin tones.
• Blink Warning: Alerts if a subject has blinked.

6. Vedligeholdelse og pleje

6.1. Rengøring af kameraet

• Brug en blød, fnugfri klud til at rengøre kamerahuset.
• Brug en specialklud og -opløsning til linsen og LCD-skærmen.
• Undgå at bruge skrappe kemikalier eller slibende materialer.

6.2. Batteripleje

• Opbevar batterierne på et køligt, tørt sted, når de ikke er i brug.
• Udsæt ikke batterier for ekstreme temperaturer.
• Charge batteries fully before extended storage.

7. Fejlfinding

8. Specifikationer

• Billedsensor: 12.1 megapixel CMOS-sensor
• Linse: 10x Optical Zoom-Nikkor ED Glass Lens (30-300mm equivalent)
• Vise: 3-inch Ultra-High Resolution (921,000-dot) Clear Color LCD
• Billedstabilisering: 4-way Optical VR Image Stabilization
• Videooptagelse: Full HD (1080p) with Stereo Sound
• ISO-følsomhed: ISO 160 - 3200
• Lagermedier: SD/SDHC memory cards
• Forbindelse: HDMI, USB
• Strømkilde: EN-EL12 Li-ion rechargeable battery
• Dimensioner: Approximately 103.7 x 59.2 x 27.2 mm (4.1 x 2.3 x 1.1 in.)
• Vægt: Approximately 150 g (5.3 oz) including battery and SD memory card

9. Garanti og support

9.1. Begrænset garanti

This product is covered by a limited warranty. Please refer to the warranty card included in the product packaging for full details regarding coverage, duration, and conditions. The warranty typically covers defects in materials or workmanship under normal use.

Note: Warranty may be voided by misuse, abuse, negligence, sand, liquids, impact, current fluctuations, or failure to follow operating instructions.

9.2. Kundesupport

For technical assistance, product inquiries, or service requests, please visit the official Nikon support website or contact their customer service. Contact information can typically be found on the warranty card or the Nikon webwebsted.
