Indledning
This manual provides essential information for the proper installation, operation, and maintenance of your Jensen C12N8 12-inch speaker. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.
Produkt overview
The Jensen C12N8 is a 12-inch general-purpose speaker designed for musical instrument reproduction. It features a ceramic magnet and delivers a balanced tone suitable for various musical styles, with a clear high-frequency response and a robust mid-range when overdriven.
Nøglefunktioner
- 12-inch overall diameter
- 8 Ohm impedans
- 50 Watts rated power
- Keramisk magnet
- Designed for electronic musical instrument reproduction
Billedbeskrivelse: En top-down view of the Jensen C12N8 12-inch speaker, showcasing its green frame, black cone, and the central magnet with "Jensen Special Design" labeling.
Hvad er der i æsken
- 1 x Jensen C12N8 12-inch speaker
Opsætning og installation
Proper installation is crucial for the performance and safety of your speaker.
Sikkerhedsforanstaltninger
- Always disconnect power from the amplifier or cabinet before installing or removing speakers.
- Ensure the impedance of the speaker matches the output impedance of your amplifier. Mismatched impedances can damage your equipment. This speaker has an 8 Ohm impedance.
- Handle the speaker carefully to avoid damage to the cone or voice coil.
Montering af højttaleren
The Jensen C12N8 speaker is designed for flush mount installation.
- Ensure the speaker cabinet or enclosure has a 12-inch diameter opening.
- Align the speaker's mounting holes with the corresponding holes on the cabinet.
- Secure the speaker using appropriate screws or bolts, ensuring even pressure around the frame. Do not overtighten.
Image Description: A perspective view of the Jensen C12N8 speaker with dimension lines indicating its 12-inch diameter and 6-inch height.
Ledningsforbindelser
Tilslut højttaleren til din amplifier using appropriate speaker cables.
- Locate the positive (+) and negative (-) terminals on the speaker. These are typically marked.
- Tilslut højttalerens positive terminal til den positive udgang på din amplivligere.
- Tilslut højttalerens negative terminal til den negative udgang på din amplivligere.
- Sørg for, at alle forbindelser er sikre for at forhindre signaltab eller kortslutninger.
Image Description: A bottom view of the Jensen C12N8 speaker, showing the magnet structure, the green frame, and the two clearly visible speaker terminals for wiring connections.
Betjeningsvejledning
Once installed, the Jensen C12N8 speaker operates as part of your audio system.
- Tænd din amplifier og lydkilde.
- Start med lav lydstyrke og øg den gradvist til det ønskede lytteniveau.
- Avoid operating the speaker at excessively high volumes for prolonged periods, as this can lead to damage.
- The speaker is designed to handle up to 50 watts of power. Do not exceed this rating.

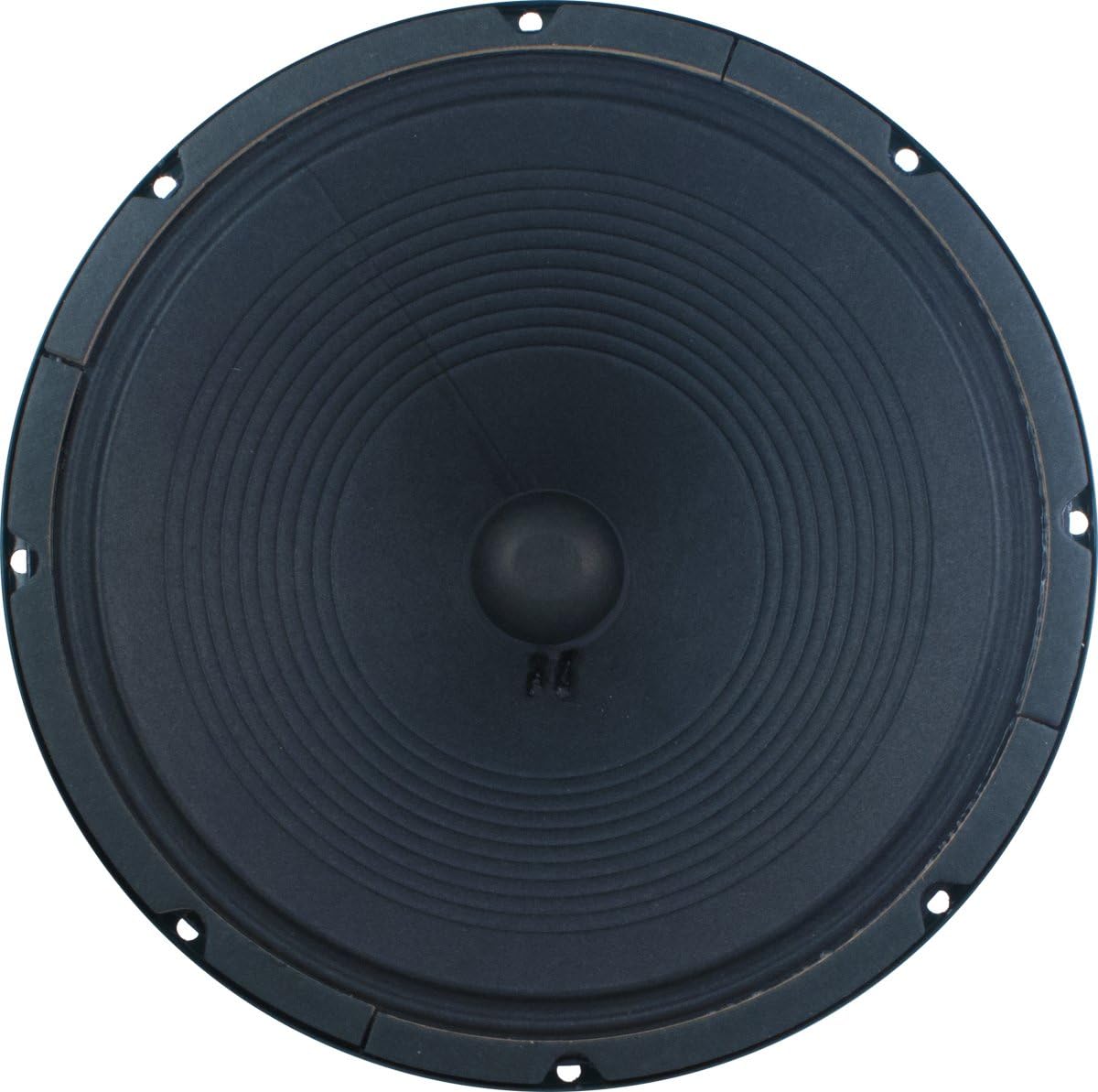

Image Description: A close-up front view of the Jensen C12N8 speaker cone, showing its textured surface and central dust cap.
Opretholdelse
The Jensen C12N8 speaker requires minimal maintenance.
- Keep the speaker clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Undgå at udsætte højttaleren for ekstreme temperaturer eller fugt.
- Kontroller regelmæssigt ledningsforbindelser for sikkerhed.
- Do not attempt to repair the speaker cone or voice coil yourself if damaged; consult a qualified technician.
Fejlfinding
If you experience issues with your Jensen C12N8 speaker, refer to the following common problems and solutions:
Ingen lyd
- Check all cable connections between the amplifier and speaker. Ensure they are secure and correctly polarized (+ to +, - to -).
- Bekræft ampkøleren er tændt og fungerer korrekt.
- Bekræft, at lydkilden er aktiv og sender et signal.
- Sørg for amplifier's output impedance matches the speaker's 8 Ohm impedance.
Forvrænget lyd
- Reducer lydstyrken på din ampOverbelastning af højttaleren kan forårsage forvrængning.
- Kontroller for fysisk skade på højttalerkeglen.
- Ensure the speaker is securely mounted and not vibrating against the cabinet.
Intermitterende lyd
- Undersøg alle ledninger for løse forbindelser eller flossede kabler.
- Check for any internal shorts within the speaker cable or amplivligere.
Specifikationer
| Feature | Specifikation |
|---|---|
| Model | C12N8 |
| Samlet diameter | 12 tommer |
| Impedans | 8 Ohm |
| Nominel effekt | 50 watt |
| Magnet type | Keramisk |
| Samlet vægt | 7.15 lbs (3.24 kg) |
| Stemmespole diameter | 1.5 tommer |
| Frekvensrespons | 70-7 kHz |
| Produktmål (D x B x H) | 12 cm x 12 cm x 6 cm |
| Materiale | Keramisk |
| Højttaler type | General Purpose Speaker |
| Monteringstype | Flush Mount |
| Farve | Grøn |
Billedbeskrivelse: En sideprofile view of the Jensen C12N8 speaker, highlighting the depth of the cone and the structure of the frame.
Garanti og support
Begrænset garanti
This Jensen C12N8 speaker comes with a limited warranty from the manufacturer, Jensen. Please refer to the warranty documentation included with your purchase for specific terms and conditions.
Kundesupport
For technical assistance, warranty claims, or further information, please contact Jensen customer support. Visit the official Jensen webwebsted for kontaktoplysninger.
Producent: Jensen
Model Number: C12N8
UPC: 889406011380
