The Optex AX-200TN is a high-performance outdoor dual beam photoelectric detector designed for short-range perimeter security. It features a 200-foot (60-meter) capture area, providing reliable motion detection for various applications. Its robust design ensures accurate detection while minimizing false alarms, making it suitable for both indoor and outdoor environments.
Figure 1: Optex AX-200TN Dual Beam Photoelectric Detector. This image shows the sleek, dark casing of the detector, highlighting its compact and durable design.
2. Nøglefunktioner
- Dual Beam Technology: Utilizes two synchronized infrared beams to enhance detection accuracy and reduce false alarms caused by small animals or environmental factors.
- Udvidet rækkevidde: Capable of detecting motion up to 200 feet (60 meters), providing wide coverage for various security needs.
- Photoelectric Detection: Ensures precise and reliable detection by sensing interruptions in the infrared beams.
- Vejrbestandigt design: Built to withstand outdoor conditions, ensuring consistent performance in diverse weather.
- Justerbare indstillinger: Offers customizable sensitivity options to tailor detection parameters to specific environmental requirements and minimize unwanted triggers.
- Nem installation: Designed for straightforward setup and alignment.
3. Opsætning og installation
Proper installation and alignment are crucial for optimal performance of the AX-200TN detector. Follow these general guidelines:
- Monteringssted: Choose a stable, flat surface for mounting both the transmitter and receiver units. Ensure they are aligned directly opposite each other within the 200-foot range.
- Højde: Mount the units at an appropriate height to ensure the beams are not obstructed by common objects or terrain.
- Ledningsføring: Connect the power supply and alarm output wiring according to the detailed wiring diagram provided in the full product manual. Ensure all connections are secure and properly insulated.
- Justering: Carefully align the transmitter and receiver units. The AX-200TN typically includes visual or audible indicators to assist with precise beam alignment. Adjust until a strong, stable signal is achieved.
- Følsomhedsjustering: Adjust the detection sensitivity as needed to prevent false alarms from environmental factors while ensuring reliable detection of intended targets.

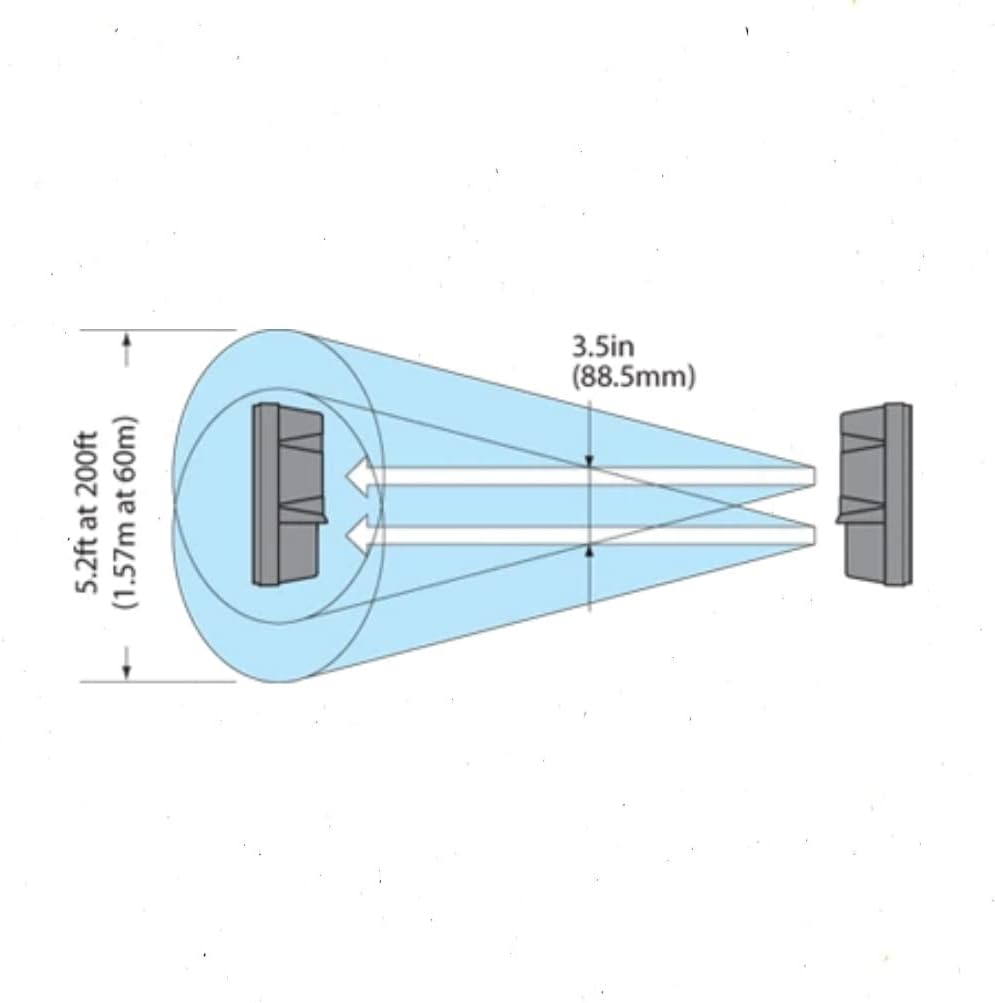

Figure 2: Beam Alignment Diagram. This diagram illustrates the dual infrared beams emitted by the detector, showing how they create a detection zone and the importance of precise alignment between the transmitter and receiver units for effective operation.
4. Betjeningsvejledning
Once installed and aligned, the Optex AX-200TN operates by continuously emitting and receiving two infrared beams. When both beams are simultaneously interrupted, the detector triggers an alarm signal. This dual beam mechanism significantly reduces the likelihood of false alarms caused by single beam obstructions like falling leaves or small animals.
- Tænd: Ensure the detector is properly powered. An indicator light typically confirms power status.
- Opdagelse: The unit will continuously monitor the detection zone.
- Alarmoutput: Upon detection of an intrusion, the detector will activate its alarm output, which can be connected to a security panel, siren, or other monitoring device.
- Statusindikatorer: Refer to the device's indicator lights for status information, such as power, alarm, and beam alignment strength.
5. Vedligeholdelse
Regular maintenance ensures the long-term reliability and performance of your AX-200TN detector.
- Rene linser: Periodically clean the optical lenses of both the transmitter and receiver units using a soft, clean cloth to remove dust, dirt, or spiderwebs that may obstruct the beams.
- Tjek justering: Verify that the units remain properly aligned. Environmental shifts, such as ground settling or strong winds, can sometimes affect alignment. Re-align if necessary.
- Undersøg ledninger: Check all wiring connections for any signs of wear, corrosion, or damage. Ensure they are secure.
- Ryd forhindringer: Keep the detection path clear of any growing vegetation, debris, or other potential obstructions that could interfere with the beams.
6. Fejlfinding
If you encounter issues with your Optex AX-200TN, consider the following common troubleshooting steps:
- Falske alarmer:
- Check for partial beam obstructions (e.g., swaying branches, tall grass, large birds).
- Re-align the beams to ensure optimal signal strength.
- Adjust sensitivity settings to a lower level if environmental factors are causing frequent false triggers.
- Ingen detektion:
- Verify power supply to both units.
- Ensure beams are perfectly aligned. Use the alignment indicators if available.
- Clean the optical lenses thoroughly.
- Check wiring connections for continuity and proper installation.
- Confirm that the detection range is not exceeded.
- Intermitterende drift:
- Undersøg for løse ledningsforbindelser.
- Check for unstable mounting surfaces.
- Ensure consistent power supply.
7. Specifikationer
| Attribut | Værdi |
|---|---|
| Produktdimensioner | 8 x 9 x 3 tommer |
| Varens vægt | 1 pund |
| ASIN | B003V1FC6C |
| Varemodelnummer | AX-200TN |
| Fabrikant | OPTEX |
| Dato først tilgængelig | 16. januar 2009 |
8. Garanti og support
For detailed warranty information, technical support, or service inquiries regarding your Optex AX-200TN Dual Beam Photoelectric Detector, please refer to the official Optex webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering til garantikrav.
Note: This manual provides general information. Always refer to the complete official product manual for detailed installation instructions, safety precautions, and specific technical specifications.
