Elektroniske specialer ES 697 400 Amp Brugsanvisning til DC/AC-strømprobe

1. Introduktion

The Electronic Specialties ES 697 is a versatile 400 Amp DC/AC Current Probe designed to measure current without breaking the circuit. This instrument is ideal for use with digital multimeters, lab scopes, or graphing meters to test starting and charging systems in various applications. It offers high current measuring capability up to 400 amperes for both AC and DC currents, providing a reliable solution for electrical diagnostics.

2. Sikkerhedsoplysninger

Always observe basic safety precautions when using this current probe to reduce the risk of fire, electric shock, or personal injury. Read and understand all instructions before operation.

• Fare for elektrisk stød: Do not apply the probe to uninsulated conductors carrying more than 600V AC/DC. Ensure the circuit is de-energized or take appropriate safety measures before clamping.
• Korrekt brug: Use the probe only as described in this manual. Any other use may impair the safety features provided by the equipment.
• Inspektion: Before each use, inspect the probe for any damage to the casing, jaws, or output cable. Do not use if damaged.
• Batterisikkerhed: Ensure correct battery polarity when installing. Do not mix old and new batteries or different types of batteries. Remove batteries if the unit is not used for an extended period.
• Miljøforhold: Do not operate the probe in wet conditions or explosive atmospheres.

3. Produktet er slutview

The ES 697 Current Probe is a handheld device designed for non-invasive current measurement. It features a clamp mechanism that allows it to be placed around a conductor without direct contact, providing an output signal proportional to the measured current.

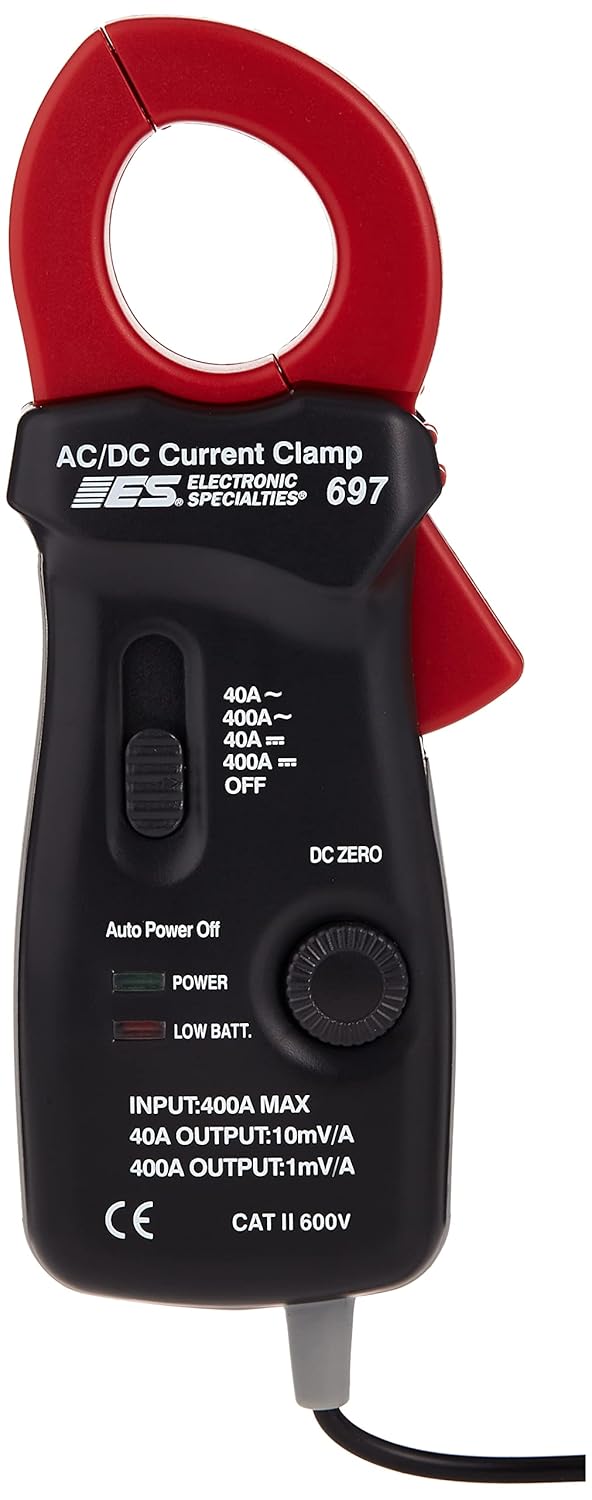

Figur 3.1: Forside view of the Electronic Specialties ES 697 400 Amp DC/AC Current Probe. This image displays the main body of the probe, including the red clamp jaws, the AC/DC current clamp label, the ES logo, model number 697, the range selector switch, the DC ZERO adjustment knob, and the power and low battery indicators. The output cable is visible at the bottom.

Komponenter:

• Clamp Kæber: Open to enclose the conductor for current measurement.
• Jaw Release Lever: Used to open and close the clamp kæber.
• Range Selector Switch: Allows selection between 40A AC, 400A AC, 40A DC, 400A DC, and OFF positions.
• DC ZERO Adjustment Knob: Used to zero the display when measuring DC current.
• Strømindikator LED: Lyser, når enheden er tændt.
• Low Battery Indicator LED: Illuminates when battery power is low.
• Udgangskabel: Connects the probe to a compatible digital multimeter, lab scope, or graphing meter.

Hvad er der i æsken:

• Elektroniske specialiteter 400 Amp DC/AC Current Probe (Model 697)
• Bæretaske

Figure 3.2: Black zippered carrying case for the ES 697 Current Probe. This case provides protection and convenient storage for the current probe.

4. Opsætning

4.1 Batteriinstallation

The ES 697 Current Probe requires a 9V battery for operation. To install or replace the battery:

1. Ensure the probe is in the OFF position.
2. Find batteridækslet på bagsiden af ​​enheden.
3. Brug en skruetrækker til at løsne skruen, der fastgør batteridækslet.
4. Fjern dækslet.
5. Tilslut et nyt 9V-batteri til batteriklemmen, og sørg for korrekt polaritet.
6. Placer batteriet i batterirummet, og sæt dækslet på igen, og fastgør det med skruen.

Figur 4.1: Bagside view of the ES 697 Current Probe. This image highlights the battery compartment cover, which is secured by a screw, and the warning label regarding electrical shock and opening the device.

4.2 Connecting to a Multimeter/Scope

The ES 697 probe outputs a voltage signal proportional to the measured current. Connect the probe's output cable to your measuring device as follows:

• Connect the red banana plug of the probe's output cable to the V (voltage) input terminal of your multimeter or scope.
• Connect the black banana plug of the probe's output cable to the COM (common) input terminal of your multimeter or scope.
• Set your multimeter or scope to measure DC or AC voltage, depending on the current type you intend to measure.

5. Betjeningsvejledning

5.1 Powering On and Range Selection

1. Turn the Range Selector Switch to the desired current type and range (e.g., 40A AC, 400A AC, 40A DC, 400A DC). The Power indicator LED will illuminate.
2. For DC current measurements, proceed to the DC Zero Adjustment step. For AC current measurements, this step is not required.

5.2 DC Zero Adjustment

Before measuring DC current, it is crucial to zero the probe to ensure accurate readings. This compensates for any residual magnetic fields or offset in the sensor.

1. With the probe powered on and set to a DC range (40A DC or 400A DC), ensure the clamp jaws are completely closed and there is no conductor inside.
2. Observe the reading on your connected multimeter or scope.
3. Slowly turn the DC ZERO adjustment knob until the multimeter/scope displays a reading as close to zero as possible.
4. The probe is now ready for DC current measurement.

5.3 Measuring Current

1. Press the Jaw Release Lever to open the clamp kæber.
2. Carefully position the jaws around a single conductor carrying the current you wish to measure. Ensure the jaws close completely around the conductor.
3. Læs bindtage value displayed on your connected multimeter or scope.
4. Konverter voltage reading to current using the probe's output ratio:
   • For 40A range: 10mV/A (e.g., 100mV reading = 10A)
   • For 400A range: 1mV/A (e.g., 100mV reading = 100A)
5. After measurement, remove the probe from the conductor and turn the Range Selector Switch to the OFF position to conserve battery life. The unit features auto power-off to save batteries if left idle.

6. Vedligeholdelse

6.1 Udskiftning af batteri

When the Low Battery indicator LED illuminates, replace the 9V battery as described in Section 4.1. Prompt battery replacement ensures accurate readings and proper operation.

6.2 Rengøring og opbevaring

• To clean the probe, wipe the exterior with a soft, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Sørg for, at sonden er helt tør før opbevaring.
• Store the probe in its provided carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Hvis produktet opbevares i længere tid, skal batteriet fjernes for at forhindre lækage.

7. Fejlfinding

• Probe does not power on: Check if the range selector switch is in an ON position. Verify the 9V battery is correctly installed and has sufficient charge. Replace the battery if necessary.
• Low Battery Indicator is on: Replace the 9V battery immediately to ensure accurate measurements.
• Inaccurate or fluctuating DC readings / Cannot zero out DC: Sørg for at clamp jaws are completely closed and there are no conductors or strong magnetic fields nearby during DC zero adjustment. Try adjusting the DC ZERO knob slowly and precisely. If the issue persists after battery replacement and careful zeroing, the unit may require service.
• No reading on multimeter/scope: Check the connection between the probe's output cable and your measuring device. Ensure your multimeter/scope is set to the correct voltage measurement mode (AC V or DC V) and range. Verify the probe is powered on and the jaws are properly closed around a single conductor.
• Automatisk sluk: The unit is designed to automatically power off after a period of inactivity to conserve battery life. If the unit turns off unexpectedly, simply turn the range selector switch to OFF and then back to the desired range.

8. Specifikationer

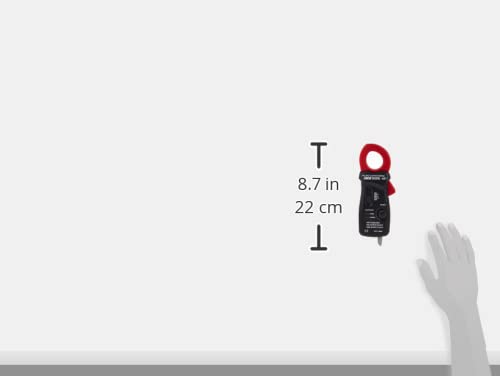

Figure 8.1: Diagram illustrating the dimensions of the ES 697 Current Probe, showing a height of 8.7 inches (22 cm).

9. Garanti og support

For warranty information or technical support regarding your Electronic Specialties ES 697 400 Amp DC/AC Current Probe, please refer to the documentation included with your purchase or contact Electronic Specialties directly through their official webwebstedet eller kundeservicekanaler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
