1. Introduktion

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Equipex FC-33/1 Electric Quarter-Size Countertop Convection Oven/Broiler. Please read these instructions thoroughly before using the appliance and retain them for future reference. The FC-33/1 is designed for professional use, featuring a rear fan and heater assembly for true convection cooking, two overhead TurboQuartz heating elements for broiling, and a robust stainless steel construction.

Figure 1: Equipex FC-33/1 Electric Quarter-Size Countertop Convection Oven/Broiler. This image shows the front view of the stainless steel oven with its glass door, control knobs on the right, and interior racks visible.

2. Vigtige sikkerhedsinstruktioner

For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge de grundlæggende sikkerhedsforanstaltninger, når du bruger dette apparat:

• Læs alle instruktioner, før du bruger ovnen.
• Rør ikke ved varme overflader. Brug håndtag eller knapper. Brug altid ovnhandsker eller grydelapper, når du håndterer varme materialer.
• For at beskytte mod elektrisk stød må ledningen, stik eller apparatet ikke nedsænkes i vand eller anden væske.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
• Brug ikke apparatet til andet end tilsigtet brug.
• Sørg for tilstrækkelig ventilation omkring ovnen under drift.

3. Opsætning og installation

3.1 Udpakning

• Tag forsigtigt ovnen ud af emballagen.
• Remove all packing materials, including any protective films or tapes, from the interior and exterior of the oven.
• Inspect the oven for any shipping damage. If damage is found, contact your supplier immediately.
• Ensure all accessories are present: 3 wire racks and 1 bake tray.

3.2 Placering

• Place the oven on a stable, level, and heat-resistant countertop or surface.
• Ensure there is adequate clearance around the oven for proper ventilation. Maintain at least 4 inches (10 cm) of space from walls and other appliances.
• Do not place the oven near flammable materials or heat-sensitive surfaces.

3.3 Elektrisk tilslutning

• The Equipex FC-33/1 operates on 120V electrical supply. Verify that your electrical outlet matches this requirement.
• Plug the oven directly into a grounded electrical outlet. Do not use extension cords or multi-outlet adapters.
• Ensure the electrical circuit can handle the oven's power requirements to prevent overloading.

4. Betjeningsvejledning

4.1 kontroller overview

The oven features three control knobs located on the right side of the unit:

• Termostatknap: Controls the internal temperature, adjustable up to 450°F (232°C).
• Funktionsvælgerknap: Selects the cooking mode (Convection or Broiler).
• Timerknap: Sets the cooking duration, up to 120 minutes. The oven will automatically shut off when the timer expires.

4.2 Convection Oven Operation

The convection mode utilizes a rear fan and heater assembly to circulate hot air, ensuring quick and uniform baking.

1. Place food on the wire racks or bake tray. For optimal air circulation, avoid overcrowding the oven.
2. Luk ovndøren forsvarligt.
3. Turn the Function Selector Knob to the convection oven symbol.
4. Set the desired temperature using the Thermostat Knob (up to 450°F).
5. Set the desired cooking time using the Timer Knob (up to 120 minutes). The oven will begin heating.
6. The oven will automatically turn off and signal when the set time has elapsed.
7. Fjern forsigtigt den tilberedte mad med ovnhandsker.

4.3 Broiler Operation (TurboQuartz)

The broiler mode uses two overhead quartz heating elements for melting, browning, or toasting.

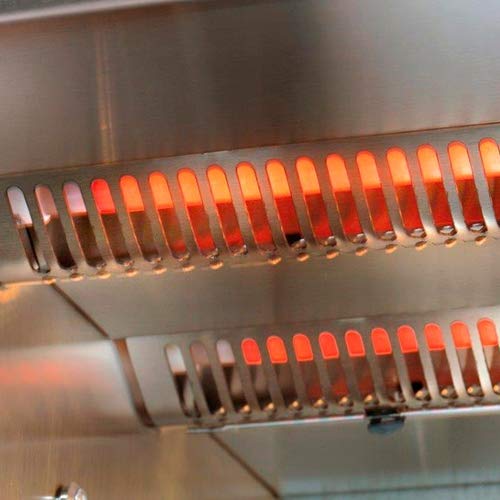

Figur 2: Nærbillede view of the overhead quartz heating elements inside the Equipex FC-33/1 oven, showing them glowing red during operation.

1. Place food on the top rack position for optimal broiling.
2. Luk ovndøren forsvarligt.
3. Turn the Function Selector Knob to the broiler symbol.
4. Set the desired cooking time using the Timer Knob (up to 120 minutes). The broiler elements will activate.
5. Monitor food closely to prevent burning, as broiling is a rapid cooking method.
6. The oven will automatically turn off and signal when the set time has elapsed.
7. Fjern forsigtigt den tilberedte mad med ovnhandsker.

4.4 Brug af timeren

The mechanical timer can be set for up to 120 minutes. To set the timer, simply turn the Timer Knob clockwise to the desired duration. The oven will operate until the timer counts down to zero, at which point it will emit an audible signal and automatically shut off the heating elements. To stop cooking before the timer expires, turn the Timer Knob counter-clockwise to the 'OFF' position.

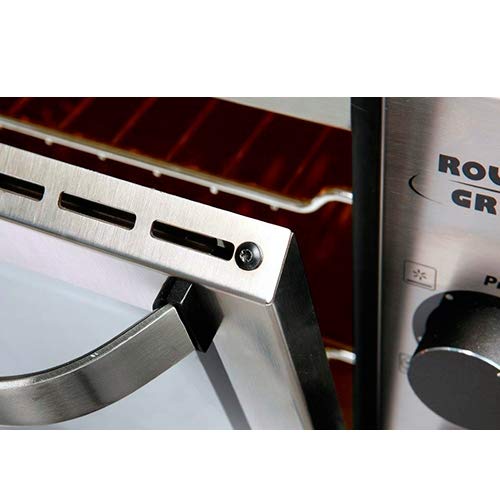

Figur 3: Nærbillede view of the Equipex FC-33/1 oven's stainless steel handle and a portion of the control panel, highlighting the robust construction.

5. Pleje og vedligeholdelse

Regelmæssig rengøring og vedligeholdelse vil sikre din ovns levetid og optimale ydeevne.

5.1 Rengøring

• Tag altid stikket ud af stikkontakten, og lad ovnen køle helt af, inden den rengøres.
• The exterior of the oven, made of stainless steel, can be wiped with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the surface.
• The interior can be cleaned with a damp cloth and mild, non-abrasive oven cleaner. Ensure all cleaner residue is wiped away.
• The wire racks and bake tray are removable and can be washed with warm, soapy water.
• Do not immerse the oven in water or spray water directly onto the heating elements or controls.
• Rengør glasdøren med glasrens eller en rengøringsmiddelamp klæde.

5.2 Opbevaring

If the oven will not be used for an extended period, ensure it is clean and dry. Store it in a cool, dry place, protected from dust and moisture.

6. Fejlfinding

Før du kontakter service, bedes du læse følgende almindelige problemer og løsninger:

7. Tekniske specifikationer

Figure 4: Equipex FC-33/1 Electric Quarter-Size Countertop Convection Oven with key dimensions labeled: 22 inches (width), 18.5 inches (depth), and 13 inches (height).

8. Garanti og support

This Equipex FC-33/1 Convection Oven/Broiler is covered by a manufacturer's warranty against defects in materials and workmanship. Specific warranty terms and duration may vary. Please refer to the warranty card included with your product or contact Equipex directly for detailed warranty information.

For technical support, service inquiries, or to order replacement parts, please contact Equipex customer service. Ensure you have your model number (FC-33/1) and purchase date available when contacting support.

Contact information for Equipex can typically be found on their official webwebstedet eller på produktemballagen.
