Produkt overview
The ATD Tools 2114 is a compact 1/4-inch drive air ratchet designed for various applications, particularly in body and engine shops, and for tasks requiring access to confined areas. It features a durable aluminum housing and a black finished head assembly with a tang style forward/reverse knob and a ball-type socket retainer.
Nøglefunktioner:
- Maximum torque: 25 feet/pounds
- Free speed: 250 rpm
- Average air consumption: 4.2 cfm
- Længde: 6.7 tommer

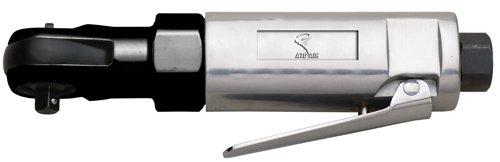

Image: The ATD Tools 2114 1/4-inch Drive Air Ratchet, featuring its sleek aluminum body and black ratchet head with a square drive.
Opsætning
Before operating the air ratchet, ensure you have a clean, dry, and regulated air supply. Proper setup is crucial for optimal performance and tool longevity.
- Luftforsyningsforbindelse: Connect the air ratchet to an air compressor using a 1/4-inch NPT air inlet. Ensure all connections are secure and leak-free.
- Air Pressure Regulation: Set your air compressor's regulator to the recommended operating pressure, typically around 90 PSI (6.2 bar). Do not exceed the maximum recommended pressure for the tool.
- Smøring: Before first use and regularly thereafter, apply a few drops of pneumatic tool oil into the air inlet. This lubricates internal components and helps prevent corrosion.
- Slange og fittings: Use an air hose with an adequate inner diameter (e.g., 3/8-inch) to ensure sufficient airflow to the tool. Check all quick-connect fittings for proper sealing.
Betjeningsvejledning
Follow these steps for safe and effective operation of your ATD Tools air ratchet.
- Sokkeltilslutning: Select the appropriate 1/4-inch drive socket for your fastener. Push the socket firmly onto the square drive anvil until it locks into place with the ball retainer.
- Valg af retning: The tool features a tang style forward/reverse knob. Rotate the knob to select the desired direction (clockwise for tightening, counter-clockwise for loosening).
- Tool Engagement: Placer topstykket vinkelret på fastgørelseselementet.
- Triggeroperation: Depress the trigger to activate the tool. The speed of the ratchet is controlled by the amount of trigger depression. Release the trigger to stop the tool.
- Sikkerhedsforanstaltninger: Always wear appropriate eye protection. Ensure the workpiece is stable. Do not over-tighten fasteners; use a torque wrench for final tightening if specific torque values are required. Disconnect the air supply when changing accessories or performing maintenance.
Opretholdelse
Regular maintenance will extend the life and ensure the consistent performance of your air ratchet.
- Daglig smøring: Add 5-10 drops of pneumatic tool oil into the air inlet before and after each use, or every few hours of continuous operation.
- Luftfilter/smøreapparat: If your air system includes an in-line air filter and lubricator, ensure the filter is clean and the lubricator reservoir is filled with pneumatic tool oil.
- Rensning: Keep the tool clean and free of debris. Wipe down the exterior with a clean cloth. Do not use harsh solvents that could damage the housing.
- Opbevaring: Opbevar værktøjet et rent og tørt sted, når det ikke er i brug. Afbryd forbindelsen til luftforsyningen.
- Inspektion: Periodically inspect the tool for any signs of wear, damage, or air leaks. Address any issues promptly.
Fejlfinding
If you encounter issues with your air ratchet, refer to the following common troubleshooting steps.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Værktøjet fungerer ikke eller har lav strøm | Utilstrækkeligt lufttryk Manglende smøring Blokeret luftindtag Slidte indvendige dele | Check air compressor pressure and regulator setting Tilsæt olie til pneumatisk værktøj Fjern eventuelle blokeringer fra luftindtaget Kontakt kvalificeret servicepersonale |
| Luftlækage fra værktøj | Løse beslag Beskadigede O-ringe eller pakninger | Spænd alle lufttilslutninger Replace worn or damaged seals/O-rings |
| Overdreven vibration | Slidte lejer Løse komponenter | Contact qualified service personnel for inspection and repair |
Specifikationer
Detailed technical specifications for the ATD Tools 2114 1/4" Drive Air Ratchet.
| Specifikation | Værdi |
|---|---|
| Mærke | ATD |
| Model | 2114 |
| Materiale | Aluminium |
| Varelængde | 6.7 tommer |
| Varens vægt | 1.3 pund |
| Maksimalt drejningsmoment | 25 fodpund |
| Gratis hastighed | 250 rpm |
| Gennemsnitligt luftforbrug | 4.2 cfm |
| Driftstilstand | Pneumatisk |
| Hovedstil | Fast firkant |
Garanti og support
For information regarding warranty coverage, service, or technical support for your ATD Tools 2114 Air Ratchet, please refer to the documentation included with your purchase or visit the official ATD Tools website. You may also contact ATD Tools customer service directly for assistance.
Det anbefales at gemme din købskvittering som købsbevis i tilfælde af garantikrav.
