Conceptronic CSATAI23U SATA og IDE til USB 2.0 adapter brugermanual

1. Introduktion

The Conceptronic CSATAI23U is a versatile adapter designed to connect Serial ATA (SATA) and Integrated Drive Electronics (IDE) devices to a computer via a USB 2.0 interface. This device facilitates data transfer, backup, and recovery from various storage and optical drives, including 2.5-inch and 3.5-inch hard drives, CD-ROMs, CD-RWs, DVD-RWs, and Blu-ray drives.

This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your Conceptronic CSATAI23U adapter.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• Conceptronic CSATAI23U Adapter
• USB 2.0-kabel
• AC strømadapter
• 4-pin Power Cable (for IDE devices)
• SATA datakabel
• SATA strømkabel

3. Opsætningsvejledning

Follow these steps to connect your storage or optical drive to the Conceptronic CSATAI23U adapter.

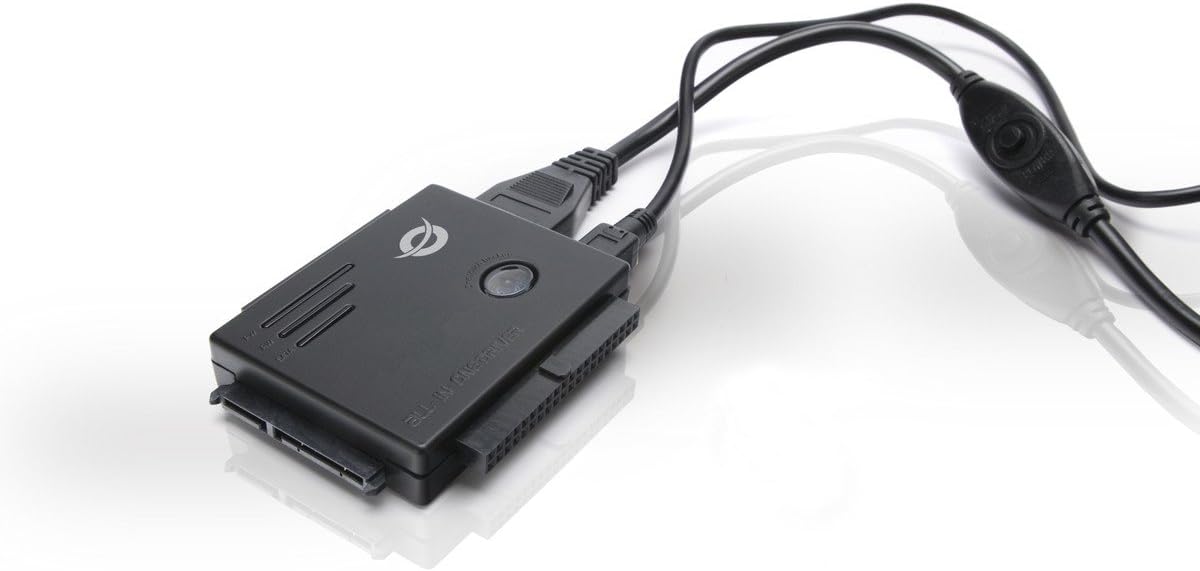

Image: The Conceptronic CSATAI23U adapter with various cables connected, illustrating its compact design and multiple interface options for SATA and IDE devices.

3.1. Connecting an IDE Device (2.5-inch or 3.5-inch)

1. Identify the IDE Port: Locate the 40-pin IDE connector on the adapter. For 2.5-inch IDE drives, use the smaller 44-pin connector if available, or the 40-pin with an appropriate adapter (not included).
2. Connect the IDE Drive: Carefully align and connect your IDE hard drive or optical drive to the corresponding IDE port on the adapter. Ensure a firm connection.
3. Connect Power to IDE Drive: For 3.5-inch IDE drives, connect the 4-pin power cable from the AC power adapter directly to the IDE drive's power input. For 2.5-inch IDE drives, power is typically supplied via the IDE data cable, but some may require external power.
4. Connect Adapter Power: Connect the AC power adapter to the Conceptronic CSATAI23U adapter's power input.
5. Tilslut til computer: Plug the USB 2.0 cable into the adapter and then into an available USB port on your computer.

3.2. Connecting a SATA Device (2.5-inch or 3.5-inch)

1. Identify the SATA Port: Locate the SATA data and power connectors on the adapter.
2. Tilslut SATA-drevet: Connect the SATA data cable from the adapter to the SATA data port on your hard drive or optical drive.
3. Connect Power to SATA Drive: Connect the SATA power cable from the AC power adapter to the SATA power port on your drive.
4. Connect Adapter Power: Connect the AC power adapter to the Conceptronic CSATAI23U adapter's power input.
5. Tilslut til computer: Plug the USB 2.0 cable into the adapter and then into an available USB port on your computer.

Important Note on Power: Always ensure the external power supply is connected to both the adapter and the drive (if required by the drive) before connecting the USB cable to your computer. This ensures stable power delivery and proper device recognition.

4. Betjeningsvejledning

Once the device is physically connected as described in the Setup section, follow these steps to operate the adapter:

1. Tænd: If your adapter has a power switch, turn it on. The power LED on the adapter should illuminate.
2. Enhedsgenkendelse: Your computer's operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers for the USB 2.0 device. This is typically a plug-and-play process.
3. Adgang til drevet:
   • Til Windows: Open "This PC" or "My Computer." The connected drive should appear as a new removable disk. If it's a new or unformatted drive, you may need to initialize and format it using Disk Management.
   • Til macOS: The drive icon should appear on your desktop or in Finder under "Locations." If it's a new or unformatted drive, you may need to use Disk Utility to initialize and format it.
4. Dataoverførsel: Du kan nu trække og slippe files to and from the connected drive, or use backup software as needed.
5. Sikker fjernelse: Before disconnecting the adapter or drive, always safely eject the device from your operating system to prevent data corruption.
   • Til Windows: Click the "Safely Remove Hardware and Eject Media" icon in the system tray.
   • Til macOS: Træk drevikonet til papirkurven, eller klik på knappen Skub ud ved siden af ​​drevet i Finder.

5. Vedligeholdelse

Proper maintenance ensures the longevity and reliable performance of your adapter.

• Rensning: Brug en blød, tør klud til at rengøre adapteren. Undgå flydende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Opbevar adapteren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug.
• Håndtering: Handle the adapter and connected drives with care to avoid physical damage to connectors or internal components.
• Kabelstyring: Avoid bending or kinking cables sharply, as this can damage internal wires.

6. Fejlfinding

If you encounter issues with your Conceptronic CSATAI23U adapter, refer to the following common solutions:

• Enhed ikke genkendt:
  • Ensure all cables (USB, power to adapter, power to drive) are securely connected.
  • Verify the power adapter is plugged into a working outlet and the adapter's power switch (if present) is on.
  • Prøv at tilslutte adapteren til en anden USB-port på din computer.
  • Ensure the drive itself is functional by testing it in another system if possible.
  • For new drives, ensure they are initialized and formatted in your operating system's Disk Management (Windows) or Disk Utility (macOS).
• Connection Sequence Issues: Some users report that the connection sequence can affect recognition. Try this sequence:
  1. Connect the drive to the adapter.
  2. Connect the external power supply to the drive (if required) and then to the adapter.
  3. Turn on the adapter's power (if applicable).
  4. Connect the USB cable from the adapter to your computer.
• Langsom dataoverførsel:
  • Ensure you are using a USB 2.0 port on your computer. While compatible with USB 1.1, performance will be limited.
  • Check the condition of the USB cable; a damaged cable can affect speed.
• Drev afbrydes tilfældigt:
  • Verify the external power supply is providing sufficient and stable power to both the adapter and the drive.
  • Ensure all connections are firm and not loose.
  • Avoid using long USB extension cables, which can lead to power or signal degradation.

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Conceptronic webwebsted. Gem din købsbevis til garantikrav.

For further assistance, you may contact Conceptronic customer service through their official support channels.
