Lithonia Lighting Fluorescent Troffer Instruction Manual

Indledning

This manual provides essential instructions for the safe installation, operation, and maintenance of your Lithonia Lighting 2GT8 2 U316 A12 MVOLT GEB10IS Fluorescent Troffer. Please read all instructions carefully before proceeding with installation or use. Retain this manual for future reference.

Sikkerhedsoplysninger

• Afbryd altid strømmen ved afbryderen, før du installerer, servicerer eller rengør armaturet.
• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med alle gældende nationale og lokale el-forskrifter.
• Sørg for, at armaturet er korrekt jordforbundet for at undgå potentielt elektrisk stød.
• Installer ikke i nærheden af ​​brændbare materialer.
• Brug passende personlige værnemidler (PPE) under installation og vedligeholdelse.

Opsætning

Installation

The Lithonia Lighting 2GT8 troffer is designed for recessed installation in grid ceilings. Follow these general steps:

1. Forbered loftsåbningen: Ensure the ceiling grid opening matches the fixture dimensions (24 x 24 inches).
2. Ledningsføring: Route electrical supply wires to the fixture location. Connect the fixture's wiring to the building's electrical system according to local codes. Ensure proper grounding.
3. Montering: Carefully lift the troffer into the ceiling grid opening. The fixture is designed for lay-in grid installation. Secure the fixture to the grid using appropriate clips or hangers as required by local codes.
4. Installation af pære: Install two (2) U31W T8 fluorescent bulbs (not included) into the fixture's sockets. Ensure bulbs are seated correctly.
5. Installation af objektiv: Close and secure the hinged steel door with the acrylic patterned lens.

Refer to the mounting data and dimensions diagram below for detailed measurements and installation guidance.

Image: A technical diagram illustrating the mounting data and dimensions of the Lithonia Lighting 2GT8 troffer. It shows various measurements in inches and millimeters for the fixture's depth, width, and mounting points, along with a small diagram of a lay-in grid installation.

Drift

Grundlæggende betjening

Once installed and wired correctly, the Lithonia Lighting 2GT8 troffer operates by a standard wall switch connected to the electrical circuit. Ensure the correct T8 fluorescent bulbs are installed before restoring power.

Udskiftning af pære

To replace bulbs:

1. Afbryd strømmen: Sluk for strømmen til armaturet ved afbryderen.
2. Open Lens: Unlatch and open the hinged steel door to access the bulbs.
3. Fjern gamle pærer: Carefully twist and remove the old T8 fluorescent bulbs.
4. Install New Bulbs: Insert new U31W T8 fluorescent bulbs, ensuring they are securely seated in the sockets.
5. Close Lens: Close and secure the hinged steel door.
6. Gendan strøm: Tænd for strømmen igen ved afbryderen.

Opretholdelse

Rensning

Regular cleaning helps maintain optimal light output and appearance.

• Afbryd strømmen: Always turn off power before cleaning.
• Rent ydre: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
• Ren linse: The acrylic patterned lens can be cleaned with a mild, non-abrasive cleaner specifically designed for plastics. Open the hinged door for easier access.
• Sørg for, at alle dele er tørre, før du genopretter strømmen.

Udskiftning af objektiv

The hinged steel door allows for easy replacement of the acrylic patterned lens if it becomes damaged or discolored. Contact Lithonia Lighting customer support for replacement lens options.

Fejlfinding

If you encounter issues with your fluorescent troffer, refer to the following common problems and solutions:

• Lyset tændes ikke:
  • Kontroller, om afbryderen er udløst.
  • Verify that bulbs are correctly installed and not faulty.
  • Sørg for, at alle ledningsforbindelser er sikre.
• Lysflimmer:
  • Replace old or faulty fluorescent bulbs.
  • Check for loose bulb connections.
  • A failing ballast may cause flickering; consult a qualified electrician for inspection.
• Reduceret lysudbytte:
  • Clean the lens and bulbs to remove dust and debris.
  • Bulbs may be nearing the end of their lifespan and require replacement.

For persistent issues, contact customer support or a qualified electrician.

Specifikationer

Key specifications for the Lithonia Lighting 2GT8 2 U316 A12 MVOLT GEB10IS Fluorescent Troffer:

For additional technical details, refer to the product datasheet below.

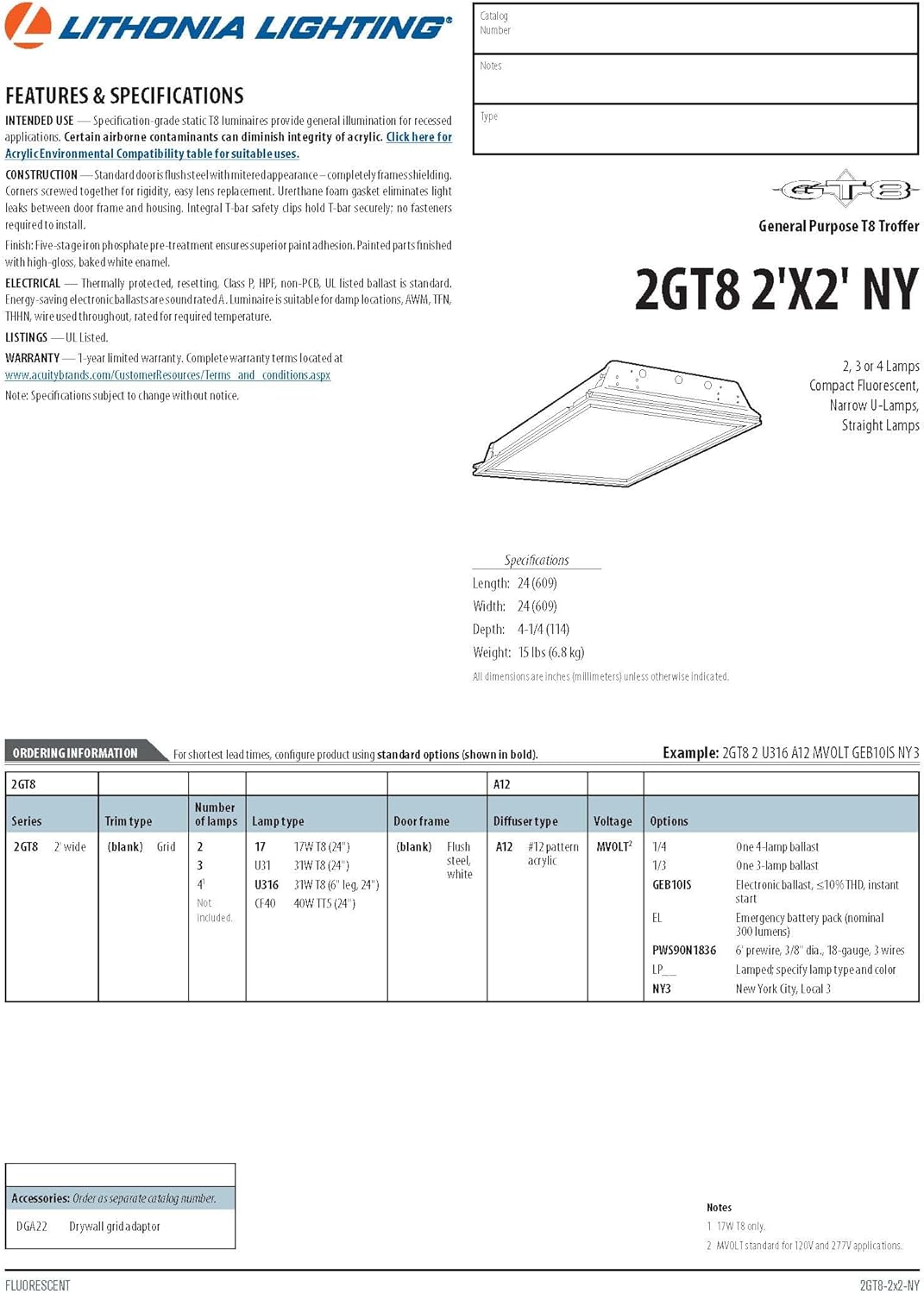

Image: A section of the Lithonia Lighting 2GT8 product datasheet, detailing features, specifications, and ordering information for various configurations of the 2GT8 series troffer, including the 2GT8 2 U316 A12 MVOLT GEB10IS model.

Garantioplysninger

This Lithonia Lighting product is covered by a 3 års begrænset garanti. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the official warranty documentation provided with your purchase or visit the Lithonia Lighting webwebsted.

Kundesupport

For technical assistance, replacement parts, or warranty claims, please contact Lithonia Lighting customer support.

• Fabrikant: Acuity Brands Lighting Inc.
• Online support: Besøg embedsmanden Lithonia Lighting Store for mere information og ressourcer.
