Metabo TPS16000S dykpumpe brugsanvisning

1. Introduktion

This manual provides detailed instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Metabo TPS16000S submersible pump. Please read these instructions carefully before using the pump and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your product.

2. Sikkerhedsinstruktioner

ADVARSEL: Læs alle sikkerhedsadvarsler og alle instruktioner. Manglende overholdelse af advarsler og instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Afbryd altid pumpen fra strømforsyningen, før du udfører vedligeholdelse eller rengøring.
• Sørg for, at strømforsyningen voltage stemmer overens med klassificeringen på pumpens typeskilt.
• Brug ikke pumpen med en beskadiget netledning eller stik.
• Never lift or carry the pump by its power cord.
• Pump ikke brandfarlige, eksplosive eller ætsende væsker.
• Hold børn og uautoriserede personer væk fra driftsområdet.
• Ensure the pump is always fully submerged when operating to prevent dry running and overheating.
• Use only original Metabo spare parts and accessories.

3. Produktet er slutview

The Metabo TPS16000S is a versatile submersible pump designed for pumping clear and dirty water. It features an ergonomic handle for easy transport, an adjustable float switch for automatic operation, and overload protection for motor safety.

Figure 1: Metabo TPS16000S Submersible Pump. This image shows the overall design of the pump, including the main body, discharge outlet, and float switch.

Key Features and Components:

Figure 2: Labeled diagram of the Metabo TPS16000S pump highlighting its main features.

• Multifunktionelt design: Usable as a submersible pump for both clear and dirty water.
• Ergonomic Carrying Handle: For comfortable and secure transport.
• Angled Connection Piece with Multi-adapter: For flexible hose connection.
• Adjustable Float Switch: Enables automatic operation based on water level.
• Impact-Resistant Plastic Housing: Provides durability and protection.
• Overbelastningsbeskyttelse: Safeguards the motor from overheating.
• Flat Suction Capability: In clear water mode, it can pump down to 1 mm residual water level.
• Dirty Water Capability: Suitable for coarse impurities up to 30 mm grain size.

Figur 3: Nærbillede view of the pump's multifunctional base, illustrating the easy adjustment for different pumping functions.

Figure 4: The power plug features selector buttons for switching between automatic operation (using the float switch) and manual operation (for flat suction).

4. Opsætning

1. Slangeforbindelse: Attach a suitable discharge hose to the angled connection piece. Ensure the connection is secure to prevent leaks. The multi-adapter allows for various hose diameters.
2. Placering: Place the pump on a stable, level surface in the water to be pumped. Ensure the pump is fully submerged and not resting on debris that could block the intake.
3. Justering af flydekontakt: Adjust the float switch cable length to set the desired ON/OFF water levels for automatic operation. A shorter cable results in a smaller operating range (pump turns on and off more frequently), while a longer cable provides a wider range.
4. Strømtilslutning: Connect the power plug to a grounded electrical outlet that matches the pump's voltage (230V, 50Hz).

5. Betjeningsvejledning

5.1 Automatic Operation (with Float Switch)

• Ensure the float switch is set to "AUTO" on the power plug.
• Pumpen starter automatisk, når vandstanden stiger, og løfter flydeafbryderen.
• The pump will automatically stop when the water level drops and the float switch falls below the set level.
• Regularly check the float switch for free movement and ensure it is not obstructed.

5.2 Manual Operation (for Flat Suction)

• Set the switch on the power plug to "MAN" (Manual).
• The pump will operate continuously, regardless of the water level, until manually switched off or unplugged.
• This mode is ideal for flat suction down to 1 mm in clear water applications.
• CAUTION: Do not allow the pump to run dry in manual mode, as this can cause severe damage to the motor. Monitor the water level closely.

5.3 Typiske anvendelser

Figure 5: The pump being used to empty or circulate water in a garden pond or water feature.

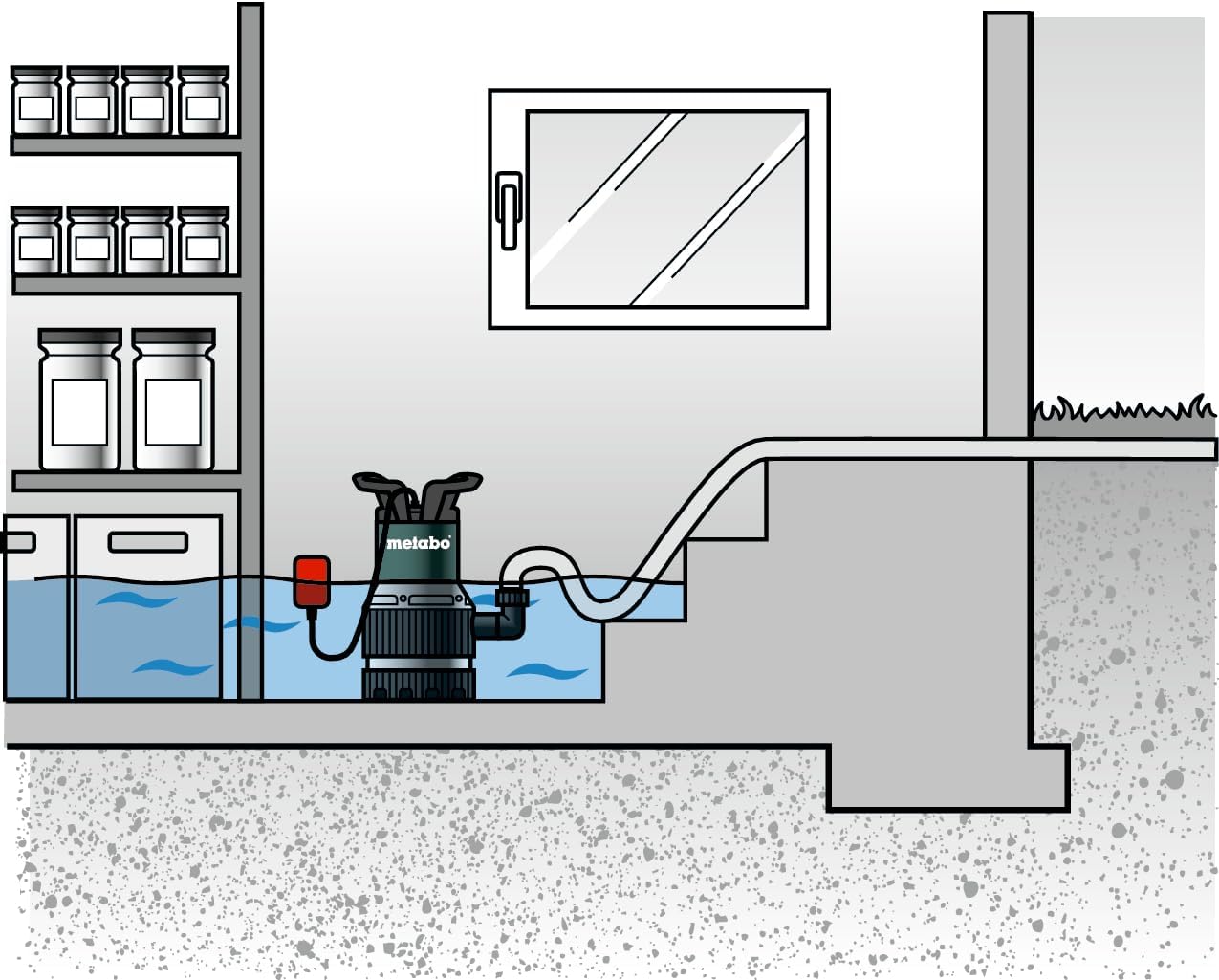

Figure 6: Illustration of the pump effectively draining water from a flooded basement area.

Figure 7: The pump positioned in an outdoor drainage pit, managing excess water from the surrounding area.

Figure 8: Depiction of the pump being used to drain water from a swimming pool.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer pumpens levetid og effektive drift.

• Rensning: After each use, especially when pumping dirty water, rinse the pump thoroughly with clean water to remove any debris.
• Inspektion af impeller: Periodically check the impeller area for blockages. Disconnect power before attempting to clear any obstructions.
• Flydekontakt: Ensure the float switch moves freely and is not encrusted with dirt or debris.
• Opbevaring: Hvis pumpen skal opbevares i en længere periode, skal den rengøres grundigt, alt vand skal tømmes for vand, og den skal opbevares et tørt og frostfrit sted.

7. Fejlfinding

8. Tekniske specifikationer

9. Garanti og support

For warranty information, service, or technical support, please refer to the warranty card included with your product or visit the official Metabo webwebstedet. Behold din købskvittering som købsbevis.

Metabo Officiel Webwebsted: www.metabo.com
