Global Industrial Single Tier Locker (Model B001Q8VFDQ)

1. Produktet er slutview

This manual provides instructions for the assembly, operation, and maintenance of your Global Industrial Single Tier Locker. This locker is designed for use in various environments such as schools and gym locker rooms, offering secure storage with a single door configuration.

Image 1.1: Fully assembled Global Industrial Single Tier Locker in blue. This image displays the full height of the locker, its single door, recessed handle, and ventilation louvers at the top and bottom.

The locker features a robust construction with 16 gauge steel doors, a 5-knuckle security hinge, and welded, reinforced frame-and-door assemblies. Extra-wide louvers promote ventilation, making it suitable for various storage needs. The door handle is designed with a fingertip lift latch, recessed into the door face for a smooth, catch-free surface.

2. Sikkerhedsoplysninger

Vigtige sikkerhedsinstruktioner:

• Always anchor the locker securely to the floor or wall. Failure to do so may result in tipping and injury.
• Do not overload the locker. Exceeding weight limits can compromise stability and structural integrity.
• Keep the area around the locker clear to prevent tripping hazards.
• Always use the locker in accordance with the manufacturer's instructions to ensure safe operation and longevity.

Billede 2.1: Nærbillede view of the locker's base and legs. This image highlights the pre-drilled holes in the foot plates, indicating points for anchoring the locker to the floor for stability.

Foot plates bolt to outside locker leg supports and can be anchored to the floor. Optional Anchor Kits are sold separately. Legs add 6 inches to the overall height of the locker.

3. Pakkens indhold

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Global Industrial customer support immediately.

Forventede komponenter omfatter:

• Locker panels (sides, back, top, bottom)
• Locker door with recessed handle and hinges
• Hat shelf
• Double and single-prong coat hooks
• Blank number plates
• Monteringsudstyr (skruer, møtrikker, bolte)
• Legs and foot plates

4. Opsætning og montering

This locker is designed for ready-to-assemble installation. Assembly requires basic tools and adherence to the included assembly instructions (not detailed here, refer to manufacturer's specific guide). It is recommended to have at least two people for assembly due to the size and weight of the components.

1. Forbered arbejdsområde: Clear a spacious, level area for assembly.
2. Udpak komponenter: Carefully remove all parts from the packaging and organize them.
3. Saml ramme: Follow the manufacturer's instructions to connect the side, back, top, and bottom panels. Ensure all connections are secure.
4. Fastgør ben: Securely attach the legs and foot plates to the base of the locker.
5. Installer dør: Mount the locker door, ensuring hinges are properly aligned and secured.
6. Install Interior Components: Place the hat shelf and coat hooks as directed.
7. Anchor Locker: Once assembled, position the locker in its final location. It is crucial to anchor the locker to the floor or wall using appropriate hardware (sold separately) to prevent tipping.

Billede 4.1: Side view of the assembled locker, showing the panel construction and attachment points. This view helps in understanding the structural integrity and where components connect during assembly.

5. Betjeningsvejledning

The Global Industrial Single Tier Locker features a secure 3-point positive locking system and a recessed fingertip lift latch for easy and safe operation.

5.1 Opening the Locker Door

1. Locate the recessed handle on the locker door.
2. Insert your fingertip into the recessed area and lift the latch mechanism upwards.
3. While holding the latch up, pull the door open.

Image 5.1: Close-up of the recessed handle on the locker door. This image clearly shows the design of the fingertip lift latch, which is integrated flush with the door surface.

Image 5.2: A hand demonstrating the operation of the recessed fingertip lift latch. The finger is shown lifting the latch mechanism to disengage the lock.

5.2 Closing and Securing the Locker Door

1. Push the door firmly shut until the latch mechanism engages automatically.
2. To secure the locker, a padlock (sold separately) can be inserted through the designated hole in the recessed handle.

The recessed design of the handle helps prevent the padlock from being easily cut off and contributes to a neat, clean appearance.

6. Vedligeholdelse

Regular maintenance will ensure the longevity and proper function of your locker.

• Rensning: Wipe down the locker surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the painted finish.
• Hinges and Latch: Periodically check hinges and the latch mechanism for smooth operation. Apply a small amount of silicone-based lubricant if any stiffness is observed.
• Forankring: Regularly inspect the floor or wall anchors to ensure they remain secure. Tighten any loose fasteners.
• Ventilation: Ensure the ventilation louvers are not obstructed to maintain proper airflow within the locker.

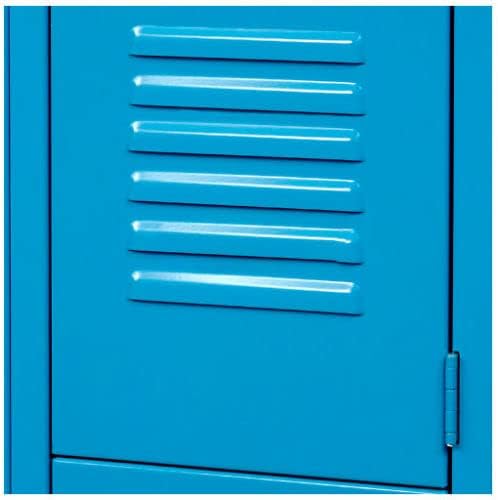

Billede 6.1: Nærbillede view of the extra-wide ventilation louvers on the locker door. These louvers are crucial for air circulation and should be kept clear of obstructions.

7. Fejlfinding

This section addresses common issues you might encounter with your locker.

• Døren er svær at åbne eller lukke:
  • Check for obstructions around the door frame or hinges.
  • Inspect hinges for damage or misalignment. Lubricate if necessary.
  • Ensure the locker is level and properly anchored. Uneven installation can cause door misalignment.
• Locker feels unstable:
  • Verify that the locker is securely anchored to the floor or wall. Tighten all anchor bolts.
  • Check that all assembly hardware is tightened.
  • Ensure the locker is placed on a level surface.
• Padlock does not fit or operate smoothly:
  • Ensure you are using a padlock compatible with the locker's latch mechanism.
  • Check for any debris in the padlock hole.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact Global Industrial customer support.

8. Specifikationer

Image 8.1: Global Industrial nameplate, typically found on the product, displaying brand information and contact details.

9. Garanti og support

For warranty information, product support, or to purchase replacement parts, please contact Global Industrial directly. Details regarding specific warranty terms and conditions are typically provided with the product packaging or can be obtained from the manufacturer's official webwebsted.

You can visit the official Global Industrial Store for more information and contact options: Global Industrial Store
