Wagner Lighting 4007 multifunktionspære brugsanvisning

1. Produktet er slutview

The Wagner Lighting 4007 Multi-Purpose Light Bulb is engineered for durability and performance. It features a continuous coil design that enhances resistance to shock and vibration, contributing to an extended service life. This bulb is designed for various automotive lighting applications, ensuring reliable illumination.

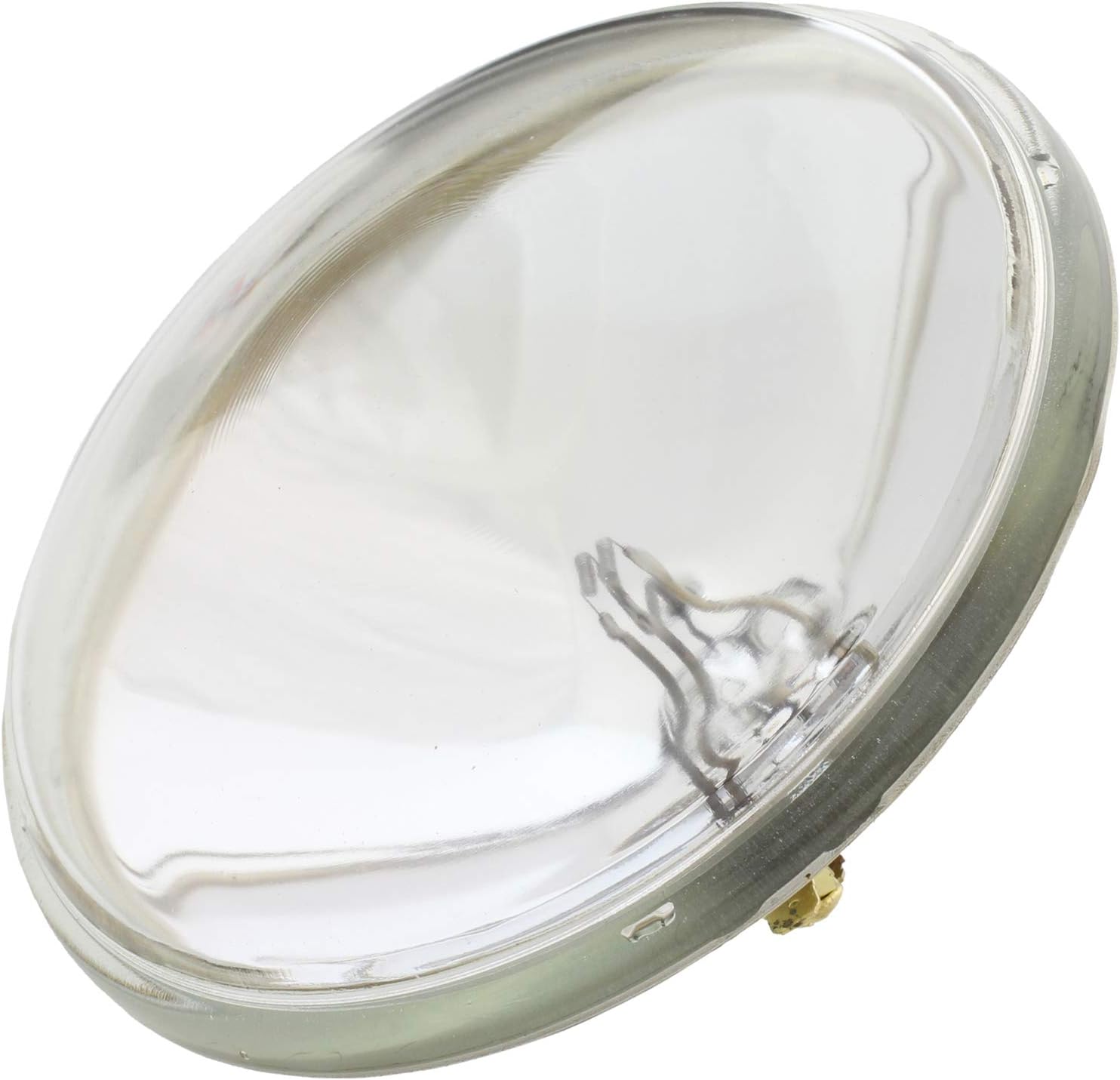

Figur 1: Forside view of the Wagner Lighting 4007 Multi-Purpose Light Bulb.

Nøglefunktioner:

• Continuous Coil Design: Resists shock and vibration for extended service life.
• DOT/SAE Compliant: Meets regulatory standards for automotive lighting.
• High-Grade Stainless Steel Terminals: Designed to prevent corrosion and ensure reliable electrical connection.
• Non-Reflective Bottom Shelf: Helps reduce glare in various weather conditions, including rain, snow, and fog.
• Vandtæt: Designed to withstand moisture exposure.

2. Installationsvejledning

Proper installation is crucial for the optimal performance and safety of your Wagner Lighting 4007 Multi-Purpose Light Bulb. Always ensure the vehicle's electrical system is off before beginning installation.

2.1. Køretøjskompatibilitet

Før købasing and installing, verify that the Wagner 4007 bulb is compatible with your specific vehicle. Consult your vehicle's owner's manual or a reputable automotive parts guide. Ensure all vehicle information (year, make, model, engine, and trim) is accurately matched for proper fitment.

2.2. Generelle installationstrin

1. Sikkerhed først: Turn off the vehicle's engine and disconnect the negative terminal of the battery to prevent electrical shock. Allow any existing bulbs to cool down before handling.
2. Adgang til pæren: Locate the light assembly where the bulb needs to be replaced. This may require opening the hood, removing a fender liner, or accessing from behind the dashboard, depending on the vehicle and bulb location.
3. Fjern gammel pære: Carefully disconnect the electrical connector from the old bulb. Then, unclip or twist to remove the old bulb from its housing. Avoid touching the glass of the new bulb with bare hands, as oils can reduce its lifespan.
4. Indsæt ny pære: Align the new Wagner 4007 bulb with the housing and insert it securely. Ensure it is seated correctly and any clips or twists are engaged to hold it in place.
5. Tilslut elektrisk: Tilslut det elektriske stik til den nye pære igen.
6. Test funktionalitet: Reconnect the vehicle battery. Turn on the vehicle's lights to confirm the new bulb is functioning correctly before reassembling any removed components.
7. Saml igen: Replace any covers, liners, or other components that were removed to access the bulb.

Figur 2: Bagside view of the bulb showing electrical terminals for connection.

3. Betjening

Once correctly installed, the Wagner Lighting 4007 Multi-Purpose Light Bulb operates as part of your vehicle's lighting system. Its function is activated by the vehicle's electrical controls, such as the headlight switch or other relevant light switches.

• Ensure all vehicle lights are functioning as intended after installation.
• Regularly check the alignment of headlights (if applicable) to ensure proper beam pattern and avoid blinding other drivers.

4. Vedligeholdelse

The Wagner Lighting 4007 bulb is designed for durability and minimal maintenance. However, periodic checks can help ensure its longevity and optimal performance.

• Regelmæssig inspektion: Periodically check all vehicle lights to ensure they are working. Replace any non-functioning bulbs promptly.
• Rensning: If the outer lens of the light assembly becomes dirty, clean it with a soft cloth and appropriate automotive cleaning solution to maintain light output. Avoid harsh chemicals that could damage the lens material.
• Undgå kontaminering: When handling new bulbs, avoid touching the glass with bare hands. Finger oils can create hot spots on the bulb surface, leading to premature failure. Use gloves or a clean cloth if contact is unavoidable.

5. Fejlfinding

If you encounter issues with your Wagner Lighting 4007 Multi-Purpose Light Bulb, refer to the following troubleshooting guide:

6. Specifikationer

Detailed specifications for the Wagner Lighting 4007 Multi-Purpose Light Bulb are provided below:

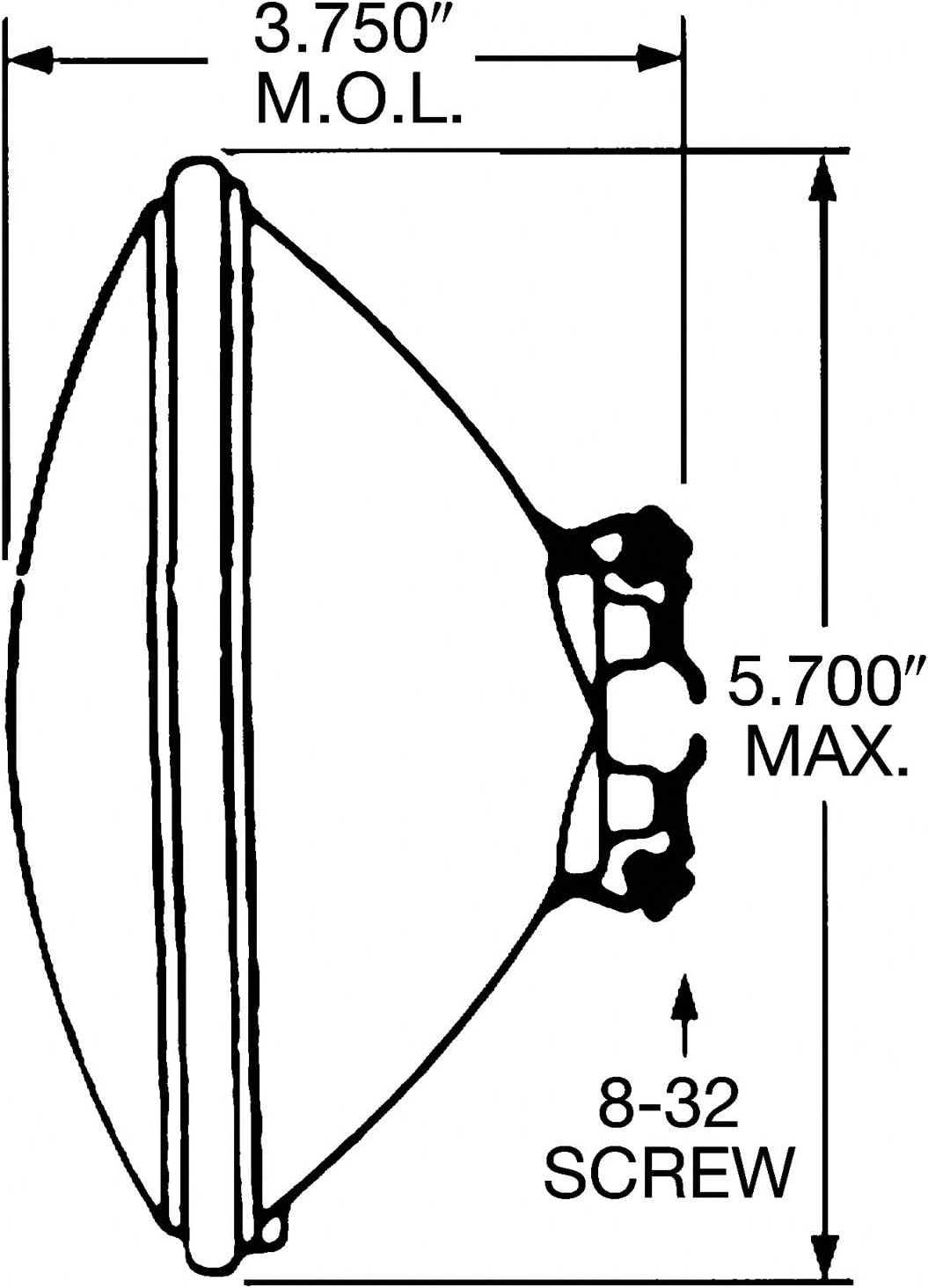

Figure 3: Dimensional diagram of the Wagner 4007 bulb.

7. Garanti- og supportoplysninger

For warranty details, technical support, or further assistance with your Wagner Lighting 4007 Multi-Purpose Light Bulb, please refer to the official Wagner product documentation or visit the Wagner website. Contact information for customer service is typically available on the product packaging or the manufacturer's official webwebsted.

Always ensure you have your product model number (4007) and any purchase information available when contacting support.
