Hotpoint-Ariston FQ 103 GP.1 Elektrisk Indbygget Ovn Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Hotpoint-Ariston FQ 103 GP.1 ICE F/HA electric built-in oven. Please read these instructions carefully before using the appliance and keep them for future reference.

The Hotpoint-Ariston FQ 103 GP.1 is a 58-liter multi-function electric oven featuring pyrolytic self-cleaning, a cool-touch door, and 10 cooking modes, designed for seamless integration into your kitchen.

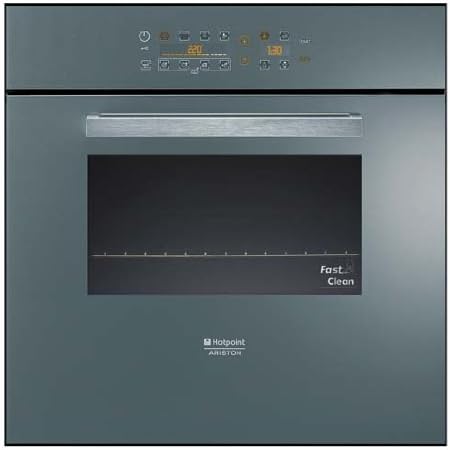

This image displays the Hotpoint-Ariston FQ 103 GP.1 ICE F/HA electric built-in oven. The control panel is located at the top, featuring a digital display and various function icons. Below the control panel is the oven door with a horizontal handle, revealing the oven interior with rack supports. The Hotpoint-Ariston logo is visible on the lower part of the door.

2. Sikkerhedsinstruktioner

Følg altid følgende sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af apparatet:

• Ensure the oven is correctly installed by a qualified technician before use.
• Lad ikke børn betjene eller lege med ovnen.
• The oven becomes hot during operation. Avoid touching heating elements or interior surfaces. Use oven mitts.
• Opbevar ikke brændbare materialer i eller i nærheden af ​​ovnen.
• Afbryd altid apparatet fra strømforsyningen før rengøring eller vedligeholdelse.
• Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, potentially leading to shattering.
• Ensure proper ventilation during and after cooking.

3. Installation

The Hotpoint-Ariston FQ 103 GP.1 is designed as a built-in appliance. Installation should only be performed by a qualified professional in accordance with local regulations and the provided installation template (not included in this manual). Ensure adequate clearance for ventilation and proper electrical connection.

Dimensioner: The oven measures approximately 54.5 cm (depth) x 59.5 cm (width) x 59.5 cm (height). Refer to the installation guide for precise cutout dimensions.

4. Betjeningsvejledning

4.1 Kontrolpanel overview

The oven features a digital display and touch controls for selecting functions, setting temperature, and managing timers. Familiarize yourself with the icons on the control panel.

4.2 Indstilling af ur og timer

• Indstilling af uret: Ved første opstart eller efter et strømafbrydelsetage, the clock will flash. Use the appropriate buttons (refer to your specific model's control panel icons) to set the current time. Confirm the setting.
• Using the Minute Minder: The minute minder functions as a kitchen timer and does not control oven operation. Set the desired duration, and an audible signal will sound when the time expires.
• Programming Cooking Duration: For automatic cooking, select a cooking mode and temperature, then use the programmer function to set the desired cooking time. The oven will switch off automatically when the time elapses.

4.3 Tilberedningsmetoder

This oven offers 10 distinct cooking modes to suit various culinary needs. Refer to the icons on your control panel to select the desired mode. Common modes include:

• Konvektion: Ideal for even cooking and baking on multiple levels.
• Grill: For browning, toasting, and grilling smaller items.
• Fan-assisted Grill: Combines grilling with fan circulation for faster, more even grilling.
• Undervarme: For dishes requiring more heat from the base.
• Afrimning: Skånsom optøning af frosne fødevarer.
• Consult your oven's specific icon guide for a full description of all 10 modes.

4.4 Brug af grillen

To use the grill function, select the grill mode from the control panel. Place food on the grill rack, ensuring adequate distance from the heating element. Monitor food closely to prevent burning.

5. Vedligeholdelse og rengøring

5.1 Pyrolytisk selvrensning

The pyrolytic cleaning cycle heats the oven to a very high temperature (approximately 500°C), incinerating food residues into a fine ash. This ash can then be easily wiped away once the oven has cooled.

• Fjern alt tilbehør (riste, bageplader, sidestøtter) fra ovnen, før du starter en pyrolytisk cyklus.
• Tør eventuelle store spild eller løse rester væk.
• Ensure the kitchen is well-ventilated during the cycle.
• The oven door will automatically lock during the pyrolytic cycle and remain locked until the temperature has dropped to a safe level.
• After the cycle, once the oven is cool, wipe the interior with a damp klud til at fjerne asken.

5.2 Cool Door Feature

This oven is equipped with a cool door feature, maintaining the external door temperature at approximately 60°C during operation, enhancing safety, especially in households with children.

5.3 Generel rengøring

• Clean the oven regularly to prevent food residue buildup.
• Use mild detergents and a soft cloth. Avoid abrasive cleaners.
• Rengør de udvendige overflader med adamp klud og tør grundigt.
• The glass door can be cleaned with a non-abrasive glass cleaner.

6. Fejlfinding

Hvis du støder på problemer med din ovn, skal du konsultere følgende almindelige fejlfindingstips, før du kontakter service.

Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kvalificeret servicepersonale.

7. Specifikationer

8. Garanti og support

This Hotpoint-Ariston oven comes with a 1-year commercial warranty on parts. For warranty claims, technical support, or to purchase spare parts, please contact your retailer or the official Hotpoint-Ariston service center. Keep your proof of purchase for warranty validation.

Information regarding the availability of spare parts is not provided in the product data.
