Schonbek Petit Crystal 5-Light Flush Mount Instruction Manual

1. Introduktion

Thank you for choosing the Schonbek Petit Crystal 5-Light Flush Mount fixture, Model 1564-40A. This elegant lighting fixture is designed to provide sophisticated illumination for your indoor spaces. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new light fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

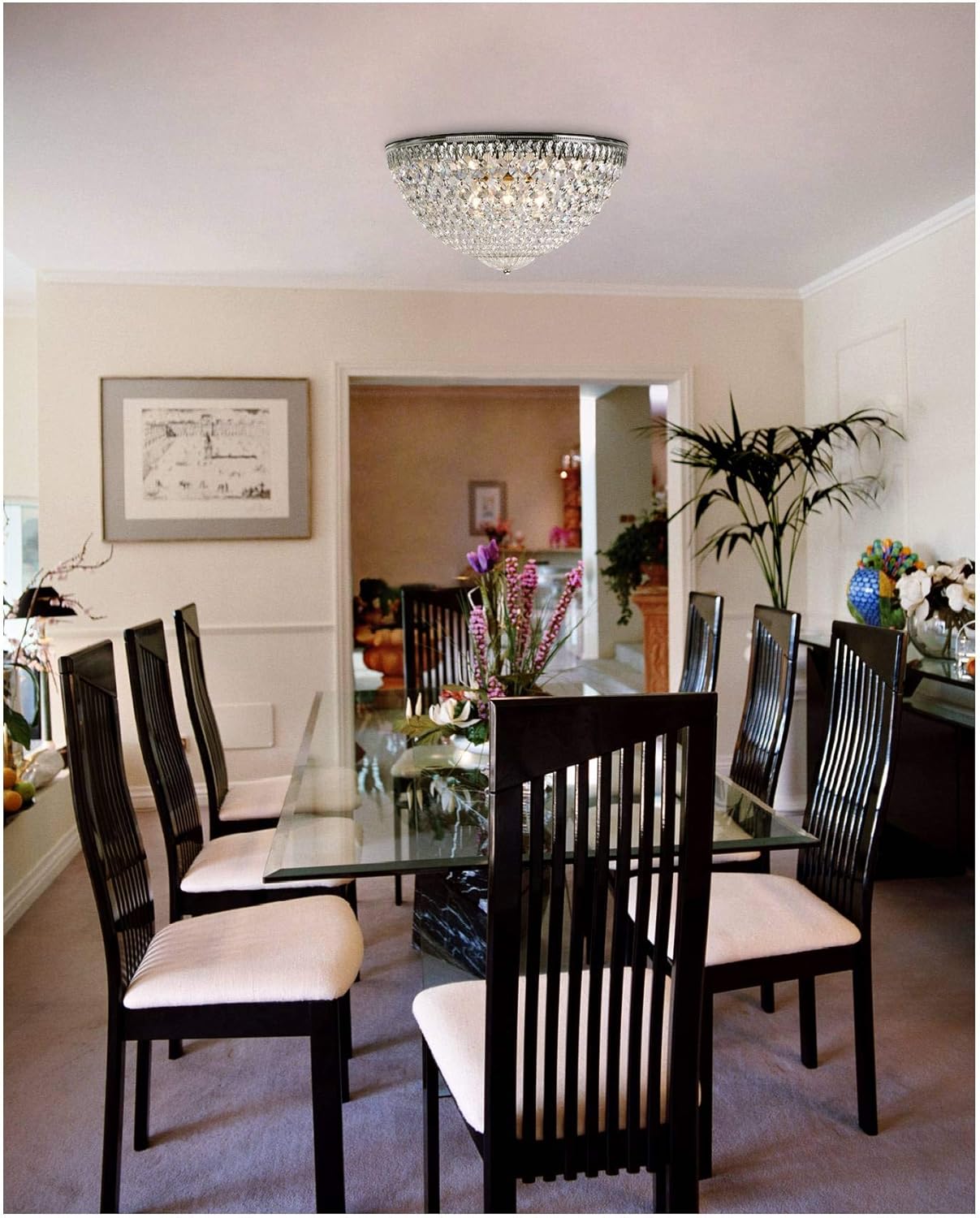

Image 1.1: Schonbek Petit Crystal Flush Mount fixture installed in a dining room setting.

2. Sikkerhedsoplysninger

ADVARSEL: For at undgå elektrisk stød skal du sørge for, at strømmen er afbrudt ved afbryderen før installation eller service. Al ledningsføring skal være i overensstemmelse med nationale og lokale el-forskrifter. Hvis du er usikker på ledningsføringen, skal du kontakte en kvalificeret elektriker.

• Dette produkt er kun beregnet til indendørs brug.
• Overskrid ikke det maksimale wattage specificeret for pærerne.
• Håndter krystalkomponenterne forsigtigt for at forhindre brud eller skader.
• Brug passende sikkerhedsudstyr, såsom handsker og øjenbeskyttelse, under installationen.
• Sørg for, at monteringsfladen kan bære armaturets vægt.

3. Pakkens indhold

Carefully unpack your fixture and identify all components. Keep all packaging materials until you are certain all parts are present and in good condition. If any parts are missing or damaged, do not attempt to install the fixture. Contact customer support.

• Lighting Fixture (Main Body)
• Crystal Strands / Components (Assembly required)
• Mounting Hardware (Crossbar, screws, wire nuts)
• Instruktionsark (denne manual)
• Ægthedsbevis
• Producentens garanticertifikat

Note: Light bulbs are sold separately.

4. Opsætning og installation

Nødvendige værktøjer: Screwdriver, wire strippers, electrical tape, ladder, safety glasses, gloves.

1. Sluk for strømmen: Find afbryderen, der styrer lampens placering, og sluk for strømmen. Kontroller, at strømmen er slukket, ved hjælp af en lydstyrkemåler.tage tester.
2. Fjern gammelt armatur (hvis relevant): Frakobl og fjern forsigtigt enhver eksisterende lysarmatur.
3. Installer monteringshardware: Attach the mounting crossbar to the electrical junction box in the ceiling using the provided screws. Ensure it is securely fastened.
4. Ledningsforbindelser:
   • Connect the fixture's sort wire to the household sort (varm) ledning.
   • Connect the fixture's hvid wire to the household hvid (neutral) wire.
   • Connect the fixture's jord wire (bare copper or green) to the household jord wire and the mounting crossbar.
   • Fastgør alle forbindelser med trådmøtrikker og pak dem ind med elektrikertape for ekstra sikkerhed.
5. Monter armaturet: Carefully lift the fixture and align it with the mounting screws on the crossbar. Secure the fixture to the crossbar using the provided cap nuts or screws.
6. Krystalsamling: This fixture requires crystal pinning. Refer to the detailed crystal diagram (if provided separately or on packaging) for the correct placement of each crystal strand. Carefully attach each crystal strand to the designated hooks on the fixture frame.
7. Installer pærer: Insert 5 x E12 base, G16.5 shape 120V light bulbs (max 40W incandescent or LED equivalent) into the sockets. Do not overtighten.

Image 4.1: Main body of the Schonbek Petit Crystal Flush Mount before crystal assembly.

5. Betjening

Once installation is complete and verified, turn the power back on at the circuit breaker. The fixture is controlled by a standard wall switch (not included). For dimming functionality, ensure you are using dimmable LED bulbs and a compatible dimmer switch (sold separately).

• Tænd/sluk: Brug vægafbryderen, der er tilsluttet armaturet.
• Dæmpning: If a compatible dimmer switch is installed, adjust the dimmer to achieve the desired light level.

6. Vedligeholdelse

Regular cleaning will help maintain the beauty and brilliance of your Schonbek crystal fixture.

• Cleaning the Crystals:
  • Turn off the power to the fixture before cleaning.
  • Use a soft, lint-free cloth or a specialized crystal cleaning glove to gently wipe the crystals.
  • For deeper cleaning, a mild glass cleaner (ammonia-free) can be sprayed onto a cloth (not directly onto the fixture) and then used to wipe the crystals. Ensure no liquid drips into electrical components.
  • Allow crystals to air dry completely before restoring power.
• Rengøring af metalrammen:
  • Wipe the metal frame with a soft, dry cloth.
  • Undgå slibende rengøringsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
• Udskiftning af pære:
  • Always turn off power at the circuit breaker before replacing bulbs.
  • Lad pærerne køle helt af, før du rører ved dem.
  • Replace with bulbs of the same type and wattage (E12 base, G16.5 shape, max 40W incandescent or LED equivalent).

Image 6.1: Detail of the Clear Swarovski Spectra Crystals.

7. Fejlfinding

If you experience issues not listed here, or if the problem persists after attempting the solutions, please contact Schonbek customer support.

8. Specifikationer

9. Garanti og support

Producentens garanti: This Schonbek fixture is covered by a 5-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase and the Manufacturer Warranty Certificate included in your package.

Hvad garantien ikke dækker: This warranty does not cover damage caused by improper installation, misuse, abuse, accidents, modifications, or normal wear and tear. It also does not cover light bulbs.

Kundesupport: For technical assistance, warranty claims, or to inquire about replacement parts, please contact Schonbek customer service. Refer to the contact information provided on the Certificate of Authenticity or visit the official Schonbek webwebsted.

Online ressourcer: For additional information, product registration, or FAQs, please visit www.schonbek.com.
