1. Produktet er slutview
The ABUS ET60 is an electric door opener designed for remote or manual door access control in various settings, including residential, office, and commercial environments. It facilitates convenient door opening via an electrical impulse or a mechanical release lever. This manual provides essential information for the proper installation, operation, and maintenance of your ET60 unit.
Image Description: A clear, upright view of the ABUS ET60 electric door opener, showcasing its black and metallic construction. This image provides a general visual reference for the product.
2. Opsætning og installation
2.1 Installationskrav
- Voltage: 8-14 Volts (AC or DC).
- Kompatibilitet: Suitable for both DIN-left and DIN-right opening doors.
- Installationsmetode: Indskruning.
- Materiale: Metalkonstruktion.
2.2 Installationstrin
- Identify the correct position for the door opener in the door frame. The symmetrical design allows for small installation dimensions.
- Secure the ET60 unit using appropriate screws.
- Connect the electrical wiring to the terminals. Ensure the power supply is within the specified 8-14V AC/DC range.
- After initial installation, adjust the latch mechanism to ensure the door closes tightly and the lock engages correctly. This may involve fine-tuning the position of the door opener relative to the mortise lock's latch.
- Test the electrical opening function.
- Test the mechanical release function.
2.3 Dimensioner og montering
Refer to the diagram below for detailed dimensions to ensure proper fit and installation.
Image Description: A technical drawing illustrating the dimensions of the ABUS ET60 electric door opener in millimeters. The top view shows a length of 90mm and a width of 21mm at the terminal block, with a screw distance of 52.3mm. The side view shows a total height of 32mm, with the main body being 28mm high and the latch mechanism extending 45.8mm.
Image Description: The back of the ABUS ET60 packaging, displaying various installation diagrams for both DIN-right and DIN-left doors. It shows different configurations for mounting the electric strike plate and the corresponding lock components. The image also includes a QR code for additional product information.
For more product information, scan the QR code or visit: qr.abus.com/product/21532
Billedbeskrivelse: En top-down view of the ABUS ET60 electric door opener, clearly showing the mounting screws and the overall profile of the unit. This view is helpful for understanding the physical installation points.
3. Betjeningsvejledning
3.1 Elektrisk drift
The ET60 operates by receiving a current pulse. When a connected switch or button is pressed, an electrical current is supplied to the opener, releasing the latch. This allows the door to be opened. A typical buzzing sound indicates that the opener is active and the door can be opened. The door remains unlocked only as long as the button is held down.
3.2 Mechanical Release (Day Release)
For situations requiring the door to remain unlocked for an extended period, the ET60 features a mechanical release lever. By flipping this small lever on the door opener, the latch is permanently disengaged, allowing the door to be opened without an electrical impulse. This function is commonly referred to as 'day release' and is useful in office buildings or other environments where frequent, temporary access is needed.
Billedbeskrivelse: En vinklet view of the ABUS ET60 electric door opener, highlighting the main body and the movable latch component. This view helps illustrate the mechanism that releases the door when activated.
4. Vedligeholdelse
4.1 Generel pleje
The ABUS ET60 is designed for durability and requires minimal maintenance.
- Hold enheden fri for overskydende støv og snavs.
- Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de er fastgjort.
- Avoid applying lubricants or cleaning agents directly into the electrical components.
- Ensure the mechanical release lever moves freely and is not obstructed.
4.2 Rengøring
Clean the exterior surfaces with a soft, dry cloth. Do not use abrasive cleaners or solvents.
5. Fejlfinding
5.1 Almindelige problemer og løsninger
- Door does not open electrically:
- Check the power supply: Ensure the voltage is within the specified 8-14V AC/DC range.
- Verify electrical connections: Confirm all wires are securely connected to the terminals.
- Test the activation button/switch: Ensure it is functioning correctly and sending a current pulse.
- No buzzing sound when activated:
- This indicates a lack of electrical current reaching the unit. Check power supply and wiring as above.
- Door does not close tightly:
- Adjust the latch: Re-align the door opener with the mortise lock's latch as described in the installation section.
- Mechanical release lever is stiff or not working:
- Check for obstructions: Ensure no debris is blocking the lever's movement.
- Avoid forcing the lever: If it remains stiff, contact support.

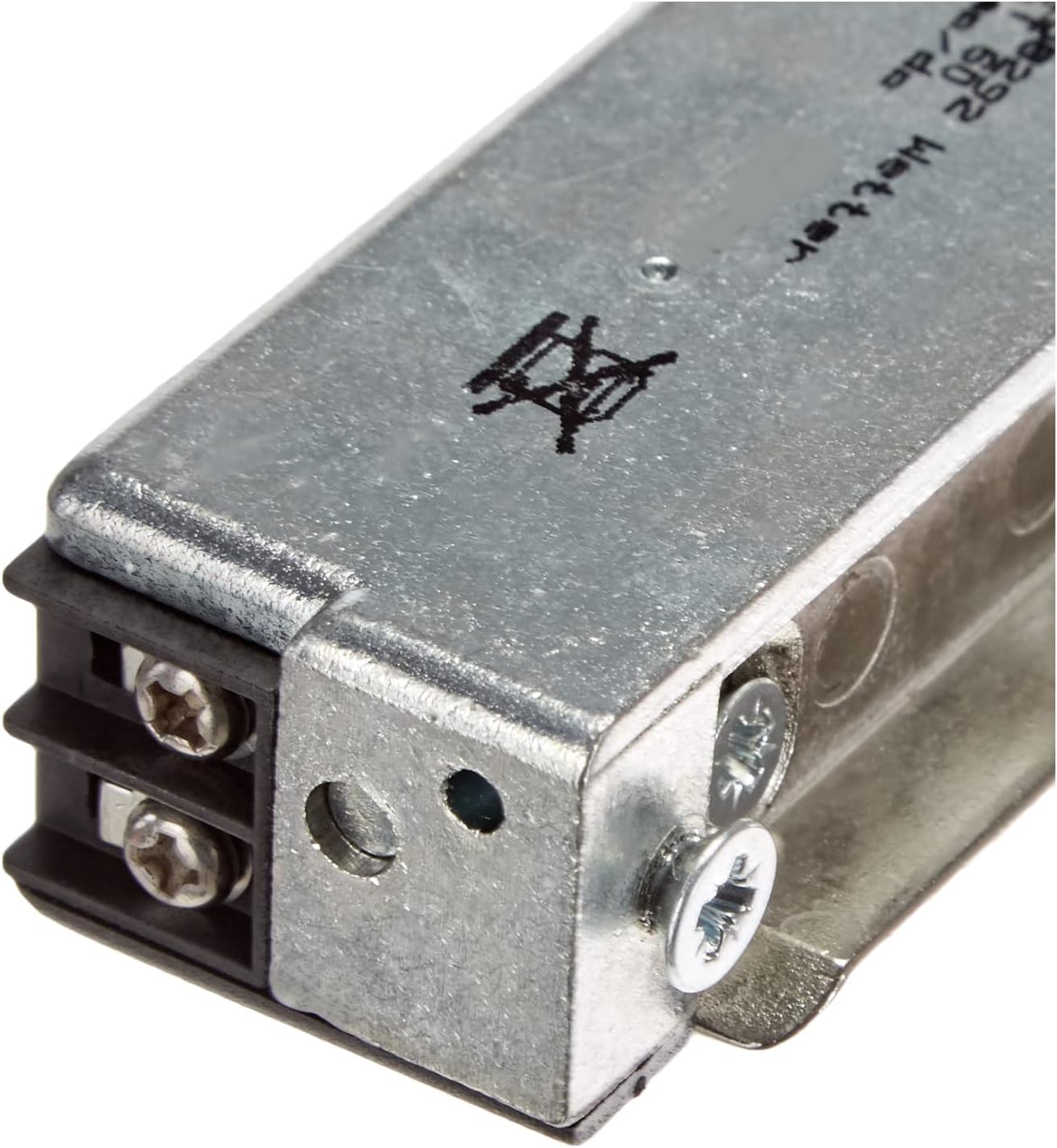

Billedbeskrivelse: Et nærbillede view of the electrical terminals and mounting screws on the ABUS ET60 electric door opener. This image is useful for verifying correct wiring connections during installation or troubleshooting.
6. Specifikationer
6.1 Tekniske data
| Feature | Detalje |
|---|---|
| Model | ET60 |
| Varenummer | 491935 |
| Mærke | ABUS |
| Nominel voltage | 8-14 Volts (AC/DC) |
| Nuværende forbrug | 0.7 A ved 12 V AC |
| Modstand | 12 ohms at 12 V AC |
| Break-up Resistance | 3,500 Newtons (approx. 350 kg) |
| Kompatibilitet | Universal for DIN-right and DIN-left doors |
| Speciel funktion | Mechanical Release Lever (Day Release) |
| Låsetype | Elektronisk |
| Materiale | Metal |
| Dimensioner (L x B x H) | 6.93 x 3.94 x 2.48 tommer (ca. 176 x 100 x 63 mm) |
| Varens vægt | 0.21 kilogram (ca. 7.4 ounces) |
| Slutte | Sort pulverlakeret |
| Inkluderede komponenter | Small lever and mounting material |
7. Garantioplysninger
7.1 Produktgaranti
Specific warranty details for the ABUS ET60 electric door opener are typically provided with the product packaging or available on the official ABUS webwebsted. Se venligst disse kilder for de mest nøjagtige og opdaterede garantivilkår.
8. Support og kontakt
8.1 Producentsupport
For technical assistance, further product information, or support, please visit the official ABUS webwebsted eller kontakt deres kundeservice.
ABUS Webwebsted: www.abus.com
You can also find additional product details by scanning the QR code on the product packaging or visiting: qr.abus.com/product/21532
