Jung AUT238DWW Programmerbar Termostat LCD Display Låg Brugermanual

1. Introduktion

The Jung AUT238DWW is an LCD display cover designed for the Jung UT 238 E programmable thermostat mechanism. This unit provides a user interface for precise control over your heating system, featuring a clear display and intuitive buttons for programming and adjustments. It integrates a weekly timer to manage heating schedules efficiently, ensuring comfort and energy savings.

Nøglefunktioner omfatter:

• Three adjustable temperature settings: Comfort, Setback (night/economy), and Frost Protection.
• Automatic summer/winter time switching.
• Temperature detection via internal and/or external sensor.
• Additional energy-saving button for reduced temperature mode.
• "Party" mode to extend comfort temperature for selected periods.
• Power reserve for settings retention during power outages.
• Cooling function for passive cooling systems.

2. Sikkerhedsinstruktioner

Please read these instructions carefully before installation and operation. Keep this manual for future reference.

• Installation should only be performed by a qualified electrician in accordance with local regulations.
• Sørg for, at strømforsyningen er afbrudt før installations- eller vedligeholdelsesarbejde.
• Udsæt ikke enheden for fugt, ekstreme temperaturer eller direkte sollys.
• Åbn eller forsøg ikke at reparere enheden selv. Overlad al service til kvalificeret personale.

3. Produktkomponenter og deroverview

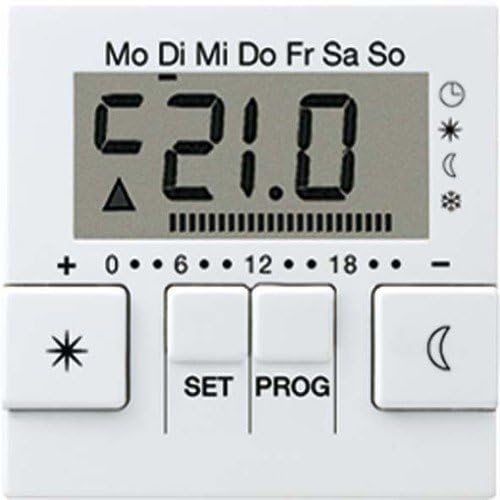

The Jung AUT238DWW display cover consists of an LCD screen and several control buttons. Refer to the image below for a visual guide to the main components.

Nøglekontroller:

• LCD-skærm: Shows current temperature, time, day of the week, and active mode icons.
• '+' og '-' knapper: Used to adjust values such as time or temperature.
• SET -knap: Confirms set values. If not pressed within 1 minute after adjustment, the display returns to normal mode without saving changes.
• PROG knap: Allows access to programming functions and returns to the normal time program.
• Star/Snowflake Button: (Left button) Likely for quick access to Comfort or Frost Protection modes.
• Moon Button: (Right button) Likely for quick access to Setback (night) mode.

4. Installation og indledende opsætning

This AUT238DWW unit is a display cover designed to be mounted onto the Jung UT 238 E programmable thermostat mechanism. Ensure the UT 238 E mechanism is correctly installed and wired according to its specific instructions before attaching this display cover.

4.1 Attaching the Display Cover

1. Ensure the power supply to the thermostat mechanism is completely disconnected at the main circuit breaker.
2. Carefully align the AUT238DWW display cover with the UT 238 E thermostat mechanism.
3. Gently press the cover into place until it clicks securely. Do not force it.
4. Restore power to the thermostat mechanism. The display should illuminate.

4.2 Indstilling af starttidspunkt og dato

Ved første opstart eller efter længere tids strømafbrydelsetage (beyond the power reserve), you may need to set the current time and date. Refer to the "Operating Instructions" section for detailed steps on using the +, -, og SÆT buttons to adjust these values.

5. Betjeningsvejledning

5.1 Grundlæggende betjening

To adjust values such as time or temperature, use the + or - buttons. Confirm your settings by pressing the SÆT knap. Hvis den SÆT button is not pressed within 1 minute after the last button press, the display will automatically revert to the normal display mode, and any unsaved changes will be lost.

Ved at trykke på PROG button allows you to navigate through programming menus or return to the normal time program.

5.2 Understanding Thermostat Modes

The thermostat operates by controlling the heating system based on three adjustable temperature settings at specific times:

• Komfort temperatur: Typically used during the day or periods of presence.
• Setback Temperature (Economy/Night): Usually applied during the night or periods of absence to save energy.
• Frostbeskyttelsestemperatur: Used during extended periods of absence (e.g., holidays) to prevent the heating system from freezing. This temperature is set just high enough to protect the system.

5.3 Ugentlig timerprogrammering

The integrated weekly timer allows for time-controlled temperature management for a single room or floor heating. You can set up to 32 individual switching times throughout the week. For each switching time, you define the start time, end time, and the desired temperature mode (Comfort, Setback, or Frost Protection).

1. Tryk på PROG button to enter the programming menu.
2. Brug + or - buttons to navigate through the program slots (e.g., P1, P2, etc.).
3. Trykke SÆT to select a program slot.
4. Bruge + or - to set the start time, then press SÆT.
5. Bruge + or - to set the end time, then press SÆT.
6. Bruge + or - to select the desired temperature mode (Comfort, Setback, Frost Protection) for this period, then press SÆT.
7. Repeat for all desired switching times. Press PROG to exit the programming menu.

The system includes heating optimization, which means it will activate heating in advance to ensure the desired temperature is reached precisely at the programmed time.

5.4 Specialfunktioner

• Energibesparende knap: An additional button allows for quick switching to the reduced (setback) temperature.
• "Party" Mode: Activates the comfort temperature for a selectable period of 1 to 4 hours, overriding the current program. This is useful for temporary extensions of comfort.
• Kølefunktion: The thermostat supports a simple cooling function for passive cooling systems (e.g., via geothermal exchangers). Refer to the UT 238 E mechanism manual for activation details.

6. Vedligeholdelse og pleje

The Jung AUT238DWW display cover requires minimal maintenance.

• Rensning: Tør displayet og knapperne af med en blød, tør eller let fugtet klud.amp cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the surface.
• Battery (Power Reserve): The device features a power reserve (capacitor, not a battery) that retains settings for up to 4 hours during power interruptions and programming for up to 10 years. No user maintenance is required for this feature.

7. Fejlfinding

If you encounter issues with your Jung AUT238DWW display cover or the connected thermostat mechanism, consider the following:

• Displayet er tomt: Check the power supply to the thermostat mechanism. Ensure it is correctly installed and receiving power.
• Indstillinger gemmes ikke: Ensure you press the SÆT button to confirm changes after adjusting values. If you wait too long (over 1 minute), changes will not be saved.
• Forkerte temperaturaflæsninger: Verify that the temperature sensor (internal or external, depending on configuration) is not obstructed and is functioning correctly.
• Heating not responding: Check the programming schedule to ensure the thermostat is set to a heating mode and desired temperature. Verify the UT 238 E mechanism is correctly wired to your heating system.

For persistent issues, consult the full manual for the Jung UT 238 E thermostat mechanism or contact Jung customer support.

8. Tekniske specifikationer

9. Garanti og support

9.1 Garantioplysninger

Specific warranty details for the Jung AUT238DWW are typically provided with the product packaging or can be found on the official Jung webwebsted. Gem venligst din købsbevis til garantikrav.

9.2 Kundesupport

For technical assistance, troubleshooting, or further information regarding your Jung AUT238DWW display cover or the UT 238 E thermostat mechanism, please contact Jung customer support through their official webwebstedet eller kontaktoplysningerne i din produktdokumentation.

Du kan typisk finde supportoplysninger på Jung official webwebsted.
