Wolfcraft Universal Try Square 5206000 - 500 mm Instruction Manual

1. Introduktion

This Wolfcraft Universal Try Square 5206000 is a versatile tool designed for various woodworking and DIY tasks. It combines multiple functions into one compact device, including a try square, angle scale, parallel marker, marking template, and drilling jig for concealed hinges. Its robust metal construction and clear scaling ensure precision and durability for accurate measurements and markings.

2. Produktfunktioner

The Wolfcraft Universal Try Square 5206000 offers several key features:

Multifunktionelt design: Combines a try square, angle scale, parallel marker, marking template, and drilling jig for concealed hinges into one tool.
Removable Plastic Stop: Allows for precise work on surfaces or along edges, enhancing accuracy and versatility.
Holdbar konstruktion: Made from high-quality metal with clear, double-sided scaling for long-lasting performance and readability.

Close-up of Wolfcraft Try Square features — Figur 2: Nærbillede view of the Wolfcraft Universal Try Square's features. This image details the various markings, the protractor, and the holes for parallel marking and hinge drilling, showcasing the tool's versatility.

3. Opsætning og komponenter

The Universal Try Square consists of a main metal body and a removable plastic stop. The plastic stop can be attached or detached to suit different applications.

3.1 Attaching the Plastic Stop

Align the plastic stop with the designated screw holes on the metal square.
Insert the screws and tighten them securely with a screwdriver. Ensure the stop is flush and stable.

Attaching the plastic stop to the try square — Figure 3: A person attaching the black plastic stop to the metal try square using a screwdriver. This demonstrates the assembly process for the removable stop.

3.2 Detaching the Plastic Stop

Using a screwdriver, loosen and remove the screws holding the plastic stop in place.
Carefully remove the plastic stop from the metal square. Store it safely for future use.

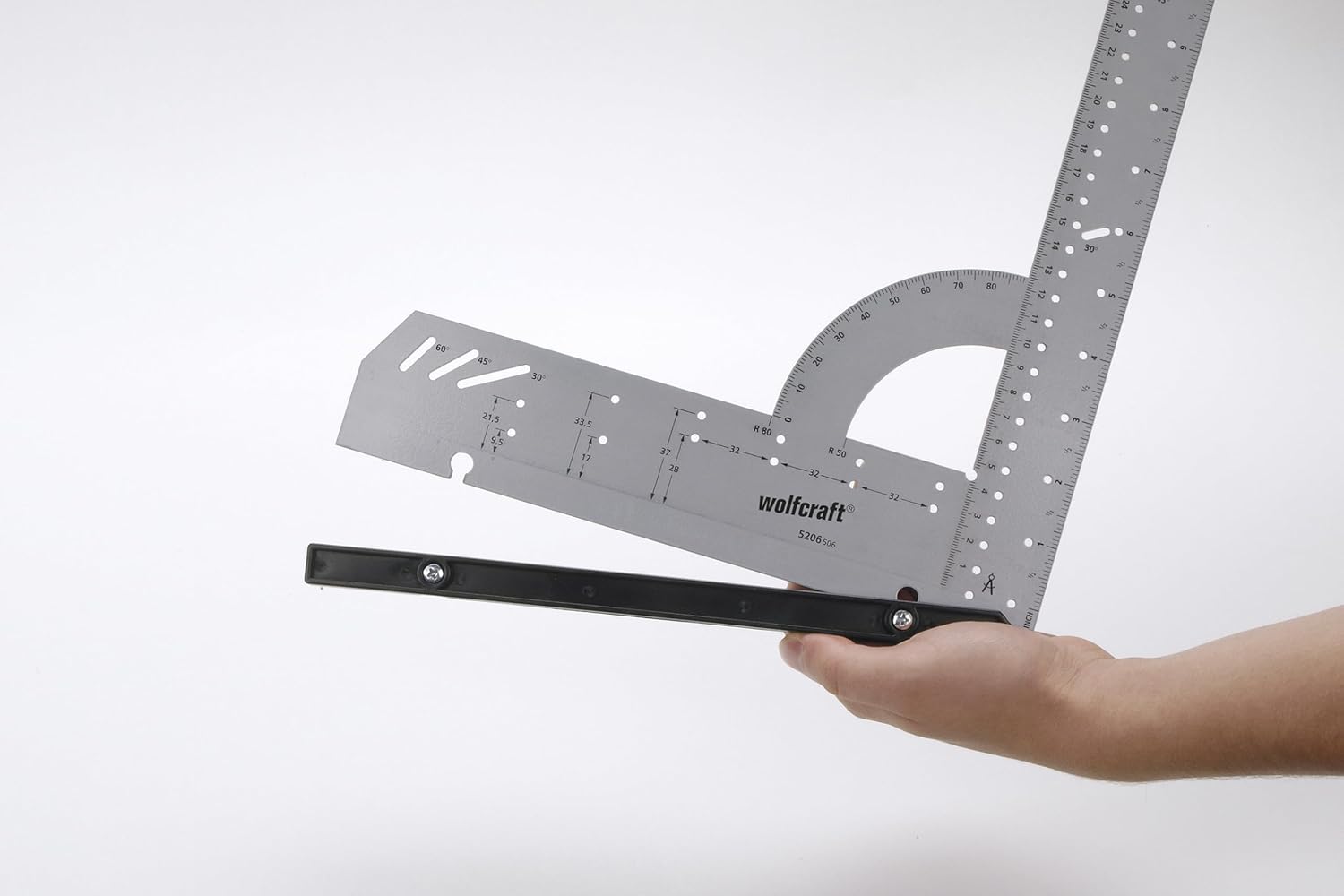

Detaching the plastic stop from the try square — Figure 4: A hand holding the metal try square with the plastic stop detached. This illustrates the tool's configuration when the stop is not in use.

4. Betjeningsvejledning

4.1 Using as a Try Square (90-degree marking)

To mark a precise 90-degree angle, align the inner edge of the square's short arm flush against the edge of your workpiece. Use a pencil or marking tool along the long arm to draw a perpendicular line.

Using the try square for 90-degree marking — Figure 5: A person using the Wolfcraft Universal Try Square to mark a 90-degree line on a wooden board. The image shows the tool positioned against the edge for accurate perpendicular marking.

4.2 Using as an Angle Scale/Protractor

The integrated protractor allows for marking and measuring angles. Position the tool on your workpiece, align the base with your reference line, and use the protractor scale to mark the desired angle. The markings range from 0 to 90 degrees.

Using the try square as an angle scale — Figure 6: A person utilizing the protractor feature of the try square to mark an angle on a piece of wood. This demonstrates the tool's capability for angular measurements.

4.3 Parallel Marking

To draw lines parallel to an edge, attach the plastic stop. Insert a pencil into one of the designated parallel marking holes on the square. Slide the stop along the edge of your workpiece while keeping the pencil in contact with the surface to create a parallel line.

Using the try square for parallel marking — Figur 7: Et nærbillede view of the try square being used for parallel marking. A pencil is inserted into one of the holes, and the tool is guided along an edge to draw a line at a consistent distance.

4.4 Marking Template for Concealed Hinges

The square features specific markings and holes designed for accurately positioning and drilling for concealed hinges. Refer to the hinge manufacturer's instructions for specific measurements, then use the corresponding markings on the square to guide your drilling.

Using the try square for concealed hinge marking — Figure 8: A person using the try square to mark drilling points for concealed hinges on a wooden panel. The image highlights the specialized markings for this application.

4.5 Cutting Guide

The robust edge of the try square can serve as a reliable guide for various cutting tools, such as utility knives or saws, to ensure straight and accurate cuts. Always secure the workpiece and the square before cutting to prevent movement.

Using the try square as a cutting guide — Figure 9: A person using the try square as a guide for a cutting tool on a wooden surface. This demonstrates how the tool can assist in making straight and precise cuts.

5. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your Wolfcraft Universal Try Square.

Rensning: Regularly clean the tool with a dry, soft cloth to remove dust, wood shavings, and debris. Avoid using abrasive cleaners or solvents that could damage the markings or the tool's finish.
Opbevaring: Store the try square in a dry environment to prevent rust, especially given its metal construction. Keep it away from excessive moisture or corrosive substances.
Inspektion: Periodically inspect the tool for any signs of damage, bending, or wear that might affect its accuracy.

6. Fejlfinding

Unøjagtige målinger: If measurements appear inaccurate, ensure the plastic stop is securely attached and the tool is held flush against the workpiece. Check for any debris or foreign objects obstructing the contact surfaces.
Difficulty Marking: Ensure you are using a sharp pencil or marking tool. The workpiece surface should be clean and free of obstructions that could interfere with smooth marking.
Rust: This tool features a metal construction. To prevent rust, store it in a dry environment and wipe it clean after each use, especially if it has been exposed to moisture. Applying a thin layer of rust-preventative oil can also help.

7. Specifikationer

Modelnummer	5206000
Mærke	Wolfcraft
Materiale	Metal (with plastic stop)
Produktdimensioner	50 x 1.5 x 0.25 cm (500 mm length)
Vægt	600 g
Oprindelsesland	Slovakiet
UPC	798256154058
GTIN	04006885520608

8. Garanti og support

For detailed warranty information, product registration, or technical support, please visit the official Wolfcraft website or contact your local authorized Wolfcraft retailer. Keep your purchase receipt as proof of purchase.
