Westek FA413HB 12.5-tommer fluorescerende underskabslampe, brugsanvisning

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Westek FA413HB 12.5-inch Fluorescent Under Cabinet Light. Please read these instructions thoroughly before installation and retain this manual for future reference.

Sikkerhedsoplysninger

• ADVARSEL: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation or servicing.
• Dette produkt er kun beregnet til indendørs brug.
• Do not install near heat sources or in damp steder.
• Ensure all electrical connections are made in accordance with local codes and ordinances. If you are unsure, consult a qualified electrician.
• Forsøg ikke at ændre armaturet. Enhver ændring kan ugyldiggøre garantien og skabe en sikkerhedsrisiko.
• Handle fluorescent bulbs with care. If a bulb breaks, ventilate the area and clean up broken glass and mercury according to local regulations.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Westek FA413HB 12.5-inch Fluorescent Under Cabinet Light Fixture
• 8-watt T5 Fluorescent Bulb (pre-installed or separate)
• Power Cord (for plug-in installation)
• Monteringshardware (skruer)
• Instruktionsmanual (dette dokument)

Specifikationer

Opsætning og installation

The Westek FA413HB fixture offers both plug-in and direct-wire installation options. Always ensure power is disconnected before starting installation.

1. Montering af armaturet

1. Determine the desired location for the light fixture under your cabinet. Ensure there is sufficient space and a power outlet nearby for plug-in installation, or access to electrical wiring for direct-wire.
2. Using the provided mounting hardware (screws), secure the fixture to the underside of the cabinet. The fixture is designed with a slim 1-inch profile to hide behind most cabinet lips.

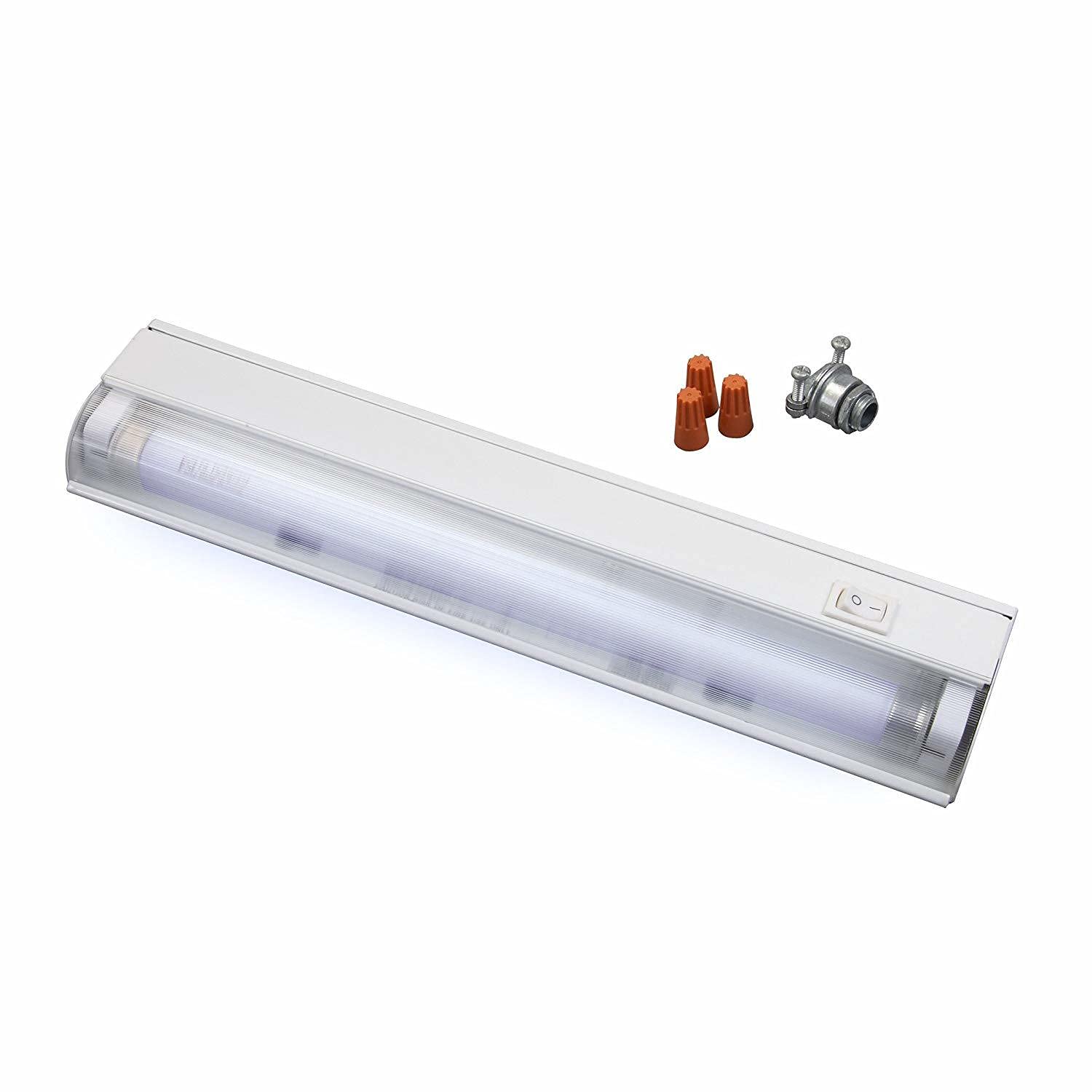

Image: Westek FA413HB 12.5-inch under cabinet light fixture, showing its slim design, integrated on/off switch, and included accessories like wire nuts and a conduit connector for installation.

2. Connecting Power (Plug-in Option)

1. Once the fixture is securely mounted, connect the provided power cord to the fixture.
2. Sæt netledningen i en standard 120V AC stikkontakt.
3. Sørg for, at ledningen er ført sikkert og ikke udgør en snublefare eller kommer i klemme.

3. Connecting Power (Direct-Wire Option)

This fixture can be converted for direct-wire installation. It is highly recommended that direct-wire installation be performed by a qualified electrician to ensure safety and compliance with electrical codes.

1. Sluk for strømmen ved afbryderen.
2. Remove the cover plate from the fixture to access the wiring compartment.
3. Connect the household electrical wires to the fixture's wires (typically black to black, white to white, and ground to ground) using appropriate wire connectors (wire nuts, often included).
4. Secure the wiring and replace the cover plate.
5. Gendan strømmen ved afbryderen.

Betjeningsvejledning

The Westek FA413HB features an integrated on/off switch for easy operation.

• At tænde lyset ON, press the switch located on the fixture.
• At tænde lyset SLUKKET, press the switch again.
• The electronic ballast provides instant-on, flicker-free, and quiet operation.

Opretholdelse

Udskiftning af pære

The fixture uses an 8-watt T5 fluorescent bulb. To replace the bulb:

1. VIGTIG: Disconnect power to the fixture at the circuit breaker or by unplugging it before attempting to replace the bulb.
2. Carefully remove the clear lens cover by gently prying it off.
3. Gently twist the old T5 fluorescent bulb to release it from its sockets and remove it.
4. Insert the new 8-watt T5 fluorescent bulb into the sockets, ensuring it is properly seated.
5. Replace the clear lens cover, ensuring it snaps securely into place.
6. Gendan strømmen til armaturet.

Rensning

To clean the fixture, ensure power is disconnected. Wipe the exterior surfaces with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige finishen eller linsen.

Fejlfinding

Garanti og support

Westek products are designed for quality and reliability. For warranty information or technical support, please refer to the contact information provided on the product packaging or visit the official Westek website. Please have your model number (FA413HB) and purchase date available when contacting support.
