Indledning
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Progress Lighting P832-TG Remodel Recessed Lighting Housing. Designed for use in existing ceilings, this housing features an integral flange and exclusive locking bars for quick and secure mounting.
Please read this manual thoroughly before beginning installation to ensure proper setup and safe operation. Keep this manual for future reference.
Sikkerhedsoplysninger
ADVARSEL: To avoid fire, shock, or death; always turn off power at the circuit breaker or fuse box before wiring. All wiring must be in accordance with national and local electrical codes.
- Afbryd altid strømmen før installation, service eller rengøring af dette armatur.
- Installationen skal udføres af en kvalificeret elektriker.
- Sørg for, at alle forbindelser er sikre og korrekt isolerede.
- This product is UL and CUL listed for damp locations. Do not install in wet locations.
- Rated for 60-degree supply wires in end-of-run applications.
- Rated for 4 #12 90-degree conductors (2 in and 2 out).
Forslag 65 Advarsel: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Produkt overview
The Progress Lighting P832-TG is a remodel recessed lighting housing designed for easy installation in existing ceilings. Its robust construction and thoughtful design ensure a secure fit and reliable performance.
Nøglefunktioner:
- Integral flange on housing for a clean finish.
- Exclusive locking bars for quick mounting in ceilings from 1/2-inch to 1-inch thick.
- UL and CUL listed for damp locations and through wiring.
- Rated for 4 #12 90-Degree conductors (2 in and 2 out).
- Medium base lamp stikkontakt.
Komponenter:
The P832-TG housing consists of a galvanized steel junction box, a flexible conduit connecting to the housing, and the main housing unit with integral flange and locking bars. It is designed to accommodate a medium base lamp and requires a separate trim for a complete fixture.

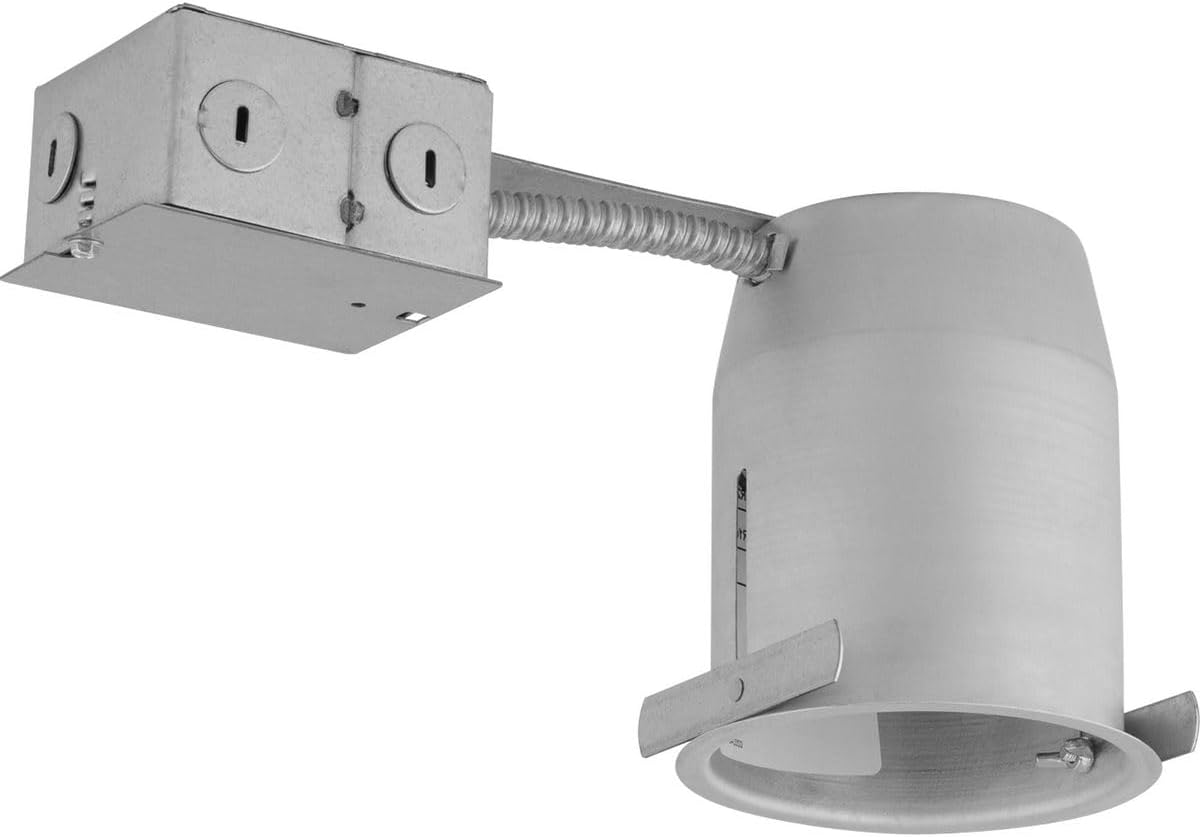

Figure 1: Progress Lighting P832-TG Recessed Lighting Housing. This image shows the main housing unit, the junction box, and the flexible conduit connecting them.

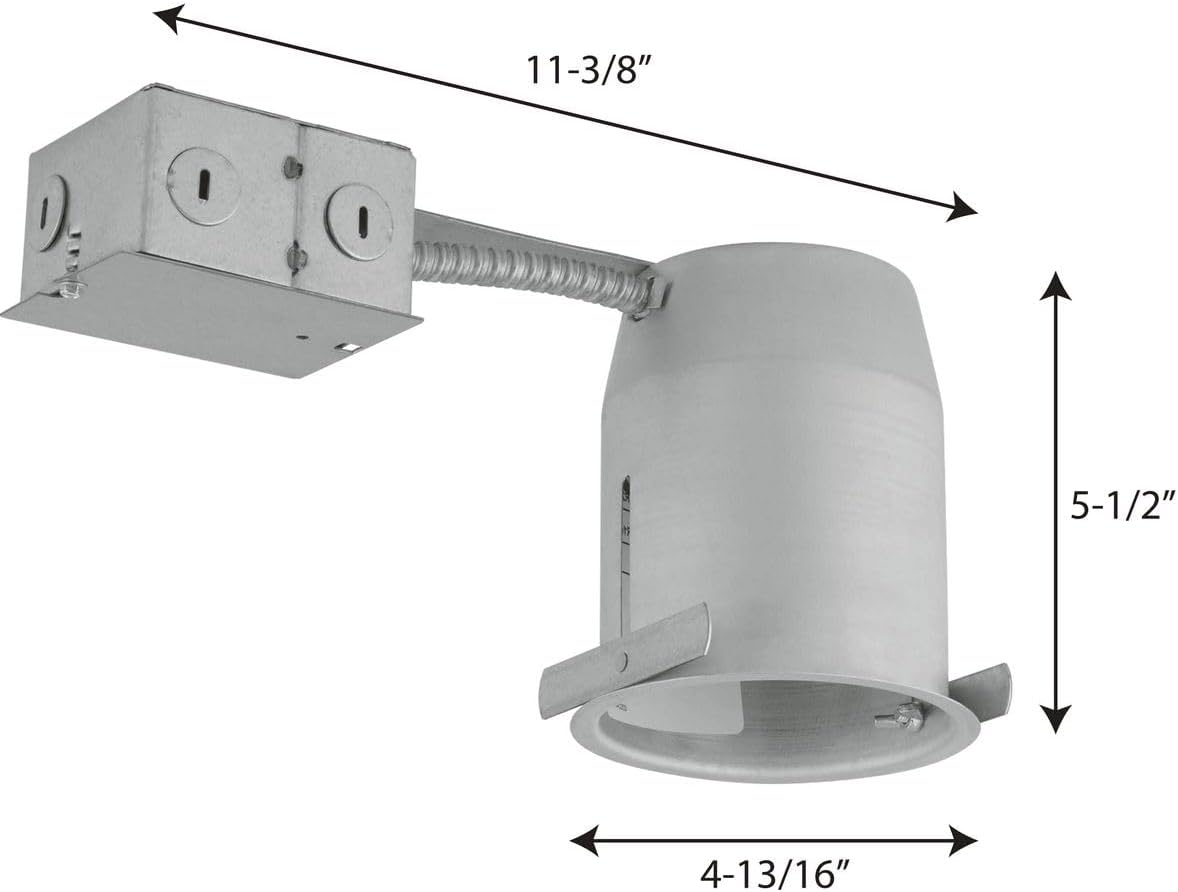

Figur 2: Dimensionel view of the P832-TG housing. Key dimensions include 11-3/8 inches width, 5-1/2 inches height, and 4-13/16 inches extension, with a 4-1/4 inch ceiling opening.
Opsætning og installation
Follow these steps for proper installation of the P832-TG housing in existing ceilings. Ensure power is disconnected at the circuit breaker before proceeding.
- Forbered loftåbning: Create a 4-1/4 inch diameter opening in the ceiling at the desired location. Ensure there are no obstructions (joists, pipes, wires) within the installation area.
- Tilslut ledninger: Open the junction box cover. Connect the building's electrical supply wires to the corresponding wires in the housing's junction box. Use appropriate wire connectors (not supplied). Ensure proper grounding. The housing is rated for 4 #12 90-degree conductors (2 in and 2 out).
- Indsæt hus: Carefully insert the housing through the ceiling opening. The integral flange will rest against the ceiling surface.
- Sikker bolig: The exclusive locking bars are designed to secure the housing in ceilings from 1/2-inch to 1-inch thick. As you push the housing into the opening, the locking bars will engage and clamp onto the ceiling material. For thicker ceilings, a small screwdriver or pick can be used to rotate the bar up during installation to ensure proper engagement.
- Install Trim (Sold Separately): Once the housing is securely in place, install the desired recessed lighting trim according to its specific instructions.
- Installer Lamp: Insert a medium base lamp (bulb) into the socket within the housing.
- Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen.
Operation
The Progress Lighting P832-TG Remodel Recessed Lighting Housing operates as a fixture for a medium base lamp. Once properly installed and connected to a power source, the housing will provide illumination when a compatible lamp is inserted and the electrical circuit is activated via a wall switch or dimmer (not included).
Sørg for at lamp used is compatible with the housing's specifications and your electrical system.
Opretholdelse
The P832-TG housing requires minimal maintenance. Regular cleaning and lamp replacement are the primary maintenance tasks.
- Rensning: Before cleaning, ensure power is disconnected at the circuit breaker. Wipe the exterior of the housing and any installed trim with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Lamp Udskiftning: Disconnect power before replacing a lampTillad den gamle lamp to cool completely before removal. Replace with a new medium base lamp of the appropriate wattage og type.
- Inspektion: Periodically inspect the housing and wiring for any signs of damage or wear. If any issues are found, disconnect power and consult a qualified electrician.
Fejlfinding
If you encounter issues with your recessed lighting housing, refer to the following table for common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet. Lamp is faulty or loose. Ledningsfejl. | Tjek afbryder/sikring. Sørg for, at vægkontakten er tændt. Udskift lamp or tighten. Kontakt en kvalificeret elektriker for at kontrollere ledningsføringen. |
| Lyse flimrer. | Løs lamp. Løs ledningsforbindelse. Inkompatibel lysdæmper. | Stram lamp. Afbryd strømmen og kontroller ledningsforbindelserne. Ensure dimmer is compatible with the lamp type. |
| Housing is not secure in ceiling. | Locking bars not fully engaged. Ceiling thickness outside specified range. | Ensure locking bars are fully engaged. Re-insert housing if necessary. Verify ceiling thickness is between 1/2-inch and 1-inch. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kundesupport eller en kvalificeret elektriker.
Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | P832-TG |
| Mærke | Fremskridtsbelysning |
| Materiale | Galvaniseret stål |
| Finish Type | Færdig |
| Farve | Ufærdige |
| Lyskildetype | Incandescent (compatible with LED retrofit bulbs) |
| Voltage | 120 volt |
| Loftsåbning | 4-1/4 tommer |
| Dimensioner (L x B x H) | 5"L x 6"W x 6"H (Product) / 11-3/8" Width x 5-1/2" Height (Housing) |
| Varens vægt | 1.57 pund |
| Installationsmetode | Forsænket |
| Ceiling Thickness Compatibility | 1/2-inch to 1-inch thick |
| UL / CUL opført | Yes, for damp locations and through wiring |
Garantioplysninger
The Progress Lighting P832-TG Remodel Recessed Lighting Housing comes with a 1 års begrænset garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper installation, misuse, abuse, or acts of nature. For full warranty terms and conditions, please refer to the documentation included with your product or contact Progress Lighting customer support.
Kundesupport
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Progress Lighting customer support.
You can also visit the official Progress Lighting store on Amazon for more product information and resources: Progress Lighting Store
Please have your model number (P832-TG) and purchase information ready when contacting support.
