Brugermanual til Fluke 725 multifunktionsproceskalibrator

1. Introduktion

This manual provides comprehensive instructions for the safe and effective use of the Fluke 725 Multifunction Process Calibrator. The Fluke 725 is a robust and user-friendly field calibrator designed for testing and calibrating a wide range of process parameters. It combines measurement and source functions to facilitate accurate calibration of transmitters and other industrial equipment.

Key capabilities include sourcing and simulating volts, mA, thermocouples, RTDs, frequency, ohms, and pressure. It also supports flow meter testing with frequency and CPM functions, offers fast linearity tests with auto-step and auto-ramp features, and can power transmitters using its loop supply while simultaneously measuring mA. The device is designed for durability and ease of use in various industrial environments.

2. Opsætning

2.1 Udpakning og inspektion

Upon receiving your Fluke 725, carefully unpack the contents. The package should include the Multifunction Process Calibrator unit. Inspect the calibrator for any signs of damage that may have occurred during shipping. If any damage is observed, contact your supplier immediately.

2.2 Batteriinstallation

The Fluke 725 operates on four AA alkaline batteries, which are included. The battery compartment is located on the rear of the unit and features an easy-access door for convenient changes.

1. Locate the battery compartment door on the back of the calibrator.
2. Open the door by sliding or unlatching it according to the markings.
3. Insert four AA alkaline batteries, ensuring correct polarity as indicated inside the compartment.
4. Luk batteridækslet ordentligt.

2.3 Indledende tænding

Press the power button (typically marked with a circle and a vertical line) to turn on the calibrator. The display should illuminate, indicating the device is ready for operation.

Figur 1: Forside view of the Fluke 725 Multifunction Process Calibrator, showing the display and control buttons.

3. Betjeningsvejledning

The Fluke 725 allows simultaneous viewing of input and output on its easy-to-read measure/source screen.

3.1 Basic Measurement and Sourcing

The calibrator features dedicated buttons for various measurement and source functions. Use the 'MEAS' button to select measurement mode and the 'SOURCE' button to select source mode. Specific parameters can be selected using the corresponding function buttons (e.g., V mA, TC, RTD, Hz, Ohms).

3.2 Parameter Specific Operations

• Voltage (V): Measure 0 to 30V, Source 0 to 10V. Resolution up to 0.01V.
• Strøm (mA): Measure and Source 0 to 24 mA. Resolution 0.001 mA. Max load for source is 1000 ohm.
• Thermocouples (TC): Measure and Source mV (TC terminals) from -10.00 mV to 75.00 mV.
• FTU'er: Measure and Source Resistance from 15 to 3200 ohm.
• Frekvens (Hz): Measure and Source 2.0 to 1000.0 CPM, 1 to 1000 Hz, 1.0 to 10.0 kHz. For frequency source, the waveform is a 5V p-p squarewave with a -0.1V offset.
• Ohms (Ω): Measure and Source resistance.
• Tryk: Source pressure (requires external pressure modules, sold separately).

3.3 Avancerede funktioner

• Auto-Step and Auto-Ramp: Perform fast linearity tests using these automated features. Consult the on-screen menu or specific function buttons for activation.
• Løkkeforsyning: The calibrator provides a 24V DC loop supply to power transmitters during testing, with simultaneous mA measurement capability.
• Baggrundsbelysning: Activate the backlight for improved visibility in low-light conditions.
• Store Test Setups: Frequently used test configurations can be stored and recalled for efficiency.

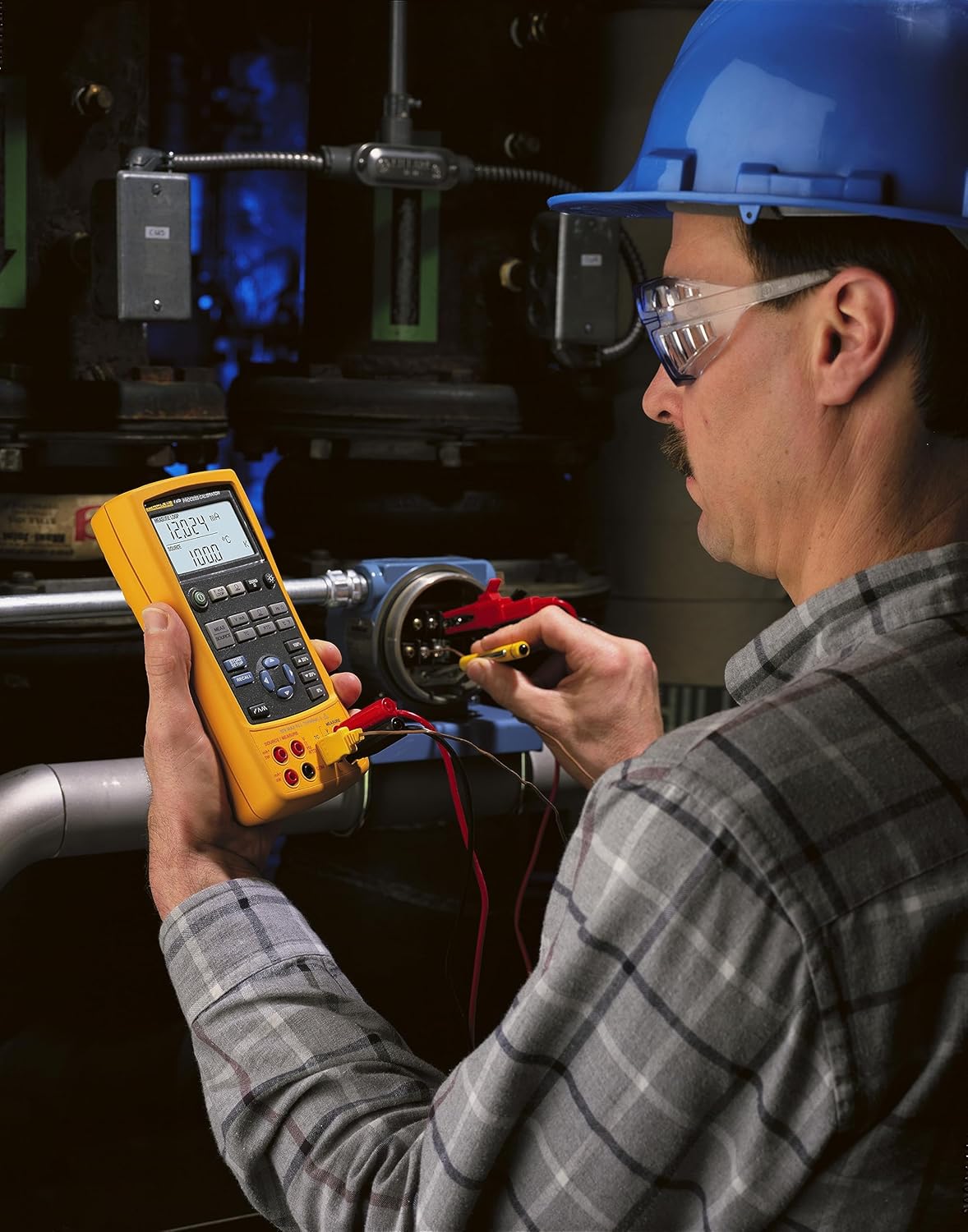

Figure 2: A technician utilizing the Fluke 725 to connect and calibrate industrial process equipment.

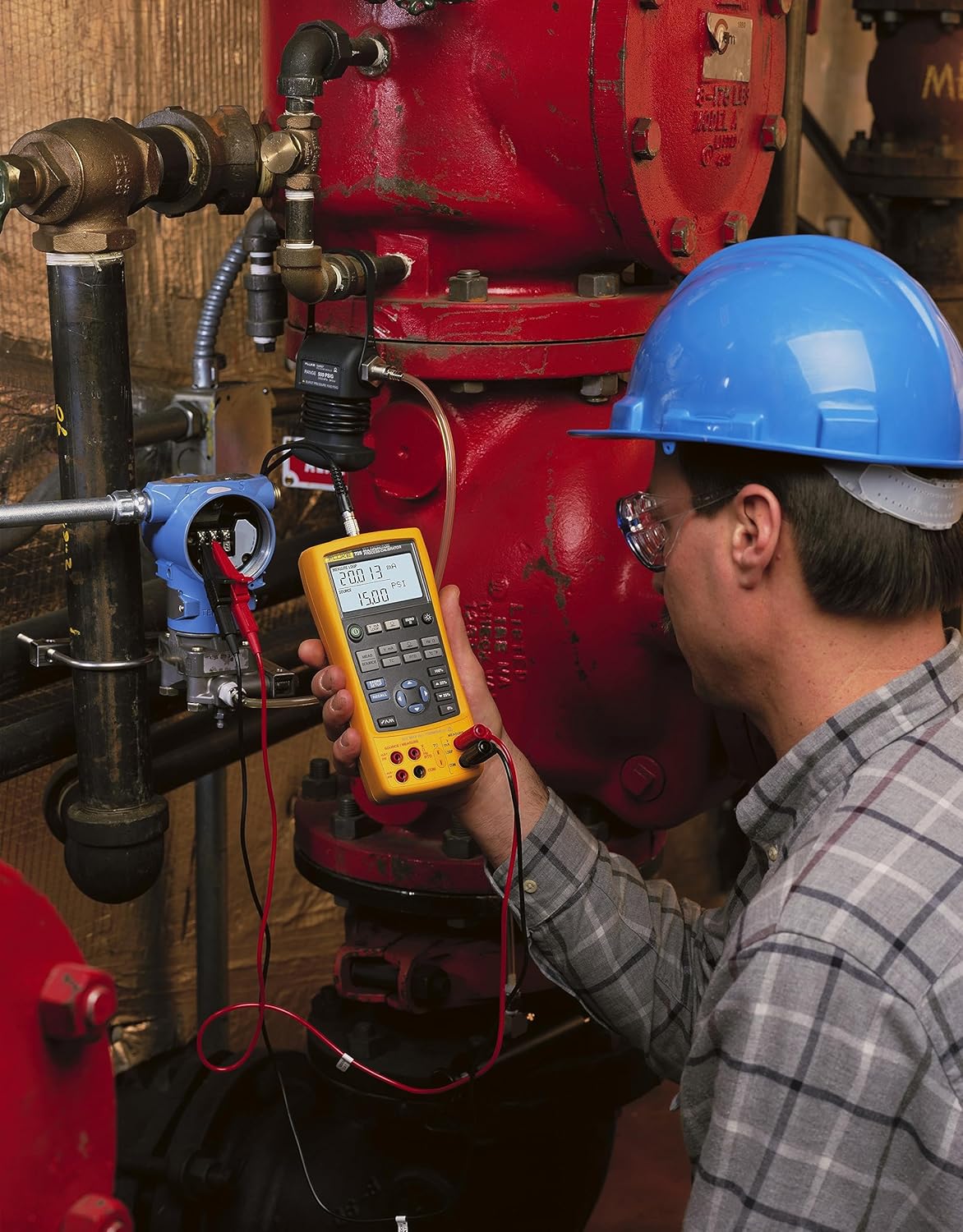

Figure 3: The Fluke 725 calibrator connected to a pressure transmitter, demonstrating its application in process calibration.

Figur 4: Et nærbillede view of the Fluke 725 calibrator held in hand, displaying measurement readings.

4. Vedligeholdelse

4.1 Udskiftning af batteri

When the battery indicator appears on the display, replace the four AA alkaline batteries promptly to ensure continued operation and accuracy. Refer to Section 2.2 for battery installation instructions.

4.2 Rengøring

To clean the calibrator, wipe the case with a damp cloth and a mild detergent. Do not use abrasive cleaners, solvents, or harsh chemicals. Ensure the device is powered off and disconnected from any circuits before cleaning.

4.3 Opbevaring

Store the Fluke 725 within the specified storage temperature range of -40 °C to 71 °C (-40 °F to 160 °F). For prolonged storage, remove the batteries to prevent leakage.

5. Fejlfinding

If the Fluke 725 does not operate as expected, review the following general troubleshooting steps:

• Ingen strøm: Check battery installation and ensure batteries are fresh.
• Forkerte aflæsninger: Verify test lead connections, ensure correct function selection, and check for proper calibration.
• Visningsproblemer: If the display is dim, activate the backlight or replace batteries.
• Function Not Responding: Power cycle the unit (turn off, then on). If the issue persists, consult the manufacturer's support resources.

For specific error codes or advanced troubleshooting, refer to the official Fluke support documentation or contact Fluke customer service.

6. Specifikationer

Miljømæssige og fysiske specifikationer

• Maksimal voltage: 30V
• Opbevaringstemperatur: -40 °C til 71 °C (-40 °F til 160 °F)
• Driftstemperatur: -10 °C til 55 °C (14 °F til 131 °F)
• Relativ luftfugtighed: 95% (10 to 35 °C), 75% (30 to 40 °C), 45% (40 to 50 °C), 35% (50 to 55 °C)
• Stød: 30g, 11ms, half-sine shock (or 1-meter drop test)
• Vibration: Random, 2g, 5-500 Hz
• Sikkerhed: CSA C22.2 No. 1010.1:1992
• Batterier: Four AA alkaline batteries (included)
• Batterilevetid: 25 hours typical
• Produktdimensioner: 10 x 7.8 x 3.3 inches; 1 Pound

7. Garantioplysninger

The Fluke 725 Multifunction Process Calibrator comes with a three-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For detailed warranty terms and conditions, please refer to the official Fluke warranty statement or contact Fluke customer support.

8. Support og kontakt

For technical assistance, service, or additional information regarding your Fluke 725 Multifunction Process Calibrator, please visit the official Fluke Corporation website or contact their customer support department. Contact details can typically be found on the Fluke webwebsted eller i produktemballagen.

Fabrikant: Fluke Corporation
