Nautica Men's NST Chronograph Watch N14536G Instruction Manual

Indledning

This manual provides detailed instructions for the proper use and care of your Nautica Men's NST Chronograph Watch, Model N14536G. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

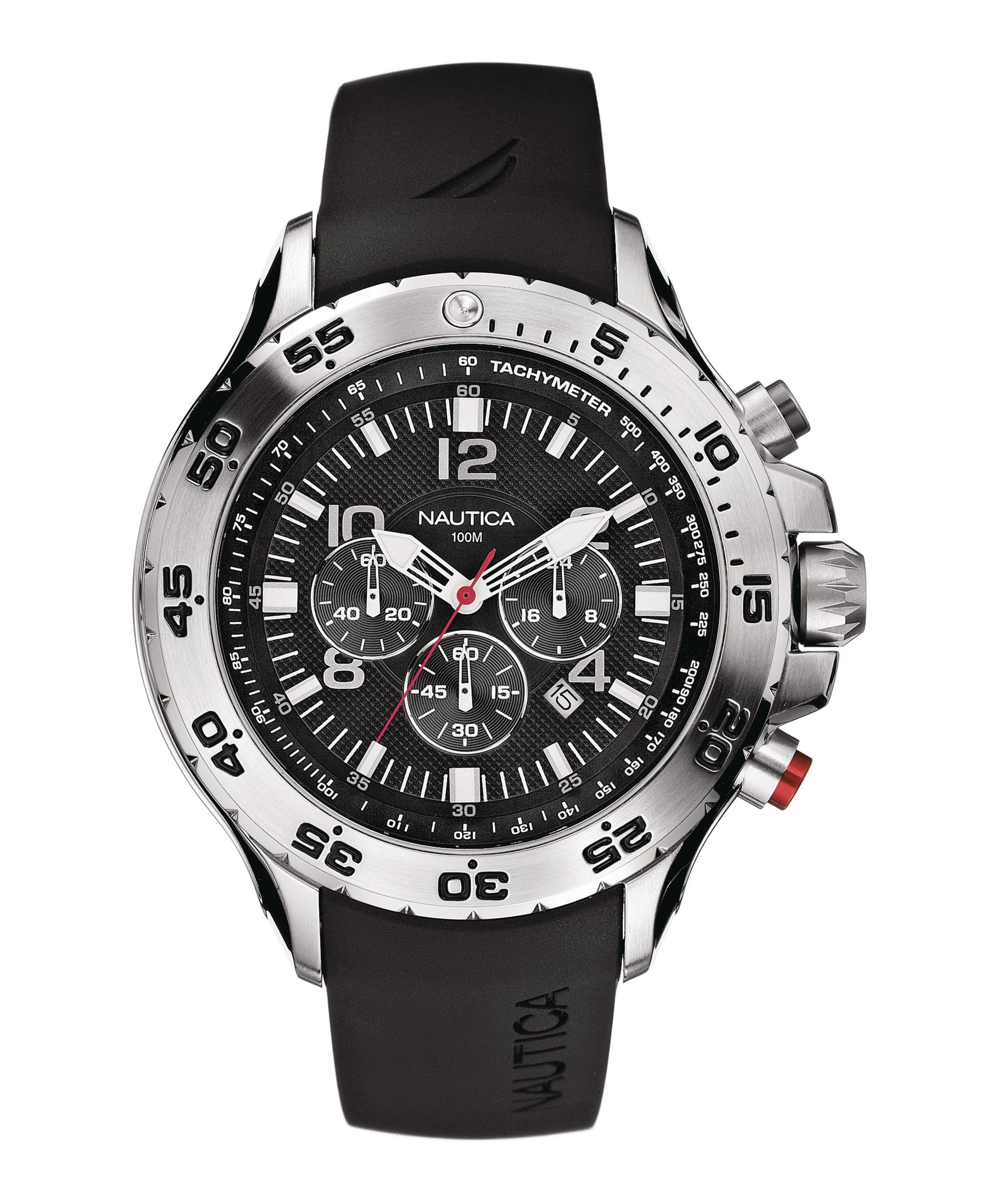

Billede: Forside view of the Nautica Men's NST Chronograph Watch, featuring a black dial, silver-tone stainless steel case, and black resin band. The dial displays white hour markers, luminous hands, three chronograph subdials, and a date window at the 4 o'clock position.

Nøglefunktioner

• Stainless steel case with a black multifunction dial, white markers, and a numeral-engraved unidirectional bezel.
• Luminous hands and markers for visibility in low light conditions.
• Chronograph subdials for measuring elapsed time.
• Date display window located at the 4 o'clock position.
• Durable 47 mm stainless steel case with a mineral dial window.
• Pålideligt japansk quartz-urværk for præcis tidtagning.
• Comfortable logoed resin band with a secure buckle closure.
• Water resistance up to 100 meters (330 feet), suitable for swimming and snorkeling, but not for scuba diving.

Opsætningsinstruktioner

1. Indstilling af tid

1. Pull the crown (center knob on the right side of the watch) out to the second click position.
2. Drej kronen for at flytte time- og minutviserne til det ønskede tidspunkt.
3. Tryk kronen tilbage til den normale position for at starte uret.

2. Indstilling af datoen

1. Træk kronen ud til den første klikposition.
2. Rotate the crown clockwise or counter-clockwise (depending on the movement) until the correct date appears in the date window.
3. Skub kronen tilbage til normal position.
4. Note: Avoid setting the date between 9 PM and 3 AM, as this may interfere with the date change mechanism.

3. Initializing the Chronograph

If the chronograph hands are not aligned to the 12 o'clock position, they may need to be reset. Refer to the "Operating Instructions" section for chronograph usage.

Betjeningsvejledning

1. Using the Chronograph (Stopwatch Function)

The chronograph function allows you to measure elapsed time. The watch features two pushers on the right side, above and below the crown.

1. Starte: Press the top pusher (often marked with a red accent, as seen in the product image) to start the chronograph. The chronograph second hand will begin to move.
2. Stop: Tryk på den øverste trykknap igen for at stoppe kronografen. Den forløbne tid vil blive angivet af kronografens visere.
3. Nulstil: After stopping the chronograph, press the bottom pusher to reset all chronograph hands to their zero (12 o'clock) positions.
4. Splittid: Some chronographs allow for split time measurement. Consult the specific movement details if this feature is desired.

2. Using the Unidirectional Bezel

The watch features a rotating bezel that moves only in one direction (counter-clockwise). This is useful for timing events or tracking elapsed time.

1. Rotate the bezel so that the zero marker aligns with the minute hand at the start of the event you wish to time.
2. Efterhånden som tiden går, vil minutviseren angive den forløbne tid mod bezelens skala.

3. Vandafvisende

Your Nautica watch is water resistant to 100 meters (330 feet). This rating means it is suitable for recreational swimming and snorkeling. It is ikke designed for scuba diving or high-impact water sports. Always ensure the crown is fully pushed in before any water exposure.

Video: A demonstration of the Nautica Men's N14536 NST Stainless Steel Watch, showcasindens design og funktioner. Denne video giver et visuelt overblikview of the watch's appearance and functionality.

Vedligeholdelse og pleje

• Rensning: Tør urkassen og rem regelmæssigt af med en blød kludamp cloth. For the resin band, mild soap and water can be used. Ensure the watch is completely dry afterward.
• Undgå kemikalier: Udsæt ikke uret for skrappe kemikalier, opløsningsmidler eller rengøringsmidler, da disse kan beskadige urkassen, rem eller tætninger.
• Ekstreme temperaturer: Undgå at udsætte uret for ekstreme temperaturer (varme eller kolde) eller pludselige temperaturændringer, som kan påvirke urværket og vandtætheden.
• Udskiftning af batteri: When the battery needs replacement, it is recommended to have it done by a qualified watch technician to ensure proper sealing and maintain water resistance.
• Indvirkning: While durable, avoid dropping the watch or subjecting it to strong impacts, which can damage the internal movement or crystal.

Fejlfinding

• Uret kører ikke:
  • Kontroller om kronen er trykket helt ind.
  • Batteriet skal muligvis udskiftes.
• Dato ændres ikke:
  • Ensure the time is set correctly (AM/PM). The date typically changes around midnight.
  • Undgå at indstille datoen mellem kl. 9 og 3.
• Kronografviserne nulstilles ikke:
  • Sørg for, at kronografen er stoppet, før du forsøger at nulstille den.
  • If hands are misaligned, a manual adjustment may be required. Consult a professional watch repair service.

Specifikationer

Garanti og support

For information regarding warranty coverage, service, or repairs, please refer to the warranty card included with your purchase or visit the official Nautica webwebsted. Gem din købsbevis i tilfælde af garantikrav.
