ATD Tools 7541 Heavy-Duty Dent Puller Instruction Manual
Model: 7541
Indledning
The ATD Tools 7541 Heavy-Duty Dent Puller is designed for efficient removal of dents from automotive body panels. This versatile tool features a robust slide hammer mechanism, a comfortable vinyl cushion finger grip handle, and includes additional accessories for various pulling tasks, such as bearings and seals. Its durable construction ensures reliable performance for professional and DIY applications.

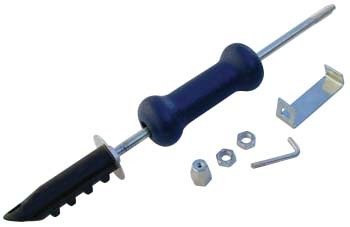

Image: The ATD Tools 7541 Heavy-Duty Dent Puller, showing the slide hammer, handle, and included accessories like extra screws and a hook.
Sikkerhedsoplysninger
WARNING: Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection, when operating this tool.
- Sørg for, at arbejdsområdet er godt oplyst og fri for forhindringer.
- Keep hands and fingers clear of moving parts, especially the slide hammer.
- Do not use the tool if any part is damaged or worn.
- Værktøjet må ikke ændres eller bruges til andre formål end dets tilsigtede brug.
- Hold børn og omkringstående væk fra arbejdsområdet.
- Always secure the workpiece before attempting to pull a dent or component.
Komponenter
The ATD Tools 7541 Heavy-Duty Dent Puller typically includes the following components:
- Slide Hammer Assembly: Consists of a shaft, a 5-pound hammer, and a vinyl cushion finger grip handle.
- Pulling Attachments: Includes extra screws and a hook for various pulling applications (e.g., sheet metal, bearings, seals).
- Fastgørelsesmidler: Nuts and other small hardware for securing attachments.
Opsætning
- Efterse komponenter: Before use, carefully inspect all components for any signs of damage, wear, or loose connections. Ensure the shaft threads (1/2" x 20) are clean and undamaged.
- Vælg vedhæftet fil: Choose the appropriate pulling attachment (e.g., screw for sheet metal, hook for bearings) based on the task.
- Sikker vedhæftning: Thread the selected attachment securely onto the end of the slide hammer shaft. Ensure it is tightened firmly to prevent detachment during use.
Betjeningsvejledning
General Dent Pulling
- Forbered overflade: Clean the area around the dent thoroughly to ensure proper adhesion or grip of the pulling attachment.
- Attach to Dent:
- If using a screw attachment: Drill a small pilot hole in the center of the dent (if necessary) and thread the screw attachment firmly into the dented panel.
- If using a hook attachment: Position the hook around the edge of the component to be pulled.
- Operate Slide Hammer: Hold the handle firmly with one hand. With the other hand, slide the 5-pound hammer forcefully towards the handle, causing it to impact the stop collar. This impact generates the pulling force.
- Gentag efter behov: Repeat the slide hammer action until the dent is pulled out or the component is dislodged. Apply controlled, consistent force.
- Fjern vedhæftet fil: Once the task is complete, carefully unthread the screw or remove the hook attachment from the workpiece.
Pulling Bearings and Seals
For pulling bearings and seals, utilize the hook attachment. Securely position the hook behind the bearing or seal. Use the slide hammer action to apply outward force, carefully and gradually pulling the component free. Ensure the hook has a firm grip to prevent slippage.
Opretholdelse
- Rensning: After each use, wipe down the tool with a clean, dry cloth to remove dirt, grease, and debris.
- Smøring: Periodically apply a light coat of machine oil to the shaft and threads to prevent rust and ensure smooth operation of the slide hammer.
- Opbevaring: Store the dent puller in a dry, clean environment, away from moisture and extreme temperatures. Keep all attachments together to prevent loss.
- Inspektion: Regularly inspect the handle, shaft, and attachments for any signs of wear, cracks, or damage. Replace worn or damaged parts immediately.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Handle feels loose or strips | Threads on handle or shaft are worn/damaged. | Inspect threads. If damaged, the handle or shaft may need replacement. Ensure proper tightening during assembly. |
| Pulling attachment slips | Attachment not securely fastened or improper angle/grip. | Ensure attachment is fully threaded and tightened. Adjust angle for better grip on the workpiece. |
| Insufficient pulling force | Not enough force applied to the slide hammer or dent is too severe. | Ensure full, forceful slide of the hammer. For severe dents, multiple pulls or alternative methods may be required. |
Specifikationer
- Model: ATD 7541
- Hammer Weight: 5 pund
- Shaft Thread: 1/2" x 20
- Håndtag Materiale: Vinyl (Cushion Grip)
- Hovedmateriale: Legeret stål
- Produktdimensioner: Cirka 19.5 x 4 x 3.5 tommer
- Varens vægt: Cirka 3.2 pund
Garanti og support
For information regarding warranty coverage, technical support, or replacement parts for your ATD Tools 7541 Heavy-Duty Dent Puller, please contact ATD Tools customer service directly. Refer to the product packaging or the official ATD Tools webwebstedet for de seneste kontaktoplysninger og garantioplysninger.
ATD Tools Officiel Webwebsted: www.atdtools.com (Eksamplinket, det faktiske link kan variere)
