Intermatic HB35R Udendørs Elektromekanisk Timer Brugermanual

Indledning

This manual provides instructions for the safe and efficient operation of your Intermatic HB35R Outdoor Electromechanical Timer. This device is designed to automate the on/off cycles of outdoor electrical appliances, such as lighting, to conserve energy and enhance convenience. Please read this manual thoroughly before installation and use.

Vigtige sikkerhedsoplysninger

Failure to follow these safety instructions may result in electric shock, fire, or property damage.

• Read all instructions carefully before installing or operating the timer.
• To avoid shock hazard, the timer must be installed VERTIKALT and at least 3 ft. (0.9 meters) ABOVE ground level.
• Do not exceed the maximum electrical rating of the timer: 10 Amps, 1200 Watt.
• When using with extension cord devices, ensure the combined load does not exceed the timer's 10 Amp bedømmelse.
• Always ensure the timer is securely plugged into a properly grounded outdoor electrical outlet.
• This timer is designed for outdoor use and features a rain-tight case. Ensure the cover is properly closed to maintain weather resistance.
• Nedsænk ikke timeren i vand, og udsæt den ikke for direkte vandstråler.

Produktegenskaber

Billede: Forside view of the Intermatic HB35R Outdoor Electromechanical Timer packaging, showing the timer unit, its grounded plug, and key features like "Conserves Energy" and "Automatically Controls: Lawn and garden lights, Holiday lights."

• Daglig programmering: Offers 2 On/Off settings per day for automated control.
• Vejrbestandigt design: Features a weather-proof cover and rain-tight case for outdoor durability.
• Jordforbindelse: Includes a grounded cord and receptacle for safety.
• Manuel tilsidesættelse: A convenient switch allows for instant ON/OFF control without altering programmed settings.
• Bred driftstemperatur: Functions reliably in temperatures ranging from -40°C to +40°C (-40°F to 104°F).

Opsætning og installation

1. Pak timeren ud: Carefully remove the HB35R timer from its packaging. Inspect for any visible damage.
2. Vælg en placering: Select an appropriate outdoor location for the timer. It is crucial that the timer is installed lodret and at least 3 feet (0.9 meters) above ground level to ensure proper water drainage and electrical safety.
3. Plug In the Timer: Insert the timer's grounded plug into a suitable outdoor grounded electrical outlet. Ensure the outlet is protected from direct weather exposure if possible, even though the timer is rain-tight.
4. Tilslut din enhed: Plug the appliance or lighting fixture you wish to control into the timer's receptacle. Verify that the total wattage of the connected device(s) does not exceed 1200 Watts (10 Amps).

Betjeningsvejledning

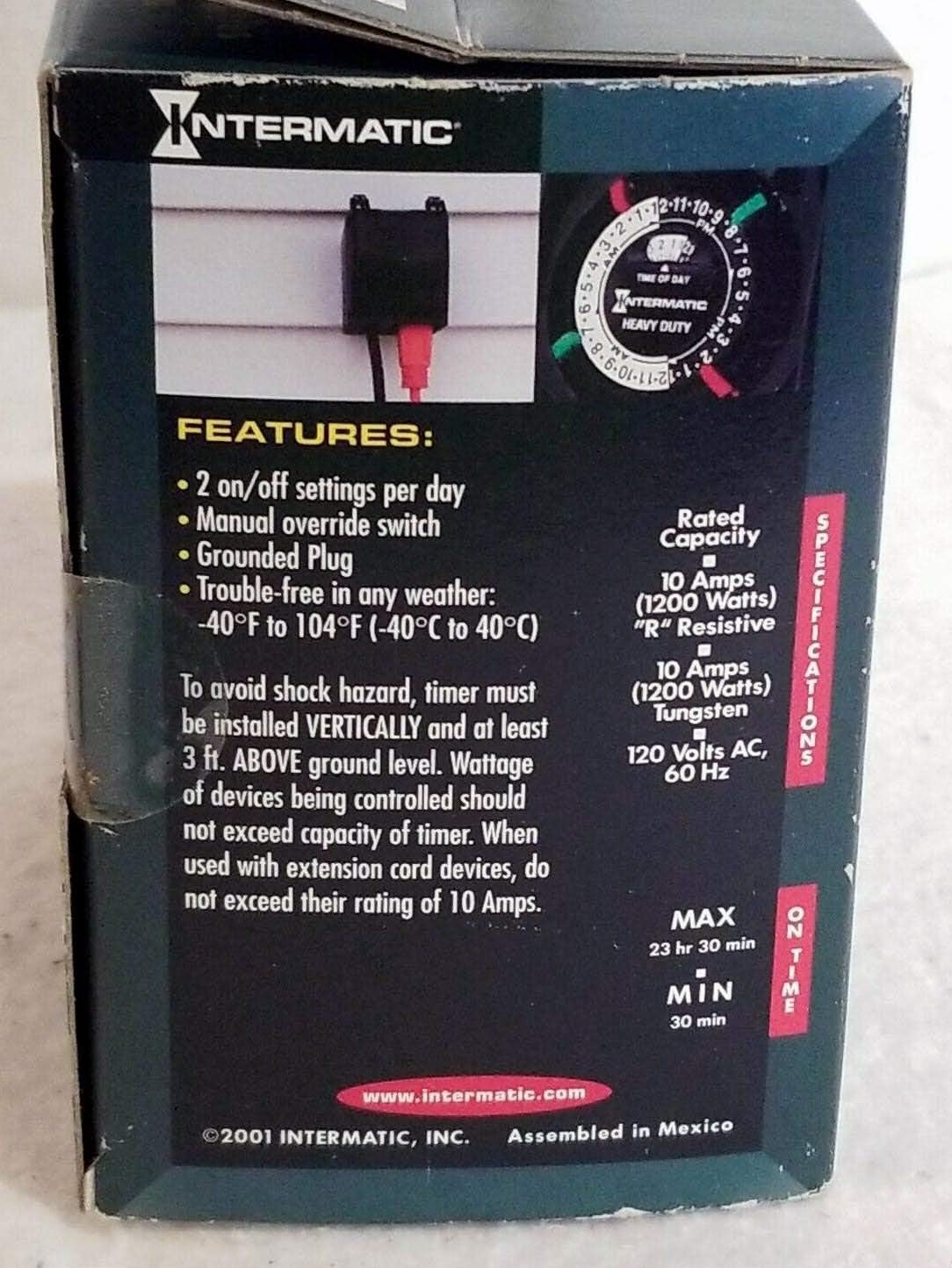

Billede: Bagside view of the Intermatic HB35R Outdoor Electromechanical Timer packaging, detailing features like "2 on/off settings per day" and "Manual override switch," along with electrical specifications.

1. Indstil aktuel tid: Gently rotate the timer's dial clockwise until the current time of day aligns with the "TIME OF DAY" arrow located at the top of the dial. The dial represents a 24-hour cycle (e.g., 12 is noon, 24 is midnight).
2. Indstil TIL/FRA-tider: The timer includes small, colored trippers (pins) around the edge of the dial. Typically, green trippers are for "ON" times and red trippers are for "OFF" times. The HB35R supports up to two ON/OFF cycles per day.
   • To set an "ON" time, push an "ON" tripper into the dial at the desired start time.
   • To set an "OFF" time, push an "OFF" tripper into the dial at the desired end time.
   Ensure the trippers are firmly seated in the dial slots.
3. Manuel tilsidesættelse: The timer is equipped with a manual override switch. This switch allows you to instantly turn the connected device ON or OFF, bypassing the programmed schedule without affecting the set ON/OFF times on the dial. Simply toggle the switch to the desired position. The timer will resume its programmed schedule at the next set ON or OFF time.

Opretholdelse

• Periodically inspect the timer, its power cord, and the plug for any signs of damage, fraying, or wear. Replace if damaged.
• Keep the timer clean by wiping its exterior with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Ensure the weather-proof cover is always properly closed when the timer is not being adjusted to maintain its rain-tight integrity.
• During periods of non-use, store the timer in a dry, protected area.

Fejlfinding

• Device not turning ON/OFF as programmed:
  • Check if the timer is securely plugged into a live, functioning outdoor outlet.
  • Verify that the connected device is working correctly by plugging it directly into an outlet.
  • Ensure the ON/OFF trippers are correctly positioned and firmly engaged on the timer dial.
  • Check the position of the manual override switch. It should be in the 'Auto' position for programmed operation.
  • Confirm the current time is accurately set on the dial.
• Timer losing time or running inaccurately:
  • Ensure the timer is receiving continuous power. Power interruptions can cause the electromechanical timer to lose accurate timekeeping.
  • If frequent power outages occur, consider resetting the current time after each outage.
• Trippers are difficult to move or missing:
  • Handle trippers gently. If a tripper is lost or damaged, contact Intermatic customer support for replacement parts. Do not attempt to force or modify trippers.

Specifikationer

Garanti og support

For detailed warranty information, technical assistance, or to purchase replacement parts, please visit the official Intermatic webwebstedet eller kontakt deres kundeserviceafdeling. Det anbefales at gemme din købskvittering som købsbevis i tilfælde af garantikrav.

Intermatic Official Webwebsted: www.intermatic.com
