1. Introduktion
This manual provides essential information for the safe and effective use of the OSRAM ZB-64514 300W Halogen Light Bulb. Please read these instructions carefully before installation and operation. Retain this manual for future reference.
The OSRAM ZB-64514 is a high-performance halogen lamp designed for various applications requiring intense, focused light. It operates at 120 Volts and consumes 300 Watts of power.
Billede 1.1: Forside view of the OSRAM ZB-64514 300W Halogen Light Bulb. This image displays the clear glass envelope, the internal coiled filaments, and the two metal pins at the base for electrical connection.
2. Produktspecifikationer
Key technical specifications for the OSRAM ZB-64514 halogen bulb are listed below:
| Specifikation | Værdi |
|---|---|
| Mærke | OSRAM |
| Modelnummer | ZB-64514 |
| Lys type | Halogen |
| Wattage | 300 watt |
| Voltage | 120 volt |
| Materiale | Kobber (stifter) |
| Color Rendering Index (CRI) | 67 |
| Varens vægt | 0.634 ounce |
| Pinafstand | 6.35 mm (G6.35 base) |

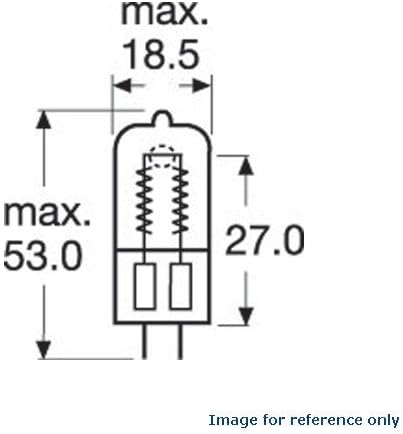

Image 2.1: Technical diagram illustrating the maximum dimensions of the OSRAM ZB-64514 bulb. The diagram shows a maximum length of 53.0 mm, a maximum width of 18.5 mm, and a filament length of 27.0 mm.
Image 2.2: Technical diagram detailing the pin spacing of the OSRAM ZB-64514 bulb. The diagram indicates a pin spacing of 6.35 mm, characteristic of a G6.35 base.
3. Installation (Opsætning)
Proper installation is crucial for the safety and longevity of the bulb. Always ensure the power supply is disconnected before handling the bulb.
3.1 Kontrol før installation
- Verify that the fixture is compatible with a G6.35 base and can handle a 300W, 120V halogen bulb.
- Ensure the fixture is clean and free from debris.
- Confirm the power supply to the fixture is turned OFF at the circuit breaker.
3.2 Installationstrin
- Håndteres med forsigtighed: Avoid touching the glass envelope of the bulb directly with bare hands. Oils from your skin can create hot spots, leading to premature bulb failure. Use a clean cloth or gloves when handling.
- Juster stifter: Carefully align the two pins of the ZB-64514 bulb with the corresponding sockets in the fixture.
- Indsæt forsigtigt: Gently push the bulb into the sockets until it is firmly seated. Do not force the bulb, as this can damage the pins or the fixture.
- Sikker armatur: If applicable, re-secure any covers or protective elements of the light fixture.
- Gendan strøm: Når pæren er sikkert installeret, skal du genoprette strømmen til armaturet ved afbryderen.
Billede 3.1: Vinklet view of the OSRAM ZB-64514 300W Halogen Light Bulb. This perspective highlights the robust construction of the pins and the clear glass, emphasizing the need for careful handling during installation.
4. Betjening
The OSRAM ZB-64514 halogen bulb is designed for immediate full brightness upon power application.
4.1 Generel drift
- Ensure the fixture is properly ventilated to prevent overheating, which can reduce bulb lifespan.
- Avoid frequent switching on and off, as this can stress the filament and shorten the bulb's life.
- Halogen bulbs operate at high temperatures. Do not touch the bulb during or immediately after operation.
4.2 Driftsposition
This bulb is designed to operate in specific orientations to ensure optimal performance and safety. Refer to the diagram below for permitted operating positions.

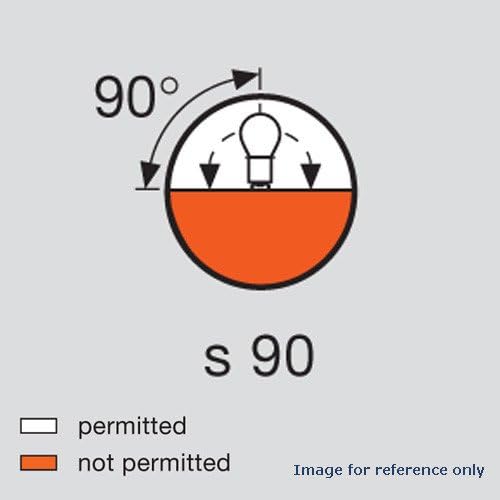

Image 4.1: Diagram indicating the permitted operating position for the OSRAM ZB-64514 bulb. The 's 90' symbol typically denotes that the bulb should be operated within a 90-degree angle from vertical, with the filament positioned as shown in the 'permitted' white area. Operation in the 'not permitted' orange area should be avoided.
5. Vedligeholdelse
Halogen bulbs generally require minimal maintenance. However, proper care can extend their lifespan and ensure consistent performance.
5.1 Rengøring
- Ensure the bulb is completely cool and the power is disconnected before cleaning.
- If the glass envelope becomes dirty, gently wipe it with a clean, lint-free cloth dampened with rubbing alcohol. Allow the bulb to dry completely before re-installing or restoring power.
- Brug ikke slibende rengøringsmidler eller stærke kemikalier.
5.2 Udskiftning
When the bulb reaches the end of its life, follow the installation steps in Section 3.2 in reverse to remove the old bulb, and then install a new OSRAM ZB-64514 bulb.
5.3 Bortskaffelse
Dispose of used halogen bulbs according to local regulations. Halogen bulbs do not contain mercury, but proper disposal is still recommended.
6. Fejlfinding
If you encounter issues with your OSRAM ZB-64514 bulb, consider the following common problems and solutions:
- Pæren lyser ikke:
- Kontroller om strømforsyningen til armaturet er tændt.
- Sørg for, at pæren sidder korrekt i fatningen.
- Inspect the bulb for visible damage (e.g., broken filament). If damaged, replace the bulb.
- Verify the fixture itself is functioning correctly by testing with a known working bulb.
- Bulb Burns Out Prematurely:
- Ensure the bulb's wattage og bindtage match the fixture's requirements.
- Check for excessive vibration or physical shock to the fixture.
- Verify proper ventilation around the bulb to prevent overheating.
- Avoid touching the glass envelope with bare hands during installation.
- Ensure the bulb is operated within its permitted orientation (refer to Section 4.2).
7. Sikkerhedsretningslinjer
Adhering to these safety guidelines is essential to prevent injury and damage.
- Høj temperatur: Halogen bulbs become extremely hot during operation. Do not touch the bulb or surrounding fixture components until they have completely cooled down.
- Forbrændingsfare: Direct contact with a hot bulb can cause severe burns.
- Brandfare: Ensure the bulb is installed in a fixture designed for its wattage and type, and that there is adequate clearance from combustible materials.
- UV-stråling: While modern halogen bulbs often have UV filters, prolonged exposure to unfiltered halogen light can be harmful. Use only in fixtures designed to contain the bulb safely.
- Øjenbeskyttelse: Avoid looking directly at the illuminated bulb, as its intense light can cause eye strain or damage.
- Elektrisk stød: Always disconnect power before installing, removing, or cleaning the bulb.
- Skrøbelig: The glass envelope is fragile. Handle with care to prevent breakage.
8. Garanti og support
OSRAM products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official OSRAM website. In case of technical issues or questions not covered in this manual, please contact OSRAM customer support or your authorized dealer.
For mere information, besøg OSRAM-butik på Amazon.
