Indledning
The DuraVent DuraPlus Galvanized Steel Triple Wall Stove Pipe is designed to provide a safe and efficient venting solution for various heating appliances. This all-fuel pipe is suitable for wood stoves, fireplaces, furnaces, boilers, ranges, and water heaters. Its innovative triple-wall construction ensures optimal performance and enhanced safety by maintaining cooler exterior temperatures while promoting a strong interior draft.
This manual provides essential information for the proper installation, operation, and maintenance of your DuraVent DuraPlus chimney pipe, ensuring long-lasting and reliable use.
Nøglefunktioner
- Triple-wall design for enhanced safety and efficiency.
- Constructed from resilient galvanized steel, capable of withstanding continuous flue gas temperatures up to 1,000°F.
- Features a 1" insulating blanket and air space to prevent hot spots and allow for safe expansion during creosote fires.
- Leak-free, lock-seamed design without sealants.
- Die-formed end fittings and a practical twist-lock connector for straightforward installation.
- Meets UL criteria, including one-hour endurance at 1400°F and three ten-minute chimney fire tests at 2100°F.
- Designed for a 2-inch safety clearance from combustibles.
Sikkerhedsoplysninger
Your safety is paramount. Adhere to all instructions and local building codes when installing and operating this chimney pipe. Failure to do so can result in fire, carbon monoxide poisoning, or other serious hazards.Important Safety Guidelines
- Professionel installation anbefales: While designed for ease of installation, consulting with or hiring a qualified professional is highly recommended to ensure compliance with all local and national building and fire codes.
- Afstand til brændbart materiale: Maintain the specified 2-inch safety clearance from all combustible materials as indicated in this manual and local codes.
- Korrekt størrelse: Ensure the chimney pipe diameter matches the outlet of your heating appliance.
- Ventilation: Ensure adequate ventilation in the area where the appliance is installed.
- Regelmæssig inspektion: Periodically inspect the chimney pipe for creosote buildup, damage, or corrosion.
- Brændstoftype: This pipe is designed for all-fuel applications (wood, oil, coal, gas), but always ensure your appliance is compatible with the chosen fuel.
Komponenter og dele
The DuraVent DuraPlus chimney pipe system consists of various components designed for secure and efficient venting. The primary component is the triple-wall pipe section, featuring a galvanized steel exterior and an insulated interior.
Image: A single section of the DuraVent DuraPlus triple-wall chimney pipe, showcasing its galvanized steel finish and robust construction.

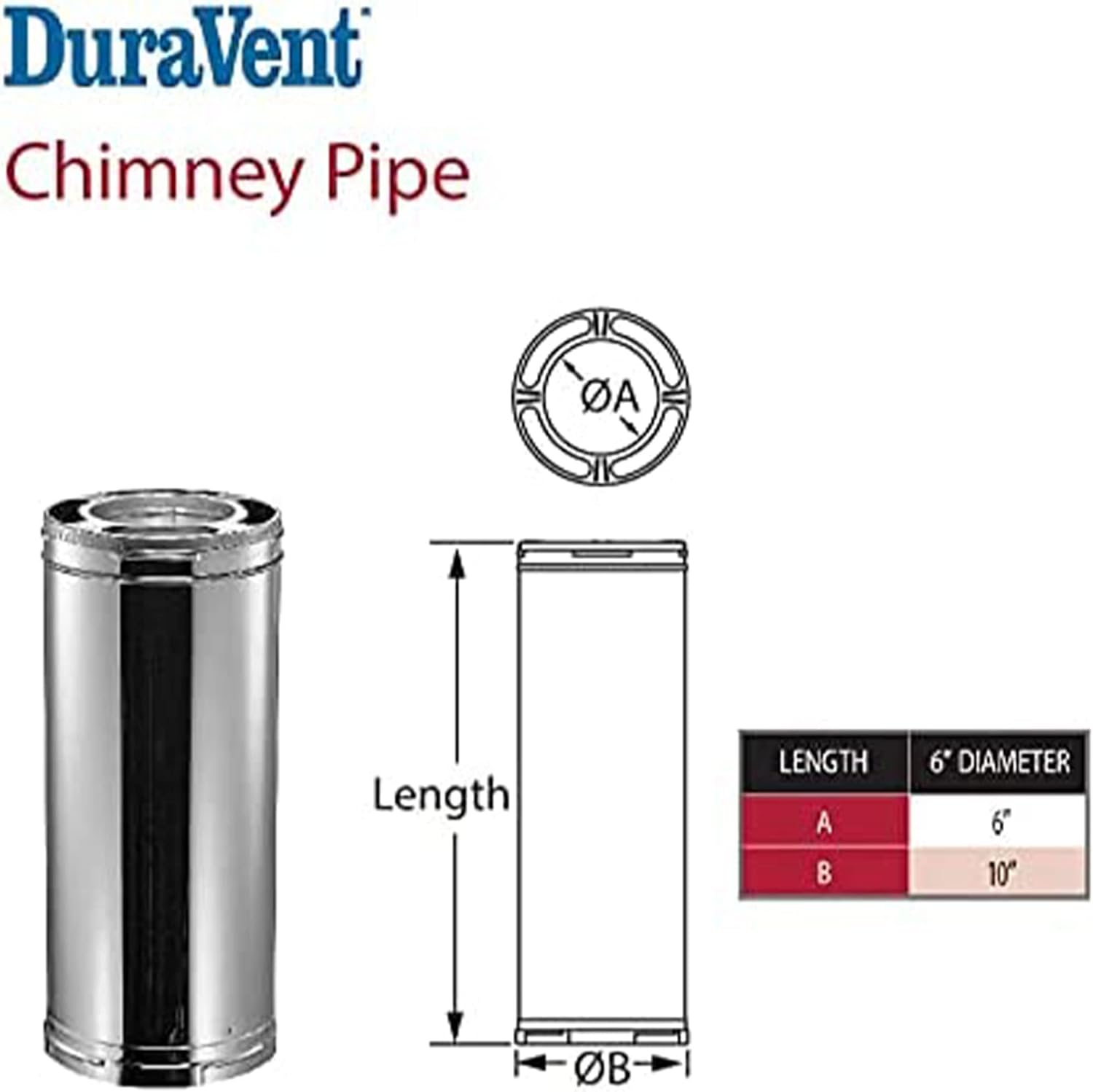

Image: Diagram illustrating the dimensions of the DuraVent chimney pipe, including length and diameter specifications for proper fit and planning.
Billede: En detaljeret nærbillede view of the top connection point of the DuraVent chimney pipe, highlighting the twist-lock mechanism.
Billede: En detaljeret nærbillede view of the bottom connection point of the DuraVent chimney pipe, showing the secure fitting design.
Opsætning og installation
The DuraVent DuraPlus chimney pipe is designed for easy assembly with its die-formed end fittings and twist-lock connectors. Proper installation is critical for safety and performance.Installation Steps
- Planlægning: Before beginning, plan your chimney route, ensuring it meets all clearance requirements and local building codes.
- Tilslutning af apparat: Connect the first section of the DuraPlus pipe to your heating appliance's flue collar. Ensure a snug and secure fit.
- Samling af sektioner: Align the twist-lock ends of subsequent pipe sections. Push together and twist clockwise until the sections lock securely. No sealants are required for these connections.
- Penetration Points: When passing through walls, ceilings, or roofs, use appropriate support boxes, thimbles, and flashing components (sold separately) to maintain required clearances and weather seal.
- Support and Bracing: Install necessary supports and braces according to manufacturer guidelines and local codes to ensure the chimney system is stable and secure.
- Montering af hætten: Install the appropriate chimney cap at the top of the system to prevent rain, debris, and animals from entering.
- Afsluttende inspektion: Before first use, thoroughly inspect all connections, clearances, and components to ensure proper installation and safety.

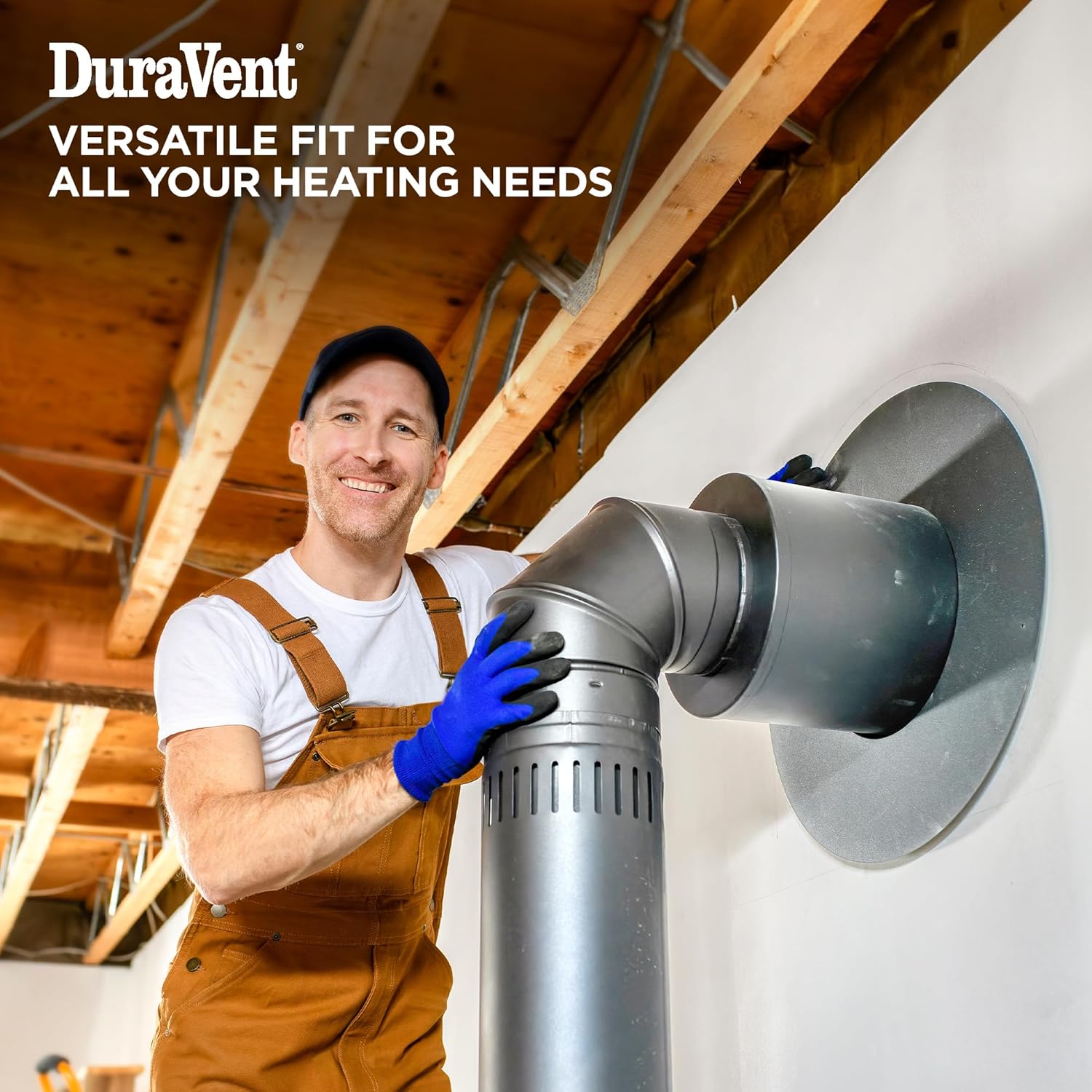

Image: An individual demonstrating the indoor installation of a DuraVent chimney pipe, connecting sections to an appliance.
Billede: En udendørs view of a DuraVent chimney pipe installed on a small cabin, extending vertically above the roofline for efficient heating.
Video: An official product video from DuraVent, demonstrating the features and benefits of the DuraPlus 6 by 24-Inch Chimney Pipe, including its ease of installation and safety aspects.
Driftsprincipper
The DuraVent DuraPlus chimney pipe is engineered for optimal performance and safety through its unique triple-wall design:
- Triple-Wall Construction: This design creates an air space and incorporates a 1" insulating blanket between the inner and outer walls. This multi-layer insulation prevents the outer wall from becoming excessively hot, ensuring safety.
- Enhanced Draft: The design promotes an increased interior draft, which is crucial for efficient combustion in your heating appliance and effective removal of exhaust gases.
- Creosote Fire Safety: The blanket insulation allows for safe expansion in the event of a creosote fire, helping to contain the fire within the chimney and prevent damage to surrounding structures.
- All-Fuel Compatibility: The pipe's robust construction and insulation make it suitable for venting exhaust from various fuel types, including wood, oil, coal, and gas, without compromising safety or efficiency.
Billede: En illustrationasing various components of the DuraPlus all-fuel, triple-wall chimney system, emphasizing its comprehensive design for safety and efficiency.
Opretholdelse
Regular maintenance is essential to ensure the safe and efficient operation of your DuraVent DuraPlus chimney pipe and heating system. Neglecting maintenance can lead to creosote buildup, reduced efficiency, and potential fire hazards.
Maintenance Schedule and Tips
- Årlig inspektion: Have your chimney system inspected by a certified chimney sweep at least once a year, or more frequently if you burn wood often.
- Fjernelse af kreosot: Creosote is a highly flammable byproduct of combustion. If creosote buildup exceeds 1/8 inch, the chimney should be cleaned immediately.
- Tjek for forhindringer: Ensure there are no bird nests, debris, or other obstructions in the chimney that could impede draft.
- Undersøg forbindelser: Periodically check all pipe connections for tightness and signs of wear or damage.
- Udvendig inspektion: Examine the exterior of the chimney pipe for any signs of corrosion, dents, or other physical damage.
Fejlfinding
This section addresses common issues you might encounter with your chimney pipe system. For problems not listed here or if solutions do not resolve the issue, consult a qualified professional.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Smoke leakage from pipe joints | Loose connections, damaged pipe section. | Ensure all twist-lock connections are fully engaged. Inspect for damage and replace any compromised sections. |
| Poor draft / Smoke backing up | Chimney obstruction, insufficient height, cold chimney, negative pressure in home. | Check for blockages (e.g., creosote, nests). Ensure chimney extends sufficiently above the roofline. Preheat flue if cold. Check for competing exhaust fans. |
| Excessive creosote buildup | Burning unseasoned wood, low burning temperatures, insufficient draft. | Burn only dry, seasoned wood. Operate appliance at recommended temperatures. Ensure proper draft and clean chimney regularly. |
| Pipe appears discolored or damaged | Overheating, external damage, chemical exposure. | Review operating procedures to prevent overheating. Inspect for physical damage. If severe, replace the affected section. |
Specifikationer
| Attribut | Detalje |
|---|---|
| Fabrikant | M&G DURAVENT INC |
| Varenummer | 6DP-24 |
| Varens vægt | 11.5 pund |
| Produktdimensioner | 10 x 10 x 24 tommer |
| Varemodelnummer | 6DP-24 |
| Størrelse | 6 by 24-Inch |
| Farve | Galvaniseret |
| Stil | Skorstensrør |
| Slutte | Galvaniseret |
| Materiale | Galvaniseret stål |
| Vare Pakke Antal | 1 |
| Dato først tilgængelig | 2. december 2006 |
Garanti og support
DuraVent products are manufactured to high standards and are backed by a commitment to quality. For specific warranty details, including coverage and duration, please refer to the warranty documentation included with your purchase or visit the official DuraVent webwebsted.
For technical support, installation inquiries, or assistance with product issues, please contact DuraVent customer service. Always provide your product model number (6DP-24) and purchase date when seeking support.
Kontaktoplysninger:
- Webwebsted: www.duravent.com
- Kundeservice: Der henvises til webwebsted for aktuelle kontaktmetoder (telefon, e-mail).
