Produkt overview
The Kingston Brass KB498 Magellan Bar Faucet is a transitional style fixture designed for kitchen bar or prep sinks. It features a high-arc J-spout and two lever handles, offering both aesthetic appeal and functional control. Constructed from durable brass with a brushed nickel finish, this faucet is built for reliable performance and resistance to corrosion.

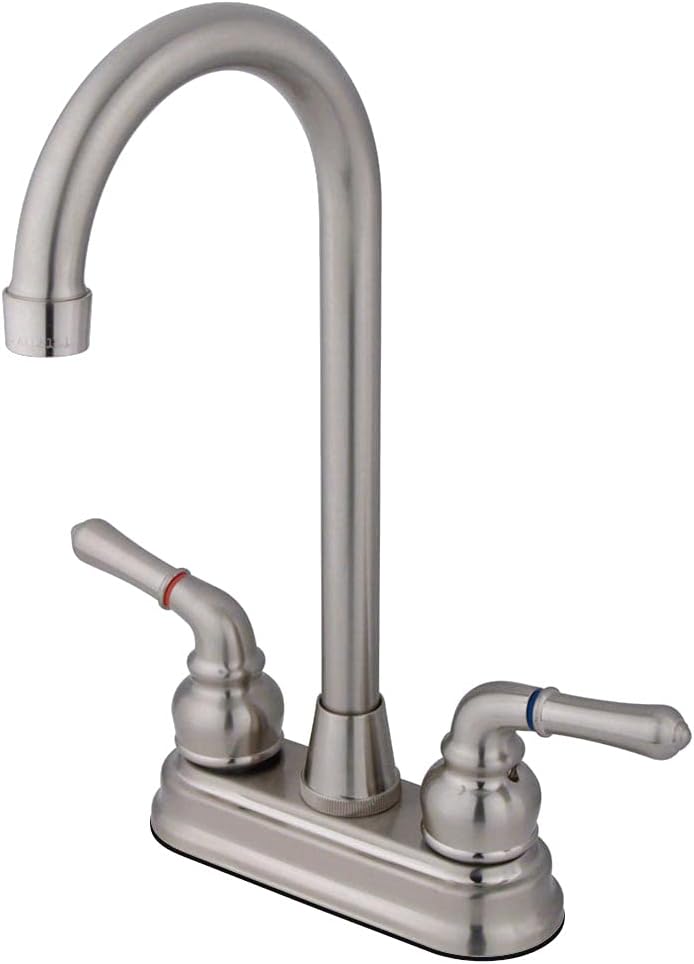

Figure 1: Kingston Brass KB498 Magellan Bar Faucet in Brushed Nickel finish. This image displays the Kingston Brass KB498 Magellan Bar Faucet in a brushed nickel finish, featuring a high-arc J-spout and two lever handles. The faucet is designed for a centerset installation.
Opsætning og installation
This faucet is designed for a two-hole, 4-inch centerset deck-mount installation. It includes all necessary mounting hardware for a straightforward setup. For detailed instructions, please refer to the official Installation Manual.
Før du begynder:
- Ensure you have all components as listed in the packaging.
- Sluk for hovedvandforsyningen til installationsområdet.
- Ryd området under vasken for nem adgang.
Installationstrin (resumé):
- Prepare the sink holes for the faucet body and handles.
- Secure the faucet body and handles to the sink deck using the provided mounting hardware.
- Connect the hot and cold water supply lines to the faucet inlets.
- Sørg for, at alle forbindelser er tætte for at forhindre lækager.
- Test the faucet for proper operation and check for any leaks.
Figure 2: Technical drawing with dimensions for Kingston Brass KB498 Magellan Bar Faucet. This technical drawing provides detailed dimensions for the Kingston Brass KB498 Magellan Bar Faucet, including spout height, spout reach, and base measurements, crucial for installation planning.
Figure 3: Diagram illustrating features and installation details of Kingston Brass Bar Faucet. This diagram highlights key features of the Kingston Brass Bar Faucet, such as solid brass construction, corrosion and rust-resistant finish, 1/4 turn lever handles, 2-hole installation, 1.8 GPM flow rate, and a rotating swivel spout.
Betjeningsvejledning
The Kingston Brass KB498 Magellan Bar Faucet features a dual-handle design for precise control over water temperature and flow.
Vandkontrol:
- Varmt vand: Turn the left lever handle 1/4-turn counter-clockwise to open the hot water supply.
- Koldt vand: Turn the right lever handle 1/4-turn clockwise to open the cold water supply.
- Temperaturjustering: Mix hot and cold water by adjusting both handles simultaneously.
- Flow kontrol: The faucet provides a maximum flow rate of 1.8 Gallons Per Minute (GPM) at 60 PSI.
Spout Functionality:
- The high-arc spout can rotate 180 degrees, providing enhanced usability and flexibility, especially for double-basin synker.
Opretholdelse
Proper maintenance will ensure the longevity and appearance of your Kingston Brass KB498 Magellan Bar Faucet. The faucet is constructed from durable brass and features a corrosion and rust-resistant brushed nickel finish.
Rengøring af vandhanen:
- Brug en blød, damp cloth and mild soap to clean the faucet surface.
- Undgå slibende rengøringsmidler, stærke kemikalier eller skuresvampe, da disse kan beskadige overfladen.
- Skyl grundigt med rent vand og tør med en blød klud for at undgå vandpletter.
Generel pleje:
- Regularly check for any signs of leaks around the base or connections.
- If water flow decreases, check the aerator for mineral buildup and clean as necessary.
Fejlfinding
This section addresses common issues you might encounter with your faucet. For more complex problems, please refer to the full installation manual or contact customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lav vandgennemstrømning | Clogged aerator; partially closed shut-off valve; low water pressure in home. | Remove and clean aerator; ensure shut-off valves are fully open; consult a plumber if home water pressure is consistently low. |
| Lækage fra tud | Worn washerless cartridge. | Contact customer support for replacement cartridge and installation guidance. |
| Lækage fra base | Loose connections; improper sealing during installation. | Check and tighten all connections under the sink; ensure proper use of plumber's putty or silicone sealant during installation. |
| Spout Wiggles/Loose | Mounting nut under the sink is loose. | Access the underside of the sink and carefully tighten the mounting nut that secures the spout. Avoid over-tightening. |
Specifikationer
| Mærke | Kingston messing |
| Modelnavn | Kingston Messing Magellan |
| Modelnummer | KB498 |
| Farve | Børstet nikkel |
| Materiale | Messing |
| Monteringstype | Dækmontering |
| Finish Type | Børstet |
| Antal håndtag | 2 |
| Hulantal | 2 (til installation) |
| Maksimal flowhastighed | 1.8 gallon pr. minut (GPM) |
| Tudhøjde | 11.56 tommer |
| Tud rækkevidde | 4.75 tommer |
| Varens vægt | 2.57 pund |
| Produktmål (L x B x H) | 10.94 x 6.38 x 2.38 tommer |
| Speciel funktion | Rustbestandig |
| Installationstype | Centersæt |
| Håndtag Type | Løftestang |
| Ventil type | Patronventil |
| UPC | 663370549809 |
Garantioplysninger
The Kingston Brass KB498 Magellan Bar Faucet comes with a limited warranty. For specific details regarding the terms, conditions, and duration of your warranty, please refer to the warranty documentation included with your product or visit the official Kingston Brass webwebsted.
Støtte
For further assistance, technical support, or replacement parts, please utilize the following resources:
- Installationsmanual: En detaljeret PDF-installationsmanual kan downloades her.
- Kingston Brass Officiel Webwebsted: Visit the official Kingston Brass webhjemmeside med produktinformation, ofte stillede spørgsmål og kontaktoplysninger.
- Kundeservice: Contact Kingston Brass customer service directly for personalized support. Refer to the official website for current contact methods.
