Indledning
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Intermatic WG1570 Replacement Time Clock Motor. This motor is designed for use with Intermatic T101, T103, and T105 series time switches, ensuring reliable timing functionality.
Sikkerhedsoplysninger
ADVARSEL: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installing or servicing the timer motor. All electrical work should be performed by a qualified electrician or in accordance with local electrical codes.
- Ensure power is completely off before beginning any work.
- Bekræft bindtage and frequency (125V, 60Hz) match your existing timer system.
- Brug ikke motoren, hvis den ser ud til at være beskadiget.
Produkt overview
The Intermatic WG1570 is a genuine replacement motor for various Intermatic mechanical time switches. It is engineered for durability and precise timing, featuring fixed tab connectors for straightforward installation.

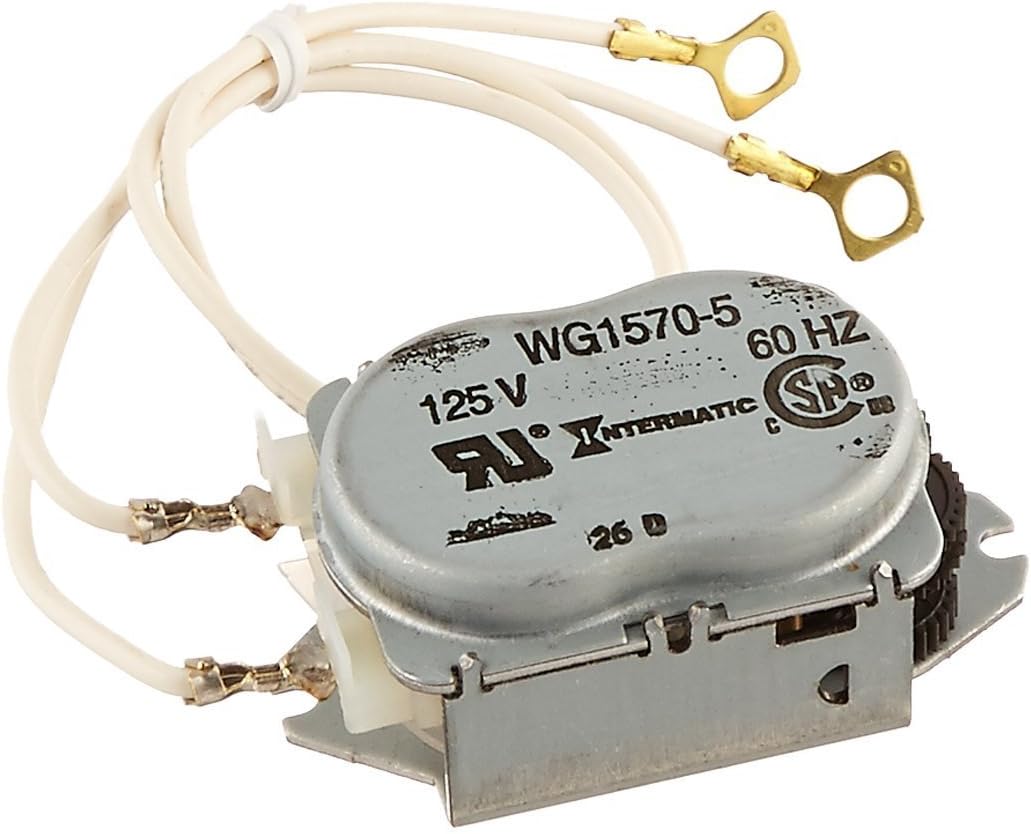

Figur 1: Intermatic WG1570 Replacement Time Clock Motor. This image displays the compact motor unit with its metal casing, integrated gear, and two white wires terminating in ring terminals for electrical connection. The model number WG1570-5, voltage 125V, and frequency 60Hz are visible on the casing.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | WG1570 |
| Voltage | 125 volt |
| Frekvens | 60 Hz |
| Kompatibilitet | Intermatic T101, T103, T105 Time Switches |
| Materiale | Metal |
| Dimensioner | 2.25 x 1.44 x 3.06 tommer |
| Vægt | 2.89 ounce |
| Særlige funktioner | Stød- og vibrationsbestandig |
Installationsvejledning
This section outlines the steps for replacing the time clock motor in compatible Intermatic time switches. It is recommended to consult the original timer's manual for specific enclosure access procedures.
- Strømafbrydelse: Locate the circuit breaker or fuse controlling the time switch and turn off the power completely. Verify power is off using a voltage tester.
- Access Timer Enclosure: Open the time switch enclosure. This typically involves unscrewing a cover or latch.
- Identificér den gamle motor: Locate the existing time clock motor. It will be a small, usually metal, unit with wires connected to the timer's terminals and a gear mechanism engaging with the timer dial.
- Frakobl ledninger: Carefully disconnect the wires from the old motor. Note their original connection points for correct re-installation. The WG1570 features fixed tab connectors that easily slip over the timer connection poles.
- Fjern den gamle motor: Unscrew or unclip the old motor from its mounting bracket. There are typically a couple of screws holding it in place.
- Installer ny motor: Position the new Intermatic WG1570 motor in the same location as the old one. Secure it with the mounting screws. Ensure the motor's gear properly engages with the timer's main gear.
- Tilslut ledninger: Reconnect the motor wires to the appropriate terminals on the time switch. Ensure connections are secure.
- Luk indhegning: Close and secure the time switch enclosure.
- Gendan strøm: Tænd for strømmen igen ved afbryderen eller sikringsboksen.
- Test drift: Observe the timer's operation to ensure the motor is functioning correctly and the clock is advancing.
Betjeningsvejledning
The Intermatic WG1570 motor is an internal component responsible for driving the time-keeping mechanism of your Intermatic T101, T103, or T105 time switch. Once installed, its operation is integrated with the overall function of the time switch. Refer to your specific time switch's user manual for instructions on setting the time, programming ON/OFF cycles, and adjusting timer pins.
The motor continuously rotates the timer's clock dial at a rate of 60 Hz, ensuring accurate timekeeping for your programmed events.
Opretholdelse
The Intermatic WG1570 motor is designed for long-term, maintenance-free operation. No routine lubrication or adjustment is required.
- Periodically inspect the time switch enclosure for dust, debris, or moisture. Keep the area clean and dry.
- Sørg for, at alle elektriske forbindelser forbliver sikre.
- If the motor or timer exhibits unusual noise or erratic behavior, refer to the troubleshooting section.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Timer clock not advancing | No power to the timer; Motor failure; Main timer gear damage. | Check circuit breaker/fuse. Verify motor connections. If motor is new and still not advancing, inspect the main gear of the timer for broken teeth. |
| Motor laver usædvanlig støj | Motor malfunction; Gear misalignment. | Ensure motor gear is properly aligned with the timer's main gear. If noise persists, the motor may need replacement. |
| Timer not switching ON/OFF at programmed times | Incorrect timer programming; Motor not keeping accurate time. | Verify timer pin settings and current time. If the clock is not advancing accurately, the motor may be faulty. |
Garantioplysninger
The Intermatic WG1570 Replacement Time Clock Motor comes with a 1 års begrænset garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or detailed terms, please contact Intermatic customer support.
Støtte
For technical assistance, replacement parts, or further inquiries regarding your Intermatic WG1570 motor or compatible time switches, please visit the official Intermatic website or contact their customer service department. Have your product model number (WG1570) and any relevant timer model numbers (T101, T103, T105) ready when contacting support.
