1. Introduktion
The Continental 49293 Accu-Drive Tensioner Assembly is engineered to provide optimal belt tension, enhancing the efficiency and longevity of your vehicle's drive system. This assembly features advanced torsion-spring technology, which offers superior corrosion protection compared to traditional flat-spring designs. It is designed to meet or exceed original equipment manufacturer (OEM) specifications for fit and performance, ensuring reliable operation and extended belt life.
2. Sikkerhedsoplysninger
Always prioritize safety when working with automotive components. Failure to follow these guidelines may result in injury or damage to the vehicle.
- Personligt beskyttelsesudstyr (PPE): Always wear safety glasses, gloves, and appropriate clothing to protect against potential hazards such as moving parts, hot surfaces, and sharp edges.
- Køretøjsstabilitet: Sørg for, at køretøjet er sikkert understøttet på donkrafte eller en lift, før du påbegynder arbejdet. Stol aldrig udelukkende på en donkraft.
- Motor slukket: Always ensure the engine is turned off and the ignition key is removed before working on the belt drive system. Disconnect the battery's negative terminal to prevent accidental starting.
- Varme komponenter: Engine components can remain hot for an extended period after operation. Allow sufficient time for the engine to cool before handling parts.
- Klemmepunkter: Be aware of potential pinch points around belts and pulleys. Keep hands and fingers clear of moving parts.
- Korrekt værktøj: Use only the correct tools for the job. Using improper tools can damage components or cause injury.
- Professionel assistance: If you are unsure about any step of the installation or maintenance process, consult a qualified automotive technician.
3. Produktet er slutview
The Continental 49293 Accu-Drive Tensioner Assembly is a critical component in your vehicle's serpentine belt system, responsible for maintaining constant tension on the drive belt. This ensures proper operation of accessories such as the alternator, power steering pump, and air conditioning compressor.

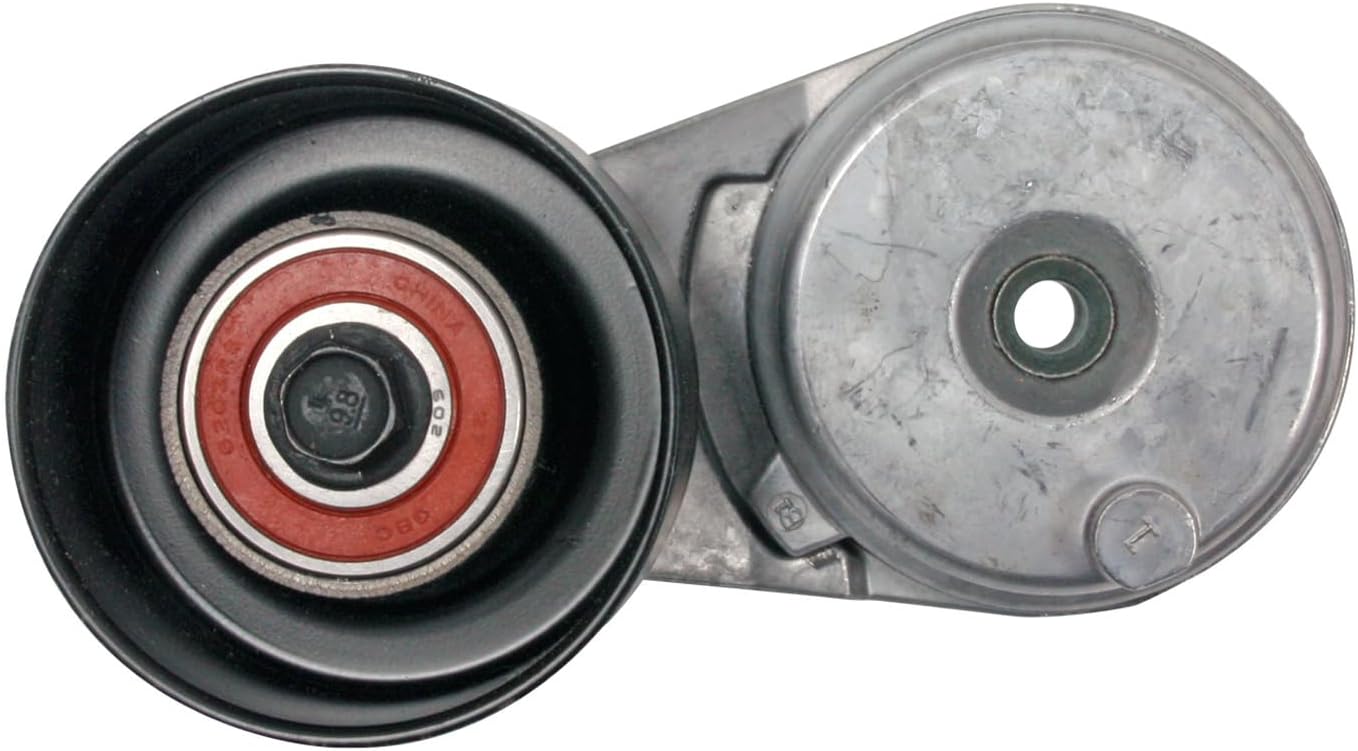

Figur 3.1: Forside view of the Continental 49293 Accu-Drive Tensioner Assembly, showing the pulley and mounting bracket.
Figur 3.2: Bagside view of the tensioner assembly, highlighting the mounting points and internal mechanism.
Figur 3.3: Øverst view of the tensioner, showing the pulley and the arm's range of motion.
Figur 3.4: Side view of the tensioner, illustrating its compact design and robust construction.
Nøglefunktioner:
- Accu-Drive Technology: Ensures precise and consistent belt tension.
- Torsion-Spring Design: Offers enhanced corrosion resistance and durability.
- OEM Fit and Performance: Designed to match original equipment specifications for seamless integration.
- Increased Belt Life: Maintains ideal tension, reducing wear and tear on the serpentine belt.
4. Opsætning og installation
Installation of the Continental 49293 Accu-Drive Tensioner Assembly requires basic automotive tools and adherence to proper safety procedures. Refer to your vehicle's service manual for specific torque specifications and detailed routing diagrams for the serpentine belt.
Nødvendige værktøjer:
- Topnøglesæt
- Momentnøgle
- Tensioner Release Tool (if applicable for your vehicle)
- Handsker og sikkerhedsbriller
Installationstrin:
- Klargør køretøjet: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative terminal of the battery.
- Locate the Tensioner: Identify the existing belt tensioner. It is typically located on the front of the engine, part of the serpentine belt system.
- Aflast remspændingen: Using a tensioner release tool or appropriate wrench, rotate the tensioner arm to relieve tension on the serpentine belt. Carefully remove the belt from the tensioner pulley.
- Fjern den gamle strammer: Unbolt the old tensioner assembly from its mounting points on the engine. Note the orientation and any shims or spacers.
- Inspicer monteringsfladen: Clean the mounting surface on the engine to ensure proper seating of the new tensioner.
- Installer ny strammer: Position the new Continental 49293 Accu-Drive Tensioner Assembly onto the mounting points. Install the bolts and tighten them to the vehicle manufacturer's specified torque. Spænd ikke for meget.
- Reinstall Serpentine Belt: Refer to your vehicle's belt routing diagram. Carefully route the serpentine belt over all pulleys, ensuring it is correctly seated in all grooves. Use the tensioner release tool to rotate the tensioner arm and slide the belt onto the tensioner pulley.
- Verify Belt Routing: Double-check that the belt is correctly routed and seated on all pulleys.
- Gentilslut batteri: Tilslut batteriets minuspol igen.
- Test drift: Start the engine and observe the belt and tensioner for proper operation. Listen for any unusual noises.
5. Vedligeholdelse
The Continental 49293 Accu-Drive Tensioner Assembly is designed for long-term, maintenance-free operation. However, periodic inspection of the entire serpentine belt system is recommended as part of your vehicle's routine maintenance schedule.
Inspektionsretningslinjer:
- Visuel inspektion: Regularly inspect the tensioner pulley for signs of wear, cracks, or damage. Check the tensioner arm for proper movement and ensure it is not seized or excessively loose.
- Bæltetilstand: Examine the serpentine belt for cracks, fraying, glazing, or missing ribs. Replace the belt if any signs of wear are present.
- Støjtjek: Listen for any squealing, chirping, or grinding noises coming from the tensioner or belt system, especially during engine startup or acceleration. These noises can indicate a failing tensioner or worn belt.
- Spændingskontrol: While the engine is off, observe the tensioner's position. It should maintain consistent tension on the belt. Excessive vibration or flapping of the belt during engine operation may indicate a failing tensioner.
If any issues are detected during inspection, it is recommended to replace the tensioner assembly to prevent further damage to the belt system or other engine components.
6. Fejlfinding
This section provides solutions to common issues you might encounter with your Accu-Drive Tensioner Assembly.
| Symptom | Mulig årsag | Løsning |
|---|---|---|
| Squealing or Chirping Noise from Belt | Worn or misaligned belt, failing tensioner pulley bearing, insufficient belt tension. | Inspect belt for wear and proper alignment. Check tensioner pulley for smooth rotation. Replace tensioner if pulley bearing is noisy or seized. |
| Bælteglidning | Insufficient tension from tensioner, worn belt, contaminated belt/pulleys. | Verify tensioner operation. Replace belt if worn. Clean any oil or fluid contamination from belt and pulleys. |
| Excessive Belt Vibration/Flapping | Failing tensioner spring or damper, worn tensioner pivot. | Replace the tensioner assembly. |
| Grinding Noise from Tensioner | Failing tensioner pulley bearing. | Replace the tensioner assembly. |
If troubleshooting steps do not resolve the issue, it is recommended to seek professional automotive service.
7. Specifikationer
Detailed specifications for the Continental 49293 Accu-Drive Tensioner Assembly:
- Modelnummer: 49293
- Mærke: Continental
- Fabrikant: Continental ContiTech
- Produkttype: Accu-Drive Tensioner Assembly
- Varens vægt: 1.4 pund (ca.)
- Produktdimensioner: 9 x 5 x 3.5 tommer (ca.)
- Udvendig finish: Maskinbearbejdet
- Teknologi: Torsion-Spring
- Anvendelse: Automotive Serpentine Belt Systems
8. Garanti og support
Continental stands behind the quality of its products. For specific warranty information regarding the 49293 Accu-Drive Tensioner Assembly, please refer to the warranty documentation included with your purchase or visit the official Continental automotive parts webwebsted.
Kundesupport:
If you have questions about installation, maintenance, or require technical assistance, please contact Continental customer support through their official channels. Always provide your product model number (49293) when seeking support.
- Officiel Webwebsted: www.continental-automotive.com (Please note: This is a general link, specific support contact details may vary by region.)
- Autoriserede forhandlere: Contact the retailer or authorized dealer where you purchased the product for local support options.
