Indledning
The Timken 4525V Seal is a precision-engineered component designed to prevent fluid leakage and protect mechanical systems from contaminants. Manufactured to world-class standards, this seal offers superior service life and excellent sealing capabilities, resisting abrasives, corrosive moisture, and other harmful elements. It is primarily used in automotive applications, specifically as a wheel seal.
Installation
Proper installation is crucial for the optimal performance and longevity of the Timken 4525V Seal. Incorrect installation can lead to premature failure and leakage.
Generelle retningslinjer for installation:
- Forberedelse: Ensure the housing bore and shaft surface are clean, free of burrs, nicks, and corrosion. Any imperfections can compromise the seal's effectiveness.
- Smøring: Lightly lubricate the seal's lip and the shaft with the fluid being sealed (e.g., axle grease or gear oil) to facilitate smooth installation and prevent initial dry running.
- Justering: Carefully align the seal with the housing bore. Avoid cocking the seal during insertion.
- Tryk på: Use a seal driver or a suitable press tool that applies even pressure around the outer diameter of the seal. Do not use a hammer directly on the seal, as this can deform it. Press the seal squarely into the bore until it is fully seated.
- Inspektion: After installation, visually inspect the seal to ensure it is seated correctly and that the sealing lip is not damaged or inverted.
Note: For specific vehicle or application instructions, always refer to the vehicle manufacturer's service manual.

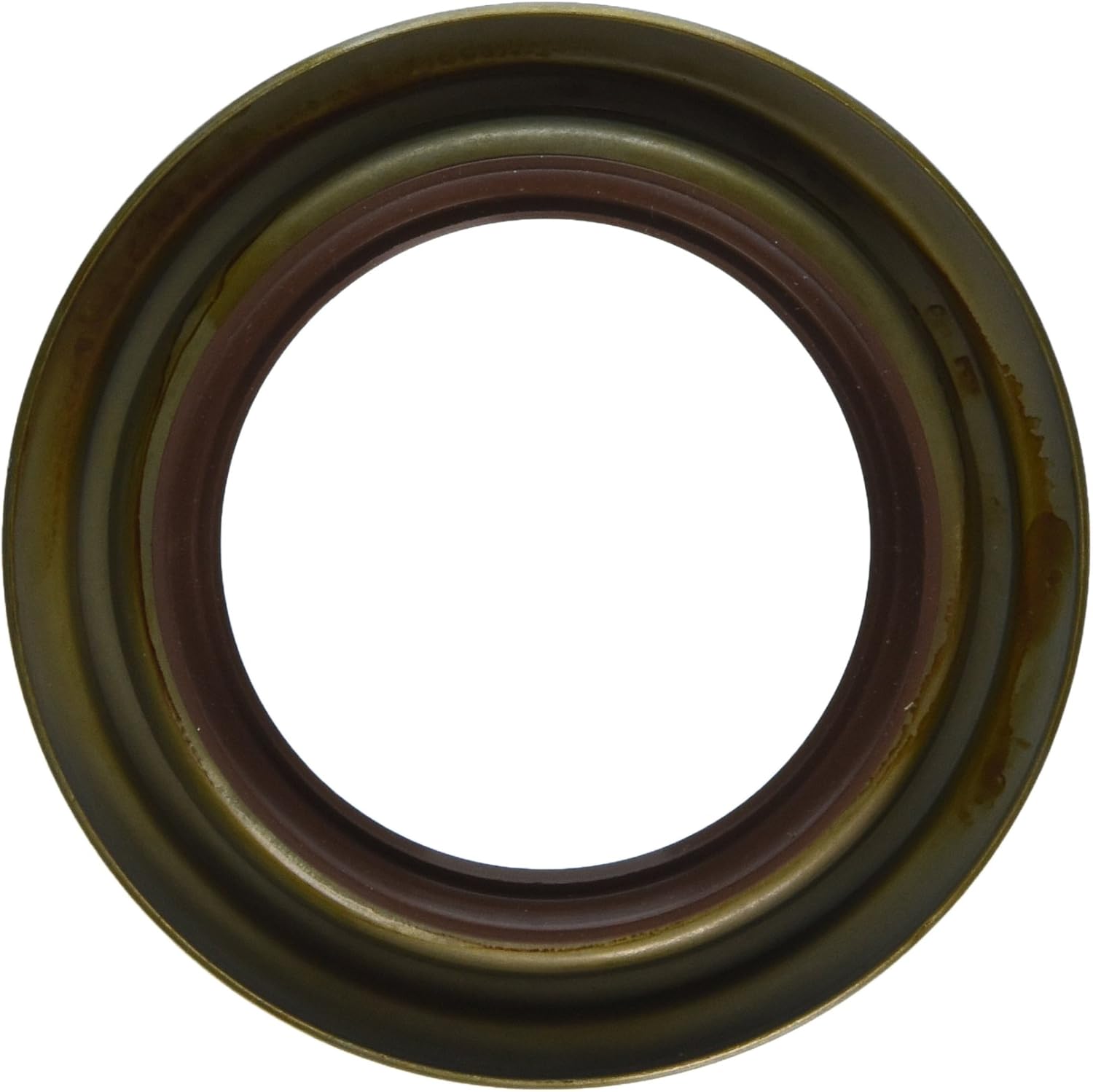

Figur 1: Forside view of the Timken 4525V Seal. This image shows the primary sealing surface and the robust construction designed for durability.
Funktion og ydeevne
The Timken 4525V Seal is engineered to provide a reliable barrier against the ingress of dirt, moisture, and other contaminants, while simultaneously preventing the escape of lubricants. Its design ensures excellent sealing ability and resistance to abrasive materials, contributing to the extended life of the components it protects.
- Prevents Seal Leakage: Designed with precision to maintain a tight seal, minimizing fluid loss.
- Resists Contaminants: Acts as a barrier against dust, dirt, water, and other harmful substances that can damage bearings and other internal components.
- Superior Service Life: Constructed from durable materials to withstand harsh operating conditions and provide long-term performance.
Opretholdelse
Seals are wear components and require periodic inspection. While the Timken 4525V Seal is designed for durability, its lifespan can be affected by operating conditions, environment, and proper installation.
Eftersyn og udskiftning:
- Regelmæssig kontrol: Periodically inspect the area around the seal for any signs of leakage (e.g., oil stains, drips).
- Visuel skade: Look for visible cracks, hardening, or excessive wear on the seal material.
- Udskiftning: If leakage is detected or the seal shows signs of significant wear or damage, it should be replaced immediately to prevent further damage to the system. It is generally recommended to replace seals whenever components they protect (like bearings) are serviced or replaced.
Figur 2: Vinklet view of the Timken 4525V Seal, highlighting its robust construction and sealing surfaces.
Fejlfinding
Most issues with seals are related to improper installation or extreme operating conditions. Here are common problems and their potential causes:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lækage i tætning | Improper installation (cocked, damaged during install), worn seal lip, shaft damage (grooves, corrosion), excessive pressure/temperature, incorrect seal size. | Re-install correctly, replace seal, repair/replace shaft, verify operating conditions, ensure correct seal part number. |
| For tidligt slid | Abrasive contaminants, insufficient lubrication, excessive shaft runout, high temperatures, improper material compatibility. | Improve contamination control, ensure proper lubrication, check shaft alignment, verify temperature limits, use correct seal material for application. |
| Seal Blow-out | Excessive internal pressure, incorrect seal design for pressure application, improper installation. | Verify system pressure, ensure seal is rated for application, re-install correctly. |
Specifikationer
Key specifications for the Timken 4525V Seal:
- Mærke: TIMKEN
- Model: 4525V
- Varens vægt: 3.2 ounce (ca. 90.7 gram)
- Produktdimensioner: 4.9 x 4.9 x 0.8 tommer (ca. 12.4 x 12.4 x 2.0 cm)
- Ydre: Maskinbearbejdet
- Producentens varenummer: 4525V
- ASIN: B000BZ960Y
- Første tilgængelige: 4. november 2005
Figure 3: Timken 4525V Seal shown with approximate dimensional reference, indicating its compact size.
Garanti og support
For information regarding warranty coverage, technical support, or specific application questions for the Timken 4525V Seal, please contact TIMKEN directly through their official website or customer service channels. Always refer to the manufacturer's official documentation for the most accurate and up-to-date warranty terms and support procedures.
Fabrikant: Timken
Webwebsted: www.timken.com (Note: This is a general link and may not lead directly to product support.)
