Indledning
This manual provides instructions for the Taylor Window Thermometer, Model 5153. This weather-resistant thermometer features a large, easy-to-read display and an adjustable offset bracket for multi-directional viewing. It is designed for outdoor use to accurately measure ambient temperature.
Figur 1: Forside view of the Taylor Window Thermometer.
Opsætning og installation
The Taylor Window Thermometer is designed for easy installation on an outdoor surface, typically near a window for convenient viewing. It comes with an offset bracket for versatile mounting.
Monteringsvejledning:
- Vælg placering: Choose an outdoor location that is easily visible from inside your home, such as near a window. Ensure the location is protected from direct sunlight for the most accurate temperature readings.
- Forbered overflade: Clean the mounting surface thoroughly to ensure proper adhesion or secure screw placement.
- Fastgør beslag: The thermometer features an offset bracket. Position the bracket against the desired mounting surface.
- Secure Thermometer: Use appropriate screws (not included) to securely fasten the bracket to the surface. The thermometer can then be attached to this bracket.
- Tilpasse Viewvinkel: The adjustable offset bracket allows for multi-directional viewing. Adjust the thermometer's position on the bracket to optimize visibility from your preferred viewing punkt.

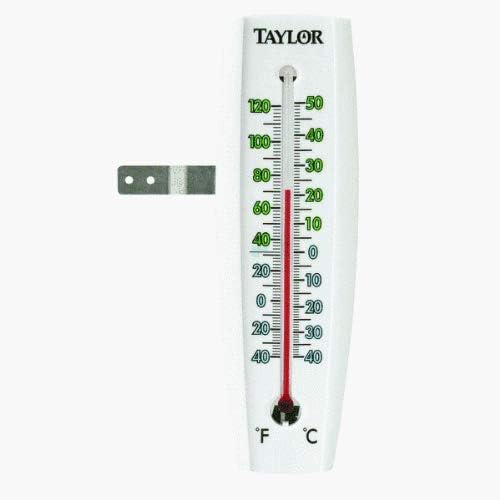

Figur 2: Side view illustrating the offset bracket for mounting.
Figur 3: Eksample of the thermometer mounted for outdoor viewing.
Betjeningsvejledning
The Taylor Window Thermometer is an analog device that requires no batteries or external power. It operates continuously to provide real-time temperature readings.
Aflæsning af temperatur:
- The thermometer displays temperature in both Fahrenheit (°F) and Celsius (°C) scales.
- Locate the red indicator line within the thermometer tube. The top of this line indicates the current ambient temperature.
- Read the corresponding value on either the Fahrenheit scale (typically on one side) or the Celsius scale (typically on the other side) to determine the temperature.
- Ensure the thermometer is positioned for clear visibility of the indicator line and scales.
Pleje og vedligeholdelse
To ensure the longevity and accuracy of your Taylor Window Thermometer, follow these simple care guidelines:
- Rensning: Wipe the thermometer's surface with a soft, damp cloth as needed to remove dust or dirt. Avoid abrasive cleaners that could scratch the display or housing.
- Vejrbestandighed: The thermometer is designed to be weather-resistant and rust-proof. However, extreme weather conditions may affect its appearance over time.
- Placering: While durable, avoid placing the thermometer in locations where it might be subject to physical impact or excessive vibration.
- Opbevaring: If storing the thermometer for an extended period, keep it in a clean, dry place.
Fejlfinding
This analog thermometer is designed for simplicity and reliability. Most issues can be resolved with basic checks.
- Upræcise læsninger:
- Ensure the thermometer is not in direct sunlight, which can cause artificially high readings.
- Verify that the thermometer is not placed near a heat source (e.g., a vent, exhaust fan) or a cold source (e.g., an air conditioner unit).
- Allow sufficient time (at least 15-30 minutes) for the thermometer to acclimate to the ambient outdoor temperature after installation or relocation.
- Liquid Column Separation: If the liquid column appears separated, gently tap the thermometer against your palm a few times. This can help reunite the liquid. If separation persists, the thermometer may be damaged.
- Fysisk skade: Inspect the thermometer for any visible cracks or damage to the glass tube or housing. Damaged units should be replaced.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Taylor |
| Modelnummer | 5153 |
| Display Type | Analog |
| Indendørs/Udendørs brug | Udendørs |
| Ydermateriale | Metal |
| Speciel funktion | Large Display, Offset Bracket |
| Varelængde | 5.5 tommer |
| Temperaturområde | -40°F til 120°F (-40°C til 50°C) |
| Strømkilde | None (Analog) |
| Genanvendelighed | Genanvendelig |
| Vejrbestandig | Ja |
| Rustfri | Ja |
| Produktplejevejledning | Frysersikker |
Garanti og support
Specific warranty information for the Taylor Window Thermometer Model 5153 is not provided in the product details. For warranty claims or technical support, please refer to the official Taylor webhjemmeside eller kontakt deres kundeservice direkte.
