Timex Men's Easy Reader Watch T200419J Instruction Manual

1. Produktet er slutview

The Timex Men's Easy Reader Watch, model T200419J, is designed for clear readability and everyday wear. It features a 35mm silver-tone brass case, a white dial with full Arabic numerals, and a genuine leather strap. Key functionalities include a day and date display, and the Indiglo light-up watch dial for visibility in low light conditions. The watch is water-resistant to 30 meters (100 feet).

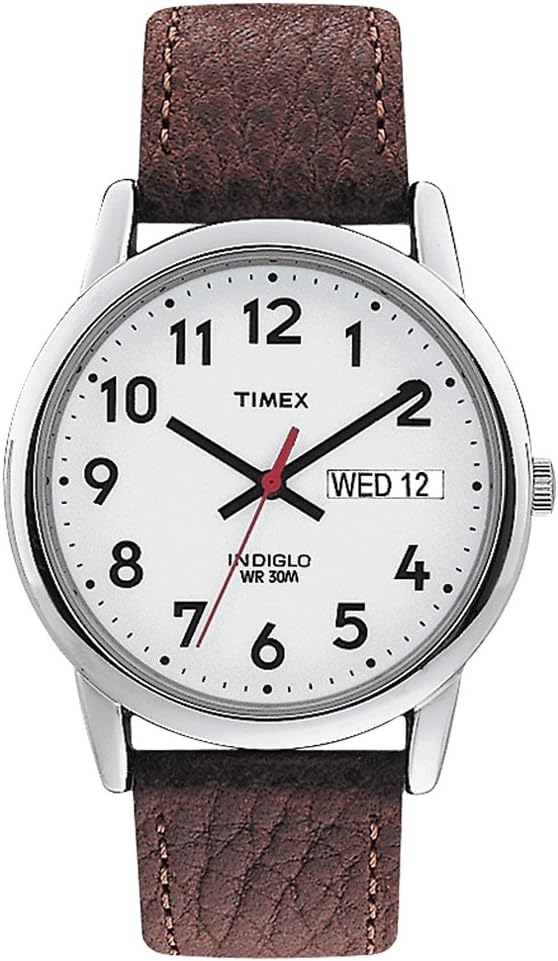

Figur 1: Forside view of the Timex Easy Reader Watch.

Funktioner:

• Adjustable genuine leather strap (18mm) fits up to an 8-inch wrist circumference.
• White easy-to-read dial with full Arabic numerals and a day/date window at 3 o'clock.
• Sølvtonet 35 mm messingurkasse med mineralglas.
• Indiglo light-up watch dial for illumination in low light.
• Vandtæt ned til 30 meter (100 fod), egnet til stænk eller kortvarig nedsænkning, men ikke til svømning eller badning.

2. Opsætning

Indstilling af tid og dato:

The watch features a crown on the side for adjusting settings. Proper manipulation of the crown is essential to avoid damage to the movement.

1. Indstilling af ugedag: Pull the crown out to its outermost position. Rotate the crown clockwise. The day of the week will advance. Continue rotating until the correct day is displayed. This may require rotating through several days to reach the desired setting.
2. Indstilling af dato: Gently push the crown in slightly from its outermost position, so there is a small gap between the crown and the watch case. In this intermediate position, rotate the crown to adjust the date.
3. Indstilling af tid: With the crown still in the outermost position (as for setting the day), rotate it to set the hour and minute hands to the correct time. Ensure AM/PM is correctly set by observing if the date changes when passing midnight.

After setting, always push the crown fully back into its normal position against the watch case to ensure water resistance and proper operation. If storing the watch for an extended period and wishing to conserve battery life, pull the crown out to the outermost position.

Figure 2: Watch crown for setting adjustments.

3. Betjeningsvejledning

Indiglo Night-Light Feature:

The Timex Easy Reader features an Indiglo night-light. To activate the Indiglo, press and hold the crown. The entire watch dial will illuminate, allowing for easy time reading in dark environments. Release the crown to turn off the light.

Vandtæthed:

This watch is water resistant to 30 meters (100 feet). This means it can withstand splashes, rain, or brief immersion in water. It is not designed for swimming, bathing, or diving. Avoid operating the crown while the watch is wet to prevent water entry.

4. Vedligeholdelse

Udskiftning af batteri:

The watch is powered by one Lithium Metal battery (CR2016 cell). When the watch begins to slow down or the Indiglo light dims significantly, it may be time to replace the battery. It is recommended to have battery replacement performed by a qualified watch technician to ensure proper sealing and maintain water resistance.

Figure 3: Watch case back indicating battery type and water resistance.

Rensning:

For at rengøre dit ur skal du tørre urkassen og glasset af med en blød klud.amp cloth. For the leather strap, avoid excessive moisture and harsh chemicals. If the leather becomes wet, allow it to air dry naturally. Regular cleaning helps maintain the watch's appearance.

5. Fejlfinding

• Watch Not Keeping Accurate Time:
  • Ensure the crown is fully pushed in. If the crown is pulled out, the watch will not operate correctly.
  • The battery may be low. Refer to the "Battery Replacement" section.
• Indiglo Light Not Working or Dim:
  • Ensure the crown is pressed firmly.
  • A dim light often indicates a low battery.
• Crown Feels Loose or Detached:
  • If the crown detaches, it may be possible to reinsert it. However, it is recommended to seek professional watch repair to ensure proper function and water resistance.

6. Specifikationer

7. Garanti og support

Timex watches are covered by a limited warranty against manufacturing defects. For specific warranty details, service, or support, please refer to the warranty information included with your purchase or visit the official Timex webwebsted. Gem din købsbevis til garantikrav.

Officiel Timex Webwebsted: www.timex.com
