ELAC Cinema 05 ESP 5.1 Speaker System User Manual

1. Introduktion

This manual provides essential information for the setup, operation, and maintenance of your ELAC Cinema 05 ESP 5.1 Speaker System. This compact surround sound system is designed to deliver a balanced audio experience for home cinema environments.

The system comprises the SUB 05 ESP subwoofer, one Cinema 05 CENTER speaker, and four Cinema 05 SAT mini-satellite speakers. All components are engineered for optimal performance and durability.

2. Sikkerhedsinstruktioner

• Strømforsyning: Ensure the subwoofer is connected to a power outlet with the correct voltage. Disconnect the power cord during electrical storms or when unused for long periods.
• Ventilation: Bloker ikke ventilationsåbninger. Sørg for tilstrækkelig plads omkring subwooferen for korrekt luftgennemstrømning.
• Fugt og varme: Do not expose the system to rain, moisture, dripping, or splashing. Keep away from heat sources such as radiators, heat registers, stoves, or other apparatus (including ampløftere), der producerer varme.
• Placering: Place speakers on stable surfaces to prevent them from falling. Avoid placing heavy objects on the speakers.
• Service: Forsøg ikke selv at servicere dette produkt. Overlad al service til kvalificeret servicepersonale.
• Magnetisk afskærmning: All speakers are magnetically shielded. However, maintain a reasonable distance from sensitive electronic devices if interference is observed.

3. Pakkens indhold

Kontroller venligst, at alle komponenter er til stede i emballagen:

• 1x ELAC SUB 05 ESP Subwoofer
• 1x ELAC Cinema 05 CENTER Speaker
• 4x ELAC Cinema 05 SAT Mini-Satellite Speakers
• Strømkabel til subwoofer
• Speaker cables (may vary by region/retailer)
• Wall mounting brackets for center speaker (included)
• Mounting provisions for satellite speakers

4. Opsætning

4.1 Udpakning

Carefully remove all components from their packaging. Retain the packaging for future transport or storage.

4.2 Højttalerplacering

Optimal speaker placement is crucial for achieving the best sound quality in a 5.1 surround sound configuration.

Figur 1: Overview of the ELAC Cinema 05 ESP 5.1 Speaker System components.

• Front Left/Right Satellites (Cinema 05 SAT): Place these speakers equidistant from your primary listening position, typically at ear level. They should form an equilateral triangle with the listening position.
• Center Speaker (Cinema 05 CENTER): Position the center speaker directly above or below your television/screen, centered horizontally. Its primary role is dialogue reproduction.
• Surround Left/Right Satellites (Cinema 05 SAT): Place these speakers to the sides or slightly behind the listening position, typically slightly above ear level.
• Subwoofer (SUB 05 ESP): The subwoofer's placement is less critical for imaging but can significantly impact bass response. Experiment with different locations in the room, often in a corner or along a wall, to find the best bass balance.

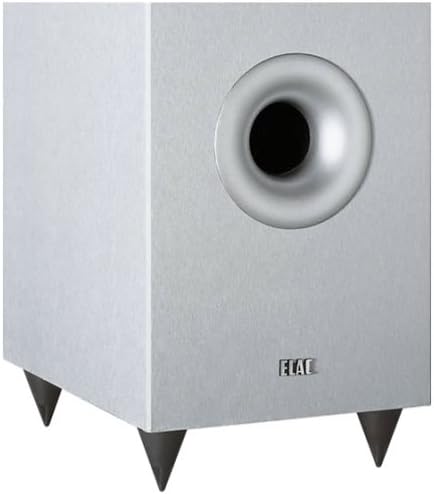

Figur 2: Forside view of the ELAC SUB 05 ESP Subwoofer, featuring its down-firing woofer and front bass reflex port.

Figur 3: Forside view of an ELAC Cinema 05 SAT Satellite Speaker, showcasing dens kompakte design.

Figur 4: Forside view of the ELAC Cinema 05 CENTER Speaker, designed for clear dialogue.

4.3 Vægmontering

The Cinema 05 SAT satellites and Cinema 05 CENTER speaker are designed for flexible placement, including wall mounting.

• Cinema 05 SAT: These speakers feature a hanging provision for unobtrusive wall mounting. Optional horizontal swivel wall mounts are available (sold separately).
• Cinema 05 CENTER: A horizontal and vertical wall mount is included with the center speaker for versatile installation.

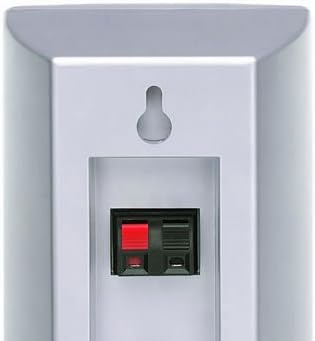

Figur 5: Bagside view of an ELAC Cinema 05 SAT Satellite Speaker, showing the keyhole mount and speaker terminals.

Figur 6: Bagside view of the ELAC Cinema 05 CENTER Speaker, illustrating the included wall mount attachment.

4.4 Forbindelser

Sørg for, at din AV-receiver eller ampapparatet er slukket, før der foretages nogen tilslutninger.

• Satellite and Center Speakers: Connect the Cinema 05 SAT and Cinema 05 CENTER speakers to the corresponding speaker terminals on your AV receiver using appropriate speaker wire. Ensure correct polarity (+ to + and - to -) for all connections.
• Subwoofer (SUB 05 ESP): Connect the subwoofer to your AV receiver's LFE (Low-Frequency Effects) or Subwoofer Pre-Out jack using a single RCA cable. If your receiver does not have an LFE output, use the Line Level inputs.
• Strømtilslutning: Once all audio connections are made, connect the SUB 05 ESP subwoofer to a wall outlet using the provided power cable.

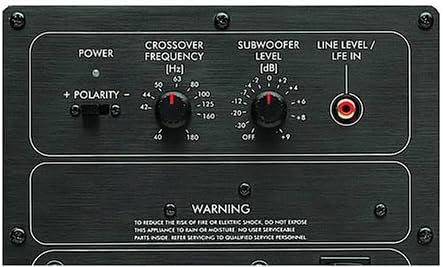

Figure 7: Rear control panel of the ELAC SUB 05 ESP Subwoofer, showing power input, LFE/Line In, and control knobs.

5. Betjening

5.1 Tænd/sluk

The SUB 05 ESP subwoofer has a power switch on its rear panel. Turn it on after connecting all cables. Many AV receivers can trigger the subwoofer to turn on automatically when a signal is detected.

5.2 Subwoofer Controls

The SUB 05 ESP features several controls on its rear panel to integrate it seamlessly with your main speakers and room acoustics.

• Crossover-frekvens (Hz): This knob determines the highest frequency the subwoofer will reproduce. Adjust it to blend smoothly with your satellite speakers. A common starting point is around 80-100 Hz, but refer to your AV receiver's recommendations or experiment for the best sound.
• Subwoofer Level (dB): This control adjusts the subwoofer's output volume. Start at a moderate level and fine-tune it to match the volume of your satellite speakers. Avoid setting it too high, which can result in boomy or overpowering bass.
• Polarity (+ / -): This switch adjusts the phase of the subwoofer's output. Experiment with both positions while listening to music with strong bass. Choose the setting that provides the most impactful and coherent bass response.
• ESP (Electronic Stabilization Program): The SUB 05 ESP features ELAC's patented ESP technology, which prevents mechanical overload and distortion, ensuring a clean bass spectrum even at high volumes. This is an automatic feature and does not require user adjustment.

5.3 Indledende lydjustering

After connecting and powering on your system, use your AV receiver's automatic calibration feature (if available) or manually adjust speaker levels and distances to achieve a balanced sound field.

6. Vedligeholdelse

• Rensning: Use a soft, dry cloth to clean the speaker cabinets. Do not use liquid cleaners, aerosols, or abrasive materials, as these may damage the finish.
• Gitre: The speaker grilles can be gently removed for cleaning if necessary. Use a soft brush or vacuum cleaner with a brush attachment to remove dust.
• Undgå direkte sollys: Prolonged exposure to direct sunlight can cause discoloration or damage to the speaker cabinets.

7. Fejlfinding

• Ingen lyd fra højttalerne:
  • Check all speaker wire connections at both the speaker and receiver ends for proper polarity and secure contact.
  • Ensure the AV receiver is powered on and the correct input source is selected.
  • Verify that the speaker levels in your receiver's settings are not set to minimum or muted.
• Ingen lyd fra subwooferen:
  • Check the subwoofer's power cable connection and ensure the power switch is in the 'ON' position.
  • Verify the RCA cable connection between the subwoofer and the receiver's LFE/Subwoofer Pre-Out.
  • Adjust the 'Subwoofer Level' knob on the subwoofer's rear panel.
  • Check your AV receiver's settings to ensure the subwoofer output is enabled and the crossover frequency is set appropriately.
• Forvrænget eller uklar lyd:
  • Sørg for, at højttalerledningerne ikke er flossede eller kortslutter.
  • Reduce the volume level on your receiver or amplivligere.
  • Kontroller kildens lydkvalitet.
• Brummende støj:
  • Sørg for, at alle forbindelser er sikre.
  • Try connecting the subwoofer to a different electrical outlet.
  • If using a long RCA cable, consider a higher quality, shielded cable.

8. Specifikationer

9. Garanti og support

9.1 Garantioplysninger

The ELAC Cinema 05 ESP 5.1 Speaker System comes with a Begrænset garanti. Please refer to the warranty card included with your product or visit the official ELAC webwebstedet for detaljerede vilkår og betingelser vedrørende dækning, varighed og kravprocedurer.

9.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact ELAC customer support. Contact information can typically be found on the official ELAC webwebstedet eller i din produktdokumentation.

Når du kontakter support, bedes du have dit produktmodelnummer (35322) og købsoplysninger klar.
