Indledning
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Victorinox Bamix-Mono 133 Hand Mixer. Please read this manual thoroughly before first use and keep it for future reference.
Produkt overview
The Bamix-Mono 133 is a versatile hand mixer designed for various kitchen tasks, including aerating, blending, and chopping. It features a durable AC motor and two speed settings for optimal performance.
Figure 1: The Bamix-Mono 133 Hand Mixer with its included accessories, including the main unit, three interchangeable blades, a mounting bracket, and a 600 ml beaker.
Nøglekomponenter:
- Hovedenhed: The motor housing with control buttons and the stainless steel drive shaft.
- Multifunktionsklinge: Til hakning, purering og blanding.
- Whisk Blade: For aerating and whipping.
- Beater Blade: For blending and emulsifying.
- 600 ml Beaker: Til blanding af ingredienser.
- Monteringsbeslag: Til praktisk opbevaring.
Figur 2: En detaljeret view of the Bamix-Mono 133 Hand Mixer's main unit, highlighting the ergonomic handle and control buttons.
Sikkerhedsinstruktioner
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.
- Læs alle instruktioner før brug.
- Nedsænk ikke motorenheden i vand eller andre væsker.
- Træk stikket ud af stikkontakten, når det ikke er i brug, før du sætter dele på eller af, og før rengøring.
- Undgå kontakt med bevægelige dele.
- Brug ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet tabt eller beskadiget på nogen måde.
- Brug af tilbehør, der ikke anbefales eller sælges af producenten, kan forårsage brand, elektrisk stød eller personskade.
- Lad ikke ledningen hænge ud over kanten af bordet eller bordpladen eller røre ved varme overflader.
- Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit.
- Bladene er skarpe. Håndter med forsigtighed.
Opsætning
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller transport.
- Indledende rengøring: Rengør alle dele, der kommer i kontakt med fødevarer, inden første brug. Se afsnittet "Vedligeholdelse og rengøring" for detaljerede instruktioner.
- Attaching Blades: Select the appropriate blade for your task. Align the blade with the drive shaft and push it firmly onto the shaft until it clicks into place. Ensure the appliance is unplugged before attaching or removing blades.
- Mounting Bracket Installation (Optional): The included mounting bracket can be installed on a wall or inside a cabinet for convenient storage. Use appropriate hardware (not included) to secure the bracket.

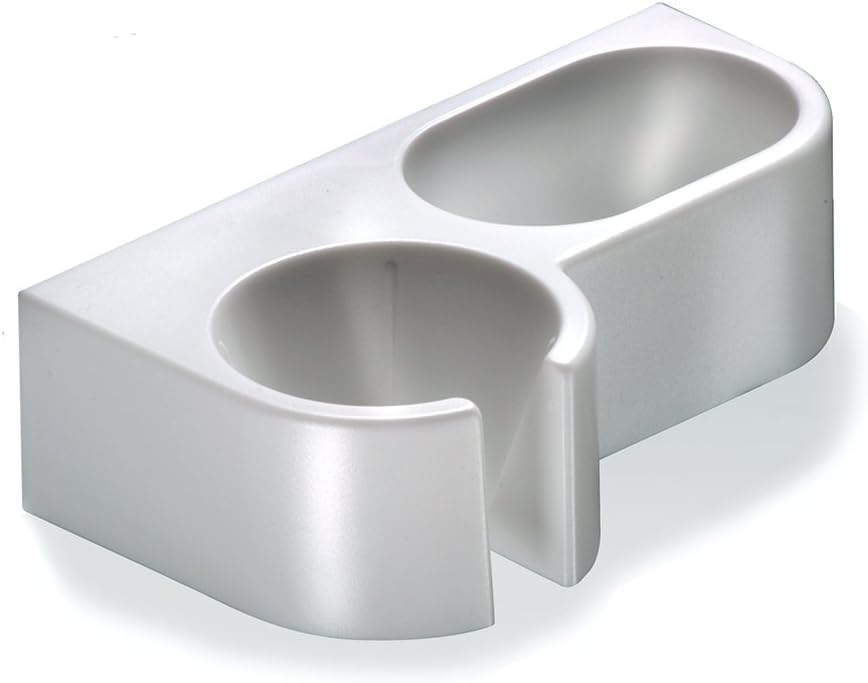

Figure 3: The Bamix-Mono 133 Hand Mixer's mounting bracket, designed for wall or cabinet installation to keep the unit and blades organized.
Betjeningsvejledning
The Bamix-Mono 133 offers two speed settings for various blending needs.
- Forberedelse: Place ingredients into the 600 ml beaker or a suitable pot/bowl. Ensure the liquid level is appropriate for blending without splashing.
- Nedsænkning: Immerse the hand mixer's stainless steel drive shaft into the ingredients. The unit can be immersed up to the white cone area where it begins to taper from the top.
- Tænd: Plug the hand mixer into a suitable power outlet (240V).
- Vælg hastighed:
- Tryk på lower button for Speed 1 (8,000 RPM).
- Tryk på upper button for Speed 2 (12,000 RPM).
- Blandingsteknik: Move the mixer gently up and down or in circular motions to ensure even blending. For best results, keep the blade submerged during operation.
Figure 4: The Bamix-Mono 133 Hand Mixer being used to blend ingredients directly in a pot, demonstrating its immersion capability.
- Færdiggørelse: Once blending is complete, release the button to turn off the mixer.
- Tag stikket ud: Always unplug the appliance from the power outlet immediately after use.
Blade Usage Guide:
| Bladtype | Anbefalet brug | Hastighed |
|---|---|---|
| Multi-Purpose Blade | Chopping raw vegetables, pureeing soups, mixing batters, crushing ice. | Hastighed 2 (Høj) |
| Pisk Blade | Whipping cream, beating egg whites, emulsifying dressings. | Speed 1 (Low) for light mixtures, Speed 2 (High) for stiff peaks. |
| Beater Blade | Blending thick sauces, mayonnaise, mashed potatoes, light batters. | Hastighed 1 (lav) |
Vedligeholdelse og rengøring
Proper cleaning ensures the longevity and hygiene of your hand mixer.
- Øjeblikkelig rengøring: After each use, unplug the unit. Remove the blade. Rinse the blade and the stainless steel shaft under running water. For quick cleaning, immerse the shaft and blade in a container of warm, soapy water and briefly run the mixer on low speed.
- Dyb rengøring: For more thorough cleaning, the blades and beaker can be washed by hand with warm, soapy water or placed in the dishwasher (top rack only for beaker).
- Motorenhed: Tør motorenheden af med adamp klæde. Nedsænk aldrig motorenheden i vand eller anden væske.
- Tørring og opbevaring: Ensure all parts are completely dry before reassembling or storing. Store the hand mixer and its accessories in a dry place, ideally using the provided mounting bracket.
Fejlfinding
Se dette afsnit for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Mixeren tænder ikke. | Not plugged in; power outlet issue; unit overheated. | Ensure plug is securely in outlet. Test outlet with another appliance. If overheated, unplug and let cool for 30 minutes before restarting. |
| Blades not spinning or spinning slowly. | Blade not properly attached; too much food; food too thick. | Unplug and reattach blade firmly. Reduce quantity of food. Add more liquid to thin mixture. |
| Usædvanlig støj eller vibrationer. | Blade not properly attached; foreign object caught in blade. | Unplug and check blade attachment. Carefully inspect and remove any obstructions. If problem persists, contact customer support. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Bamix |
| Modelnummer | 102.206 |
| Farve | Hvid |
| Speciel funktion | Aftageligt blad |
| Kapacitet | 600 Milliliters (beaker) |
| Inkluderede komponenter | Bamix mono unit, 3 blades (aerating, blending, chopping), mounting bracket, 600 ml beaker |
| Stil | Mono |
| Anbefalede anvendelser | Blending, Chopping |
| Strømkilde | Elektrisk med ledning |
| Antal hastigheder | 2 (8,000 RPM and 12,000 RPM) |
| Voltage | 240V |
| Bladmateriale | Rustfrit stål |
| Produktdimensioner | 2.5 x 2.5 x 13.5 tommer |
| Varens vægt | 2.07 pund |
| Dato først tilgængelig | 9. september 2003 |
Garantioplysninger
The Bamix-Mono 133 Hand Mixer comes with a limited warranty:
- Dele: 2-year warranty on parts.
- Arbejdskraft: 3-year warranty on labor.
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or contact customer support.
Kundesupport
For further assistance, technical support, or warranty inquiries, please contact Bamix customer service. Contact information can typically be found on the manufacturer's official webwebstedet eller på produktemballagen.
Bemærk: Specifikke kontaktoplysninger er ikke angivet i denne manual.
