1. Introduktion
Thank you for choosing the Tamiya 1/32 F-15E Strike Eagle Bunker Buster model kit. This precision static model offers an engaging and detailed building experience, allowing you to recreate one of the most iconic modern combat aircraft. This manual provides essential information and step-by-step guidance to ensure a successful and enjoyable assembly process. Please read all instructions carefully before beginning.
2. Sikkerhedsoplysninger
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (Proposition 65)
- This model kit contains small parts and is not suitable for children under 3 years due to choking hazards.
- Always use adhesives and paints in a well-ventilated area. Avoid inhaling fumes.
- Keep all tools, adhesives, and paints out of reach of young children.
- Exercise caution when using sharp tools such as hobby knives and side cutters.
- Wear appropriate personal protective equipment, such as gloves and safety glasses, when handling chemicals.
3. Pakkens indhold
The Tamiya 1/32 F-15E Strike Eagle Bunker Buster model kit includes the following components:
- Plastic model parts (on sprues)
- Brugsanvisning
- Decals or stickers
- Metal landing gear struts
- Synthetic rubber tires
- Two crew figures
4. Recommended Tools
The following tools are recommended for the assembly of your Tamiya F-15E Strike Eagle model kit. Using appropriate tools will enhance the building experience and the quality of the finished model.
Image: Essential tools for model kit construction.
| Varenr. | Beskrivelse |
|---|---|
| 300074003 | Vinklede pincetter |
| 300074013 | Skærekniv |
| 300074031 | Decal Scissors |
| 300074035 | Pointed Side Cutters for Plastic |
| 300087066 | Basic Brush Set |
| 300087031 | Masking Tape 10mm with Dispenser |
| 300087003 | Plastic Cement 40ml Tamiya |
| 300087038 | Extra Thin Plastic Cement 40ml Tamiya |
| 300087135 | Mark Fit (Strong) Decal Softener 40ml |
| 300087193 | Decal Adhesive Soft / Adhesive 10ml |
5. Paints Required
Achieving an authentic finish for your F-15E Strike Eagle requires specific paint colors. Tamiya offers a wide range of acrylic and spray paints suitable for this model. Refer to the images below for recommended Tamiya XF (flat) and X (gloss) acrylic paints, as well as TS (spray) paints.
Image: Tamiya XF-Acrylic Flat Paints.
| Varenr. | Beskrivelse |
|---|---|
| 300081301 | XF-1 Flat Black |
| 300081302 | XF-2 Flat White |
| 300081303 | XF-3 Flat Yellow |
| 300081315 | XF-15 Flat Flesh |
| 300081316 | XF-16 Flat Aluminum |
| 300081319 | XF-19 Sky Grey |
| 300081322 | XF-22 Royal Light Grey |
| 300081323 | XF-23 Light Blue |
| 300081349 | XF-49 Khaki |
| 300081351 | XF-51 Khaki Drab (Grey-Brown) |
| 300081352 | XF-52 Flat Earth |
| 300081354 | XF-54 Dark Sea Grey |
| 300081356 | XF-56 Metallic Grey |
| 300081357 | XF-57 Buff (Yellow-Brown) |
| 300081360 | XF-60 Dark Yellow |
| 300081361 | XF-61 Dark Green |
| 300081362 | XF-62 Olive Drab |
| 300085026 | TS-26 Pure White Gloss |
| 300085030 | TS-30 Silver Gloss |
| 300085048 | TS-48 Gunship Grey |
Image: Tamiya X-Acrylic Gloss Paints and Thinner.
| Varenr. | Beskrivelse |
|---|---|
| 300081001 | X-1 Black Gloss |
| 300081002 | X-2 White Gloss |
| 300081007 | X-7 Red Gloss |
| 300081010 | X-10 Gun Metal Gloss |
| 300081011 | X-11 Chrome Silver Gloss |
| 300081012 | X-12 Gold Leaf Gloss |
| 300081013 | X-13 Metallic Blue Gloss |
| 300081018 | X-18 Semi-Gloss Black |
| 300081023 | X-23 Clear Blue Gloss |
| 300081025 | X-25 Clear Green Gloss |
| 300081026 | X-26 Clear Orange Gloss |
| 300081027 | X-27 Clear Red Gloss |
| 300081028 | X-28 Park Green Gloss |
| 300081020 | X-20A Thinner 23ml Acrylic |
6. Monteringsvejledning
Follow the detailed diagrams and instructions provided in the kit's printed manual for precise assembly. The following outlines the general steps involved in building your F-15E Strike Eagle.
6.1. Indledende forberedelse
- Carefully remove parts from the sprues using side cutters.
- Clean any flash or mold lines using a hobby knife or sandpaper.
- Test fit parts before applying adhesive to ensure proper alignment.
6.2. Cockpit and Interior Assembly
Begin by assembling the detailed cockpit, including the pilot and weapon systems officer figures if desired. Pay close attention to painting the interior components before final assembly.
Image: Detailed cockpit and forward fuselage section with access ladder.
Image: Close-up of the open canopy and crew figures.
6.3. Fuselage and Wing Assembly
Assemble the main fuselage halves, ensuring a tight fit. Integrate the wings and tail sections according to the instructions. The kit features robust construction with screws for key structural points like the fuselage and main wings.
6.4. Landing Gear and External Stores
Install the metal landing gear struts and rubber tires. Attach the various external stores, including fuel tanks, bombs, and missiles. The kit provides a wide array of ordnance for customization.

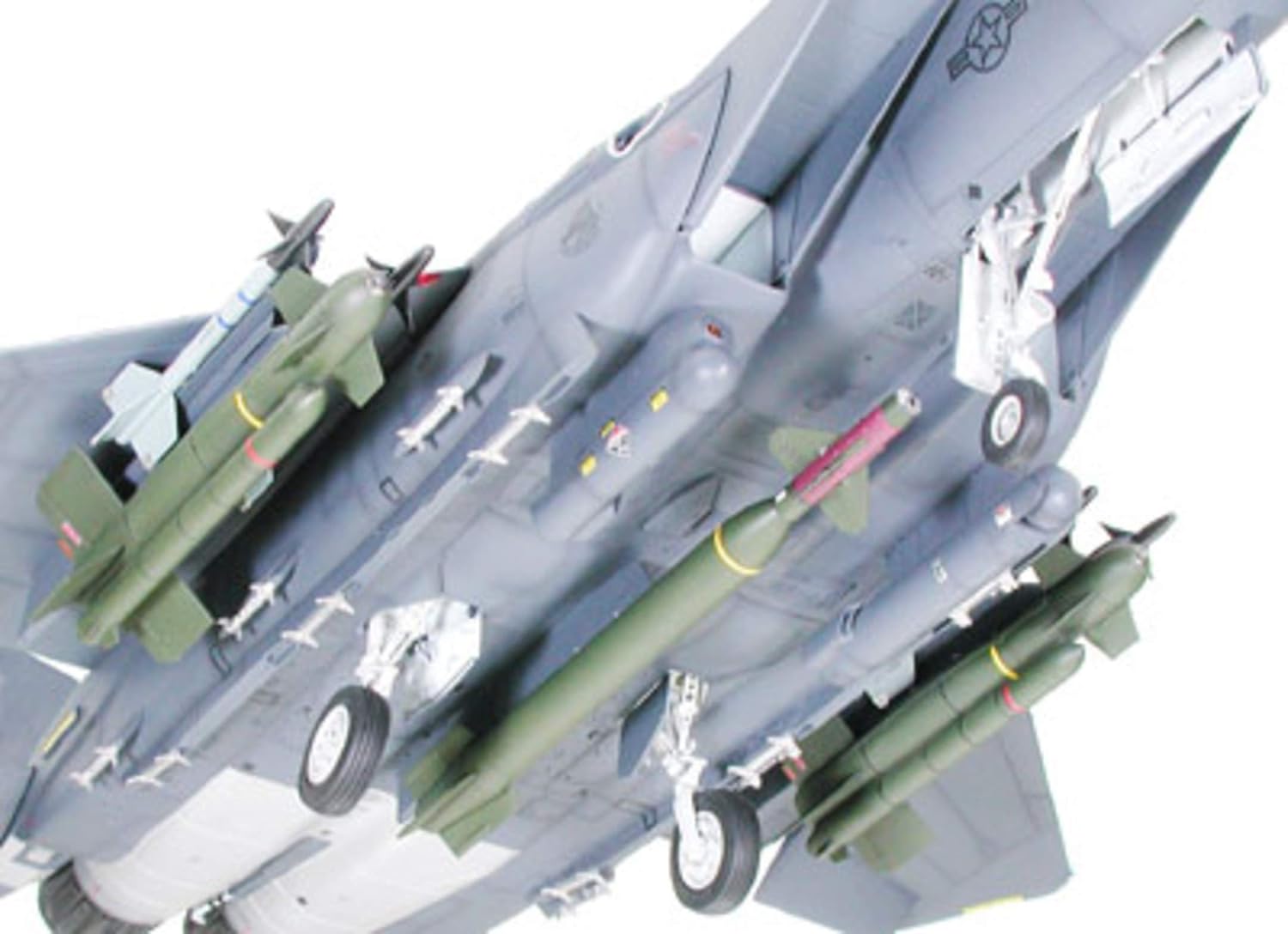

Image: Undercarriage and external ordnance.
Image: Full array of weaponry and external stores.
6.5. Painting and Decals
Apply paints according to your chosen scheme, referring to the paint guide in the kit manual. Once painting is complete and dry, apply the decals using Tamiya Mark Fit or similar decal softeners for a seamless finish.
Billede: Bagside view of the completed model with markings.
6.6. Final Assembly and Display
Attach any remaining small parts, such as antennas or pitot tubes. Choose your preferred display configuration, such as gear down for static display or gear up for in-flight presentation (requires a separate stand, not included).
Image: Completed Tamiya 1/32 F-15E Strike Eagle Bunker Buster model.
7. Display and Posing Options
The Tamiya F-15E kit offers various options for displaying your finished model:
- Ground Display: Utilize the detailed metal landing gear and rubber tires for a realistic parked aircraft appearance.
- In-Flight Display: The kit can be assembled with landing gear retracted for an in-flight pose. A suitable display stand (sold separately) would be required.
- Weaponry Configuration: Choose from a wide selection of bombs, missiles, and external fuel tanks to customize your F-15E's loadout.
- Open/Closed Canopy: The canopy can typically be posed in either an open or closed position, allowing for a view af det detaljerede cockpit.
8. Vedligeholdelse
To ensure the longevity and appearance of your finished model, follow these maintenance guidelines:
- Støvning: Regularly dust the model with a soft, dry brush or a can of compressed air to prevent dust buildup.
- Rensning: For stubborn dirt, gently wipe with a soft cloth lightly dampened with water. Avoid harsh chemicals or abrasive cleaners, as these can damage paint and decals.
- Opbevaring: Store the model in a stable environment, away from direct sunlight, extreme temperatures, and high humidity, which can cause warping or paint fading.
- Håndtering: Handle the model by its sturdy parts, such as the fuselage or wings, to avoid damaging delicate components like antennas or landing gear.
9. Fejlfinding af almindelige problemer
Here are some common issues encountered during model building and their potential solutions:
- Poor Part Fit: If parts do not fit perfectly, gently sand or trim the mating surfaces. Test fit frequently.
- Visible Seams: Use plastic putty to fill any gaps or seams after gluing. Once dry, sand smooth and prime before painting.
- Malingsproblemer: Ensure surfaces are clean and dry before painting. Apply thin coats to avoid brush marks or runs. Allow adequate drying time between coats.
- Forsølvning af mærkater: Apply decals to a gloss surface. Use decal setting solutions (like Tamiya Mark Fit) to help decals conform to surfaces and eliminate air bubbles.
- Broken Small Parts: If a small part breaks, attempt to re-attach it with a small amount of plastic cement or super glue. For very delicate parts, consider replacing with stretched sprue or wire.
10. Produktspecifikationer
| Specifikation | Detalje |
|---|---|
| Mærke | TAMIYA |
| Modelnavn | TAM60312 |
| Varemodelnummer | TMYTAM60312 |
| Skala | 1/32 |
| Materiale | Plast |
| Varens vægt | 2.2 pund (1 kilo) |
| Produktdimensioner | 12 x 12 x 5 tommer |
| Inkluderede komponenter | Model parts, instructions, decals or stickers |
| Producent anbefalet alder | Adult (4 years and up is listed, but complexity suggests adult) |
| UPC | 760488153956 |
11. Support og garanti
Tamiya products are known for their quality and precision. If you encounter any issues or require assistance with your model kit, please refer to the contact information provided in the original kit packaging or visit the official Tamiya webwebsted for kundesupport.
While specific warranty details are not provided here, Tamiya stands by the quality of its products. For any manufacturing defects or missing parts, please contact Tamiya customer service directly.
For additional resources and community support, consider joining online model building forums or groups dedicated to Tamiya kits.
