Produkt overview
The Middle Atlantic Products Vent Panel is designed to provide efficient ventilation and a clean aesthetic for rack-mounted equipment. Constructed from 16-gauge steel with a black powder coat finish, it features a tight perforation pattern for optimal airflow while maintaining structural integrity. This specific model is a 1-space unit, suitable for standard equipment racks.

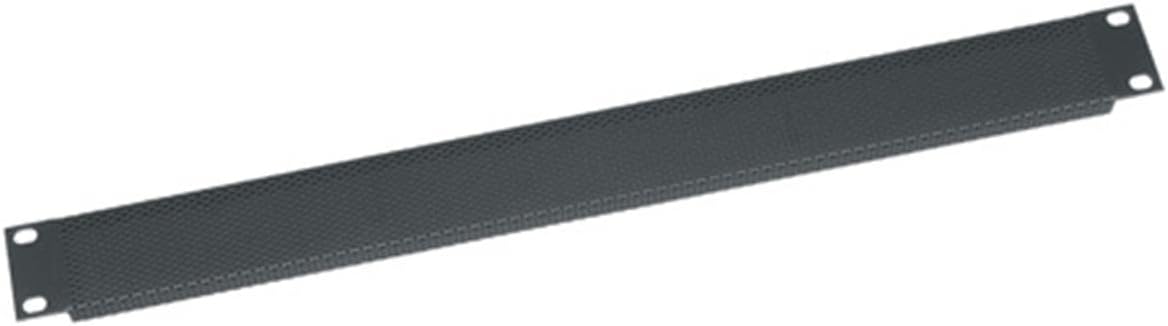

Billede: Forside view of the Middle Atlantic 1-Space Vent Panel, showcasing its perforated design and black finish.
Opsætning og installation
The vent panel is designed for easy installation into standard 19-inch equipment racks. Follow these steps for proper setup:
- Forberedelse: Ensure your equipment rack has available 1U (one rack unit) space. Identify the desired location for the vent panel.
- Monteringshardware: Use appropriate rack screws and cage nuts (not included) that match your rack's threading (typically 10-32 or 12-24).
- Placering: Align the mounting holes on the vent panel with the corresponding holes on the rack rails.
- Sikring: Insert rack screws through the panel's mounting holes and into the rack rails. Tighten the screws evenly to secure the panel firmly in place. Do not overtighten.
Billede: Vinklet view of the Middle Atlantic 1-Space Vent Panel, highlighting its flanged edges and mounting points.
Driftsprincipper
The Middle Atlantic Vent Panel functions passively to facilitate airflow within an equipment rack. Its primary purpose is to:
- Promote Air Circulation: The perforated design allows for the free movement of air, helping to dissipate heat generated by active equipment.
- Maintain Rack Integrity: It fills unused rack spaces, preventing hot air recirculation and maintaining a consistent airflow path from front to back or bottom to top.
- Enhance Aesthetics: Provides a clean, finished look to the rack by covering empty spaces.
No active operation or power is required for this component.
Opretholdelse
The vent panel requires minimal maintenance to ensure continued performance and appearance:
- Rensning: Periodically wipe the surface with a soft, dry cloth to remove dust. For stubborn marks, a slightly damp en klud med mild sæbe kan bruges, efterfulgt af tørring. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Occasionally inspect the panel for any signs of damage or loose mounting screws. Ensure the perforations remain clear of obstructions.
Fejlfinding
As a passive component, troubleshooting for the vent panel is straightforward:
- Panelet er løst:
- Check if mounting screws are properly tightened.
- Ensure correct size cage nuts are used in the rack rails.
- Reduceret luftstrøm:
- Inspect perforations for dust buildup or obstructions. Clean as necessary.
- Verify that the overall rack ventilation system (fans, other panels) is functioning correctly.
- Kosmetisk skade:
- Minor scratches can sometimes be touched up with a compatible black paint. For significant damage, replacement may be considered.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | B0002D0ERY |
| Rack plads | 1U (1 Rack Unit) |
| Perforation Size | 1/16" holes (tight pattern) |
| Materiale | 16-gauge stål |
| Slutte | Sort pulvercoat |
| Varens vægt | 8.8 ounce |
| Første ledige dato | 16. juli 2004 |
Garanti og support
For information regarding product warranty, technical support, or replacement parts, please contact Middle Atlantic Products directly through their official website or customer service channels. Refer to the model number B0002D0ERY when inquiring about this specific vent panel.
Note: Warranty terms and conditions may vary. Please consult the manufacturer's official documentation for the most current information.
